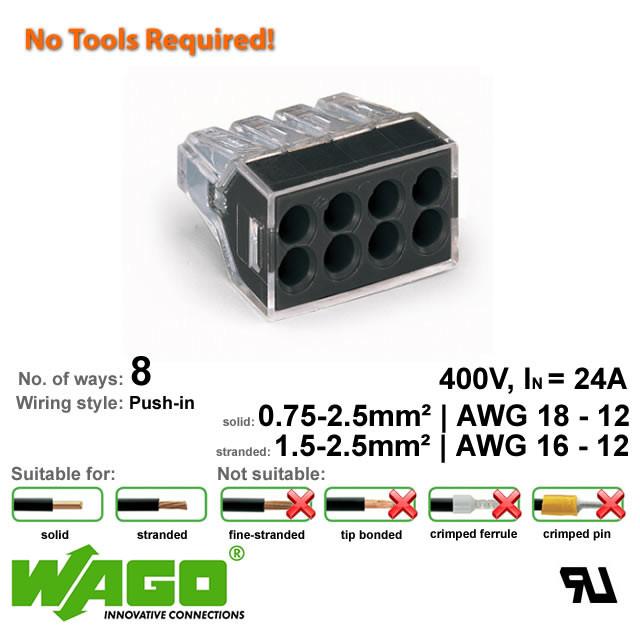

Wago 773-108 Push Wire Connector - 8 Way
Please Login for Pricing
Description
Description
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.
It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::
2.5 mm² = 16 A
4 mm² = 22 A
Safety information 1:
in grounded power lines
Safety information 2:
When using conductors of the same diameter, 0.75 mm²/18 AWG cross-section is also possible.
Specifications
Specifications
-
BrandWago
-
SeriesWago Connector
-
Rated Current24 Ampere
-
Warranty1 Year
-

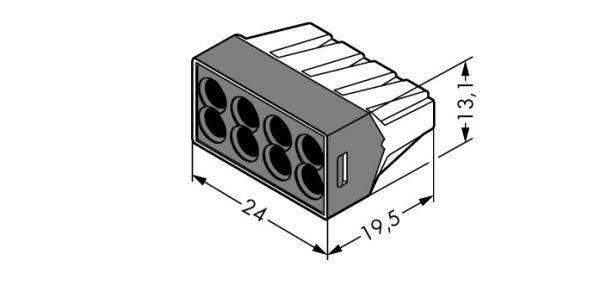

Length1.95 cm
-
Width2.4 cm
-
Height1.31 cm
-
Weight0.06 kg
