Effective communication requires a common language and a reliable method of delivery. This principle is as true for industrial power systems as it is for human interaction. As systems become more complex, simple signals like LED status lights or "Power Good" triggers are no longer enough. Modern users require real-time data and the ability to control multiple units simultaneously without a tangled web of wiring.
To solve these challenges, the industry has turned to digital communication buses—specifically PMBus and CANBus.
Moving Beyond Traditional Monitoring
In traditional setups, monitoring a power supply often involves individual wires for every function: one for voltage modulation, another for status signals, and more for parallel control. This "analog" approach leads to:
- Wiring Complexity: A high volume of cables that increases the risk of connection errors.
- Limited Data: You can see if a unit is working, but you can’t see how it is performing (e.g., precise temperature or internal load levels).
- Signal Degradation: Long-distance analog signals are prone to interference, leading to poor system stability.
Digital buses consolidate these functions into just a few wires, offering a "smart" solution for power management.
PMBus: The Standard for Data-Rich Environments

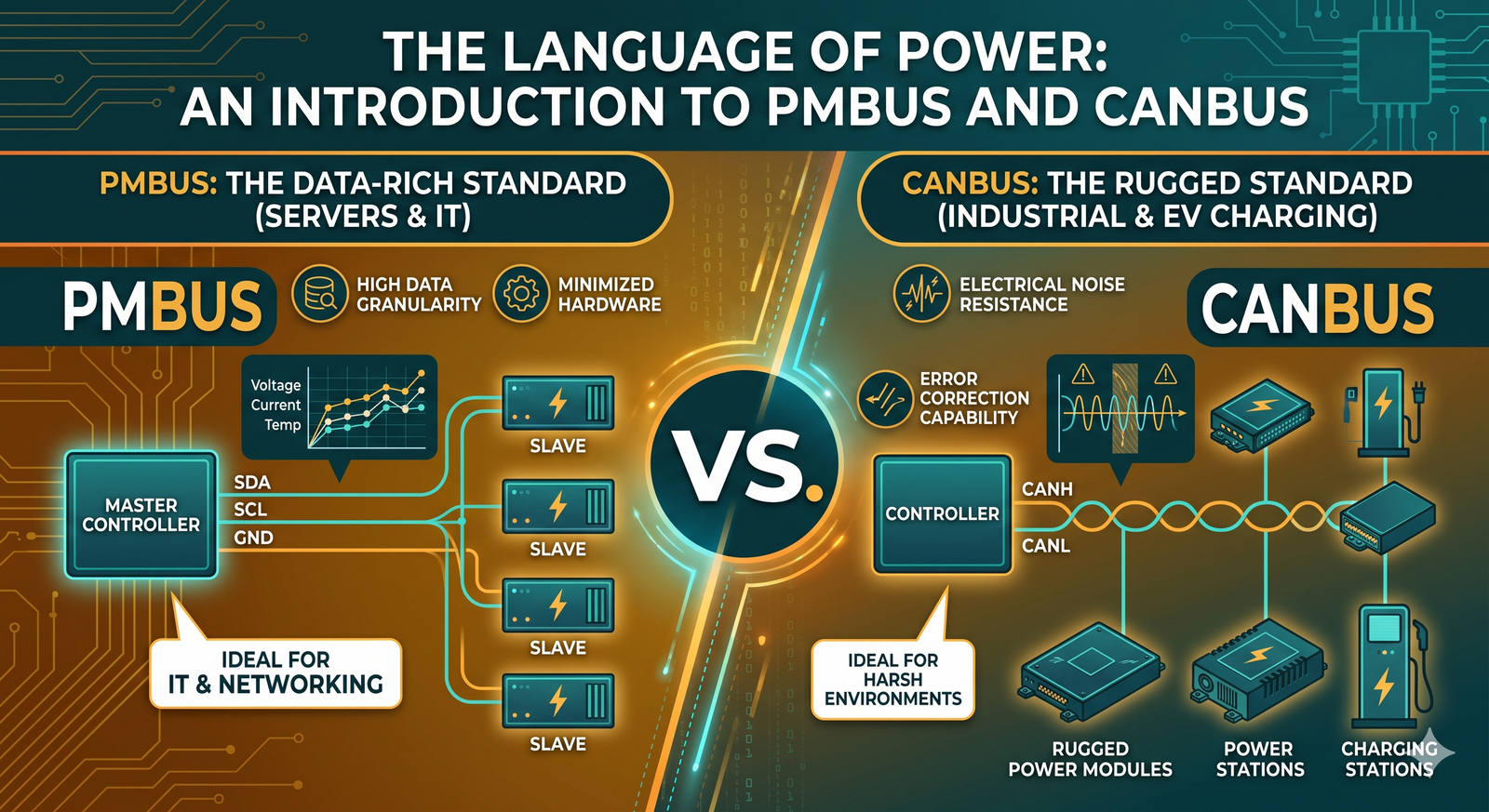

PMBus (Power Management Bus) utilizes a bidirectional serial interface consisting of just three lines: a data line (SDA), a clock line (SCL), and a ground (GND).
By connecting multiple "slave" power supplies to a single "master" controller, PMBus allows users to:
- Minimize Hardware: Dramatically reduce the number of control lines and connection points.
- Access Granular Data: Monitor real-time parameters such as output current, input voltage, and internal thermal levels.
- Enhance Convenience: Easily reconfigure power supply parameters through software rather than hardware adjustments.
- Applications: It is the go-to standard for servers, IT infrastructure, and networking communications.
CANBus: The King of Robustness
Originally developed for the automotive industry to replace heavy wiring harnesses, CANBus (Controller Area Network) uses a two-wire differential transmission (CANH and CANL).
It has become a staple in industrial automation because of its:
- Noise Immunity: Exceptional resistance to electrical interference, even in "noisy" factory environments.
- Error Correction: Built-in self-correcting capabilities ensure data integrity.
- Reliability: Designed to function in harsh conditions where signal loss is not an option.
- Applications: Ideal for battery charging stations, electric vehicle (EV) charging, and heavy industrial machinery.
Application Scenario: Choosing the Right Standard
- IT & Data Centers: For high-density server racks, MEAN WELL’s RCP-2000 and RCP-1600 incorporate PMBus. This allows data center managers to monitor power consumption across thousands of units to optimize energy efficiency.
- E-Mobility & Charging: For battery swapping stations or electric locomotive chargers, the RPB-1600 and RCB-1600 series offer CANBus as an option. This ensures that even in environments with high electromagnetic interference from motors, the charger stays perfectly synchronized with the battery’s requirements.
Conclusion
Transitioning to digital communication is the most effective way to future-proof your power system. Whether you prioritize the data-rich simplicity of PMBus or the rugged reliability of CANBus, MEAN WELL provides the hardware necessary to move from basic power delivery to intelligent power management.
