Introduction
Driven by the explosive growth of Artificial Intelligence (AI), the data center industry is experiencing unprecedented global expansion. This massive surge in high-performance computing doesn't just challenge the global supply chain—it creates vital new opportunities for advanced Energy Storage Systems (ESS), fuel cells, and liquid cooling systems.
At the core of every data center is its power architecture. Generally, data center infrastructures fall into two categories: AC-powered and DC-powered.
MEAN WELL offers a comprehensive lineup of highly efficient AC/DC and DC/DC power supplies designed to meet the extreme density and reliability demands of both architectures.
AC-Powered Data Center Infrastructure
Traditional AC-powered data centres rely on a stable, three-phase grid setup. A typical layout includes:
- Grid & Backup Power: A three-phase 400-480 Vac utility input backed by diesel generators.
- AC Online UPS: Continuous, uninterrupted power supply systems to prevent any downtime.
- Liquid Cooling Systems: Dedicated infrastructure to dissipate the immense heat generated by high-density AI compute racks.
MEAN WELL Solutions: Our high-power enclosed power supplies (such as the NSP series) and smart three-phase rack power solutions provide the precise, high-efficiency conversion required to power both the server components and the auxiliary liquid cooling pumps.

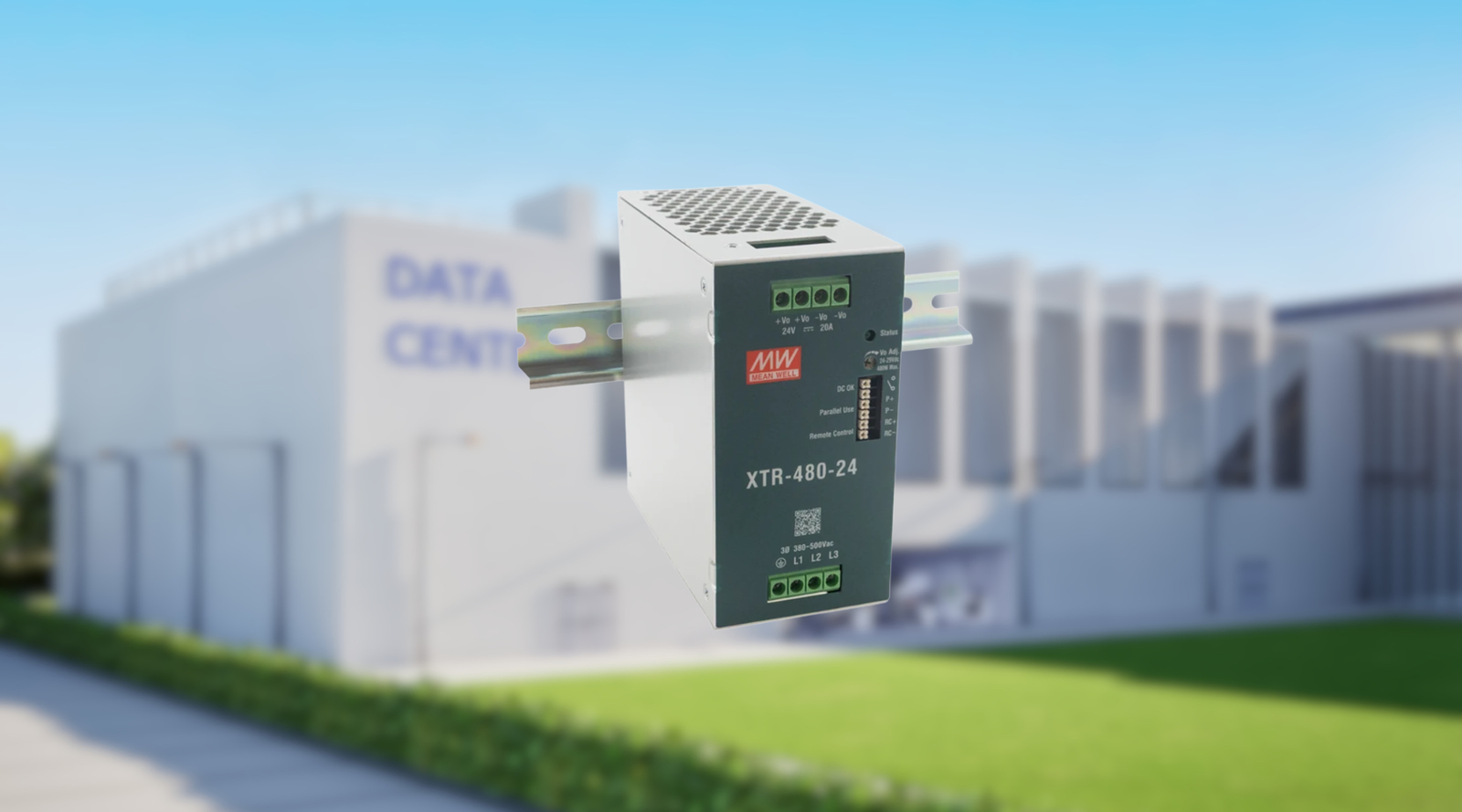

The AC Online UPS system is a scalable 250KW Three-phase power cabinet that encloses high-power inverter, battery charger and battery packs. To cool the internal power electronics, it usually uses the XTR-480-24 to power multiple 24V/50W DC fans because the XTR-480-24 is Three-phase input and can withstand the momentary Voltage surge of the inverter during startup.
DC-Powered Data Center Infrastructure (HVDC)
To maximise efficiency, modern data centres are shifting toward High-Voltage DC (HVDC) architectures. While the heat-generating compute racks remain the same, the distribution method changes dramatically:
- The HVDC Advantage: Power is distributed at a high voltage of 800Vdc, typically stepped down via Solid-State Transformers (SST) rather than standard AC transformers.
- Why HVDC? Operating at higher voltages significantly reduces the distribution current. This minimizes power loss across transmission cables (I^2R losses) and allows for thinner, lighter cabling—drastically saving on raw copper material costs.
MEAN WELL Solutions: We offer specialised, high-voltage DC/DC converters designed to seamlessly step down 800Vdc bus power to isolated lower voltages required by intermediate server buses and control electronics.
BESS in the Data Center outputs 800Vdc to keep the Data Center running for a few minutes until the backup Diesel Generator starts up. The BESS Energy Management System, Display or Controllers is usually lower DC than the HVDC RSDH-150/300 or DDRH-120/240 is often used because these DC/DC power supplies offer a wide input range from 250~1500VDC.
The Ultimate Power Portfolio
Whether your facility utilises a traditional AC grid setup or a cutting-edge 800Vdc hyper-scale layout, MEAN WELL provides the industrial-grade AC/DC and DC/DC components to keep your AI infrastructure running smoothly. Please refer to the full article for details.
Ready to optimise your data centre power architecture or need help selecting the right components? Contact our technical team today at contact@wellforces.co.nz for expert integration support.
