For over a decade, MEAN WELL’s SDR, NDR, and EDR series DIN rail power supplies have earned a reputation for reliability and performance, with nearly 100 million units sold globally. These power supplies have powered everything from industrial automation and network equipment to renewable energy systems and semiconductor processing machinery.

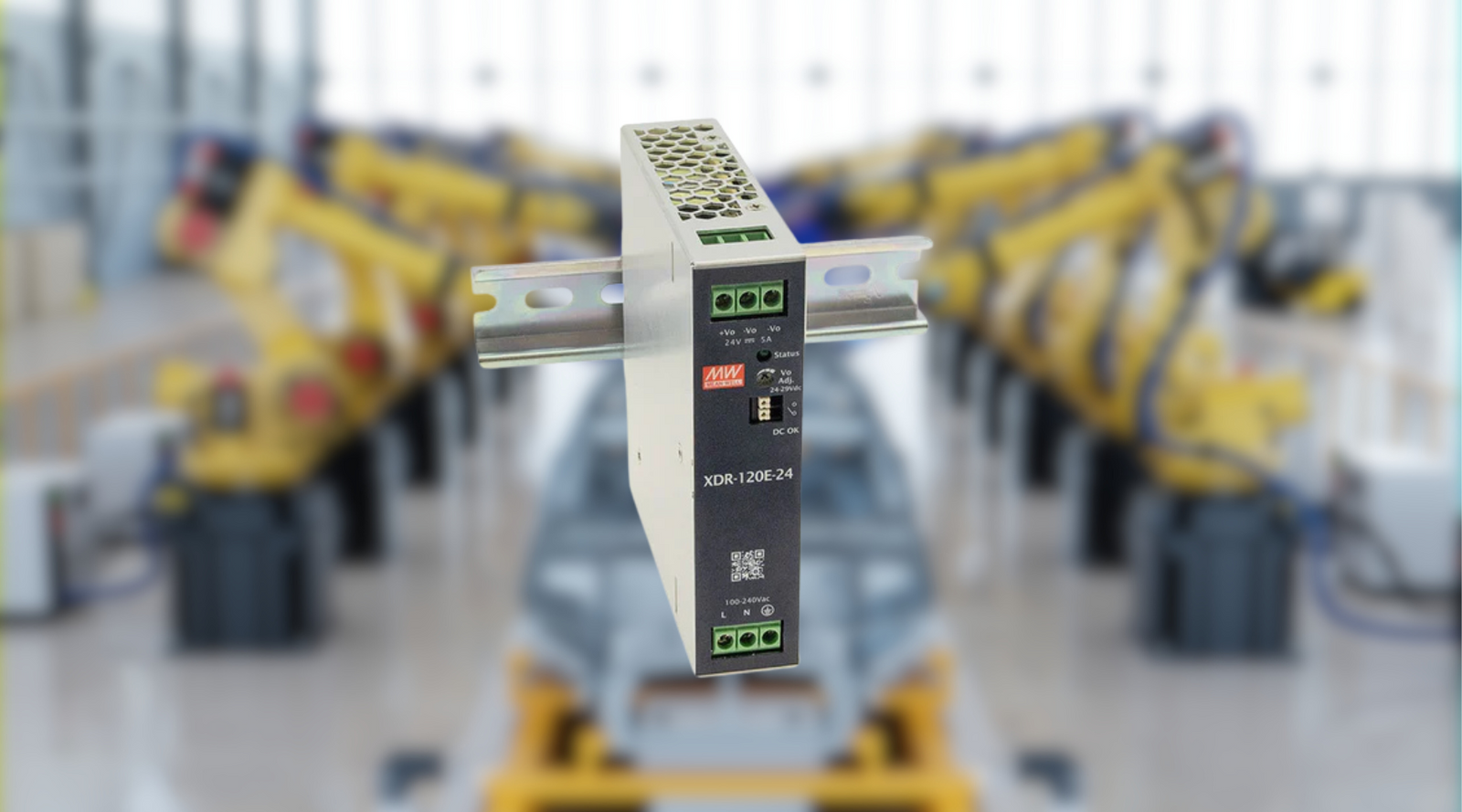

Now, MEAN WELL is proud to unveil the next generation: the XDR-E Series – a cost-effective, space-saving solution that delivers outstanding performance in a compact form factor.
Why Choose the XDR-E Series?
The XDR-E series is available in 75W / 120W / 150W / 240W / 480W / 960W models, offering a superior balance of size, efficiency, and affordability. Compared to the previous SDR/NDR/EDR series, the XDR-E is 23% to 45% slimmer, freeing up valuable space in your electrical cabinet.
It also fills a key market gap by offering 12V models in 240W and 480W and new 36V options across the series.
Please refer to the table below for detailed specification between the new and old generations:
Key Features at a Glance
- Universal AC Input: 85–264 Vac, perfect for global use
- Ultra-Slim Design: Width reduced to just 30–96 mm depending on model
- High Efficiency: Up to 96% with low no-load power consumption (<1W to 3.6W)
- Parallel Operation: Built-in for 480W and 960W models – scale up with ease
- Wide Temperature Range: Operates from -40℃ to +70℃ (derating >+50℃)
- Comprehensive Protections: Short circuit, overload, overvoltage, and overtemperature
- High Altitude Performance: Fully functional up to 5000 meters
- Comprehensive output voltage options: 12V (except 960W), 24V, 36V, 48V
- Adjustable Output Voltages:
- 12V model: 12–15V
- 24V model: 24–29V
- 36V model: 36–42V
- 48V model: 48–55V
Global Safety and Compliance
The XDR-E series meets a wide range of international safety standards, making it suitable for various industries and regions:
Certifications: CB, TUV, UL, RCM, BSMI, CCC, BIS, EAC, CE, UKCA
Standards: IEC/EN 62368-1, 61010-1, 61558-1
Warranty: 3 years
Application
A Smarter Power Supply Upgrade
With improved power density, enhanced thermal performance, and a full lineup of voltage options, the XDR-E series is an ideal upgrade for your existing power systems—without increasing your budget.
Whether you're designing new systems or optimizing existing ones, the XDR-E helps you save space, cut costs, and meet international standards—all while delivering the rock-solid reliability MEAN WELL is known for.
Need help finding the right product? Contact us today for expert advice and tailored solutions.
