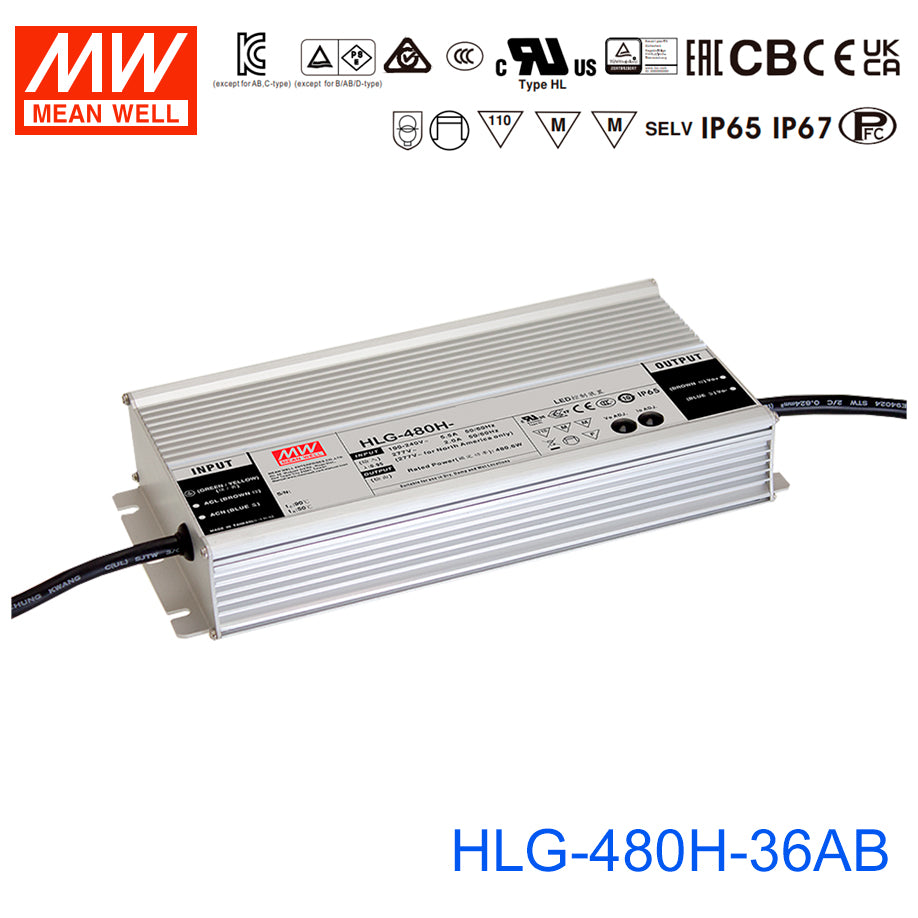

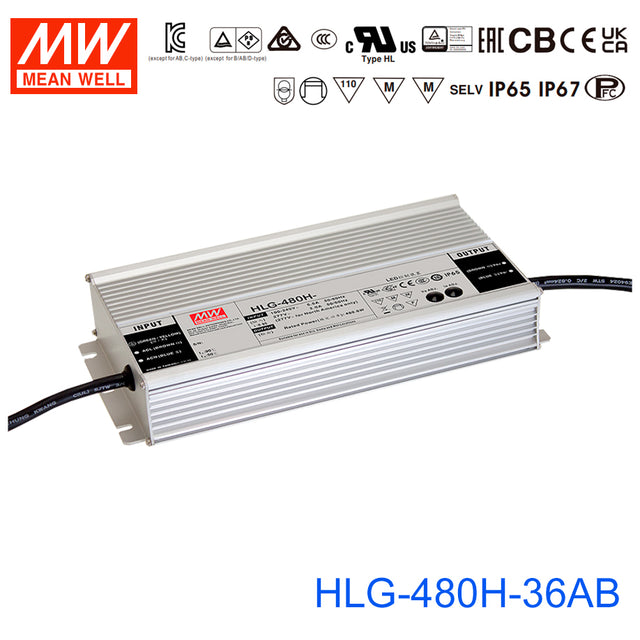

Mean Well HLG-480H-36AB Power Supply 480W 36V - Adjustable and Dimmable

The HLG-480H is a 480W Mean Well AC-DC LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 36V
✓ Rated output current: 13.3A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-480H-36AB to power a large 36V LED strip lighting installation?

Yes. The HLG-480H-36AB delivers 480W at 36V and up to 13.3A, which is enough for substantial 36V LED strip runs. Its built-in output adjustment and 1-10V/PWM dimming input let you fine-tune brightness and voltage to match your strip's requirements without needing separate controllers.

Is the HLG-480H-36AB a good driver for high-power 36V LED signage?

Yes. With 480W at 36V, it can power large channel-letter signs or illuminated cabinet signs that use 36V LED modules. The wide 90-305VAC input handles commercial mains supplies globally, and the dimmable input allows you to reduce sign brightness during overnight hours to save energy.

Can I dim the HLG-480H-36AB for 36V architectural LED cove lighting?

Yes. The AB suffix means it has both an adjustable output potentiometer and a dimming signal input (1-10V, PWM, or resistance). This makes it well suited for architectural cove lighting where smooth dimming and precise voltage tuning are required. The constant-current CC range of 18-36V accommodates varying LED forward-voltage drops.

How many meters of 36V LED strip can the HLG-480H-36AB power?

Divide 480W by your strip's rated power per meter. For example, a 36V strip drawing 14.4W/m could run up to about 33 meters (480W / 14.4W per meter = 33.3m). Always check your strip's rated power per meter and keep total load at or below 480W.

Can the HLG-480H-36AB be used outdoors in a sheltered location?

Yes. It carries an IP65 water-resistant rating, which protects against low-pressure water jets and dust. This is suitable for covered outdoor areas like soffits, canopies, or ventilated enclosures. For fully exposed rain or submersion scenarios, the IP67-rated HLG-480H-36B would be a better choice.

What is the difference between the HLG-480H-36, 36A, 36AB, and 36B models?

All four share 480W / 36V / 13.3A core specs. The base HLG-480H-36 has fixed output and IP67 waterproof rating. The -36A adds output voltage/current adjustment via potentiometer (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B has dimming input only and retains IP67 waterproofing.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-480H-24 Power Supply 480W 24V with AU/NZ plug 20A	480W	24V	20A	IP67	View
Mean Well HLG-480H-48 Power Supply 480W 48V 10A	480W	48V	10A	IP67	View
Mean Well HLG-480H-24A Power Supply 480W 24V - Adjustable 20A	480W	24V	20A	IP65	View
Mean Well HLG-480H-24 Power Supply 480W 24V 20A	480W	24V	20A	IP67	View
