Can I use the LPF-16D-20 for a 20V LED sign module run?

Yes, if the sign modules are a constant-current load that matches 0.8A and operates within the 11-20V constant-current range. Keep the total load at or below 16W.

Is this driver suitable for a dimmable 20V accent or display light?

It can be, provided the light engine is designed for constant-current operation at 0.8A and falls within 11-20V. This model also includes built-in 3 in 1 dimming, so it fits dimmable low-power lighting applications within its 16W rating.

Can this power a compact outdoor lighting fixture?

It is suitable for outdoor or exposed locations when the LED load is a constant-current 0.8A fixture operating in the 11-20V range. The IP67 housing and -35°C to +70°C operating temperature support wet and demanding environments.

How much 20V LED strip can this driver run?

Use this only with a 20V constant-current LED strip or module that matches 0.8A and the 11-20V range. The maximum strip length is 16W divided by your strip's rated power per meter, and you should check your strip rated power per meter before sizing.

Is the LPF-16D-20 okay for wet or dusty locations?

Yes, the driver is rated IP67, which is intended for waterproof use in wet and dusty environments. It should still be paired with a compatible constant-current LED load and used within the -35°C to +70°C operating range.

Mean Well LPF-16D-20 Power Supply 16W 20V - Dimmable | Auckland Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-16D is a 16W Mean Well AC-DC LED driver (input: 90~305VAC, output: 20V, operating temperature: -35~+70°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 20V
✓ Rated output current: 0.8A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -35~+70°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-16D-48 Power Supply 16W 48V - Dimmable 340mA	16.32W	48V	0.34A	IP67	View

Please log in to write a review.

{ "id":8423842021675, "variants" :[{ "context":"default", "variant_id": 45635998548267, "sku":"LPF-16D-20", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

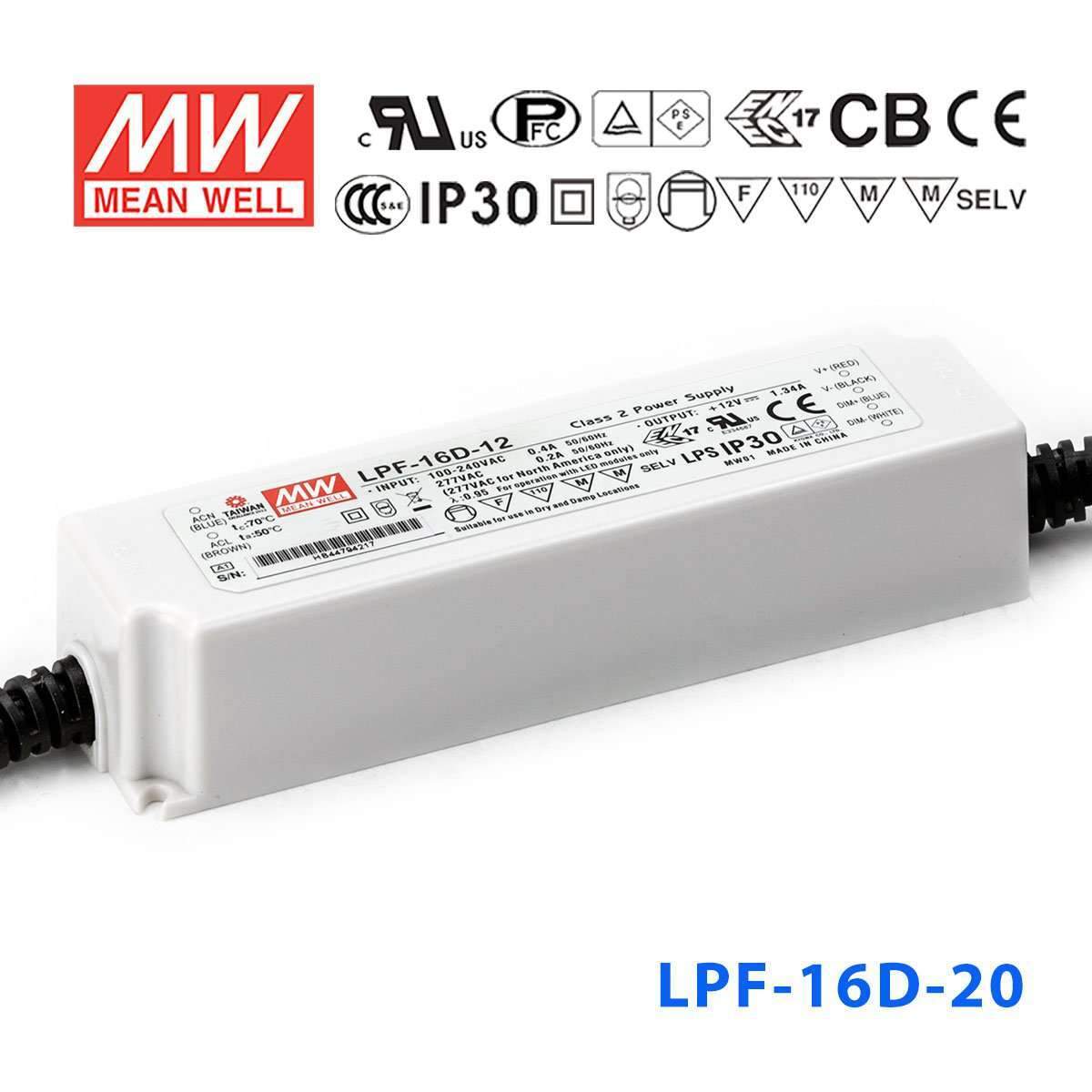

Mean Well LPF-16D-20 Power Supply 16W 20V - Dimmable 800mA

The LPF-16D is a 16W Mean Well AC-DC LED driver (input: 90~305VAC, output: 20V, operating temperature: -35~+70°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 20V
✓ Rated output current: 0.8A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -35~+70°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, UL
✓ 5 year warranty
