Can I use the LPF-25D-54 for a 54V constant-current LED application?

Yes, if the LED application is designed for constant-current operation at 0.47A and falls within the 29-54V constant-current range. This driver provides up to 25.38W at 54V, so the total load must stay within that output.

Is this model suitable for outdoor sign or lighting cabinets?

It can be used for outdoor sign or lighting cabinets when the LED load needs 0.47A constant current and operates between 29V and 54V. The IP67 waterproof rating supports wet-location use, and the maximum output is 25.38W.

Can the LPF-25D-54 be used in a dimmable linear lighting system?

Yes, for a linear lighting system that is specified for 0.47A constant current and a 29-54V operating range. This unit includes built-in 3 in 1 dimming and delivers up to 25.38W.

How much 54V LED strip can this driver run?

The maximum length is 25.38W divided by the strip's rated watts per meter. This driver supplies up to 25.38W total at 54V and 0.47A, but check your strip rated power per meter and confirm it is a constant-current 54V load within the 29-54V range.

Can I use this driver outdoors year-round?

Yes, the IP67 waterproof rating makes it suitable for outdoor and wet environments. It is also rated to operate from -35°C to +70°C, so year-round use depends on the actual site temperature staying within that range.

Mean Well LPF-25D-54 Power Supply 25W 54V - Dimmable | Auckland NZ Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-25D is a 25.38W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -35~+70°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 0.47A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -35~+70°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-25D-24 Power Supply 25W 24V - Dimmable 1.05A	25.2W	24V	1.05A	IP67	View
Mean Well LPF-25D-48 Power Supply 25W 48V - Dimmable 530mA	25.44W	48V	0.53A	IP67	View

Please log in to write a review.

{ "id":8423846543659, "variants" :[{ "context":"default", "variant_id": 45636034593067, "sku":"LPF-25D-54", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

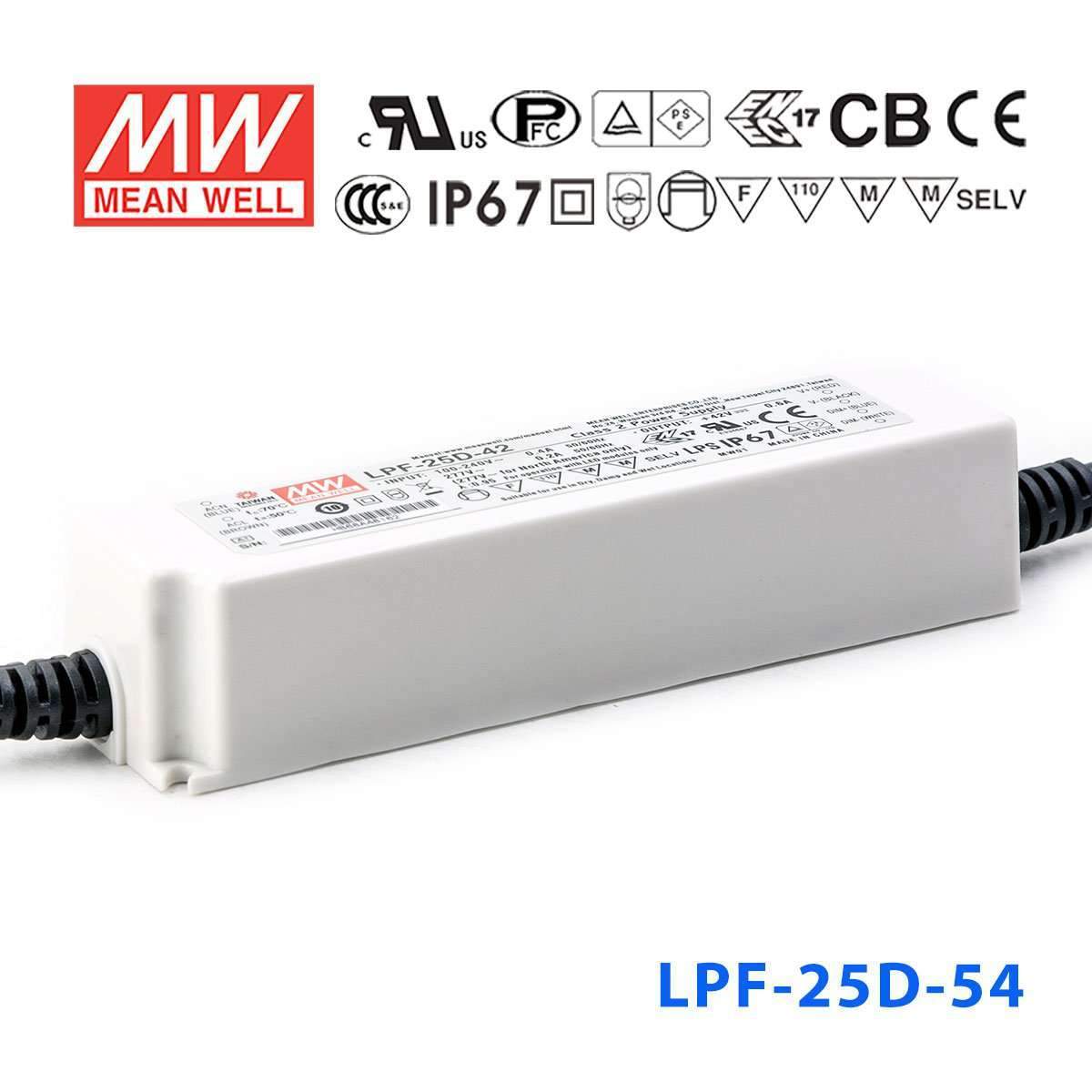

Mean Well LPF-25D-54 Power Supply 25W 54V - Dimmable 470mA

The LPF-25D is a 25.38W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -35~+70°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 0.47A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -35~+70°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, UL
✓ 5 year warranty
