What dimming inputs are available on the NPF-120D-15?

The NPF-120D-15 includes built-in 3-in-1 dimming supporting PWM, 1–10V analog, and resistance (potentiometer) control methods. This versatility allows it to interface with most commercial lighting control panels and BMS systems without additional dimming hardware.

Is the NPF-120D-15 appropriate for wet or outdoor environments?

Yes. The NPF-120D-15 is IP67 rated, providing full protection against dust and temporary water immersion. Its operating temperature range of -40°C to +90°C makes it suitable for outdoor luminaires, coastal environments, and high-ambient-temperature ceiling voids.

What LED systems work with the NPF-120D-15's 15V dimmable output?

The NPF-120D-15 outputs 15V DC at 8A (120W) in constant-current mode. It suits 15V dimmable LED strip installations, architectural cove lighting with 1–10V controllers, and display or retail signage that requires smooth dimming from a 15V source. The CC voltage range is 9–15V.

How does the NPF-120D-15 compare to the NPF-120D-12 and NPF-120D-20?

All three share IP67, the 191.0 × 63.0 × 37.5 mm housing, 0.97 kg weight, and 3-in-1 dimming. They differ only in output: NPF-120D-12 is 12V/10A (CC 7–12V); NPF-120D-15 is 15V/8A (CC 9–15V); NPF-120D-20 is 20V/6A (CC 12–20V). Match the voltage to your LED module's rated voltage.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

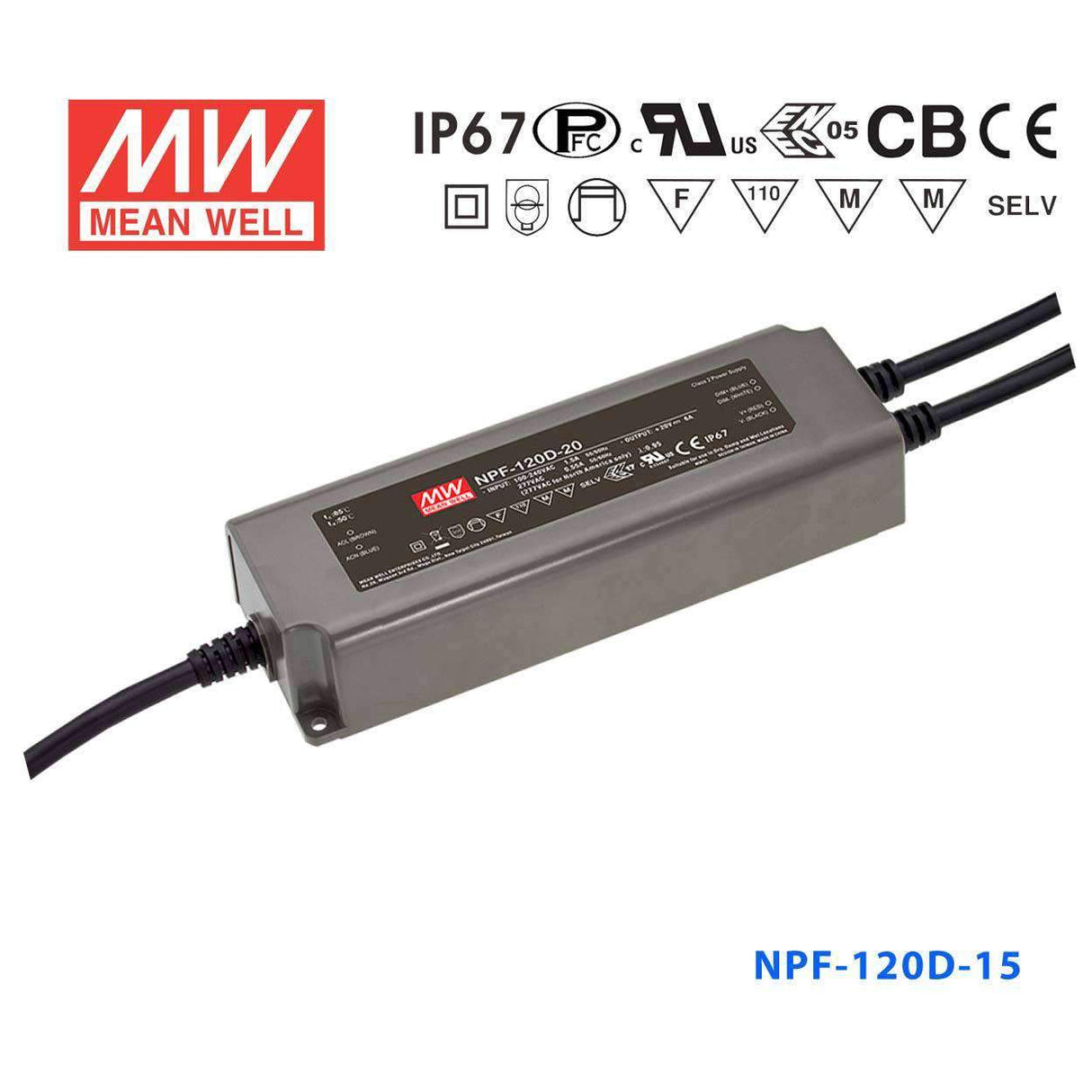

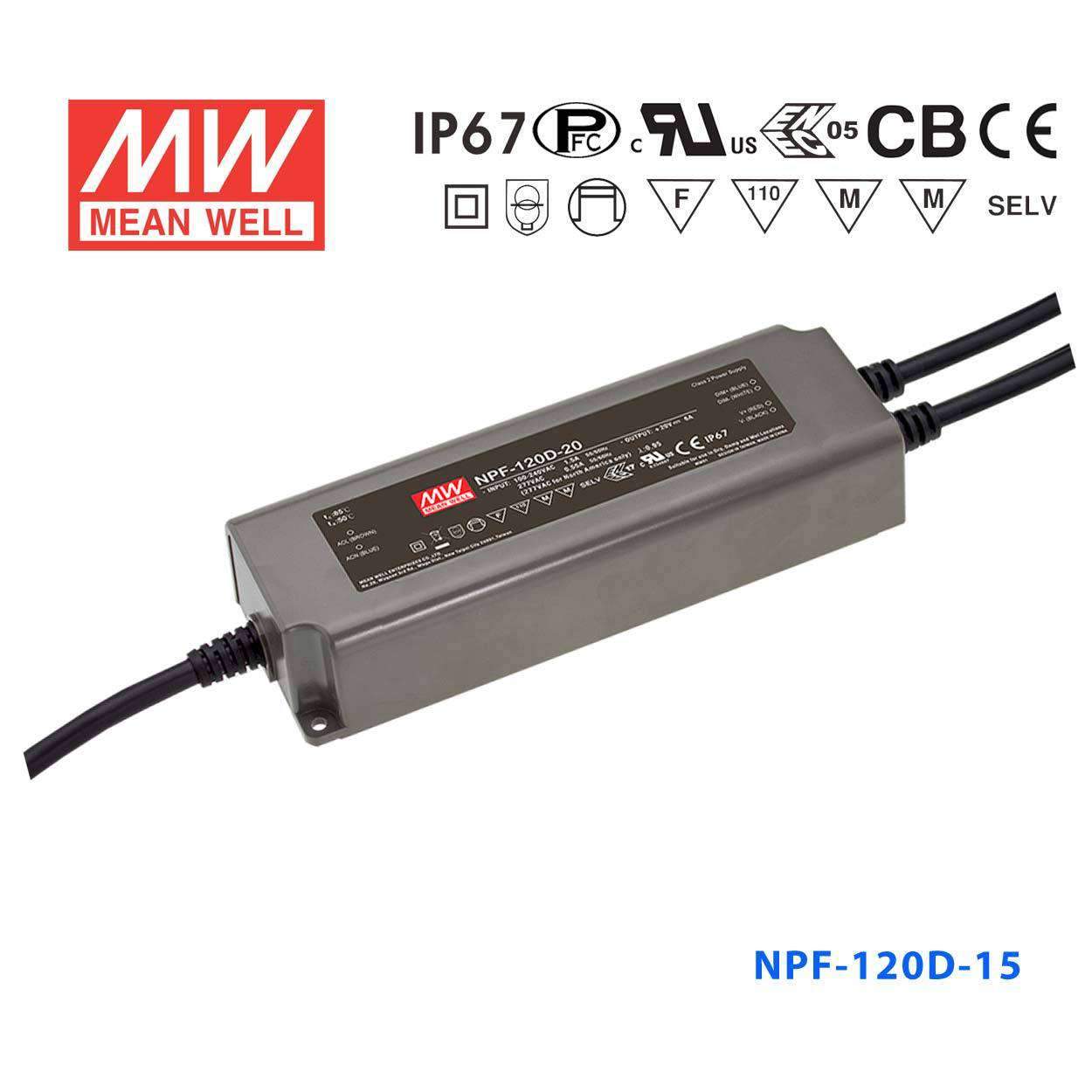

Mean Well NPF-120D-15 Power Supply 120W 15V - Dimmable 8A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU NPF-120D-15

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

NPF-120D-15

NPF-40-15 Fixed output Backorder

NPF-120-15 Fixed output Backorder

NPF-120D-15 Dimmable Backorder

NPF-40D-15 Dimmable Backorder

NPF-60-15 Fixed output Backorder

NPF-60D-15 Dimmable Backorder

NPF-90-15 Fixed output Backorder

NPF-90D-15 Dimmable Backorder

Product variants

Notify me when it's back in stock

The NPF-120D is a 120W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 15V
✓ Rated output current: 8A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty
