What dimming methods does the NPF-120D-42 support?

The NPF-120D-42 has built-in 3-in-1 dimming that accepts PWM signal, 1–10V analog voltage, and resistance (potentiometer) control. All three interfaces are built into the same driver, eliminating the need for external dimming adapters.

Is the NPF-120D-42 suitable for installation in exposed outdoor fixtures?

Yes. The NPF-120D-42 is IP67 rated for dust-tight and temporary immersion resistance, and its operating range spans -40°C to +90°C. These ratings make it appropriate for outdoor luminaires, roadway lighting enclosures, and industrial installations with high ambient temperatures or moisture exposure.

What types of 42V LED lighting systems use the NPF-120D-42?

The NPF-120D-42 delivers 42V DC at 2.9A (121.8W) in constant-current mode with a CC range of 25–42V. It suits dimmable 42V LED street lights, outdoor floodlights, and commercial high-bay fixtures where 1–10V or PWM dimming control from a central panel is required.

How does the NPF-120D-42 compare to the NPF-120D-36 and NPF-120D-48?

All three share IP67 protection, 3-in-1 dimming, and the 191.0 × 63.0 × 37.5 mm housing (0.97 kg). NPF-120D-36 is 36V/3.4A at 122.4W (CC 21–36V); NPF-120D-42 is 42V/2.9A at 121.8W (CC 25–42V); NPF-120D-48 is 48V/2.5A at 120W (CC 28–48V). Select the voltage that matches your LED module's rating.

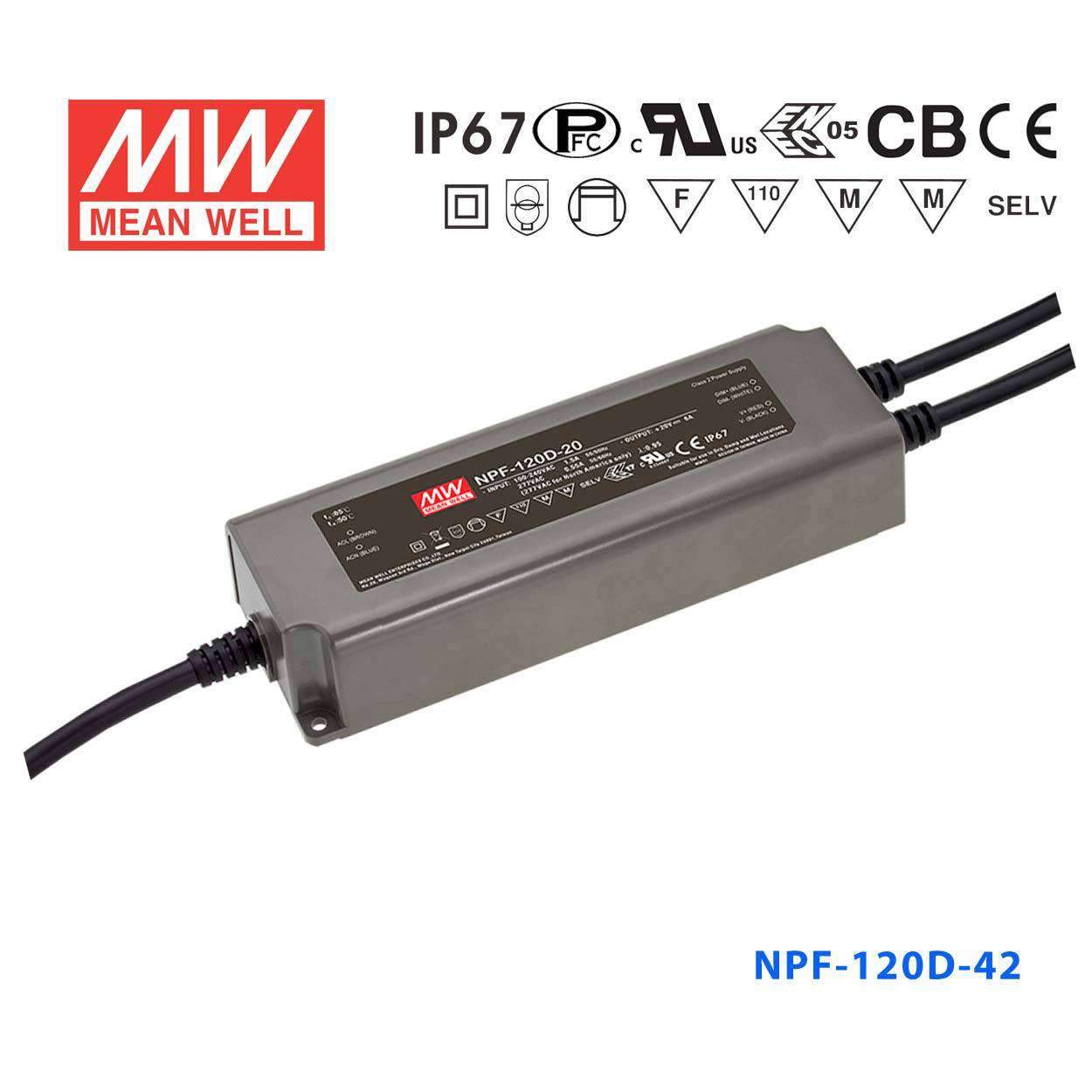

Mean Well NPF-120D-42 120W 42V Dimmable LED Driver - Auckland Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The NPF-120D is a 121.8W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 42V
✓ Rated output current: 2.9A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423864631595, "variants" :[{ "context":"default", "variant_id": 45636235886891, "sku":"NPF-120D-42", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

Mean Well NPF-120D-42 Power Supply 120W 42V - Dimmable 2.9A

The NPF-120D is a 121.8W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 42V
✓ Rated output current: 2.9A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty
