Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

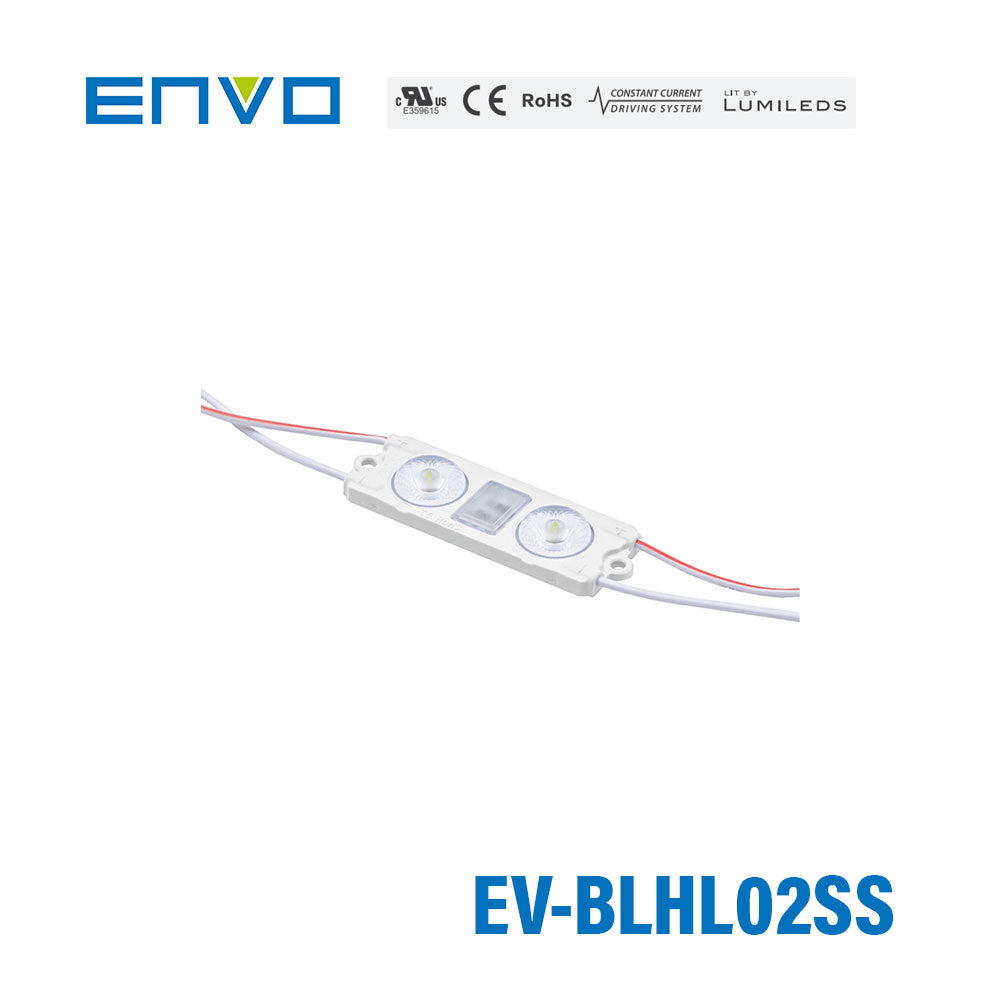

ENVO HydroLume LED Module Backlit - Double LED

24V0.96WIP67Philips LED50 modules per series

SKU:

EV-BLHL02SS-CW

Log in to see price Trade pricing & online ordering for account holders

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Exceptional Materials: Built with high-grade components and precision assembly to deliver consistent performance in demanding signage applications.

HydroLume – High-Output Backlighting for Versatile Signage
The HydroLume by ENVO is designed to provide bright, even illumination for channel letters, backlit sign cabinets, and lightboxes. Featuring a slim 56 mm profile, it offers powerful lighting while maintaining flexibility for a wide range of signage depths. Powered by advanced Constant Current Technology, the HydroLume delivers stable output and exceptional energy efficiency, making it a dependable choice for both indoor and outdoor installations.

Key Features:

Powerful Light Output: 0.96 W per module producing 164 lm for brilliant, attention-grabbing signage.
Constant Current Technology: Ensures stable, flicker-free illumination and prolongs LED life (24 V constant voltage input).
Ultra-Wide 180° Beam Angle: Achieves uniform light coverage, minimizing dark spots and shadows.
Slim & Flexible Design: 56 mm x 20 mm x 7 mm size, ideal for signage depths from 70 mm to 150 mm.
Weather-Resistant Build: IP67-rated for dust and water protection, with reliable operation from -40°C to +70°C.
Simple Installation: Fitted with 3M self-adhesive tape for fast, secure mounting.
Extended Warranty: Backed by an 7-year industry-leading warranty.

Application:
Perfect for backlighting channel letters and lightboxes with depths from 70 mm to 150 mm, offering consistent and vibrant illumination for commercial and public signage.

Brighten your brand with HydroLume — delivering power, precision, and durability in every module.

Frequently Asked Questions

What types of signage is the ENVO HydroLume Double LED module designed for?

The HydroLume is intended for backlit signage applications such as channel letters, backlit sign cabinets, and lightboxes. Its 180 degree beam angle and 164 lumen output per module are designed to help deliver bright, even illumination across signage faces. It is described for signage depths from 70 mm to 150 mm.

What sign depth range is this LED module best suited for?

This product family is specified for signage depths between 70 mm and 150 mm. That range makes it suitable for many commercial backlit letters and cabinet signs where consistent spread is important. The slim 56 mm x 20 mm x 7 mm module size supports use in tighter sign builds within that depth window.

What is the difference between the available HydroLume variants in this parent product family?

The main documented difference across the child variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 6500K cool white options. Power rating, beam angle, CRI, brightness, dimming capability, lifetime, and warranty are otherwise the same in the data provided.

What are the key performance specifications of this LED module?

Each module is rated at 0.96 W and delivers 164 lumens of light output. The product has a 180 degree beam angle, CRI 80, and a rated lifetime of 50,000 hours. It also uses a 24 V power input and is listed as dimmable.

Is the HydroLume LED module suitable for outdoor or demanding environments?

Yes, the HydroLume is built for demanding signage environments and carries an IP67 rating for dust and water protection. It is also specified to operate in temperatures from -40 C to +70 C. Those specifications make it appropriate for both indoor and outdoor signage use where environmental durability matters.

How durable is this module for long-term commercial signage use?

The HydroLume is positioned as a long-life signage module with a rated lifetime of 50,000 hours. It is also backed by a 7 year warranty, which supports its use in commercial applications where maintenance intervals and reliability matter. Combined with its constant current design, it is intended for stable long-term performance.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO HydroLume LED Module Backlit - Triple LED	1.44W	—	—	Dimmable	View
ENVO HydroLume LED Module Backlit - Single LED	0.48W	—	—	Dimmable	View
