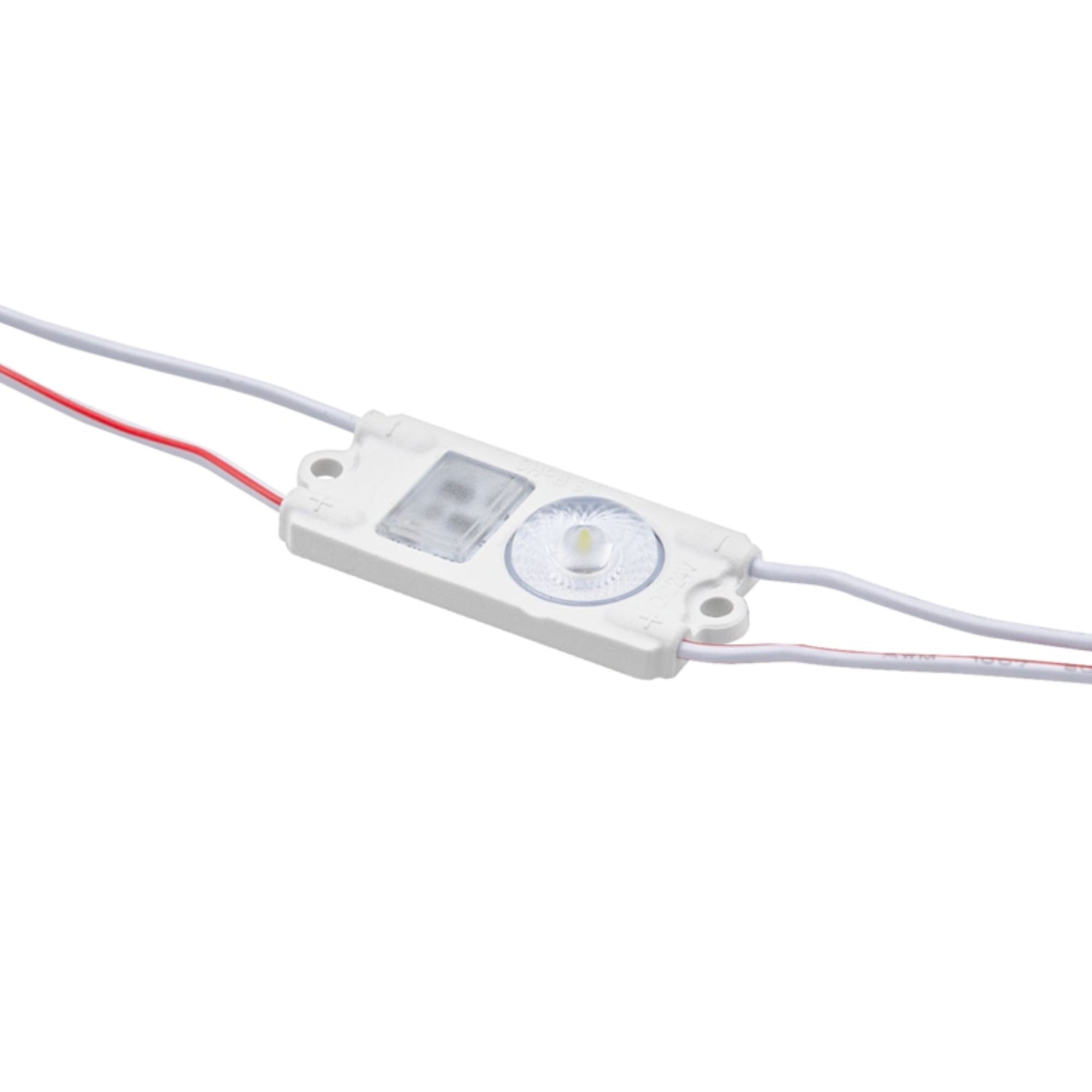

ENVO HydroLume LED Module Backlit - Single LED

24V0.48WIP67Philips LED80 modules per series

SKU:

EV-BLHL01SS-CW

Log in to see price Trade pricing & online ordering for account holders

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

HydroLume – Precision Backlighting for Compact Signage

The HydroLume by ENVO is crafted to deliver brilliant, uniform illumination for channel letters, backlit sign cabinets, and lightboxes. Its compact 42 mm profile makes it ideal for smaller or intricate signage applications, while the advanced Constant Current Technology ensures stable light output and extended lifespan. Perfect for retail, hospitality, and high-visibility commercial spaces, the HydroLume is engineered for precision and efficiency.

Key Features:

High-Performance Illumination: 0.48 W per module delivering 82 lm of clean, bright light for optimal visibility.
Constant Current Technology: Provides stable, flicker-free performance and extends LED life (24 V constant voltage input).
Ultra-Wide 180° Beam Angle: Ensures even light distribution, reducing hotspots and shadows.
Compact & Versatile Design: 42 mm x 20 mm x 7 mm size, perfect for 40–100 mm lightspace depth in tight or detailed signage.
Durable Construction: IP67-rated for water and dust resistance, with reliable operation from -40°C to +70°C.
Easy Installation: Equipped with 3M self-adhesive tape for secure mounting.
Long-Term Assurance: Backed by an industry-leading 7-year warranty.

Application:
Ideal for backlighting channel letters and lightboxes with depths from 40 mm to 100 mm, delivering consistent, high-quality illumination in both indoor and outdoor commercial signage projects.

Illuminate with HydroLume — where compact design meets uncompromising performance.

Frequently Asked Questions

What applications is the ENVO HydroLume LED Module Backlit designed for?

The HydroLume is designed for backlighting channel letters, lightboxes, and backlit sign cabinets. Its compact 42 x 20 x 7 mm form factor makes it well suited to smaller or more detailed signage where uniform illumination is important. It is positioned for commercial environments such as retail, hospitality, and other high-visibility signage projects.

What lightbox or channel letter depth is this LED module suitable for?

This product family is intended for signage with a lightspace depth of 40 mm to 100 mm. That makes it a practical option for compact backlit applications where space is limited but consistent coverage is still required. The 180 degree beam angle helps support even light distribution across that depth range.

What are the main performance specifications of the HydroLume family?

Each HydroLume module is rated at 0.48 W and delivers 82 lumens of output. The family has a 180 degree beam angle, CRI 80, and a rated lifetime of 50,000 hours. It is also listed as dimmable and backed by a 7-year warranty.

What variant options are available in this HydroLume family?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Based on the provided variant data, the power, brightness, beam angle, CRI, lifetime, dimming capability, and warranty remain the same across all three.

Is the ENVO HydroLume suitable for outdoor or demanding environments?

Yes, this family is rated IP67 for resistance to water and dust, which supports use in demanding signage environments. It is also specified to operate in temperatures from -40 C to +70 C. These ratings make it suitable for both indoor and outdoor commercial signage applications.

What input type is this LED module compatible with?

The HydroLume family is specified for 24 V constant voltage input. Its product description also notes Constant Current Technology for stable light output and long-term performance. For buyers comparing signage modules, that means it is intended for 24 V systems rather than other input types.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO HydroLume LED Module Backlit - Triple LED	1.44W	—	—	Dimmable	View
ENVO HydroLume LED Module Backlit - Double LED	0.96W	—	—	Dimmable	View
