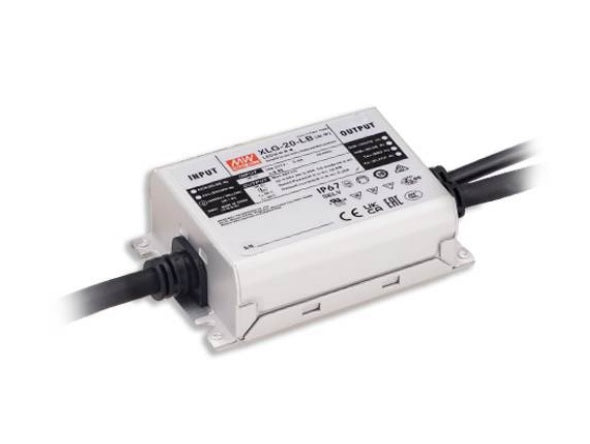

Mean Well XLG-20-L-B 18.9W 350mA 32.4-54V Constant Current LED Driver, 3 in 1 Dimmable
Request a quote for one or many products — we'll reply with pricing and availability.
Overview
XLG-20-L-B is the model of this series: rated power 18.9W, typical efficiency 89%. Type B: Io fixed with 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).
XLG-20 series is a AC/DC LED driver featuring the constant current mode output. XLG-20 operates from 90~305VAC. Thanks to the high efficiency up to 89%, The entire series is able to operate between -40℃ ~+80℃ wide case temperature range with air convection. The design of metal housing and IP67 ingress protection allows this series to fit both indoor and outdoor applications.XLG-20 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-20 series comply with the latest version of IEC61347/GB7000.1 -2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Constant current mode output
- Wide input range 90~305VAC (Class Ⅰ)
- Built-in active PFC function
- Class 2 power unit
- No load power consumption <0.5W
- IP67 rating for indoor or outdoor installations
- 3 in 1 dimming function (Isolation design)
- Life time>50,000 hours and 5 years warranty
Model encoding
| Type | Function |
|---|---|
| Blank | Io fixed; IP67 |
| B (this model) | Io fixed with 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67 |
Specifications
OUTPUT
- RATED CURRENT (Default)
- 350mA
- CONSTANT CURRENT REGION
- 32.4 ~ 54V
- RATED POWER
- 18.9W
- OPEN CIRCUIT VOLTAGE (max.)
- 60V
- CURRENT TOLERANCE
- ±8.0%
- OUTPUT CURRENT RIPPLENote.13
- < 20%
- SETUP, RISE TIMENote.2
- 500ms, 150ms/115VAC, 230VAC
- LINE REGULATION
- < ±3%
INPUT
- VOLTAGE RANGENote.3
- 90 ~ 305VAC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.91/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT
- 0.3A / 115VAC 0.2A / 230VAC 0.2A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 5A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD POWER CONSUMPTION
- No load power consumption <0.5W
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+80℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP.
- -40 ~ +80℃
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB/T19510.1, GB/T19510.213, J61347-1(H29), J61347-2-13(H29), EAC TP TC 004, IS 15885(Part 2/Sec13) , KC61347-1,KC61347-2-13 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743,J55015(H29) Radiated BS EN/EN55015(CISPR15) ,GB/T 17743,J55015(H29) Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 5721.2K hrs min. Telcordia SR-332 (Bellcore) 747.1Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 95*63*30mm (L*W*H)
- PACKING
- 0.34Kg;24pcs/ 8.67Kg/0.81CUFT for blank-type 0.35Kg;24pcs/ 8.88Kg/0.\81CUFT for B-type
Certifications & ratings
- Type
- HL
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 11. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 12. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 13. Output current ripple is meansured at 230VAC input, full load and 25℃ of ambient temperature.
Technical drawings
Typical applications
- Street lighting
- Architectural lighting
- Low bay lighting
- Floodlight lighting
- Industrial Lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
FAQ
Can I use the XLG-20-L-B to drive LED downlights in a residential retrofit project?
Yes. The XLG-20-L-B delivers 18.9W at 350mA with a constant current output range of 32–54V, which suits mid-string LED downlight modules designed for that voltage range. Its IP67 rating also allows installation in damp locations such as bathroom ceiling cavities.
Is the XLG-20-L-B suitable for outdoor LED signage modules?
Yes. The IP67 waterproof rating makes it appropriate for outdoor signage enclosures where moisture ingress is a concern. At 18.9W and 350mA constant current, it can drive low-wattage signage LED arrays whose combined forward voltage falls within the 32–54V CC output range.
Can I use this driver with a small LED array for architectural accent lighting?
Yes, provided the LED array's total forward voltage falls between 32V and 54V and the LEDs are rated for 350mA constant current drive. The number of LEDs in the string depends on each LED's individual forward voltage. The metal case and –40°C to +80°C operating range make it suitable for recessed architectural fixtures.
Does the XLG-20-L-B support dimming?
Yes. The '-B' suffix indicates 3-in-1 dimming support, meaning it accepts PWM, resistance, and 1–10V analog dim signals. This allows integration with standard lighting control systems without additional conversion hardware.
Can the XLG-20-L-B operate in cold outdoor environments?
Yes. The driver is rated for operation from –40°C to +80°C and carries an IP67 waterproof rating, making it suitable for unheated outdoor enclosures in cold climates. The wide input range of 90–305VAC also accommodates international mains voltages.
How does the XLG-20-L-B differ from the XLG-20-H-B and XLG-20-M-B?
All three are 3-in-1 dimmable, IP67-rated drivers in the same 20W-class. The XLG-20-H-B outputs 700mA into an 18–30V range; the XLG-20-M-B outputs 500mA into a 25.2–42V range; the XLG-20-L-B outputs 350mA into a 32.4–54V range at 18.9W. Choose the variant whose voltage and current rating matches your LED string's specifications.
How many LEDs can the XLG-20-L-B drive in series?
The driver operates in constant current mode with a 32–54V output range. The number of LEDs in series depends on each LED's forward voltage — there is no fixed count. Ensure the total series forward voltage of your string falls within 32–54V at 350mA.
