BOKE BK-BCL010S-AHA0700AN 10W Constant Current LED Driver
Log in to see priceOverview
BK-BCL010S-AHA0700AN is the model of this series: typical efficiency 85% , see the electrical values below for details.
Features
- Slim shape design, can be installed through a 30mm mounting hole
- Flicker-free output,which meets the requirement of ErP standard

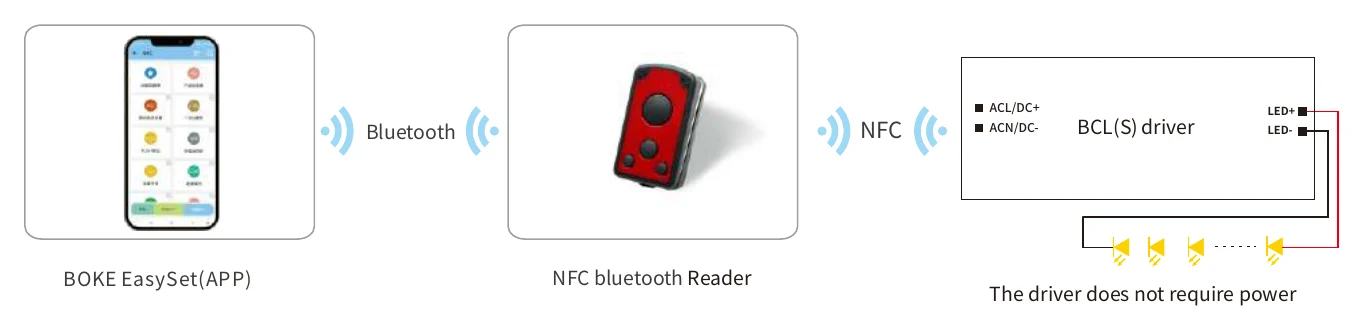

- The output current programming can be realized through the NFC interface
- Withstand 380VAC high voltage short-time shock
- Compact housing design
- High PF, high efficiency, low THD
- Screw-free and pressing type strain relief and easier to install
- Dual-stage circuit design, work stable
- SELV and Class II design, suitable for use outside of the light
- Compliance with Zhaga Book 24/25 standards
- Compliance with CE,ENEC,UKCA,RCM,EL and other certifications
- IP20 protection grade, indoor use

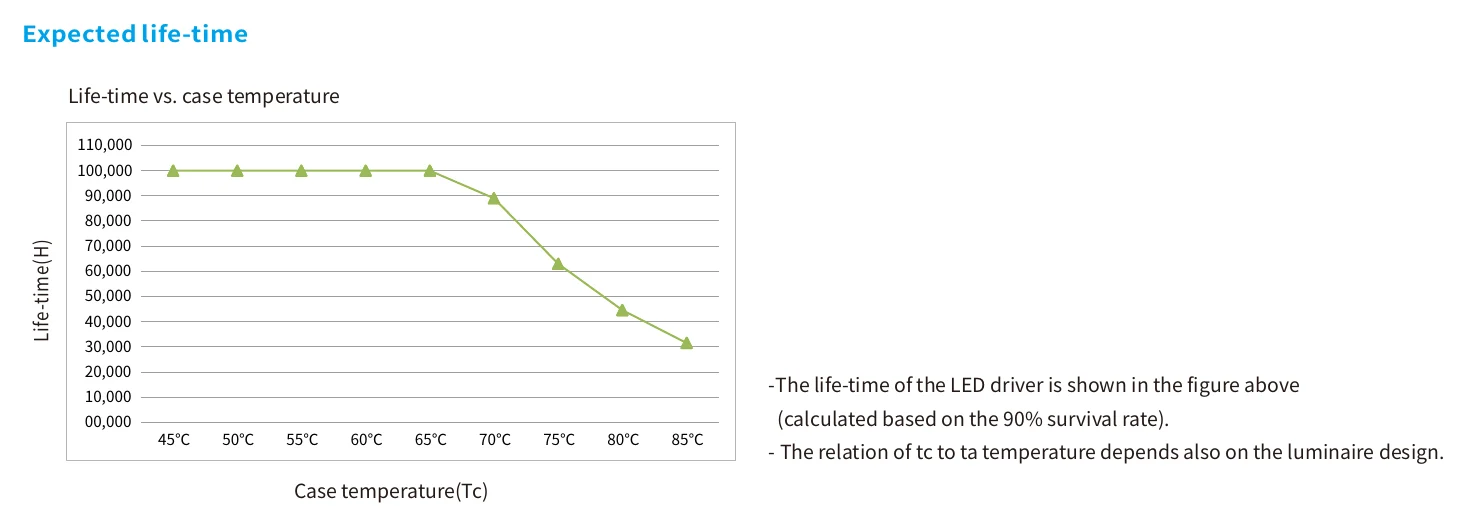

- Nominal life-time up to 100,000 h
- 5-year guarantee
- Support central emergency application (100% output in DC input)
- Support self-contained emergency application

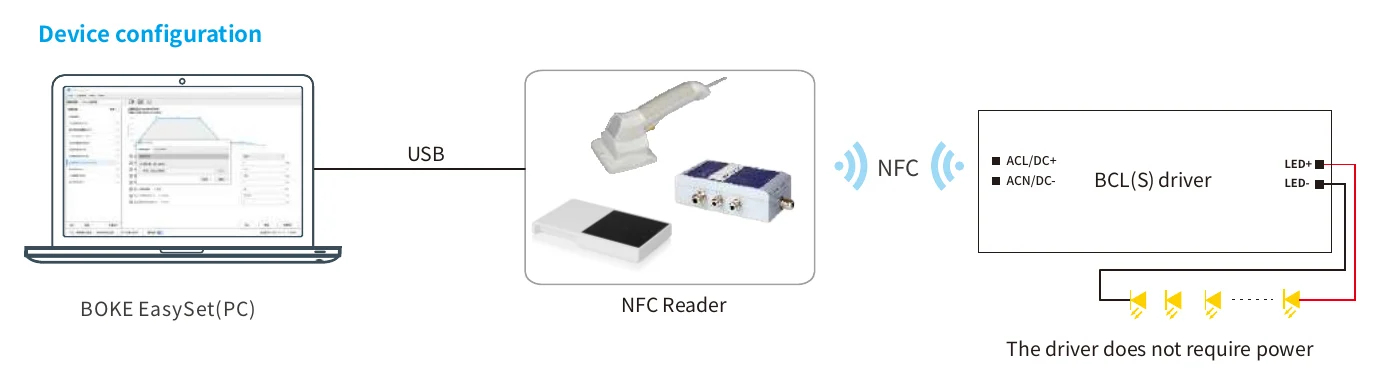

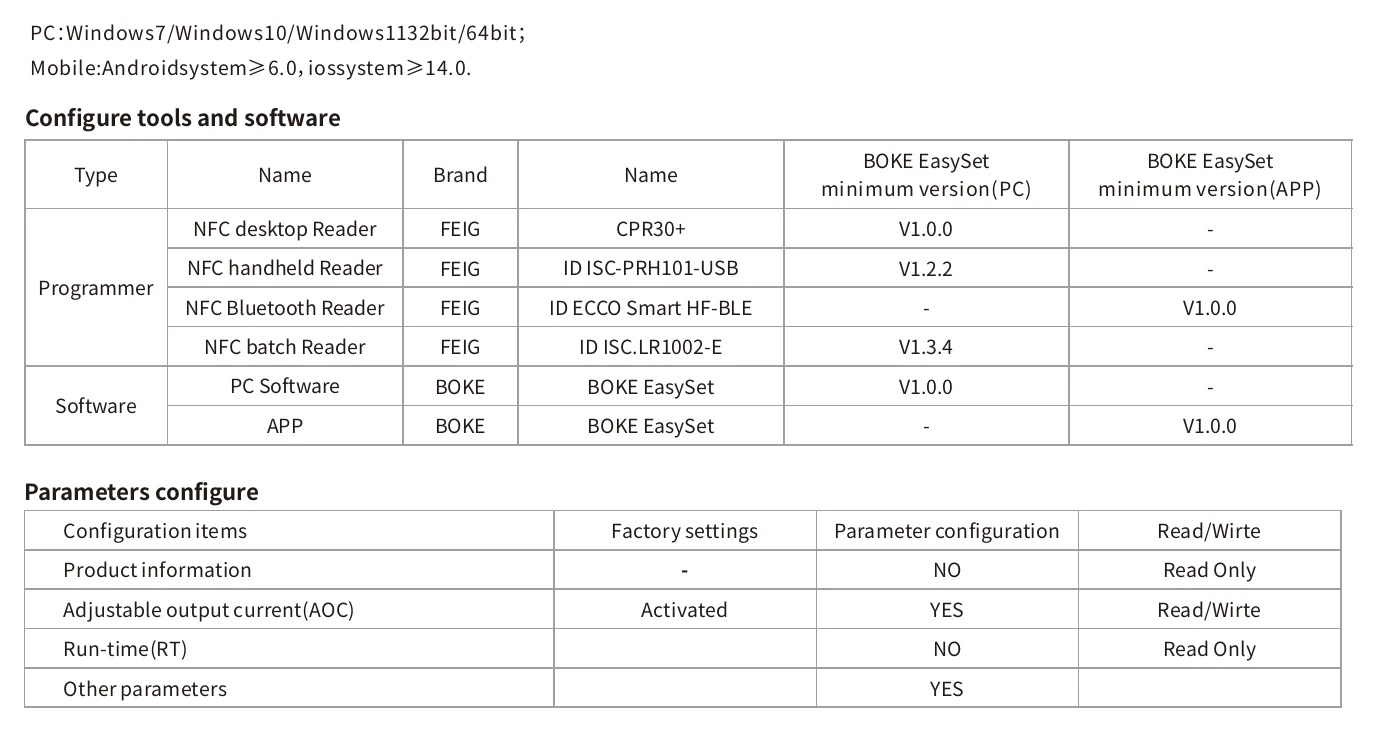

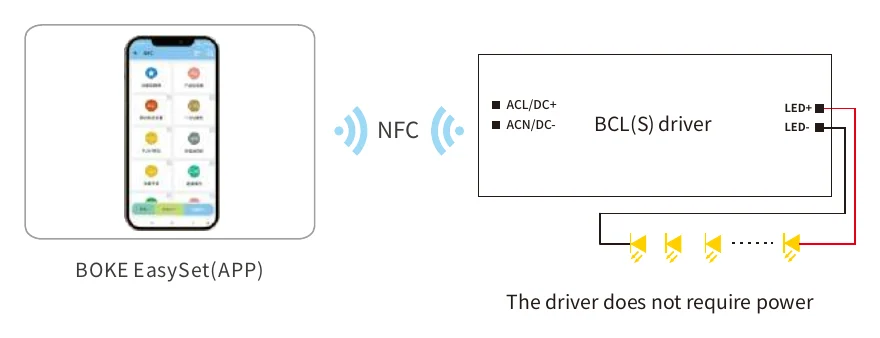

- Programming via NFC(EasySet)
- Protective features (short-circuit,no-load,overload, over temperature protection)
Specifications
Product model
- Product model
- BK-BCL010S-AHA0700AN
Output parameters
- Regulation method
- Constant Current
- Rated output current range

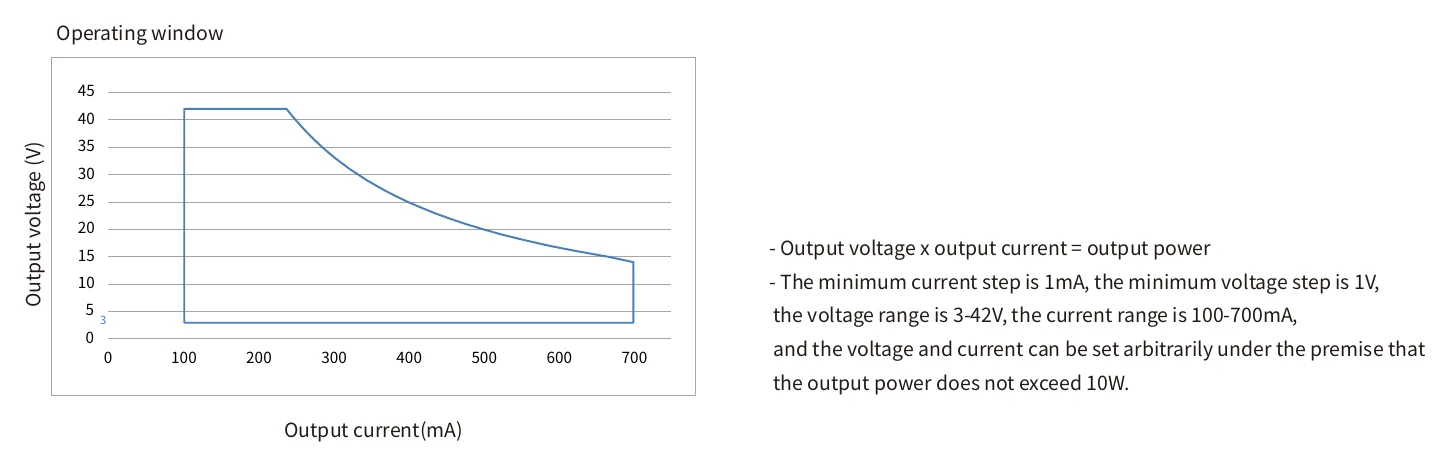

- 0.1-0.7A,see the operating window for details
- Rated output voltage range
- 3-42VDC,see the operating window for details
- Rated output power
- 10W Max,see the operating window for details
- Output current adjustment
- EasySet Programming
- Output current ripple(typ.)
- ±5%(100Hz)
- Output current accuracy
- ±5%
- Linear regulation
- ±5%
- Load regulation
- ±5%
- No load output voltage
- 59VDC
- Flicker-free(typ.)
- Flickering percent(IEEE 1789)=0.161%(100Hz), Pst LM = 0.025, SVM = 0.004
Input parameters
- Rated input voltage range
- 200-240VAC/DC
- Input voltage range
- 180-264VAC/DC
- Input votage shock
- <380 V AC
- Input current
- <0.08A (Rated input voltage)
- Input frequency
- 0/50/60Hz
- Input PF/Input DF(typ.)
- PF: 0.92C, DF: 0.94
- Input THD(typ.)
- 17%

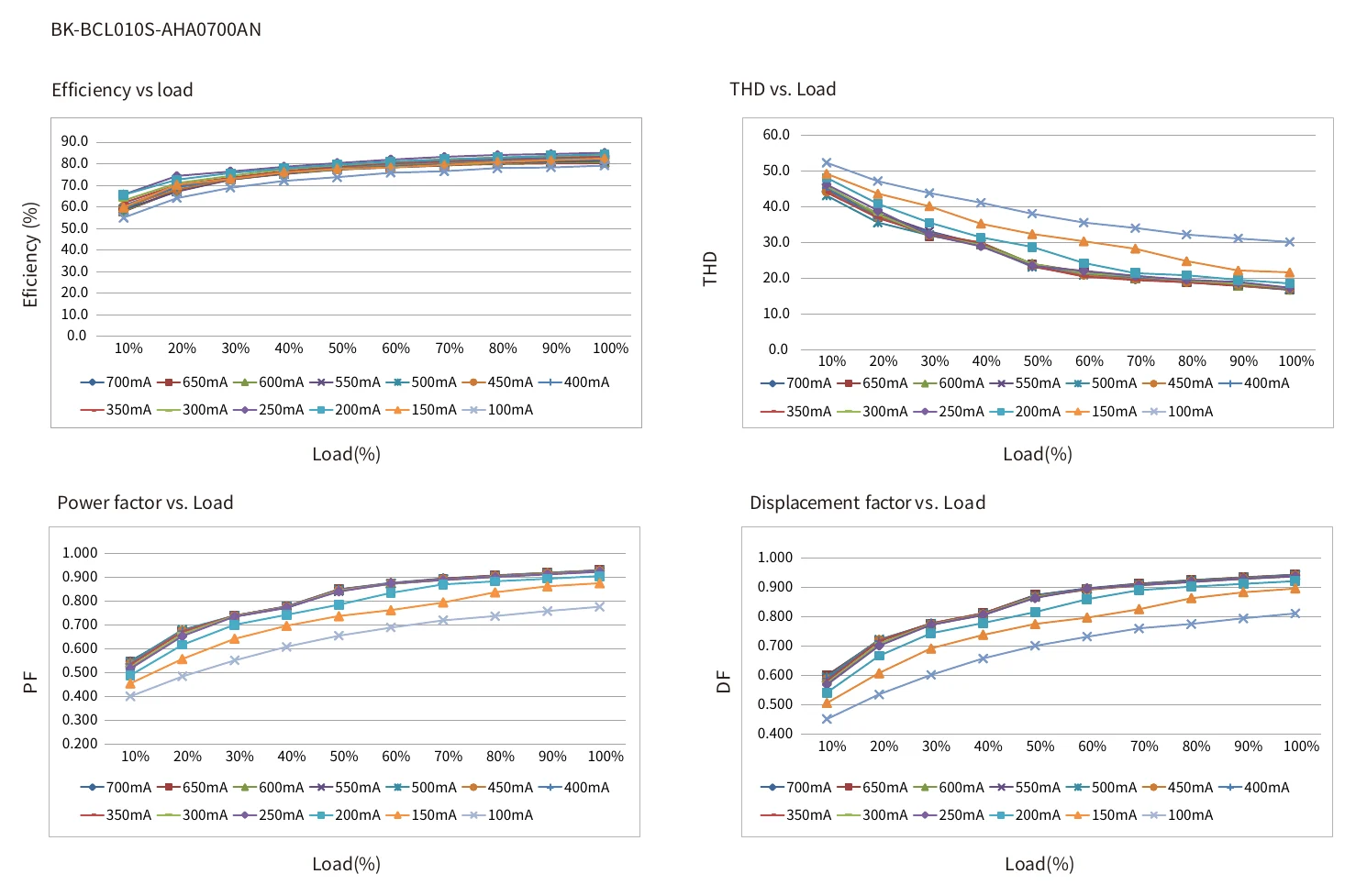

- Efficiency(typ.)
- 85%
- In-rush current(typ.)
- 0.785A peak, 41us duration(50 % Ipeak)
- Start/Switchover/Turn off
- <0.5s(AC start),<0.5s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off )
- Switching cycles
- > 100,000 switching cycles
- Power consumption(typ.)
- Full load(Pin):11.8W
Safety
- Withstand voltage
- I/P-O/P(LED):3750V AC
- Mains surge capability
- L-N:1KV(Performance criterion:B)
- Leakage current(typ.)
- 0.47mA
- Isolation resistance
- I/P-O/P:100MΩ/500Vdc/25℃/70%RH
Control interface
- DALI dimming port
- N/A
- pushDIM dimming port
- N/A
- 1-10V 3in1 dimming port
- N/A
- Auxiliary power supply
- N/A
- Dimming range
- N/A
- Dimming drive mode
- N/A
Emergency support
- Central emergency system
- Supported
- Self-contained emergency
- Supported
Environment & Life time
- Operating temperature
- Ta=-20-50/60℃
- Case temperature
- Tc=85℃
- Operating humidity
- 5-85% RH, non-condensing
- Storage temp./humidity
- -40-80℃, 5-85% RH, non-condensing
- IP grade
- IP20
- MTBF
- 500,000H, MIL-HDBK-217F(25℃)
- Life-time
- Nominal life-time up to 100,000 h
- Vibration resistant
- 10~500Hz, 5G 12min./1cycle, period for 72min. each along X,Y,Z axes
- Acoustic Noise
- <25dB(30cm, Normal operation)
- Environmental protection
- RoHS
Others
- guarantee
- 5-year guarantee
- Dimension

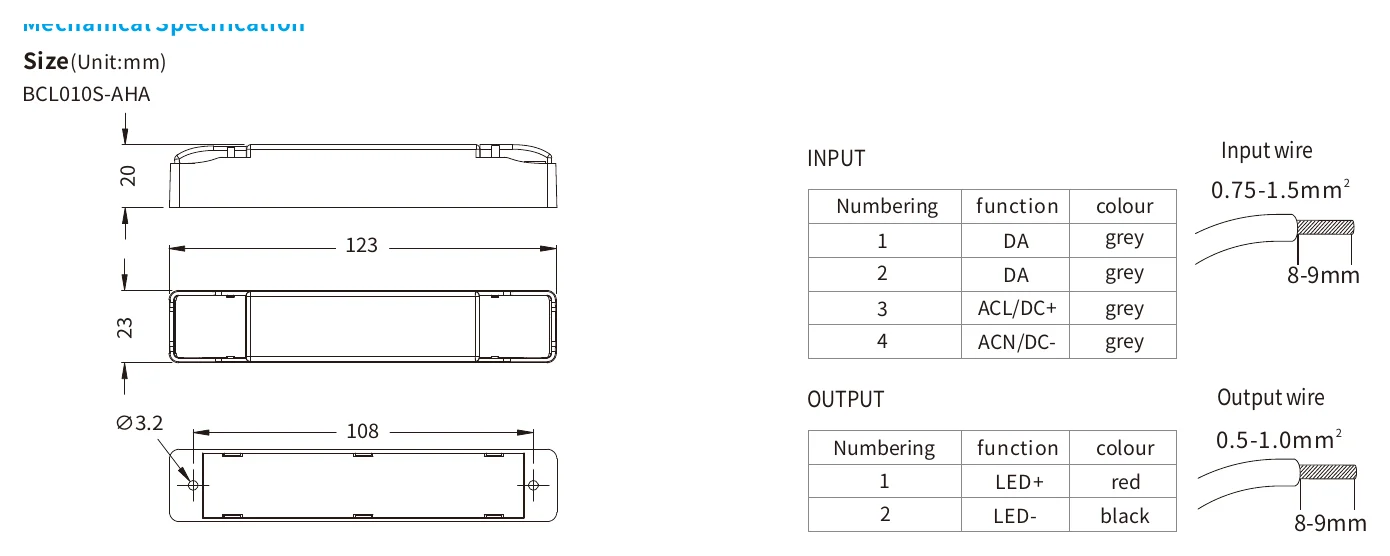

- L123*W23*H20mm
Certifications and standards

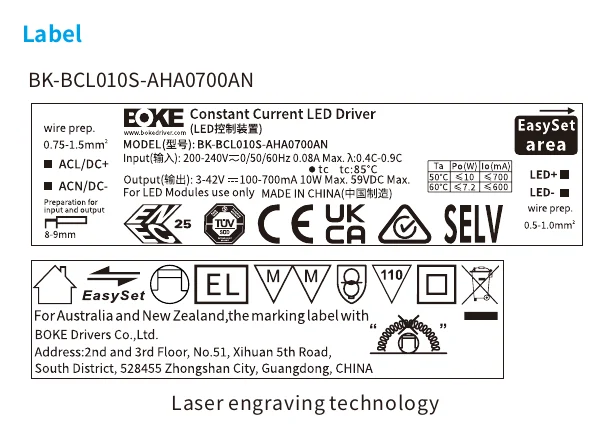

- Compliance certification
- CE, ENEC, UKCA, RCM, EL
- Safety
- EN61347-1, EN61347-2-13, EN62384
- EMC
- EN55015, EN61000-3-2 , EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
- DALI-2
- N/A
- EL
- Compatible IEC 61347-2-13 Annex J, compatible with EN 60598-2-22 and EN 50172
- RF
- N/A
Test conditions and notes2
- 1.By default, all parameter are measured at 230VAC input, 50Hz, full load and 25℃ of ambient temperature.
- 2.The driver can not be installed inside the light. when the driver is used with the light, the EMC of the whole light needs to be tested.
Technical drawings
Typical applications
- Suitable for downlights or spotlights with small mounting holes
- LED indoor lighting
- LED office lighting
- LED commercial lighting
Downloads
Datasheet1
FAQ
What is this driver used for?
It is a constant current LED driver designed for indoor lighting applications, suitable for fixtures requiring 0.1-0.7A output current.
What are the output voltage and current specifications?
The rated output voltage range is 3-42VDC with a rated output current range of 0.1-0.7A, delivering up to 10W maximum power.
What input voltage does it require?
It operates on a rated input voltage range of 200-240VAC/DC, with an acceptable input range of 180-264VAC/DC.
How can the output current be adjusted?
Output current is adjusted using EasySet Programming. This model does not support DALI, pushDIM, or 1-10V dimming interfaces.
What are the dimensions and mounting requirements?
The unit measures L123 x W23 x H20mm. It is an IP20 rated device, intended for indoor use in dry locations.
What is the operating temperature range?
The ambient operating temperature range is -20°C to 50°C (or 60°C depending on specific conditions), with a case temperature limit of 85°C.
What is the warranty period?
This product comes with a 5-year guarantee.
