Ltech

Ltech SE-30-200-800-W1D 30W 200-800mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures
SKU SE-30-200-800-W1D
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

SE-30-200-800-W1D is the 9-42Vdc output model of this series: typical efficiency 87%.

Features

  • Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
  • Ultra small, thin and lightweight, screwless end cap.
  • Change the output current, DALI address and other parameters via the APP.
  • Set the DALI group and scene in the advanced DALI template via the APP.
  • Adjustable output current with 1mA step.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • T-PWM™ super deep dimming technology, 0.01% dimming depth.
  • The whole dimming process is flicker-free with high frequency exemption level.
  • Comply with the EU's ErP Directive, networked standby<0.5W.
  • When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).

Specifications

SE-30-200-800-W1DSpecifications from the official datasheet

Features

Output Type
Constant current
Dimming Interface
DALI-2 DT6
Output Feature
Isolation
Protection Grade
IP20
Insulation Grade
Class II [Suitable for class I/ II /III light fixtures]

OUTPUT

Output Voltage
9-42Vdc
Maximum output voltage
≤55Vdc
Output Current Range
200-800mA
Output Power Range
1.8W-30W
Dimming Range
0~100%, down to 0.01%
LF Current Ripple
<3%(Maximum current for non dimming state)
Current Accuracy
±5%
PWM Frequency
<3600Hz

INPUT

DC Voltage Range
120-250Vdc
AC Voltage Range
100-240Vac
EoF
100%
Input Voltage
115Vac/230Vac
Frequency
50/60Hz
Input Current
≤0.34A/115Vac, ≤0.17A/230Vac
Power Factor
PF>0.95/115Vac [at full load], PF>0.9C/230Vac [at full load]
THD
THD<10%/230Vac, at full load
Efficiency (Typ.)
87%
Inrush Current
Cold start 25A(Test twidth=130us tested under 50% Ipeak)/230Vac
Anti Surge
L-N: 2KV
Leakage Current
Max. 0.5mA

ENVIRONMENT

Working Temperature
ta: -20~45°Ctc: 90°C
Working Humidity
20~95%RH,non-condensing
Storage Temperature/Humidity
-40~80°C/10~95%RH
Temperature Coefficient
±0.03%/°C(0-50°C)
Vibration
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

PROTECTION

Overload Protection
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically

SAFETY & EMC

Withstand Voltage
I/P-O/P: 3750Vac
Insulation Resistance
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
SafetyStandards
ParameterStandardTest Level
CCCChinaGB19510.1, GB19510.14
TUVGermanyEN61347-1, EN61347-2-13, EN62493
CBCB Member StatesIEC61347-1, IEC61347-2-13
CEEuropean UnionEN61347-1, EN61347-2-13, EN62384
KCKoreaKC61347-1, KC61347-2-13
EACRussiaIEC61347-1, IEC61347-2-13
RCMAustraliaAS61347-1, AS61347-2-13
ENECEuropeEN61347-1, EN61347-2-13, EN62384
UKCABritainBS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BISIndiaIS 15885 [PART 2/SEC 13]
CULCanadaCSA C22.2 NO.250.13
ULAmericaUL 8750
EMC Emission
ParameterStandardTest Level
CCCChinaGB/T17743, GB17625.1
CEEuropean UnionEN55015, EN61000-3-2, EN61000-3-3, EN61547
KCKoreaKSC 9815, KSC 9547
EACRussiaIEC62493, IEC61547, EH55015
RCMAustraliaEN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCABritainBS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CULCanadaICES-005
ULAmericaFCC PART 15B
EMC Immunity
EN61000-4-2,3,4,5,6,8,11, EN61547

ErP

Power Consumption
ParameterStandard
Networked standby<0.5W (After shutdown by command)
No-load power consumption<0.5W (When the lamp is not connected)
Flicker/Stroboscopic Effect
ParameterStandard
IEEE1789Meet IEEE 1789 standard/High frequency exemption level
CIE SVMPst LM≤1.0, SVM≤0.4
DF
ParameterStandard
Phase factorDF≥0.9

OTHERS

Weight(N.W.)
150g±10g
Dimensions
142×40×23mm(L×W×H)

Technical drawings

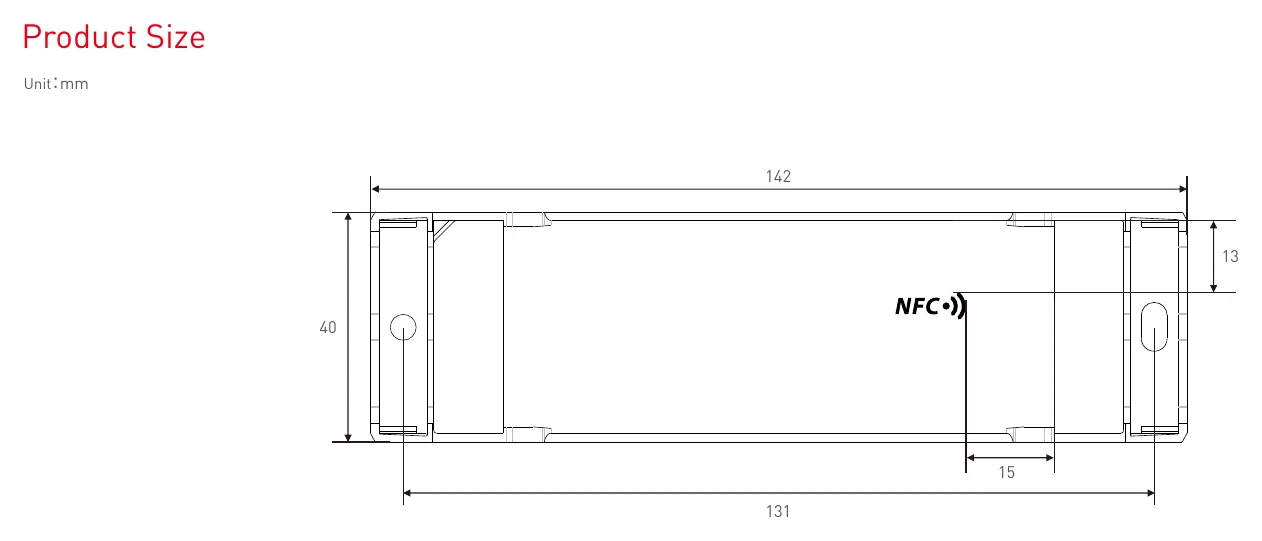

SE-30-200-800-W1D Product Size
Product Size
SE-30-200-800-W1D Dimensions (mm)
Dimensions (mm)

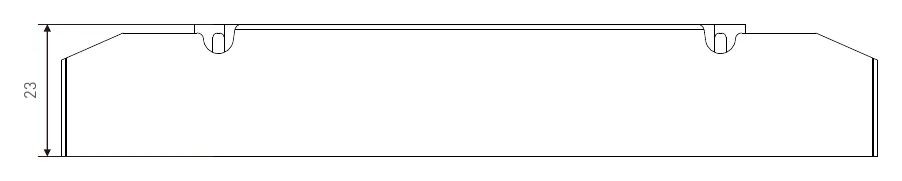

SE-30-200-800-W1D Product Size (2)
Product Size (2)

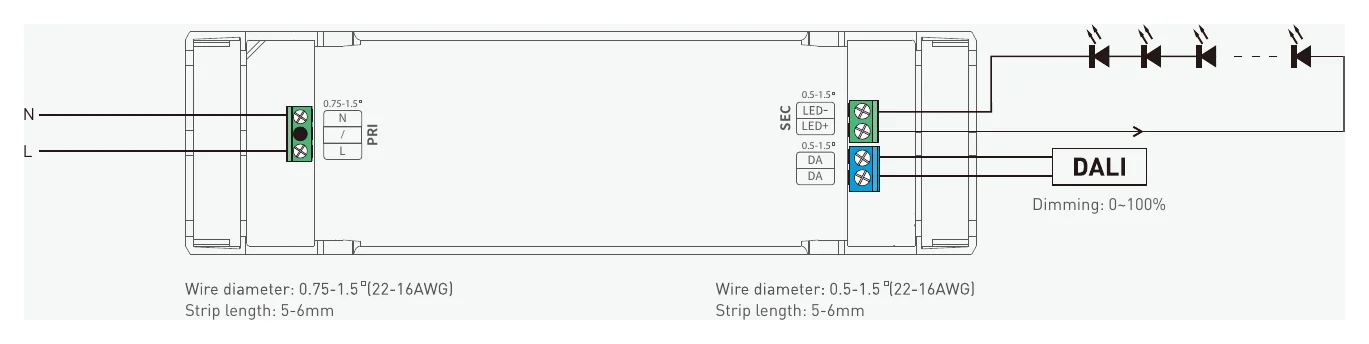

SE-30-200-800-W1D SEC
SEC

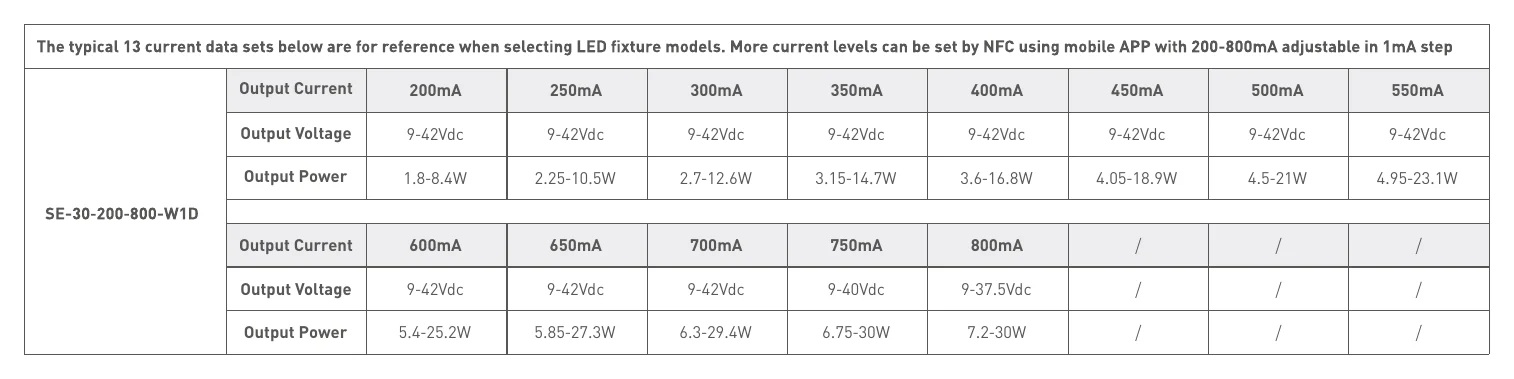

SE-30-200-800-W1D Table of Typical Corresponding Parameters for Current
Table of Typical Corresponding Parameters for Current
SE-30-200-800-W1D Table of Typical Corresponding Parameters for Current (2)
Table of Typical Corresponding Parameters for Current (2)

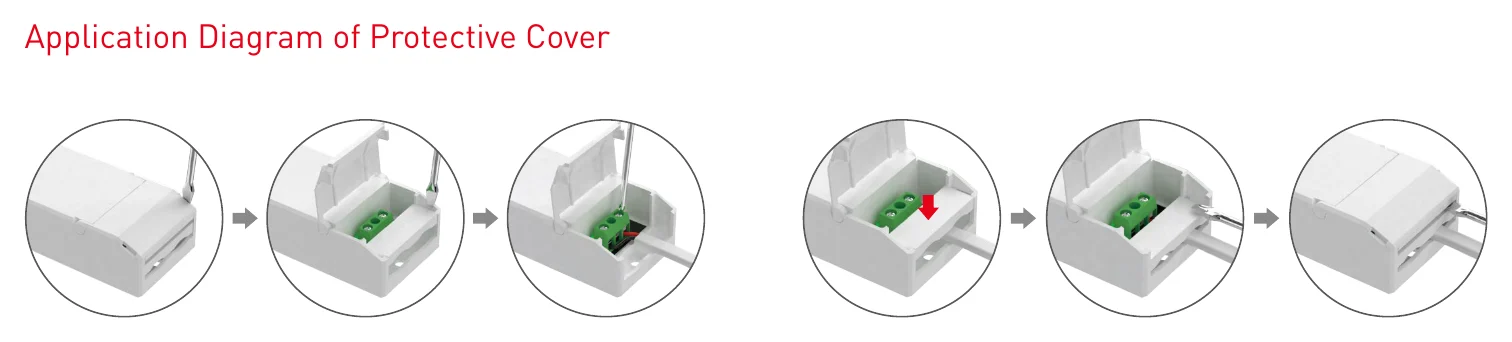

SE-30-200-800-W1D Application Diagram of Protective Cover
Application Diagram of Protective Cover

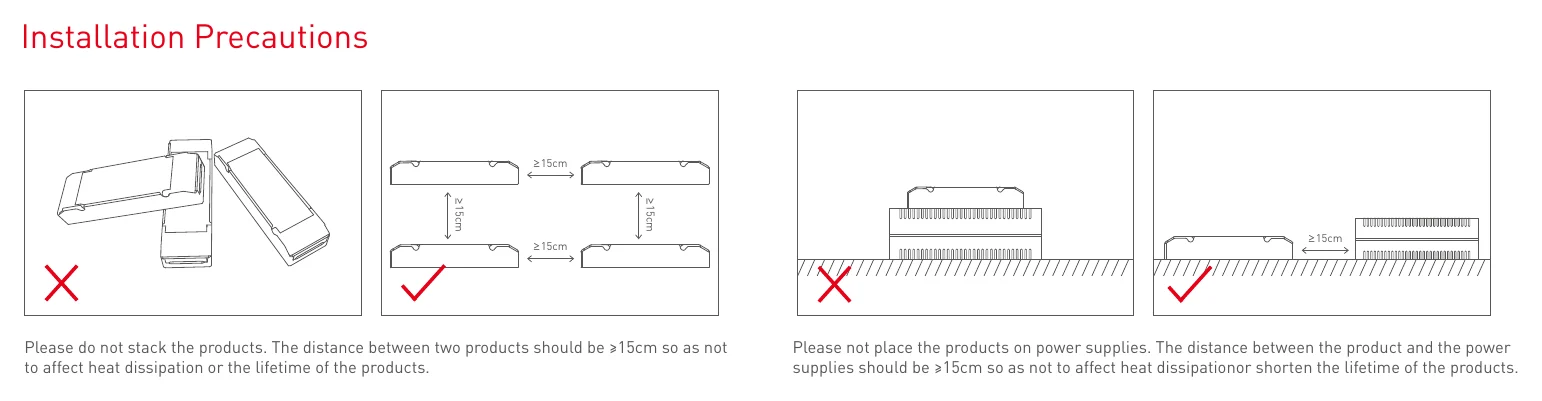

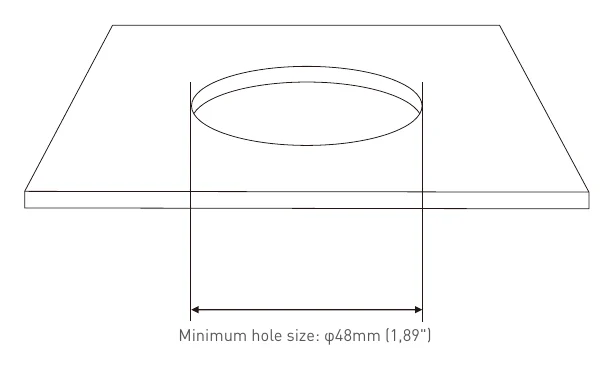

SE-30-200-800-W1D Installation Precautions
Installation Precautions

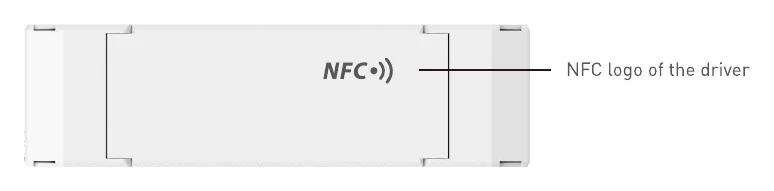

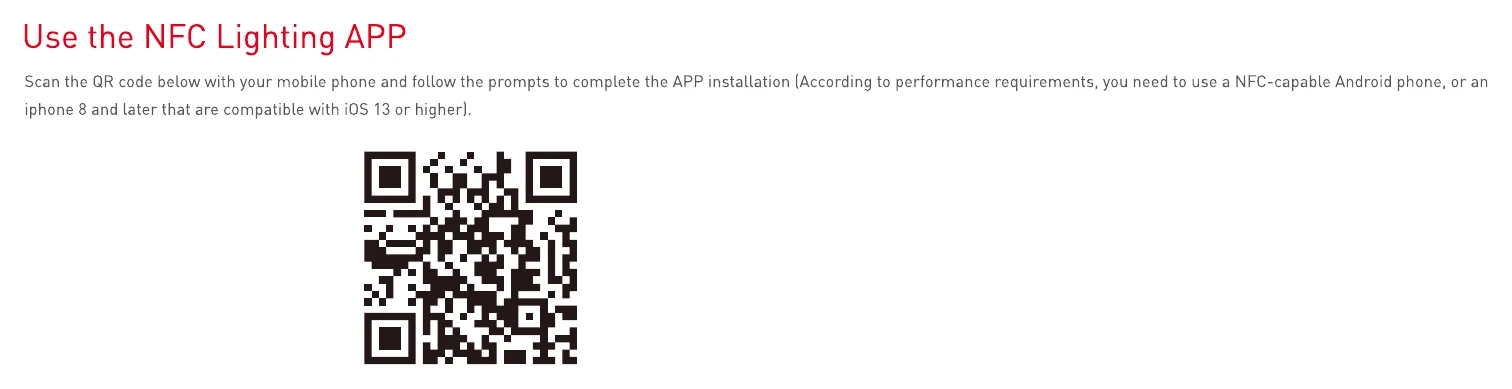

SE-30-200-800-W1D Illustration (page 4)
Illustration (page 4)
SE-30-200-800-W1D Illustration (page 4)
Illustration (page 4)

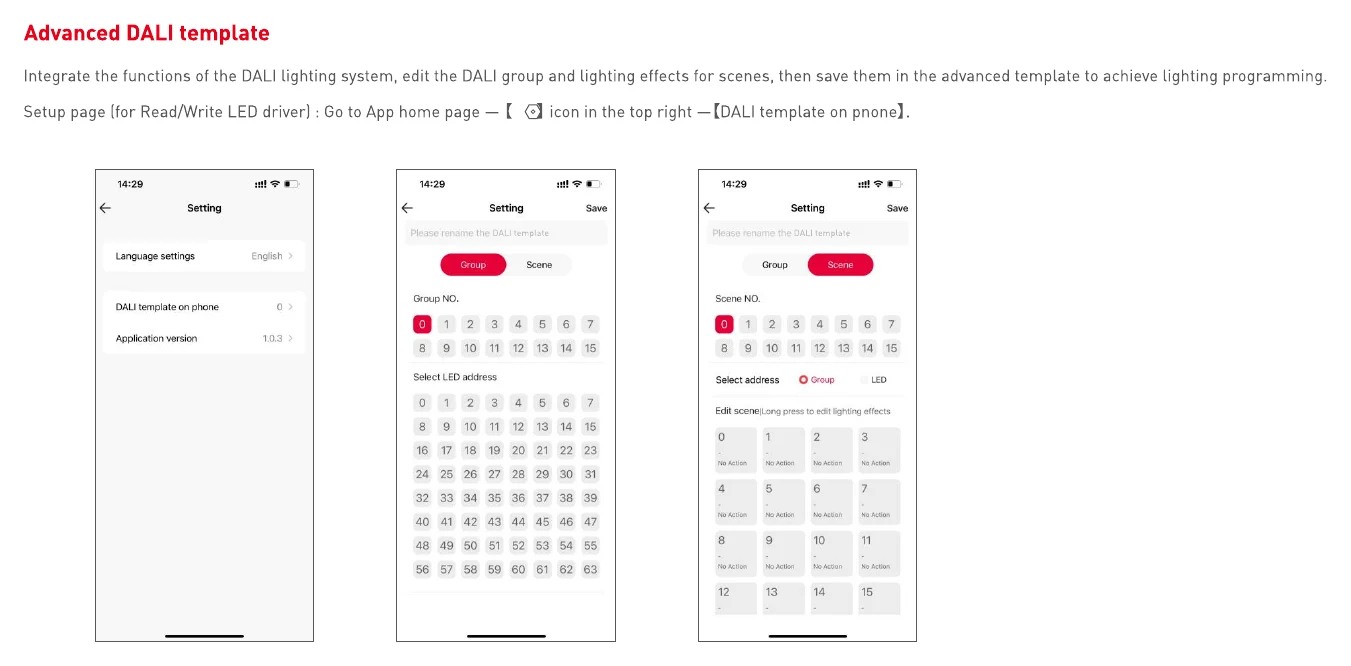

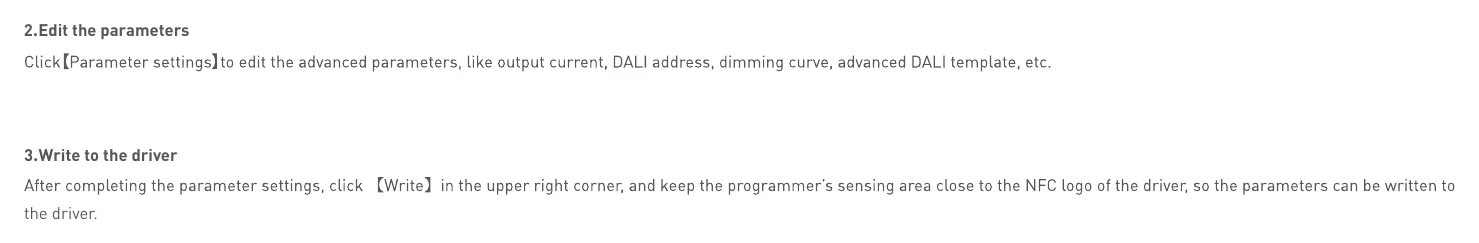

SE-30-200-800-W1D 2.Edit the parameters
2.Edit the parameters

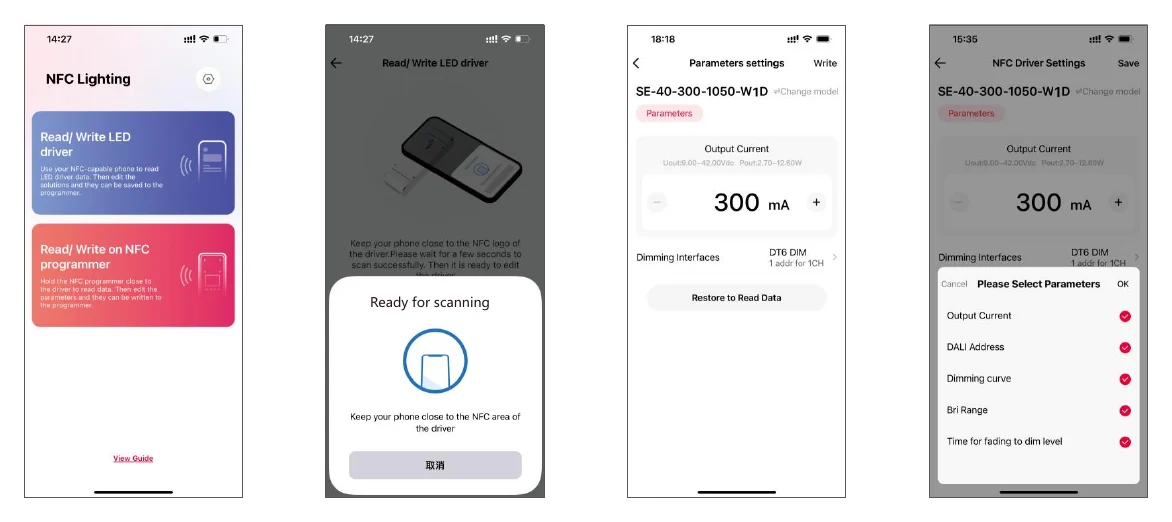

SE-30-200-800-W1D Ready for scanning
Ready for scanning
SE-30-200-800-W1D Illustration (page 4)
Illustration (page 4)

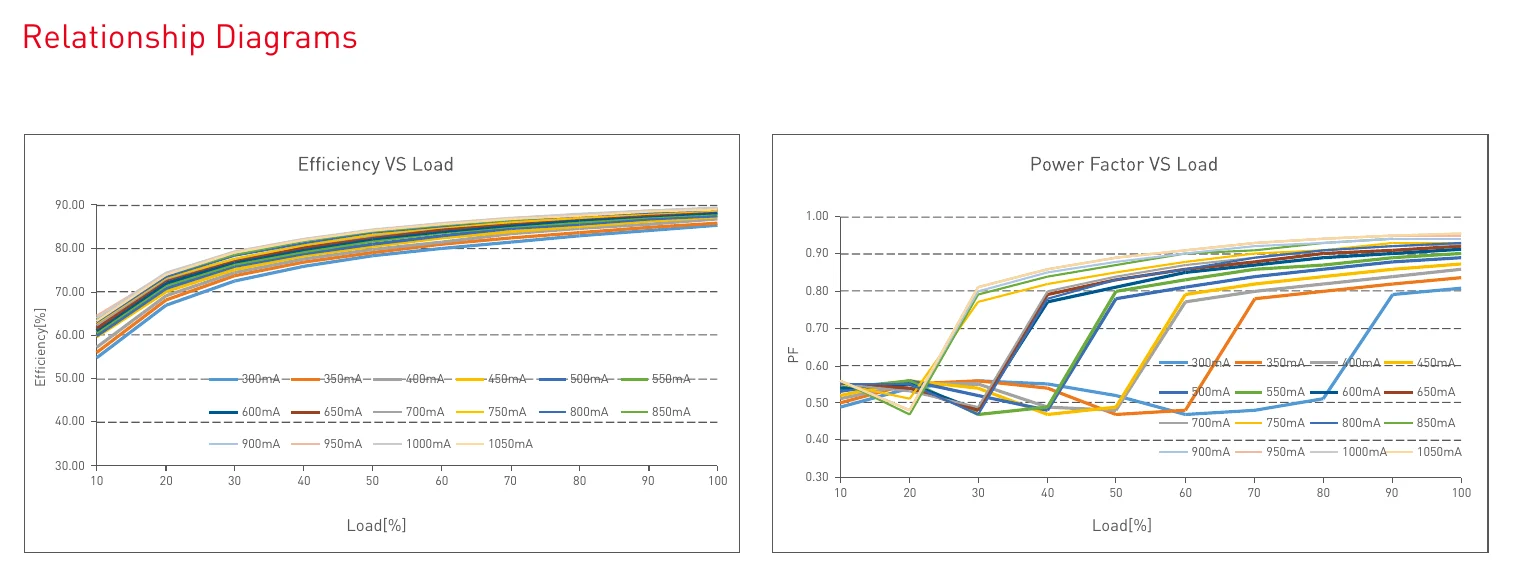

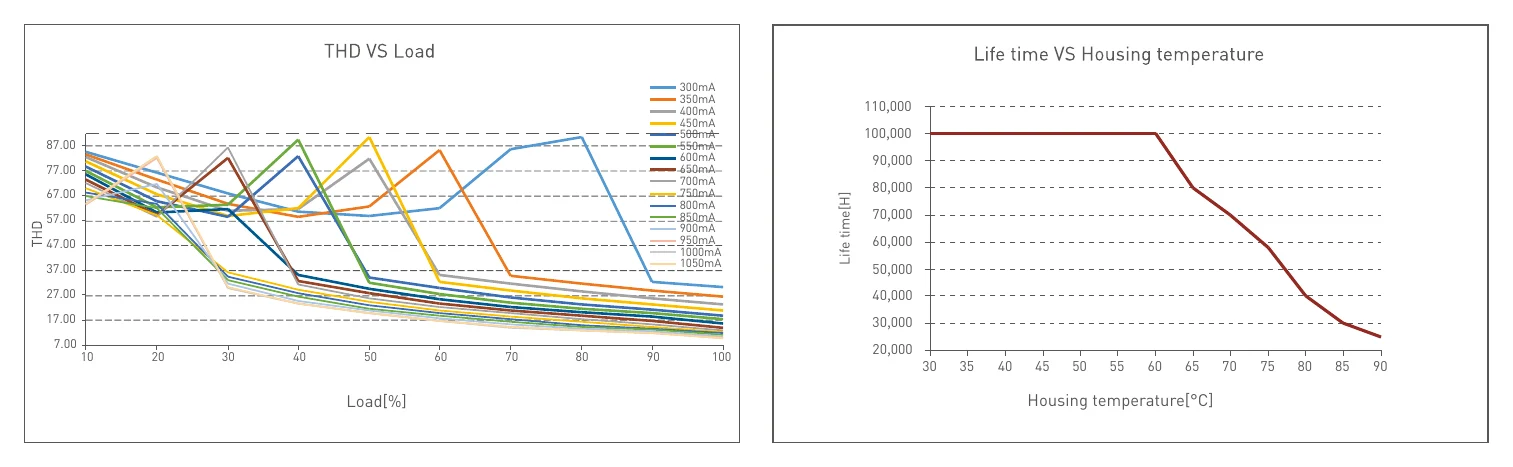

SE-30-200-800-W1D Relationship Diagrams
Relationship Diagrams
SE-30-200-800-W1D Lifetime[H]
Lifetime[H]

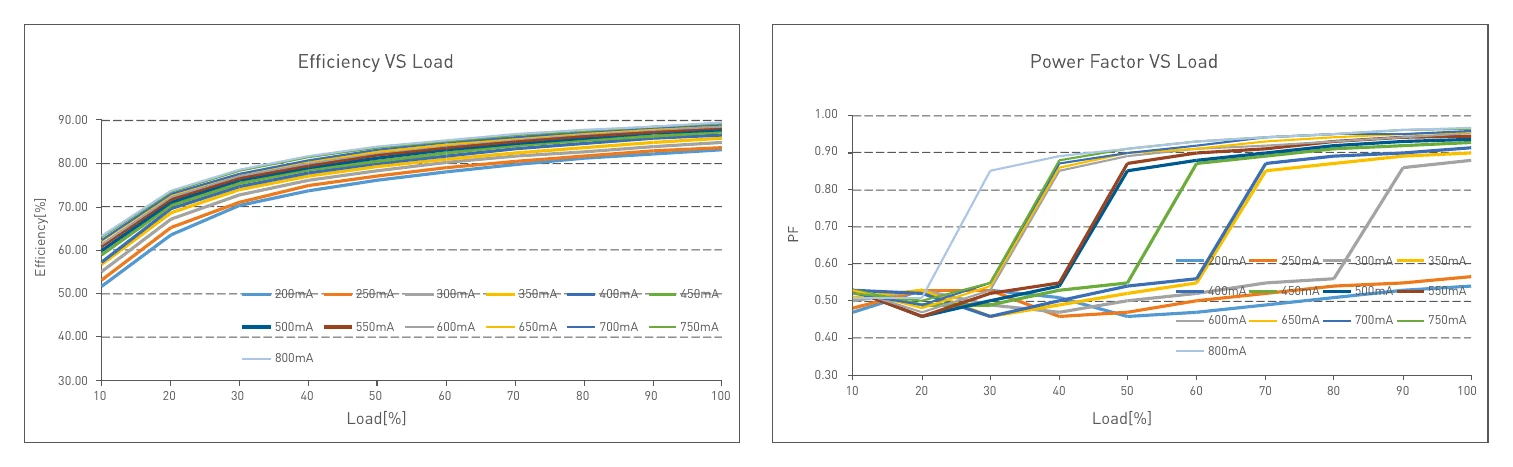

SE-30-200-800-W1D Efficiency[%]
Efficiency[%]

Downloads

FAQ

What kind of applications is the Ltech SE-30-200-800-W1D designed for?

This model is intended for constant-current LED lighting applications that need dimming control and adjustable drive current. Its 30W output, 200-800mA adjustable current range, and DALI2 dimming make it a good fit for commercial and architectural LED systems where control flexibility matters.

Does this model support DALI dimming?

Yes. This driver is DALI2 dimmable and also includes features such as soft-on and fade-in dimming for a smoother lighting experience. It also supports very deep dimming through T-PWM technology, which helps in applications that need fine light-level control.

What are the key electrical specifications of this model?

This LED driver is rated at 30W with a maximum no-load output voltage of ≤55Vdc. Its rated current starts at 200mA, and the output current can be adjusted up to 800mA depending on the application requirements.

Is the SE-30-200-800-W1D suitable for demanding indoor environments?

It is built with V0 flame-retardant PC housing materials and is specified for operation from -20°C to 45°C. Those characteristics make it appropriate for indoor lighting environments that need a compact driver with a defined operating temperature range.

Does this LED driver offer long-term reliability for commercial projects?

This model includes a 5-year warranty, which supports use in professional and commercial lighting projects where service life matters. Its feature set is aimed at controlled LED applications that need both dimming performance and configurable operation.
