Boxco D-Series 250×350×170mm All In One Dual Door Box Enclosure, IP...
Log in to see priceOverview
BC-ARD-253517 is a 250×350×170 mm ABS enclosure from the Boxco D Series.
Features
- BOXCO All in one dual door is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
- This enclosures are easy to separate cover and base so that user can assemble them for processing and printing.
- It has reasonable product price in cost down for assembly by making integrated cover and transparent window.
- Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.
Specifications
Dimensions
- Size W × L × H (cover included)
- 250×350×170 mm (9.84×13.78×6.69 in)
Material
- Material
- ABS
- Mounting plates
- 2535 G (Plastic, G type), 2535 C (Plastic), 2535 SQ (Steel)
Protection & environment
- Operating temperature
- -40 ~ +70℃
- Flammability rating (UL 94)
- 94-HB
Test conditions and notes1
- Dimensions and specifications are subject to change without notice.

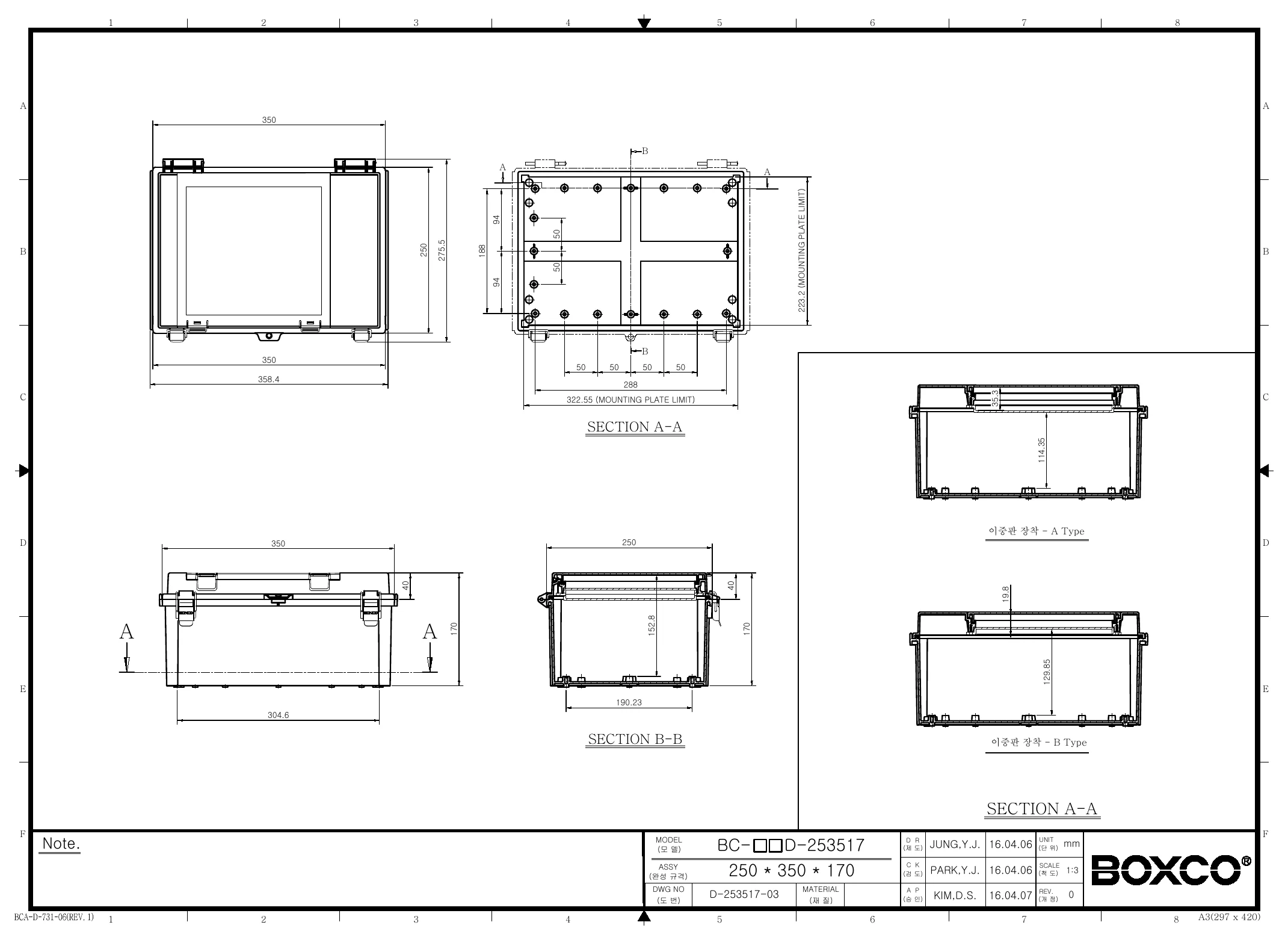

Technical drawings
Downloads
Datasheet1
FAQ
What is the Boxco D-Series dual door enclosure used for?
This enclosure is designed to protect industrial and commercial components that need a sealed housing in indoor or outdoor environments. Its dual door, all-in-one design is suited for applications where equipment needs to stay protected from dust, rain, and external impact while remaining accessible for service or inspection.
What are the dimensions of this enclosure?
This model measures 13.78 x 9.84 x 6.69 inches, which corresponds to 350 x 250 x 170 mm. Those dimensions make it a mid-size enclosure option for applications that need more internal space than compact junction boxes.
What material is this enclosure made from?
This model is made from ABS with a grey cover. The product description states that the D-series uses high impact resistant material to help withstand external impact and reduce breakage during hole and press processing.
Is this enclosure suitable for dusty or wet environments?
Yes, this enclosure is rated IP67, which indicates a high level of protection against dust ingress and water exposure. The product description also notes that the roof design is intended to help prevent the penetration of rain and dust.
How impact-resistant is this enclosure?
This model carries an IK08 impact rating. That rating, together with the high impact resistant ABS construction described for the D-series, makes it a practical choice where the enclosure may face incidental knocks or rougher service conditions.
What temperature range can this enclosure handle?
The specified operating temperature range is from -40 °C to 70 °C. That range supports use in both cold and hot industrial environments, provided the overall application stays within the product's published limits.
What makes this Boxco D-Series enclosure different from a standard single-door box?
This model uses an all-in-one dual door design and is described as part of Boxco's economic hinge series. The product description highlights easier separation of cover and base for processing and printing, along with an integrated design intended to reduce assembly cost.
Does this enclosure include corrosion-resistant hardware?
Yes, the hinge connecting pins and draw latch are described as being made from stainless steel and plastic to help prevent rust. That makes the enclosure better suited for environments where long-term exposure could affect standard metal hardware.
