Mean Well ODLV-65-24 Power Supply 65W 24V, Dimmable 2.4A

SKU ODLV-65-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ODLV-65-24 is the 24V output model of this series: rated current 2.4A, rated power 57.6W, typical efficiency 87%.

ODLV-65 series is a 65W AC/DC LED driver featuring the constant voltage mode PWM stytle design. ODLV-65 operates from 180~295VAC and offers models with different rated voltage ranging between 12V and 60V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLV-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Voltage PWM stytle output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
3 years warranty

Specifications

ODLV-65-24Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 2.4A
RATED POWER: 57.6W
DIMMING RANGE: 0~100%
VOLTAGE TOLERANCE: ±10%
PWM FREQUENCY (Typ.): 1KHz(±20%)
SETUP TIME^Note.3: 500ms / 230VAC
AUXILIARY DC OUTPUT^Note.4: Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.): COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W for Blank-Type, <1.2W for A-Type

PROTECTION

SHORT CIRCUIT: Shut down O/P voltage, re-power on to recovery
OVER CURRENT: 105 ~ 115% Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 NO.250.13-12;ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; BIS IS15885( for ODLV-65-12,24,48 only), EAC TP TC 004,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 4136.2K hrs min. Telcordia SR-332 (Bellcore) 398.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 121*77*28.5mm (L*W*H)
PACKING: 0.43Kg;24pcs/11.3Kg/ 0.74CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Aux. 12V will be damaged with short circuit; It will not be available with dimming off or output no load condition.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

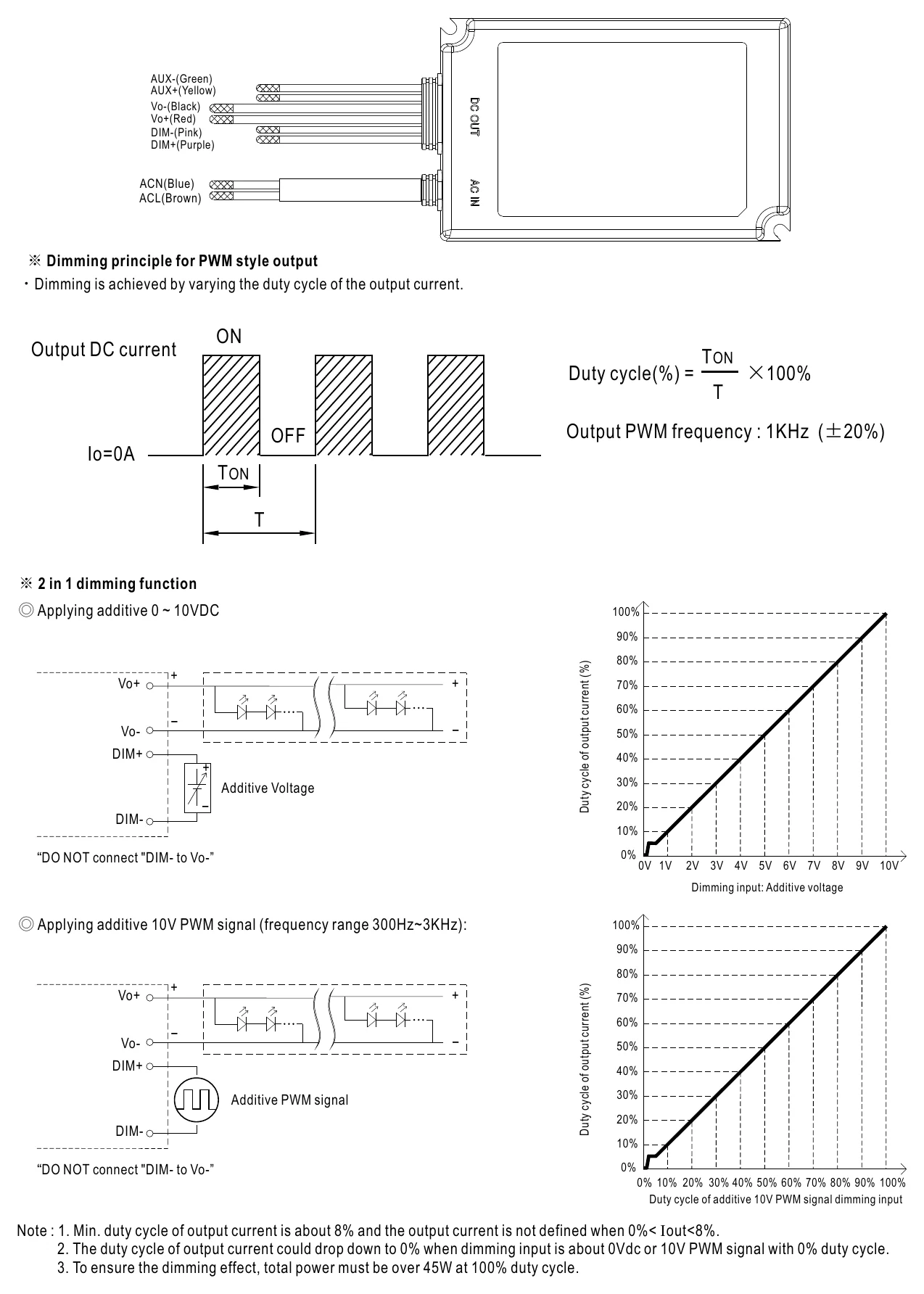

ODLV-65-24 DIMMING OPERATION — DIMMING OPERATION

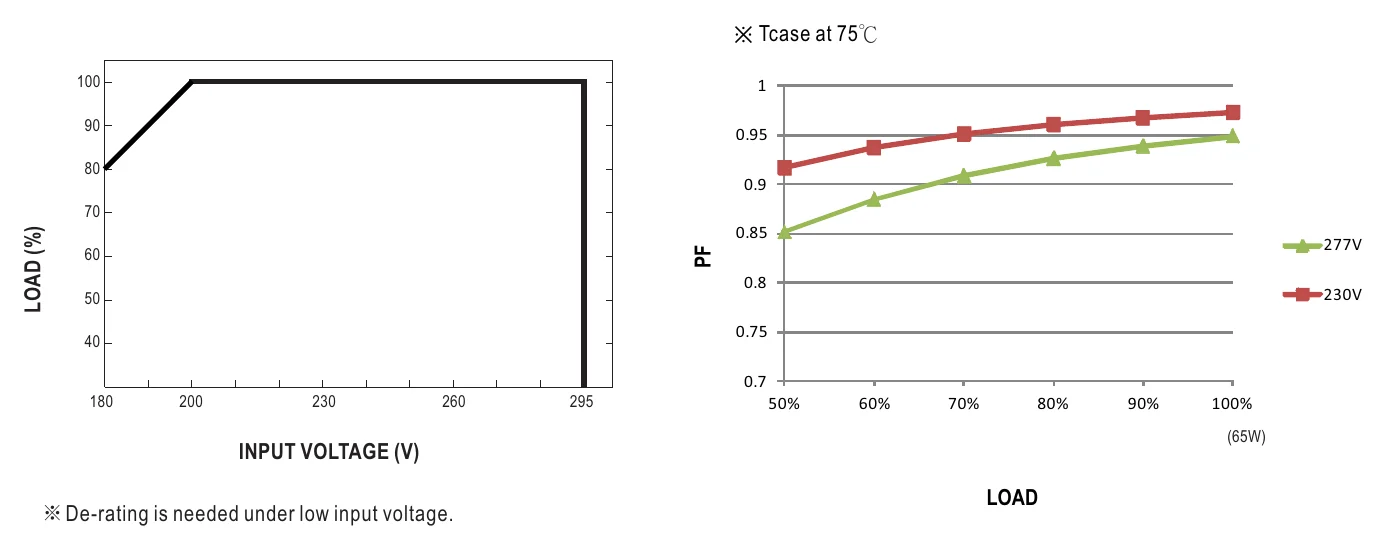

ODLV-65-24 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

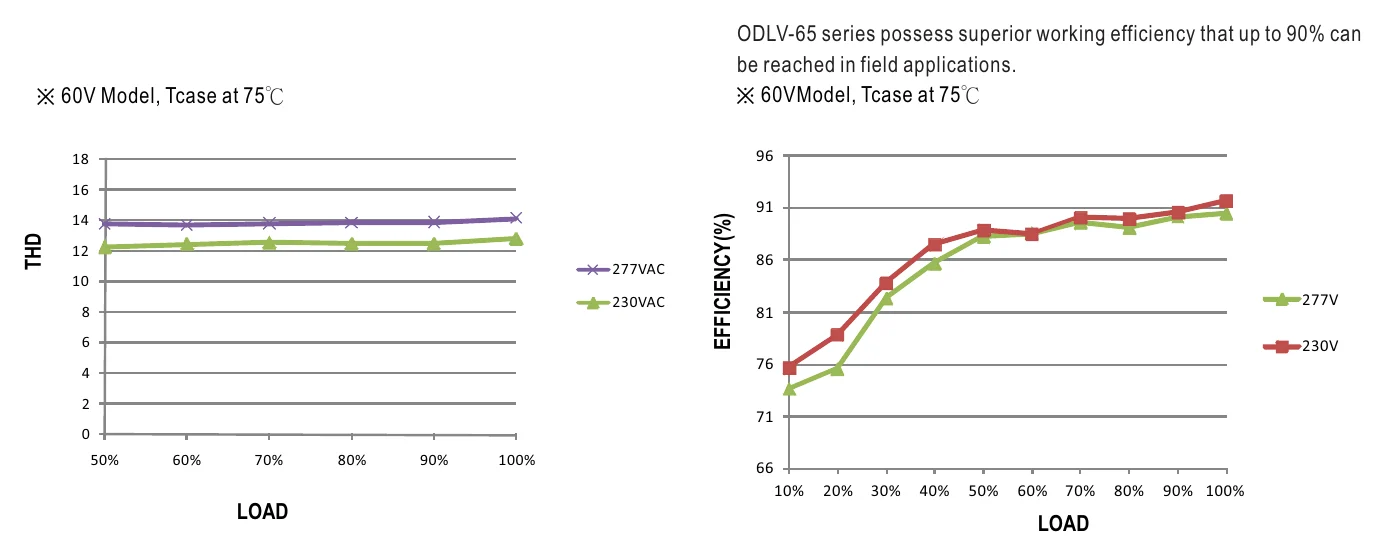

ODLV-65-24 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

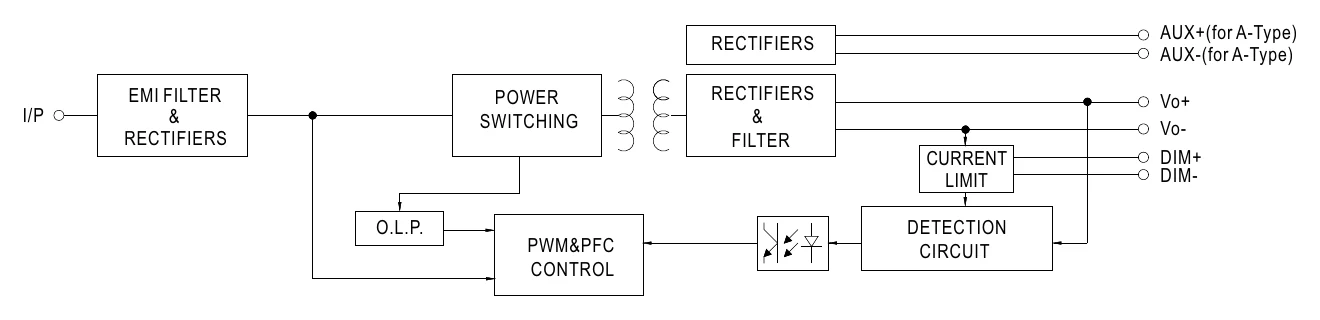

ODLV-65-24 BLOCK DIAGRAM — BLOCK DIAGRAM

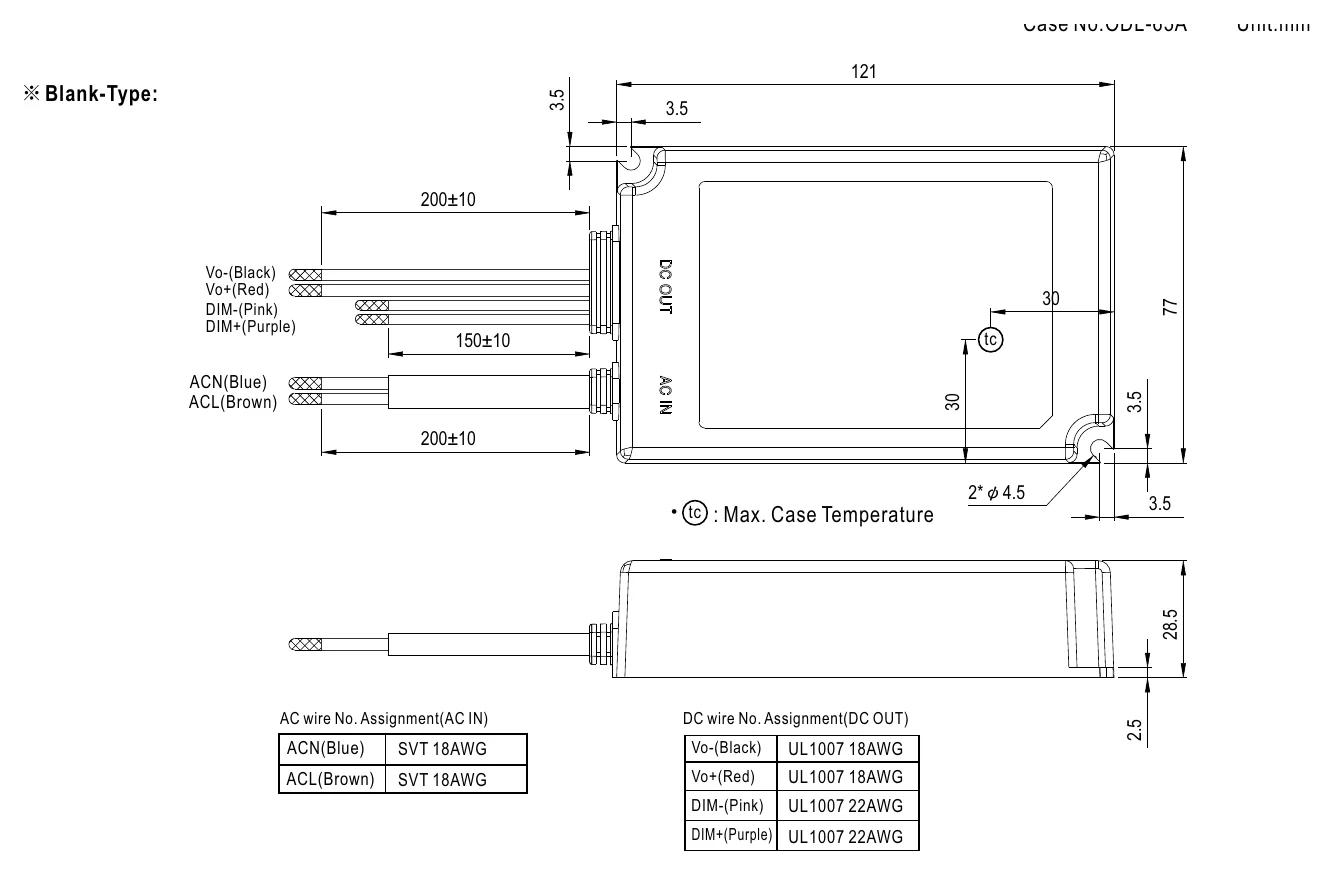

ODLV-65-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

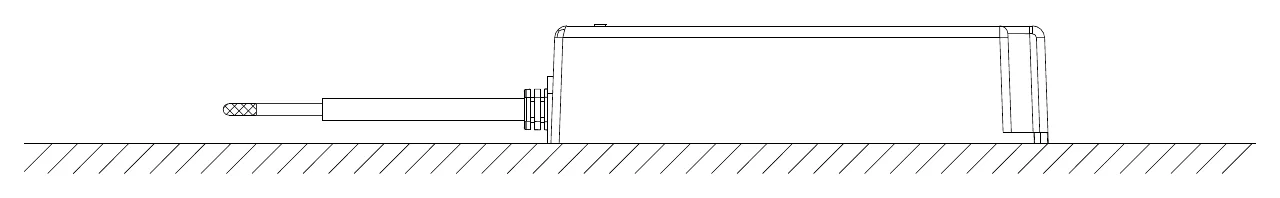

ODLV-65-24 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Industrial lighting

Downloads

Certificates4

Mean Well IDLV-ODLV-45-65-A-CB CE Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB EMC Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB IEC Certificate EN PDF Download

Mean Well IDLV-ODLV-45-65-A-CB UL Certificate EN PDF Download

Test reports1

Mean Well ODLV-65-24 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ODLV-65-24 for 24V LED strip lighting?

Yes, this unit is a 24V constant voltage LED driver rated for 57.6W maximum output and 2.4A output current. It is suitable for 24V LED strip loads as long as the total demand stays within 57.6W.

Is the ODLV-65-24 suitable for 24V signage and display lighting?

It can be used for 24V constant voltage signage, display lighting, and light box applications up to 57.6W. The IP67 waterproof construction also supports outdoor sign and display use.

Can this model power 24V cove or architectural linear lighting?

Yes, if the 24V constant voltage lighting load does not exceed 57.6W. Its IP67 rating and -20°C to +85°C case temperature (Tcase) range, with load derating at higher temperatures, suit indoor or outdoor lighting installations.

How much 24V LED strip can the ODLV-65-24 support?

The driver provides up to 57.6W total, so the maximum strip length is 57.6W divided by your strip's rated power per meter. Check your strip rated power per meter first, then use the formula 57.6W ÷ strip W/m.

Is the ODLV-65-24 appropriate for wet or outdoor environments?

Yes, it is rated IP67 waterproof for use in wet or exposed locations. It is specified for a case temperature (Tcase) of -20°C to +85°C, with load derating at higher temperatures, so check the installed conditions.

What are the key spec differences between the ODLV-65-24 and its siblings?

Within the ODLV-65 series, the models are ODLV-65-12 at 50.4W 12V 4.2A, ODLV-65-24 at 57.6W 24V 2.4A, ODLV-65-36 at 64.8W 36V 1.8A, ODLV-65-48 at 64.8W 48V 1.35A, and ODLV-65-60 at 64.8W 60V 1.08A. The A-Type versions (ODLV-65A-12, -24, -36, -48 and -60) share these output ratings and add a 12V auxiliary DC output rated 50mA. This specific model is the 24V, 57.6W, 2.4A version without the auxiliary output.
