Envo Slim SC-60S-24 Power Supply 60W 24V - Triac dimmable 2.5A
Log in to see priceOverview
SC-60S-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 85%.
Features
- Output constant voltage
- Range: 200-240VAC
- Built-in active PFC function Power Factor: up to 0.96
- Efficiency up to 85%
- Dimming range: 0-100%
- Load: 10-100%
- Protection:short circuit/over loading/ Over temperature
- PWM output, does not change the color index
- Full protection plastic case, IP20 for indoor installation
- Flicker-free
- Compatible with leading edge and trailing edge TRIAC dimmers
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
Specifications
Output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Voltage Regulation
- ±0.5%
- Rated current
- 2.5A
- Rated power
- 60W
- Load Regulation
- ± 2%
Input
- Voltage Range
- 200-240VAC
- Frequency Range
- 47 - 63Hz
- Power Factor(Typ.)@ full load
- PF≥0.96/230VAC
- THD(Typ. ) @ full load
- <20%
- Efficiency(Typ.)@ full load
- 85%
- AC Current(Max.)
- 0.37A/200VAC
- Inrush Current (Typ.)
- 50A,50%,136us@230VAC
- Leakage current
- <0.5mA
Protection
- Short Circuit
- shut down o/p voltage, re-power on to recover after fault condition is removed
- Over Load
- ≤120% constant current limiting, auto-recovery
- Over temperature
- 100℃±10℃
- Protection Class
- II
Environment
- Working TEMP.

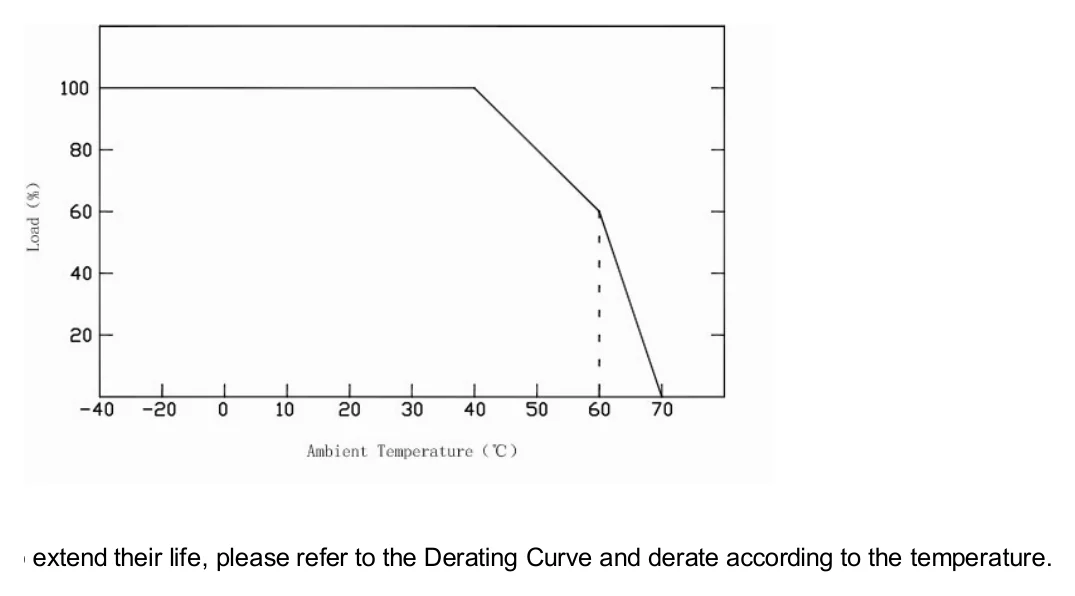

- -40~+60℃ (see below derating curve)
- Working Humidity
- 20 - 95%RH,non-condensing
- Storage TEM.,Humidity
- -40 - +80℃,10 - 95%RH
- TEMP.coefficient
- ±0.03%/℃(0 - 50℃)
- Vibration
- 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC
- Safety standards
- EN61347-1 EN61347-2-13 EN62493
- Withstand voltage
- I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation resistance
- I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
- EMC Emission
- EN55015 EN61000-3-2 EN61000-3-3
- EMC Immunity
- EN61000-4-2,3,4,5,6,11 EN61547
Others
- Net Weight
- 0.3Kg
- Dimension

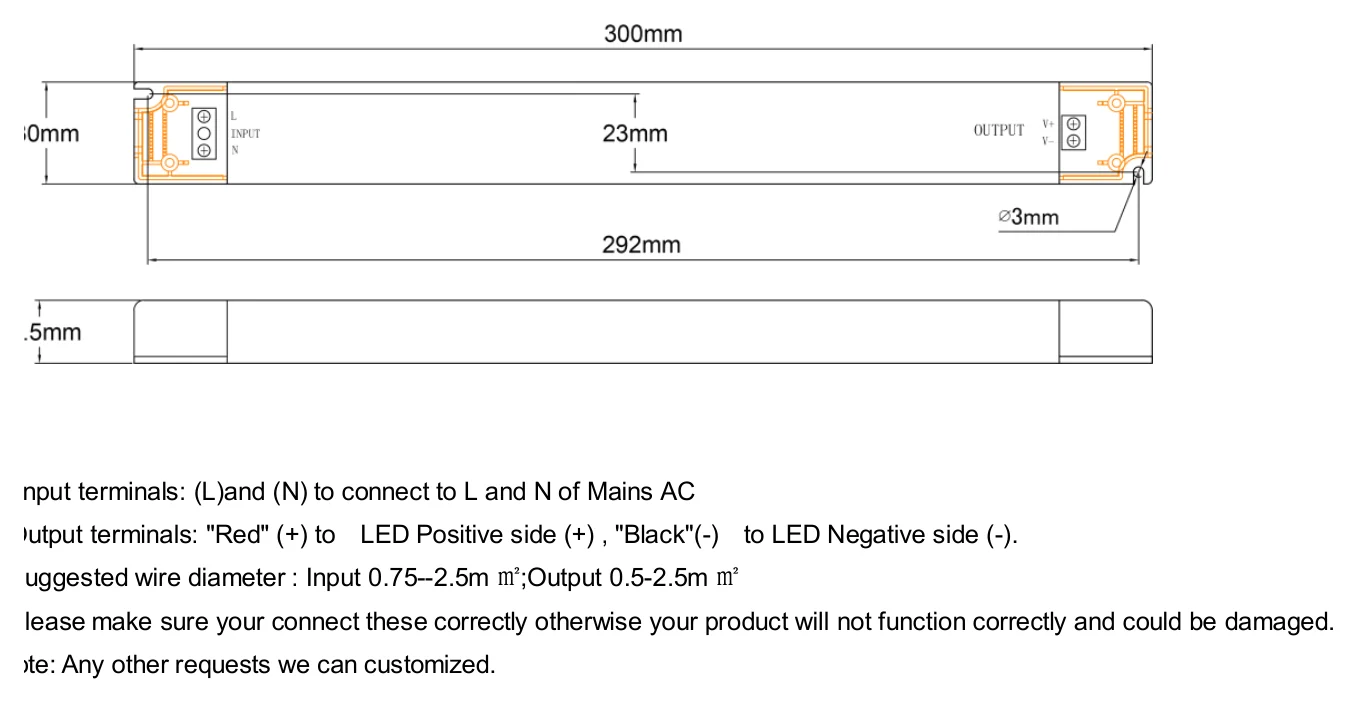

- 300*30*18.5mm(L*W*H)
- packing
- 50pcs /CTN SIZE: 330X330X130mm
Test conditions and notes3
- 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
- 2. Tolerance: includes set up tolerance, line regulation and load regulation .
- 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

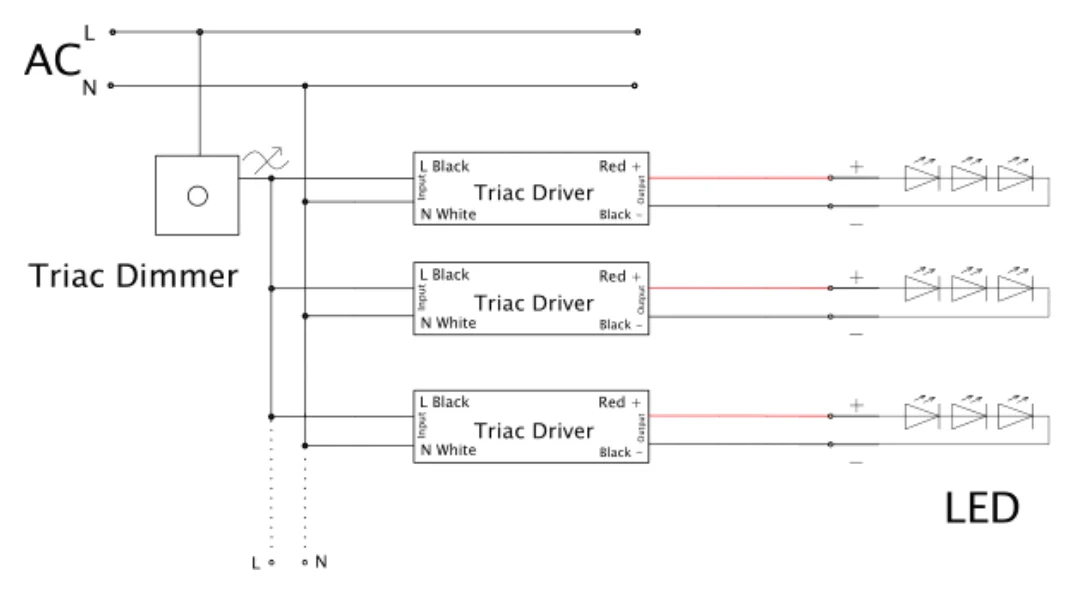

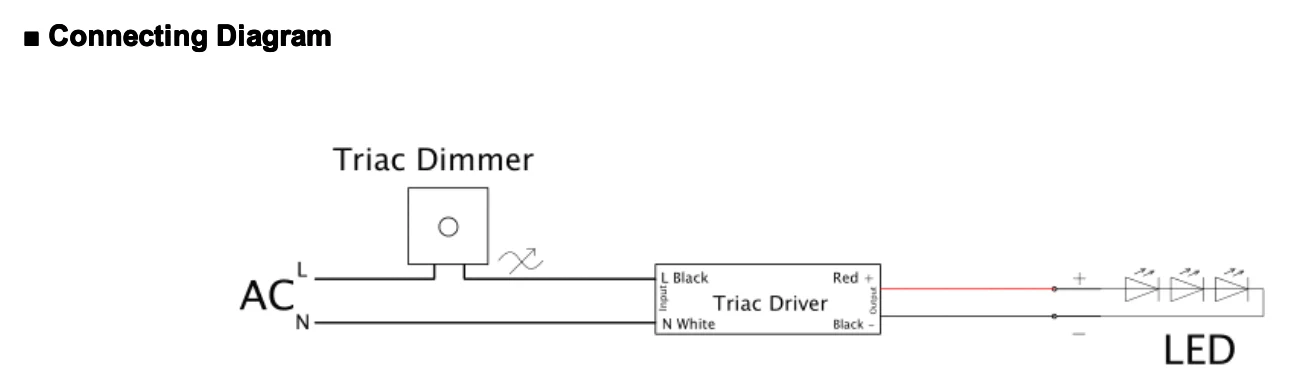

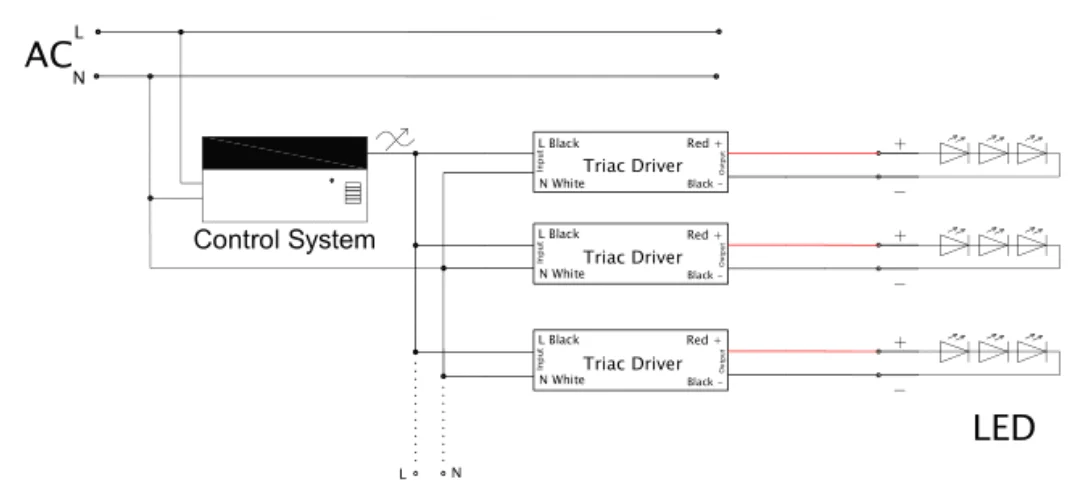

Technical drawings
Downloads
Datasheet1
FAQ
What type of LED load is the Envo Slim SC-60S-24 designed for?
The SC-60S-24 is a constant voltage power supply with a 24V DC output. It is intended for 24V LED lighting applications and moving sign applications that need up to 60W total load. Its rated output current is 2.5A.
Is the SC-60S-24 TRIAC dimmable?
Yes. This model is compatible with both leading-edge and trailing-edge TRIAC dimmers. It supports 0-100% dimming with a stated load range of 10-100%.
What are the main electrical specifications of the Envo Slim SC-60S-24?
This model is rated at 60W and outputs 24V DC at up to 2.5A. Its input range is 200-240VAC. The unit also includes active PFC and reaches up to 85% efficiency.
Can this power supply be used indoors?
Yes, this model is intended for indoor installation. It has an IP20-rated plastic case, which suits dry indoor environments rather than exposed outdoor locations. The specified operating temperature range is -40°C to 60°C.
Does the SC-60S-24 help maintain lighting quality when dimmed?
Yes. The product uses PWM output and is described as not changing the color index during dimming. It is also specified as flicker-free, which is useful where smooth visual performance matters.
How does the SC-60S-24 compare with a constant current LED driver?
The SC-60S-24 is a constant voltage unit, so it is suited to 24V DC LED products that are designed to run from a fixed voltage supply. A constant current driver is used for LED loads that require current regulation instead of a fixed 24V output. For this model, the key output format is 24V constant voltage.
What protections and warranty does the Envo Slim SC-60S-24 include?
This model includes protection for short circuit, over loading, and over temperature conditions. It is built in a full protection plastic case and cooled by free air convection. The listed warranty period is 5 years.
