Mean Well LPF-25D-24 Power Supply 25W 24V - Dimmable 1.05A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming
SKU LPF-25D-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 10 in this family

LPF-25D-24
Available to order
|

Overview

LPF-25D-24 is the 24V output model of this series: rated current 1.05A, rated power 25.2W, typical efficiency 85.5%.

LPF-25D series is a 25W AC/DC LED driver featuring the constant current output. LPF-25D operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -35℃ ~ +70℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. LPF-25D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Function: 3 in 1 dimming
  • Typical lifettime>50000 hours
  • 5 years warranty

Specifications

LPF-25D-24Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.05A
RATED POWERNote.5
25.2W
CONSTANT CURRENT REGIONNote.2
13.2 ~ 24V
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5.0%
SETUP, RISE TIMENote.6
1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
85.5%
AC CURRENT
0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
28 ~ 35V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-35 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+70℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,GB/T19510.1,GB/T19510.213,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF
3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
148*40*32mm (L*W*H)
PACKING
0.36Kg; 40pcs/ 15.4Kg/1.02CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

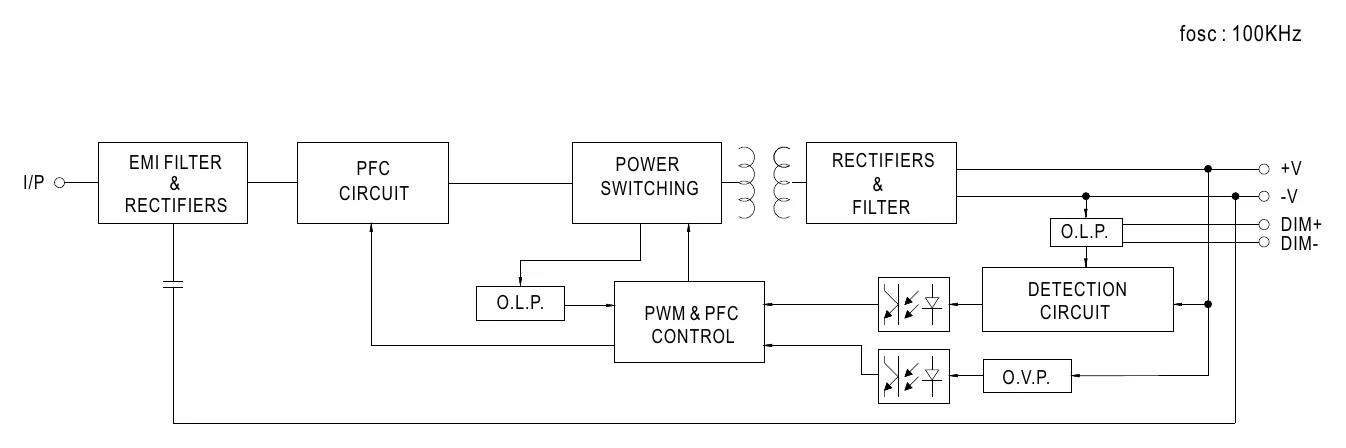

LPF-25D-24 BLOCK DIAGRAM
BLOCK DIAGRAM

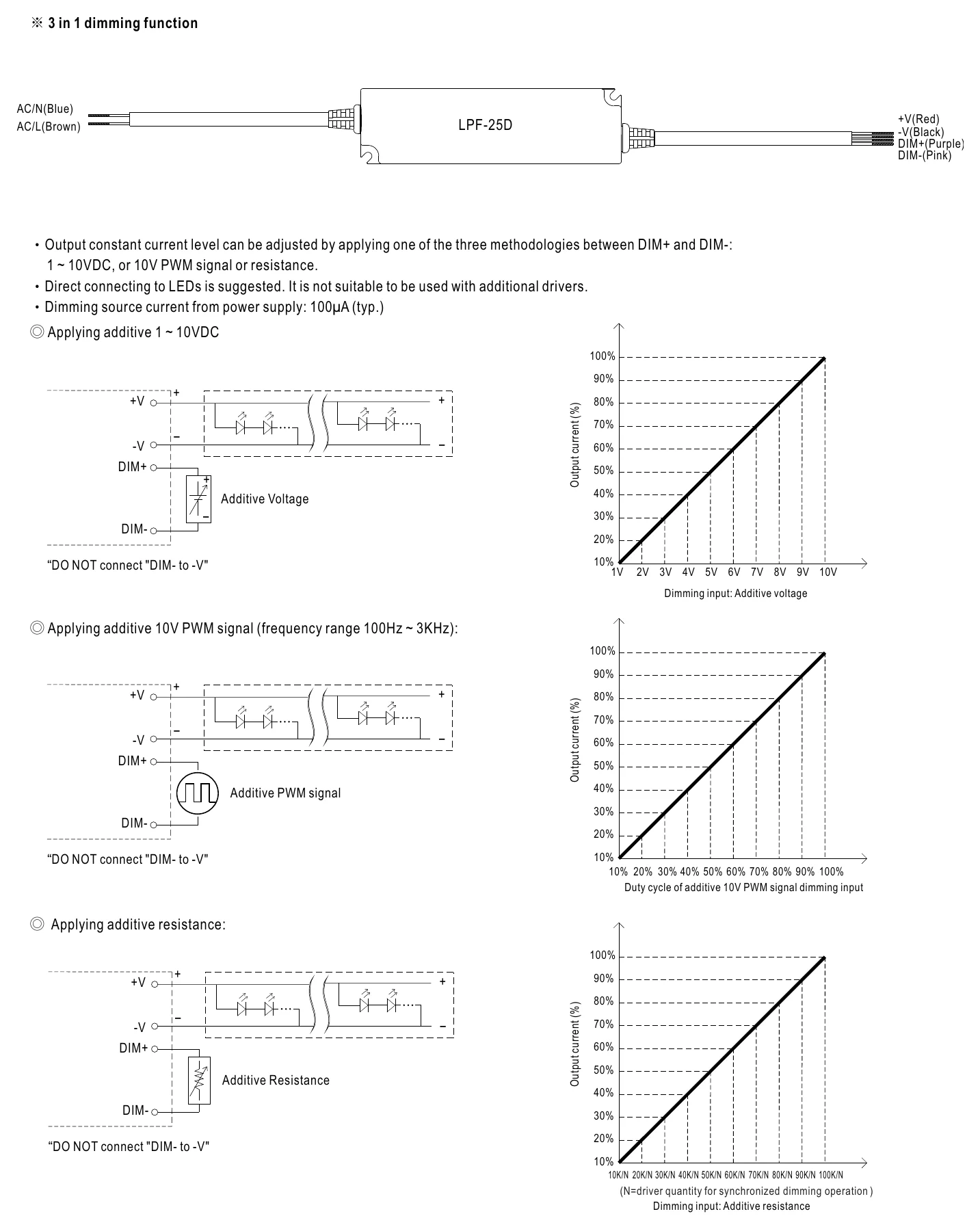

LPF-25D-24 DIMMING OPERATION
DIMMING OPERATION

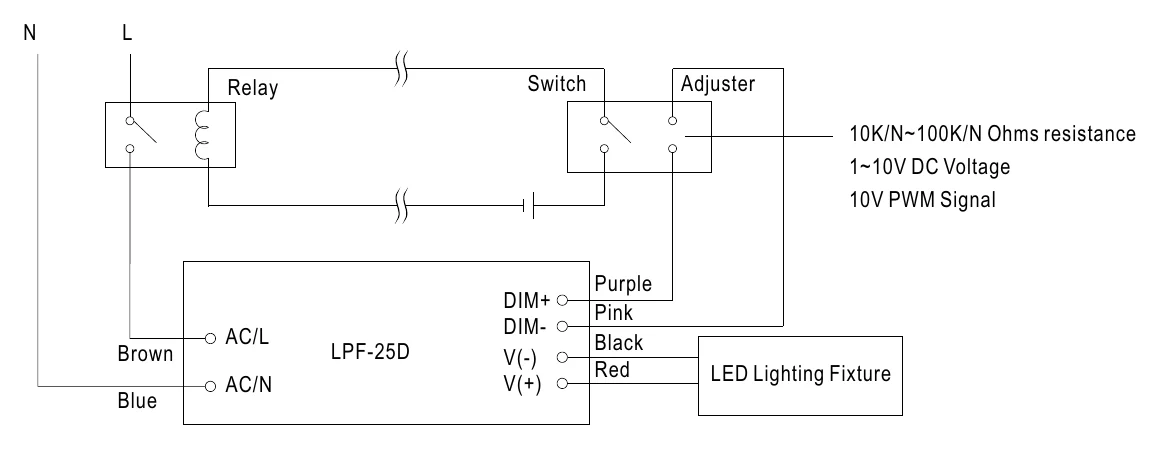

LPF-25D-24 Illustration (page 5)
Illustration (page 5)

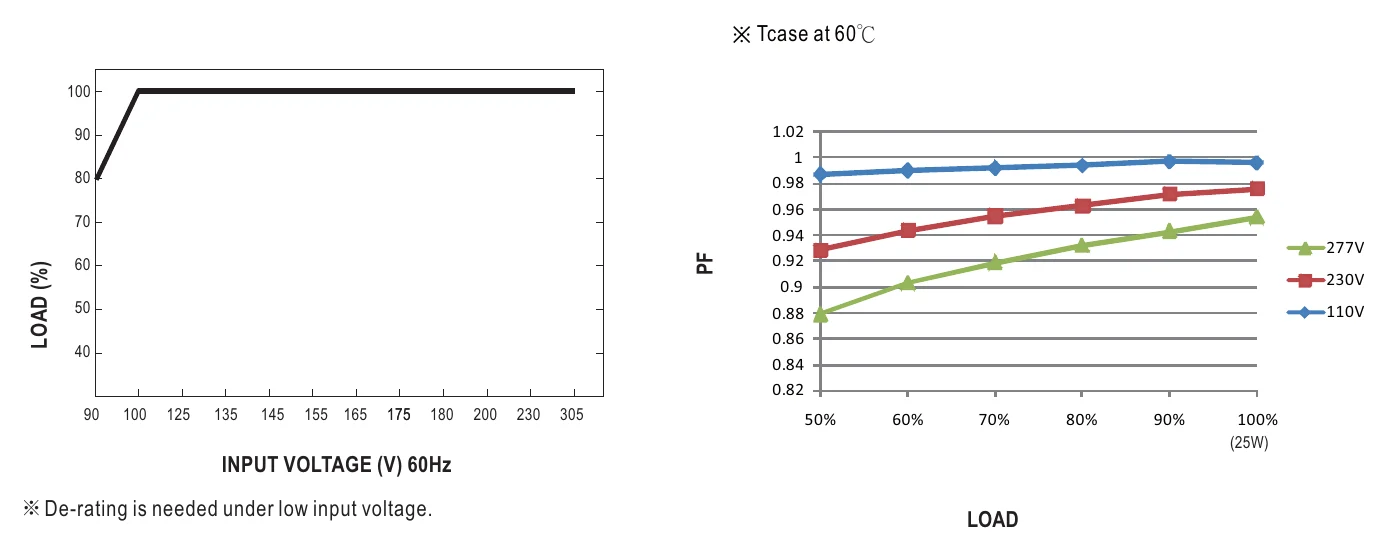

LPF-25D-24 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

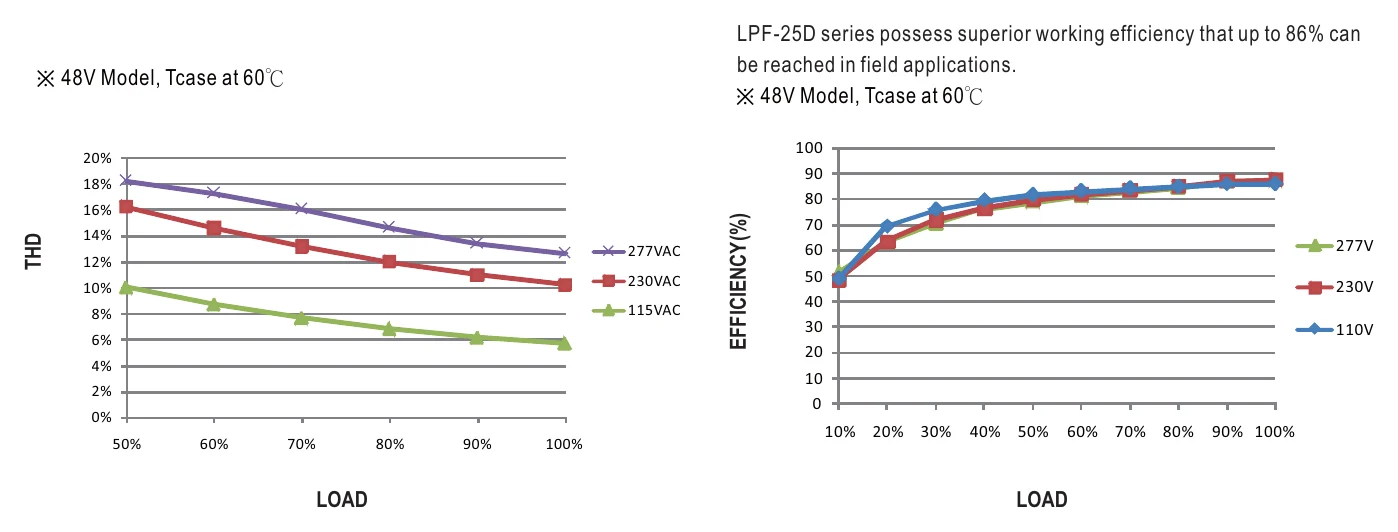

LPF-25D-24 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

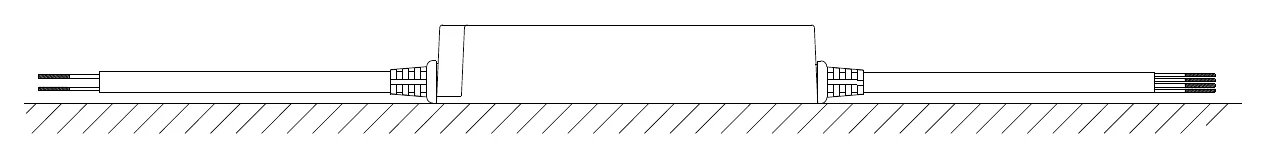

LPF-25D-24 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign

Downloads

FAQ

Can I use the LPF-25D-24 for 24V LED strip lighting?

Only if the strip is a constant-current load. The LPF-25D-24 works in constant current mode, delivering 1.05A within a 13.2–24V constant current region (25.2W max), so it is not a constant-voltage 24V strip supply. Check that your LED load is rated for 1.05A before deciding on it.

Is the LPF-25D-24 suitable for 24V signage or light box lighting?

Yes, if the sign or light box uses constant-current LEDs rated for 1.05A within 13.2–24V and up to 25.2W. The IP67 rating supports installations where the driver needs protection against dust and water. Verify the lighting system is specified for constant-current drive.

Can this driver be used for dimmable 24V accent or architectural lighting?

Yes, for constant-current accent or architectural lighting rated for 1.05A within 13.2–24V and 25.2W. This model includes built-in 3 in 1 dimming (1–10VDC, 10V PWM or resistance), which is useful where adjustable output is needed. Constant-voltage 24V products are not a match.

How much 24V LED strip can the LPF-25D-24 power?

It supplies up to 25.2W at a constant 1.05A within a 13.2–24V constant current region. It is not sized with the W/m formula used for constant-voltage strips; the load must be rated for 1.05A with an operating voltage within 13.2–24V.

Can the LPF-25D-24 be used outdoors?

Yes. It is IP67 rated and specified for a case temperature (Tcase) of -35°C to +70°C, with load derating at higher temperatures per the output load vs temperature curve, so it suits outdoor and wet environments. The connected lighting also needs to be rated appropriately for the same conditions.
