Mean Well

Mean Well XLG-200-12-A Power Supply 192W 12V - Adjustable 16A

metal caseeconomical100~305VAC wide range inputefficiency up to 90%
SKU XLG-200-12-A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 8 in this family

XLG-200-12-A
In stock
|

Overview

XLG-200-12-A is the 12V output model of this series: rated power 192W, typical efficiency 92%.

XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. XLG-200 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 intermational safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

  • Wide input range 100~305V AC( Class I)
  • Full power output at 70~100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV (10KV/6KV optional)
  • 3 in 1 dimming function (Dim to off and Isolation design)
  • India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-200-12-ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT (Default)
16A
RATED POWER
192W
CONSTANT CURRENT REGIONNote.2
8.4~ 12V
RIPPLE & NOISE (max.)Note.3
150mVp-p
CURRENT ADJ. RANGE
Adjustable for A-Type only (via the built-in potentiometer)
CURRENT ADJ. RANGE
8 ~ 16A
VOLTAGE TOLERANCENote.4
±3.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±2%
SETUP, RISE TIMENote.6
500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
HOLD UP TIME (Typ.)
10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGENote.5 (12/24 table), Note.3 (L/H table)
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
TOTAL HARMONIC DISTORTION
THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
EFFICIENCY (Typ.)
92%
AC CURRENT
2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD POWER CONSUMPTION
No load power consumption <0.5W(for standard version)

PROTECTION

OVER CURRENT
110~160% for CV type,95~108% for other type
OVER CURRENT
CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
SHORT CIRCUIT
CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
OVER VOLTAGE
13.5 ~ 18V Shut down output voltage, re-power on to recover
INPUT OVER VOLTAGE
320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-200I series)
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

EMC

SAFETY STANDARDSNote.7 (12/24 table), Note.5 (L/H table)
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB/T19510.1, GB/T19510.213;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
ConductedBS EN/EN55015(CISPR15) ,GB/T 17743
RadiatedBS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic CurrentBS EN/EN61000-3-2 ,GB17625.1Class C @load≥50%
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN61547

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RadiatedBS EN/EN61000-4-3Level 3
EFT/BurstBS EN/EN61000-4-4Level 3
SurgeBS EN/EN61000-4-54KV/Line-Line 6KV/Line-Earth(6K/10K option)
ConductedBS EN/EN61000-4-6Level 3
Magnetic FieldBS EN/EN61000-4-8Level 4
Voltage Dips and InterruptionsBS EN/EN61000-4-11>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF
2300.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*63*35.5mm (L*W*H)
PACKING
0.85Kg;16pcs /14.2Kg /0.75CUFT
Test conditions and notes16
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE"(Except for CV-type).
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. Only CE/ENEC/CB is available for CV-type. XLG-200I series without UL/CSA certificate.
  8. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
  15. 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
  16. 16. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

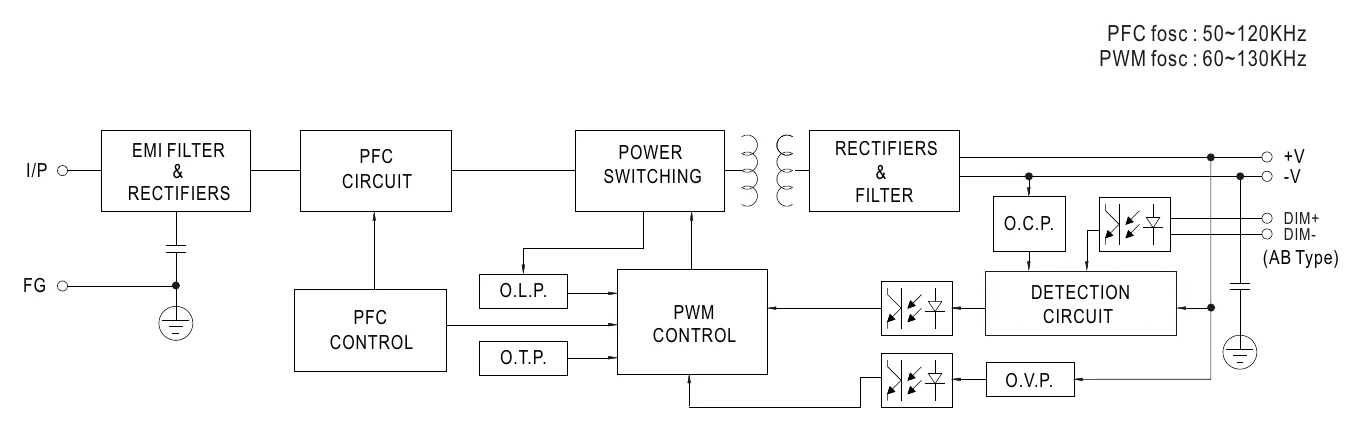

XLG-200-12-A BLOCK DIAGRAM
BLOCK DIAGRAM

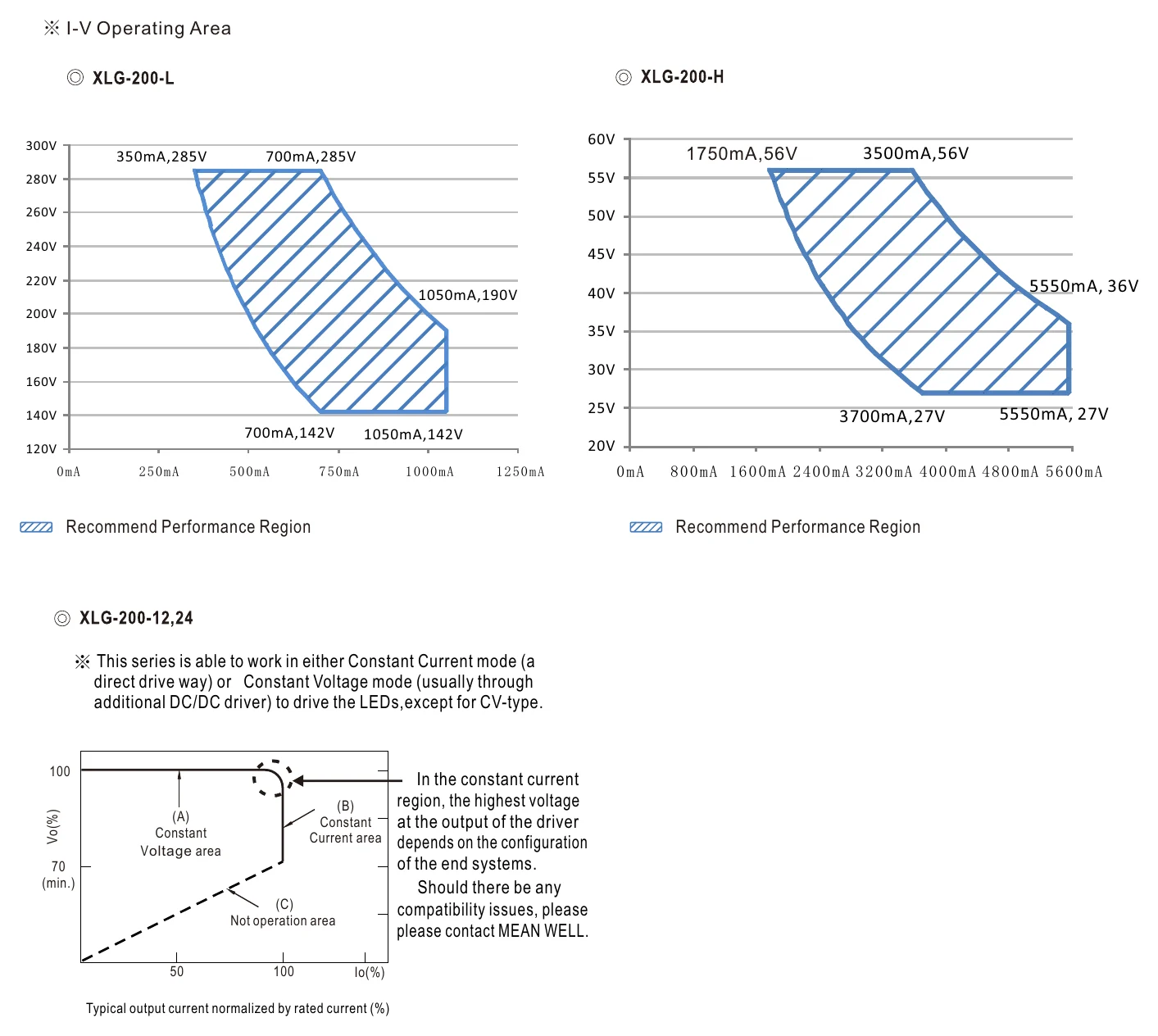

XLG-200-12-A DRIVING METHODS OF LED MODULE
DRIVING METHODS OF LED MODULE

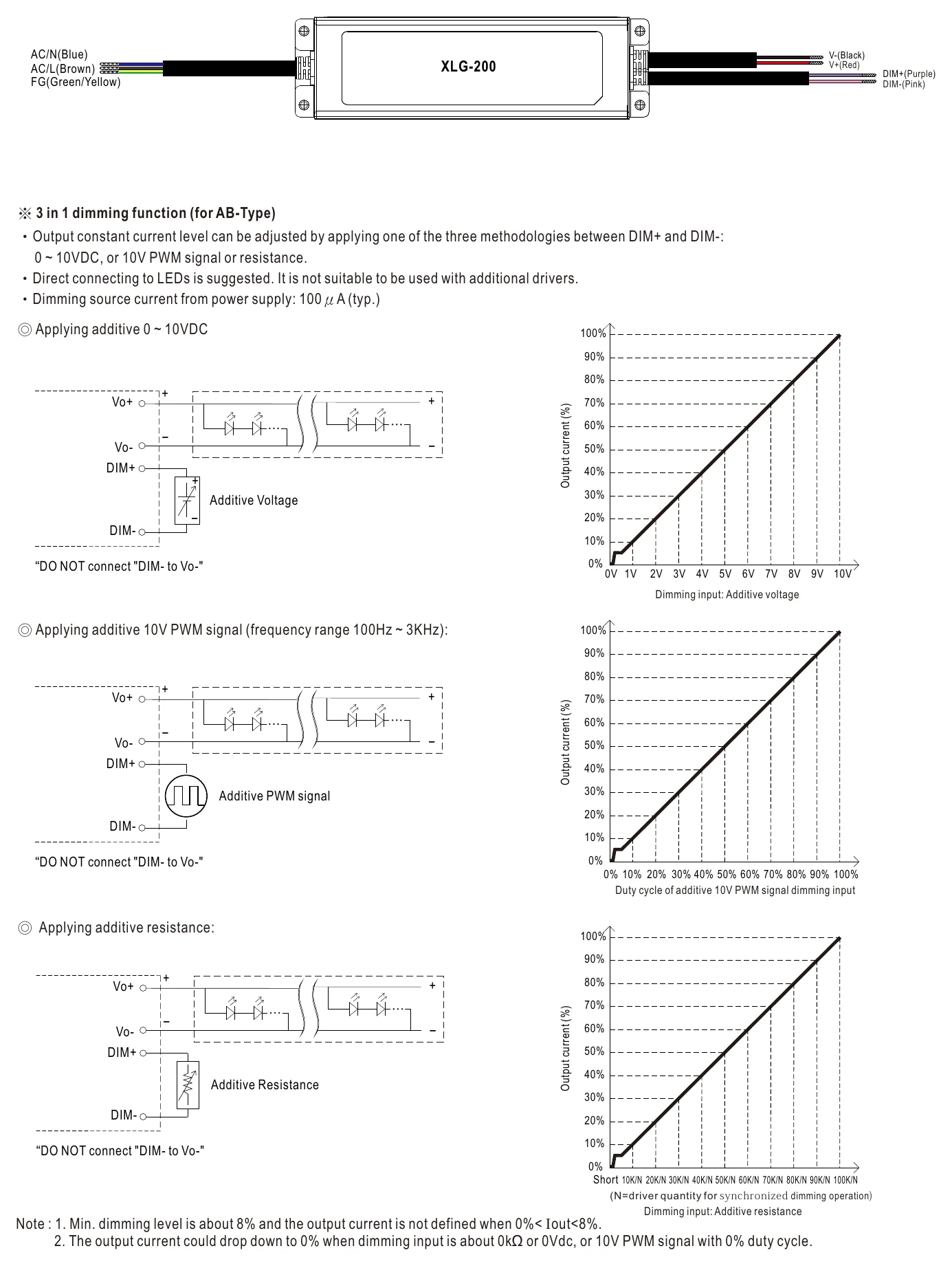

XLG-200-12-A DIMMING OPERATION
DIMMING OPERATION

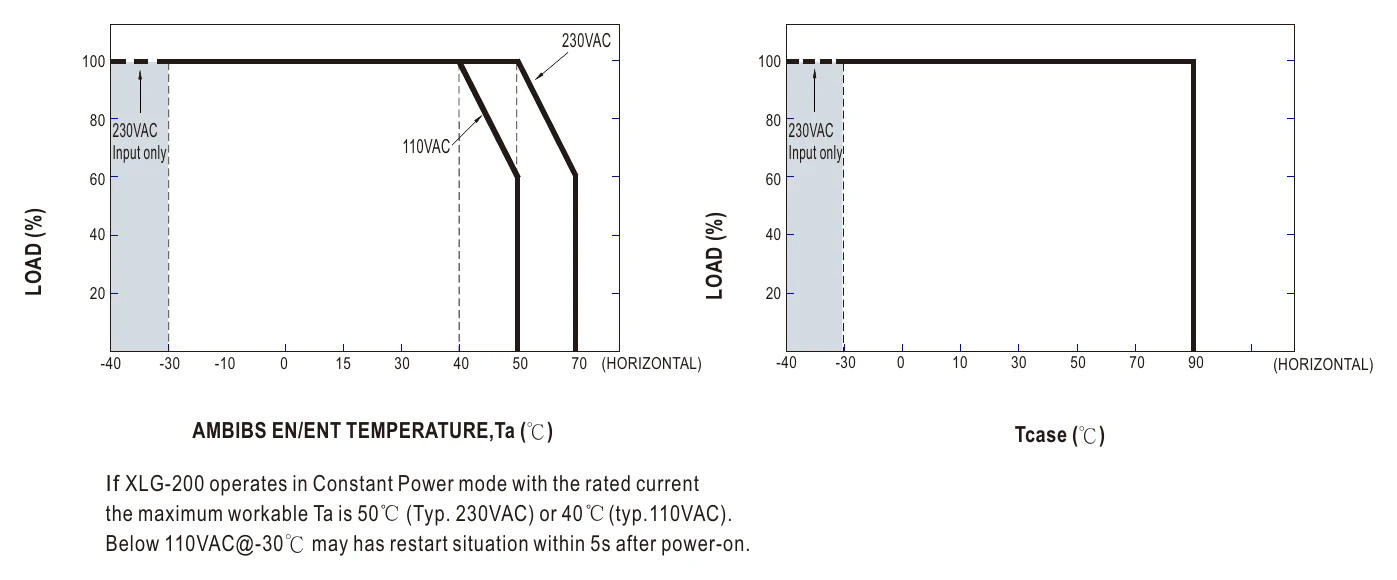

XLG-200-12-A OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE

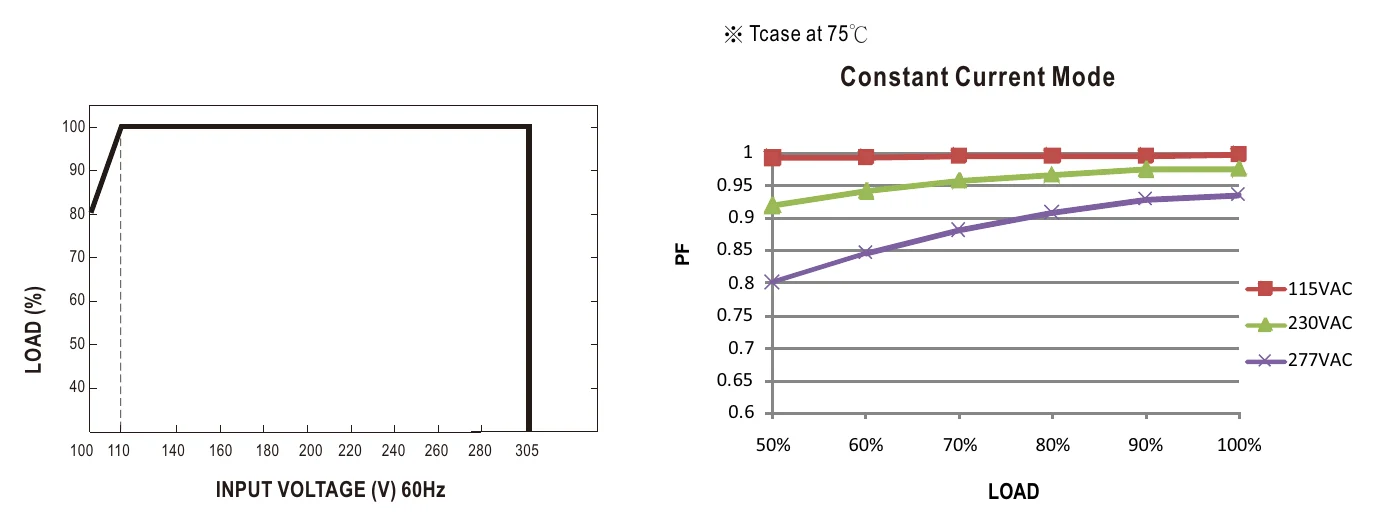

XLG-200-12-A STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

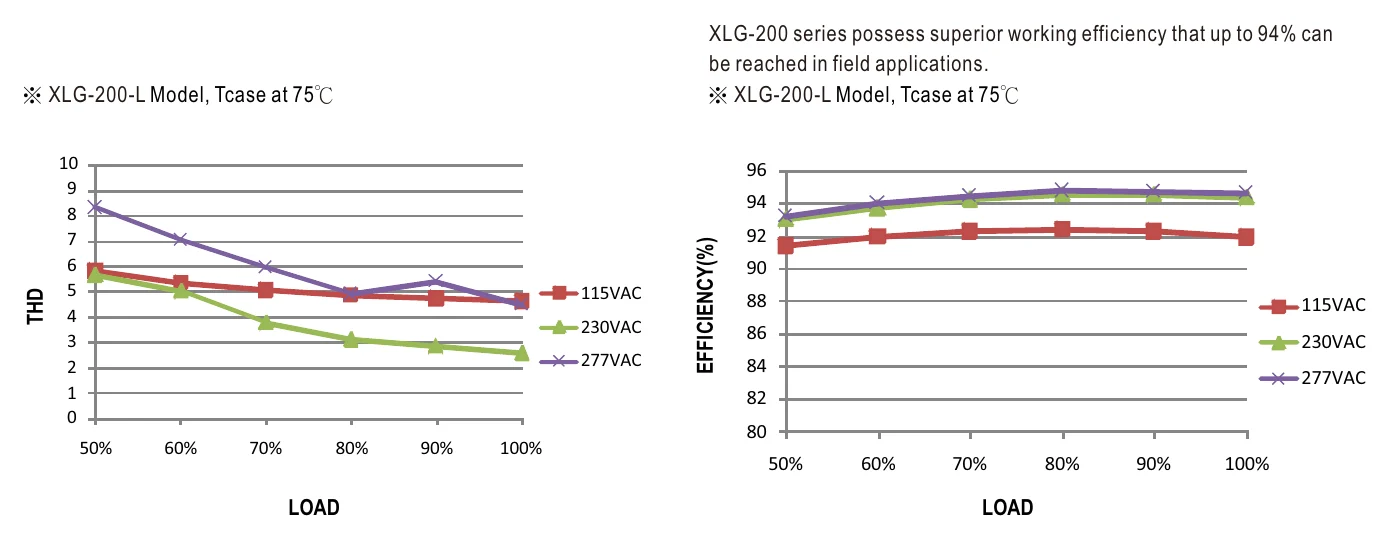

XLG-200-12-A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

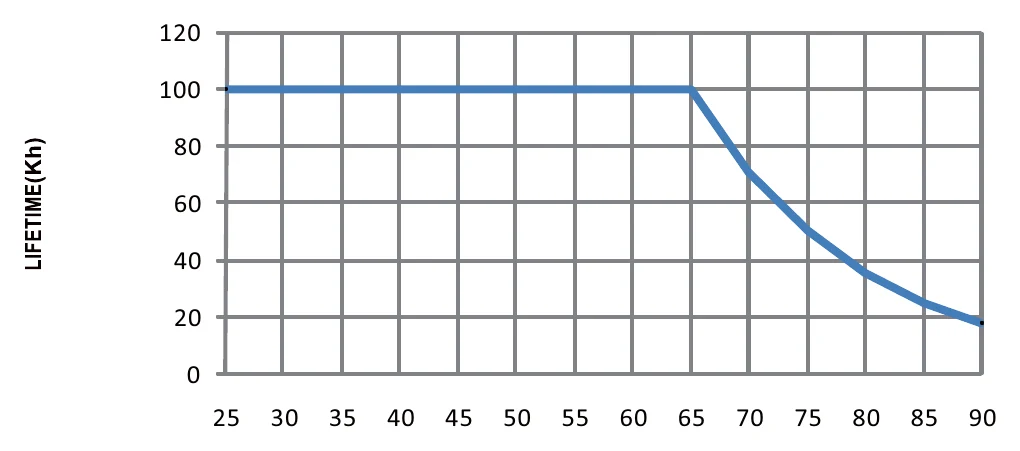

XLG-200-12-A Dimensions (mm)
Dimensions (mm)

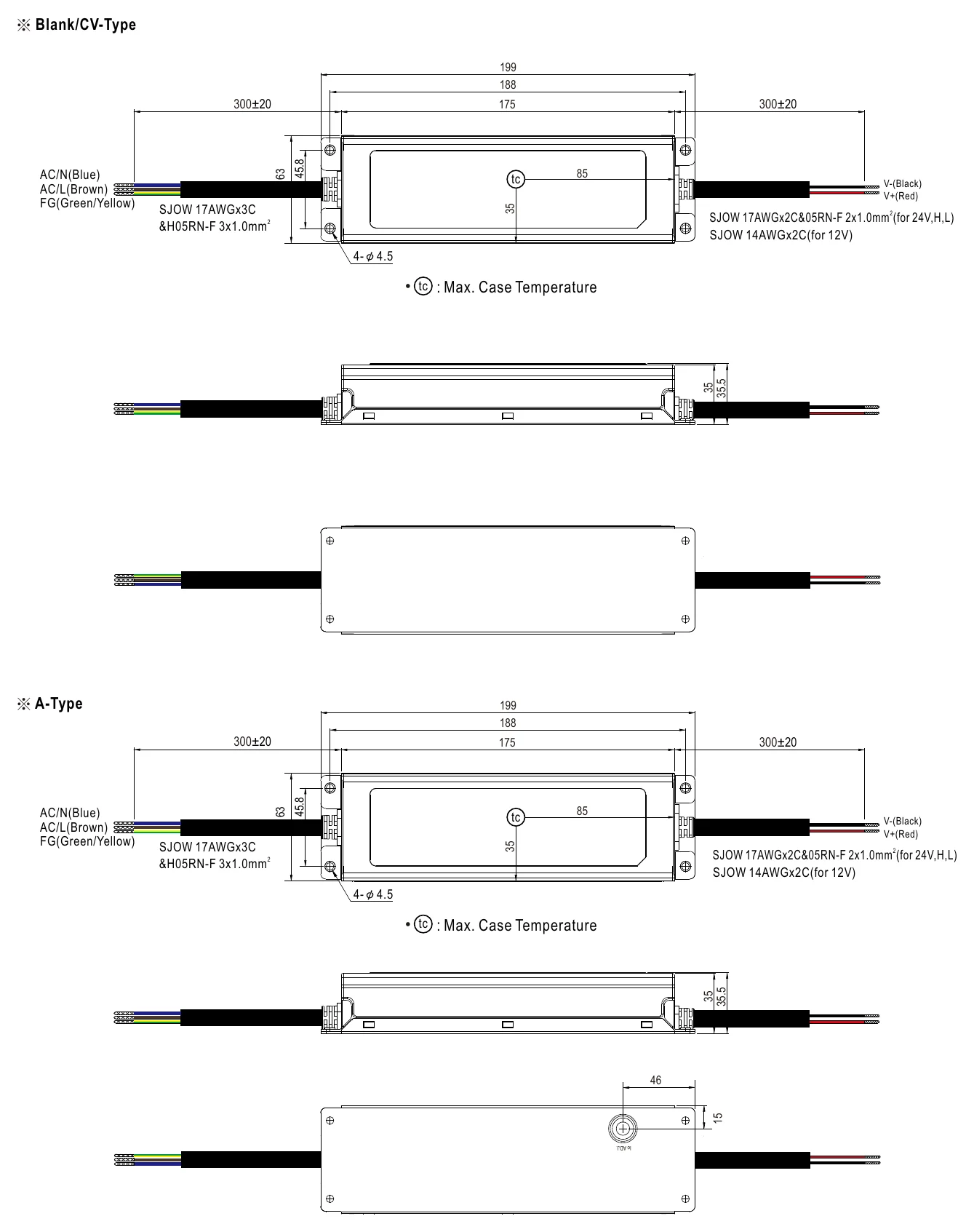

XLG-200-12-A MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

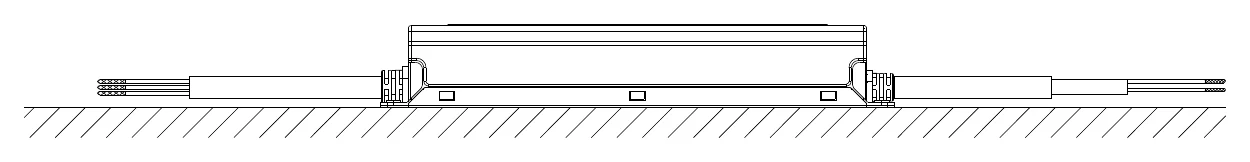

XLG-200-12-A Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • Skyscraper lighting
  • Street lighting
  • Floodlight Lighting
  • Stage lighting
  • Fishing lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type HL for use in class I, Division 2

Downloads

FAQ

Can the XLG-200-12-A power 12V LED strip lighting in an outdoor sign or display?

Yes. The XLG-200-12-A is IP67 rated, so it is fully sealed against dust and temporary water immersion. It can be installed inside outdoor sign cabinets, raceway enclosures, or weatherproof boxes used for 12V LED strip signage without additional sealing.

How many meters of 12V LED strip can the XLG-200-12-A support?

The XLG-200-12-A delivers 192W at 12V. For a 14.4 W/m strip that is approximately 13.3 meters (192 ÷ 14.4); for a 24 W/m high-density strip, up to 8 meters (192 ÷ 24). Always check your strip's rated power per meter and apply a 20% derating margin to avoid overloading.

Is the XLG-200-12-A suitable for 12V LED strip cove or indirect architectural lighting?

Yes. The 192W output at 12V provides sufficient capacity for extended 12V LED strip runs used in architectural cove lighting, valances, and indirect lighting channels. Its wide 100–305VAC input accommodates 120V and 230V building supply voltages.

Can the XLG-200-12-A be used to drive 12V LED strips in refrigerated retail display cases?

Yes. The operating temperature range of -40°C to +90°C means this driver handles the cold temperatures in refrigerated cases reliably. The IP67 metal enclosure protects against condensation that forms when ambient air meets cold interior surfaces.

Is the XLG-200-12-A appropriate for 12V LED strip installations in vehicle wash bays or wet industrial areas?

Yes. IP67 protection means this driver is sealed against dust ingress and temporary immersion in up to 1 meter of water. This level of protection is appropriate for high-humidity or washdown environments such as vehicle wash bays, food processing facilities, and similar industrial settings.

How does the XLG-200-12-A differ from the XLG-200-12-AB?

Both models output 192W at 12V with 16A and share the same IP67 rating, 199 × 63 × 35.5 mm dimensions, and 100–305VAC input. The XLG-200-12-AB adds 3-in-1 dimming capability (0-10V, PWM, resistance) over the XLG-200-12-A, which supports output adjustment only via a built-in potentiometer. All certifications and operating specs are otherwise identical.
