Archilight Fabio 35 Downlight 5.7W
Log in to see priceOverview
Downlight
Specifications
Variants
| SKU | LED Colour | Brightness | Finish Colour |
|---|---|---|---|
| 965303BL0211 | Natural White 4000K | 425 lm | Black |
| 965303BL7211 | Warm White 3000K | 400 lm | Black |
| 965303GR7211 | Warm White 3000K | 400 lm | Grey |
| 965303MW0211 | Natural White 4000K | 425 lm | White |
| 965303MW7211 | Warm White 3000K | 400 lm | White |
Specifications
- Input
- 350mA
- Power rating
- 5.7W
- Beam angle
- 40°
- Efficacy
- ≥85lm/W
- Colour render index(CRI)
- ≥82
- UGR
- <19
- IP level
- IP44
- Temperature range
- -20°C~45°C
- Dimming control
- Dimmable(Dimmer optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Not Included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

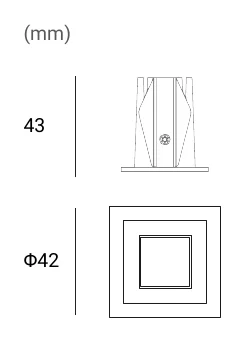

Technical drawings
Downloads
Datasheet1
FAQ
What are the main variant options in the Archilight Fabio 35 Downlight 5.7W family?
This product family is offered in three finish colours: black, grey, and white. It is also available in 3000K and 4000K colour temperatures. All listed variants share the same 5.7W power rating, 40 degree beam angle, CRI 82, included driver, and 7 year warranty.
What cut-out size is the Fabio 35 downlight designed for?
The child variants in this family all specify a 35 mm cut-out, with both the minimum and maximum cut-out listed at 35 mm. That makes this parent model consistent across the range for aperture size. It is intended for projects that require a compact recessed downlight format.
How bright is the Archilight Fabio 35 Downlight 5.7W?
Brightness depends on the variant's colour temperature. The 3000K versions are listed at 400 lumens, while the 4000K versions are listed at 425 lumens. Across the family, this gives a narrow and predictable output range for specification work.
Is the Fabio 35 downlight dimmable?
The parent model is marked as dimmable optional, and the driver is included across the listed variants. That means the product family supports dimming as an option rather than as a default feature description for every application. Buyers should confirm the intended control setup matches the project requirement.
Where is the Archilight Fabio 35 suited for use?
This is a recessed LED downlight intended for interior lighting applications. The product description emphasizes compact dimensions, a high-end luminaire design, and efficient use of space. It is well suited to commercial and architectural indoor projects where a small aperture downlight is preferred.
Can the Fabio 35 be used in areas exposed to moisture?
The product description states an IP44 conditionally rated use case. It may be exposed to water splashes only when installed in a closed ceiling, and only on the front side. That makes it suitable only for environments that match those stated exposure limits.
What are the key performance specifications shared across the Fabio 35 family?
All listed variants share a 5.7W power rating, CRI 82, 40 degree beam angle, included driver, 70,000 hour lifetime, and 7 year warranty. The parent model dimensions are 42 x 42 x 48 mm and the weight is 0.172 kg. The description also states colour consistency at MacAdam step 3 SDCM.
