Vimar VM-01900 FM-RDS tuner
Log in to see priceOverview
VM-01900 is Vimar 01900, FM-RDS tuner.
FM radio tuner with RDS, coaxial connector for external FM antenna, built-in line terminator, installation on DIN rail (60715 TH35), occupies 2 17,5 mm modules
Specifications
Technical data
- Product type
- Interface for bus system
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 2
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7035
- Transparent
- No
- With bus connection
- Yes
- With label area
- No
- With LED indication
- No
- Degree of protection (IP)
- IP20
Packaging
- EAN
- 8007352400061
- Packed size (cm)
- 14.2 × 6.7 × 5.9
- Packed weight
- 122.47 g
Certifications
- Certifications
- CE marking (EU), WEEE Directive

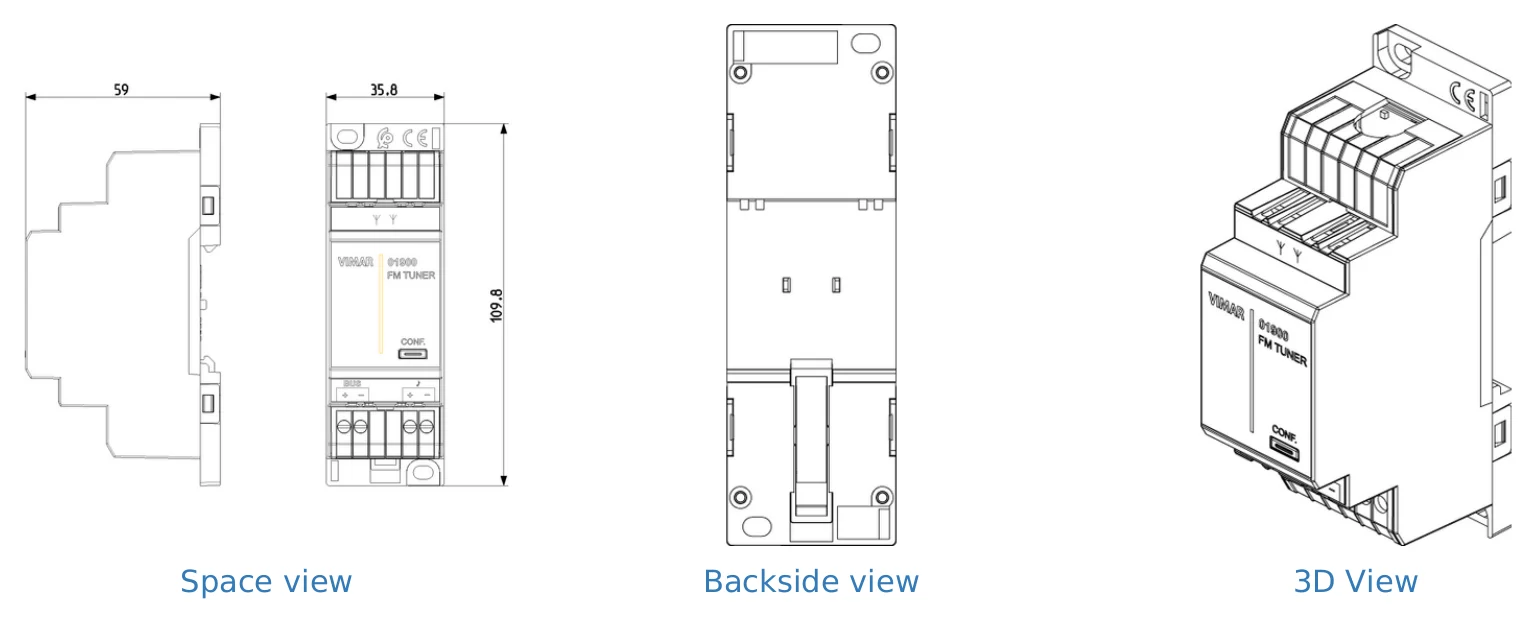

Technical drawings
Downloads
FAQ
What does the Vimar VM-01900 FM-RDS tuner do?
The Vimar VM-01900 is an FM radio tuner designed to receive FM broadcasts and display RDS information when available from the station. It is intended for use in Vimar By-me Plus audio/video smart building environments where FM radio is part of the system.
Does the VM-01900 support RDS station information?
Yes, this model is an FM-RDS tuner, so it supports Radio Data System information transmitted by compatible FM stations. That can help identify station-related broadcast data beyond basic audio reception.
Is the Vimar VM-01900 suitable for panel or cabinet mounting?
Yes, the VM-01900 is built for DIN rail mounting on 60715 TH35 rail format. Its compact housing occupies 2 modules of 17.5 mm each, which helps in space-conscious electrical enclosures.
What type of antenna interface does the VM-01900 use?
This tuner includes a coaxial connector for an external FM antenna. That makes it appropriate for installations where FM signal reception depends on a dedicated antenna feed rather than an integrated antenna solution.
What operating temperature range does the Vimar VM-01900 support?
The specified operating temperature range is from -25 °C to 70 °C. This wide range makes the unit suitable for demanding commercial and building-control environments, provided the overall enclosure and system are designed for those conditions.
How compact is the Vimar VM-01900 tuner?
The unit weighs 0.1225 kg and occupies 2 standard 17.5 mm DIN modules. That makes it a relatively compact component for control panels where space efficiency matters.
Is the Vimar VM-01900 a dimming or lighting control device?
No, this model is not a dimming product. The VM-01900 is an FM-RDS tuner intended for audio/radio functionality, not lighting control.
