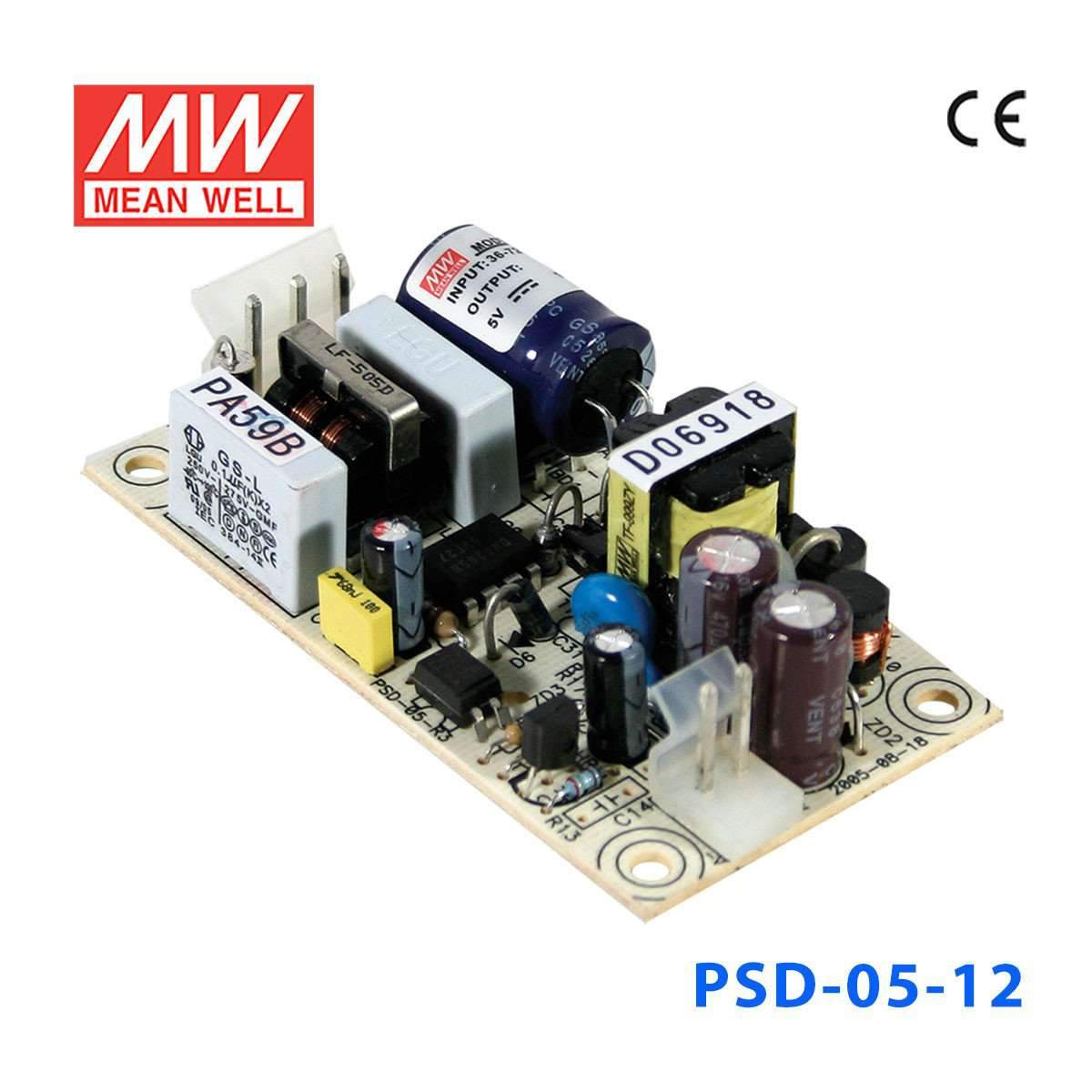

Mean Well PSD-05-12 data incomplete
Log in to see priceOverview
PSD-05-12 is the 12V output model of this series: rated current 0.45A, rated power 5.4W, typical efficiency 78%.
Features
- 2:1 wide input range
- Protections:Short circuit/Over load /Over voltage/ Over temperature
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Fix switching frequency at 67KHz
- Low cost
- High reliability
- 2 year warranty
Specifications
PSD-05-12Specifications from the official datasheet (2021-09-15 edition)
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 0.45A
- CURRENT RANGE
- 0 ~ 0.5A
- RATED POWER
- 5.4W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE, HOLD UP TIME
- 1.2s, 20ms,--- at full load
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY(Typ.)
- 78%
- DC CURRENT(Typ.)
- 0.15A/48V
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Fold back current limiting, recovery automatically after fault condition is removed
- OVER VOLTAGE
- 13.8~16.2V Protection type : Hiccup mode, recovery automatically after fault condition is removed
- OVER TEMPERATURE
- Hiccup mode, recovery automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:2.0KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI CONDUCTION & RADIATION
- Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to EN61000-4-2, 3, 4, 6, 8 ENV50204, EN55024, EN61000-6-1, light industry level, criteria A, EAC TP TC 020
OTHERS
- DIMENSION
- 75*40*20mm (L*W*H)
- PACKING
- 50mg;120pcs/6.25Kg/0.57CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
