Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

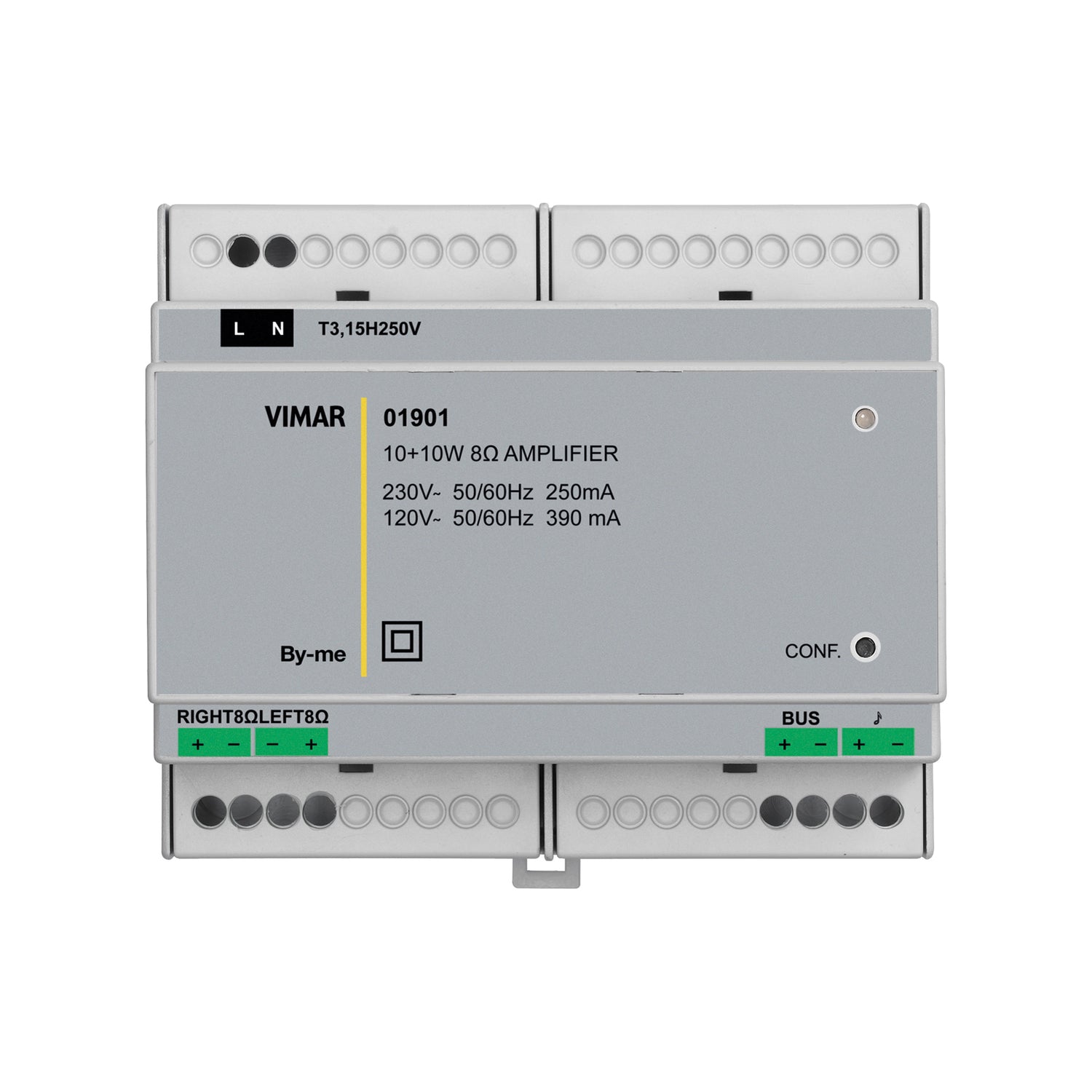

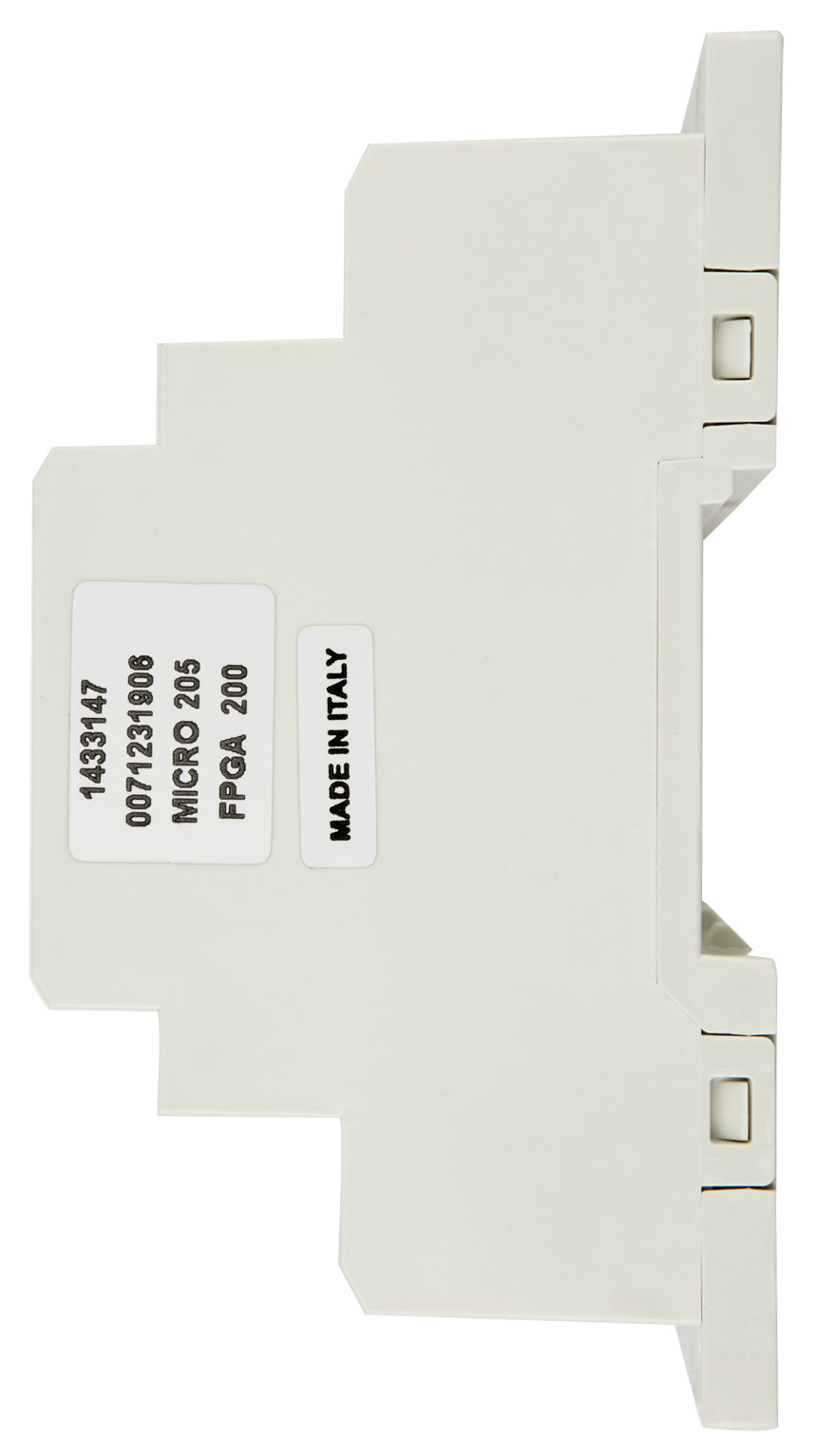

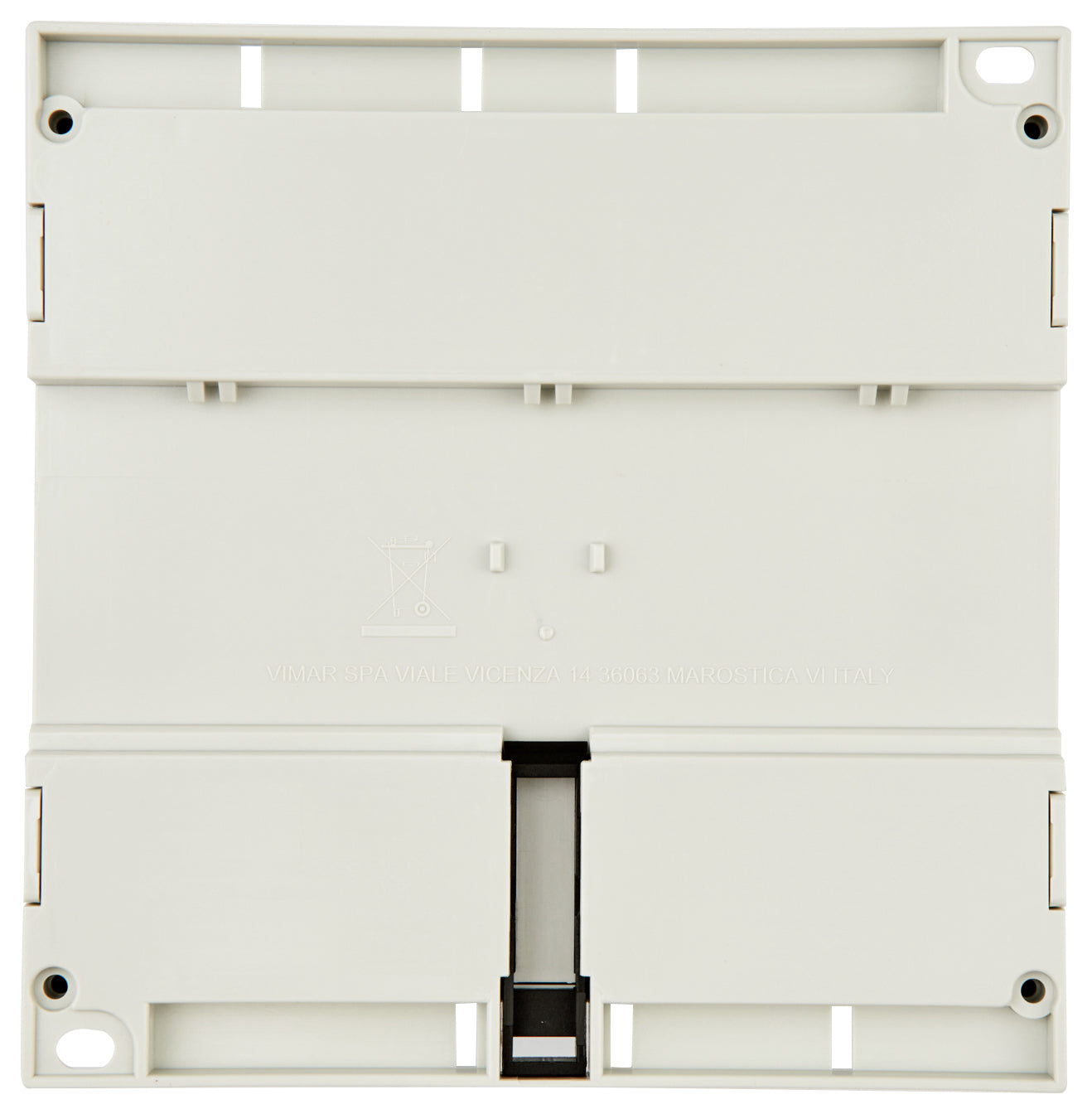

Vimar VM-01901 Hi-Fi Amplifier 2outs 8ohm 10-10W

Din Rail, 110-230V

SKU:

VM-01901

Notify me when it's back in stock

Description

Stereo amplifier, 2 outputs for speakers 8 ohm 10+10 W, power supply 110-230 V 50-60 Hz, built-in line terminator, installation on DIN rail (60715 TH35), occupies 6 17,5 mm modules

Specifications

Brand

Vimar
Power Rating

20 Watt
Input Voltage

110V~230V
Standards Met

CE,EU,ROHS,WEEE
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

11.7 cm
Width

10.8 cm
Height

7.1 cm
Weight

0.28 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Vimar VM-01901 used for?

The Vimar VM-01901 is a stereo Hi-Fi amplifier for speaker audio distribution. It provides two speaker outputs and is intended for applications in Vimar By-me Plus audio/video environments where compact DIN-rail equipment is needed.

What are the main audio output specifications of this amplifier?

This model delivers 10 + 10 W stereo output to 8 ohm speakers, for a total rated power of 20 W. It is a non-dimmable device and is designed as an amplifier rather than a lighting control product.

Is the VM-01901 suitable for compact panel installations?

Yes. The amplifier is designed for DIN-rail mounting and occupies 6 modules of 17.5 mm each, which helps when panel space is limited. Its listed weight is 0.2808 kg, making it relatively compact for control-cabinet use.

What operating environment can this amplifier handle?

The specified operating temperature range is from -25 °C to 70 °C. That wide range makes it more suitable for demanding building-system environments than products limited to narrow indoor temperature bands.

Is this a high-power amplifier for large commercial audio coverage?

This model is rated at 10 + 10 W, so it is intended for modest stereo speaker output rather than high-power, large-area audio reinforcement. Buyers needing substantially greater speaker power should compare the VM-01901 against higher-output amplifier models.

What power supply range does the Vimar VM-01901 support?

The amplifier supports a 110-230 V, 50-60 Hz power supply range. That broad input range can be useful for projects that need flexibility across standard mains power conditions.

What warranty is listed for this model?

The listed warranty period for the Vimar VM-01901 is 3 years. For B2B buyers, that can help with maintenance planning and lifecycle expectations for the installation.

Model	Outputs	Output Type	Dimming
Vimar VM-21588 Speaker 8ohm 10W 8M Grey	—	—	—	View
Vimar VM-01902 Sound System Decoupling	1	—	Non Dimmable	View
Vimar VM-01900 FM-RDS tuner	1	—	Non Dimmable	View
