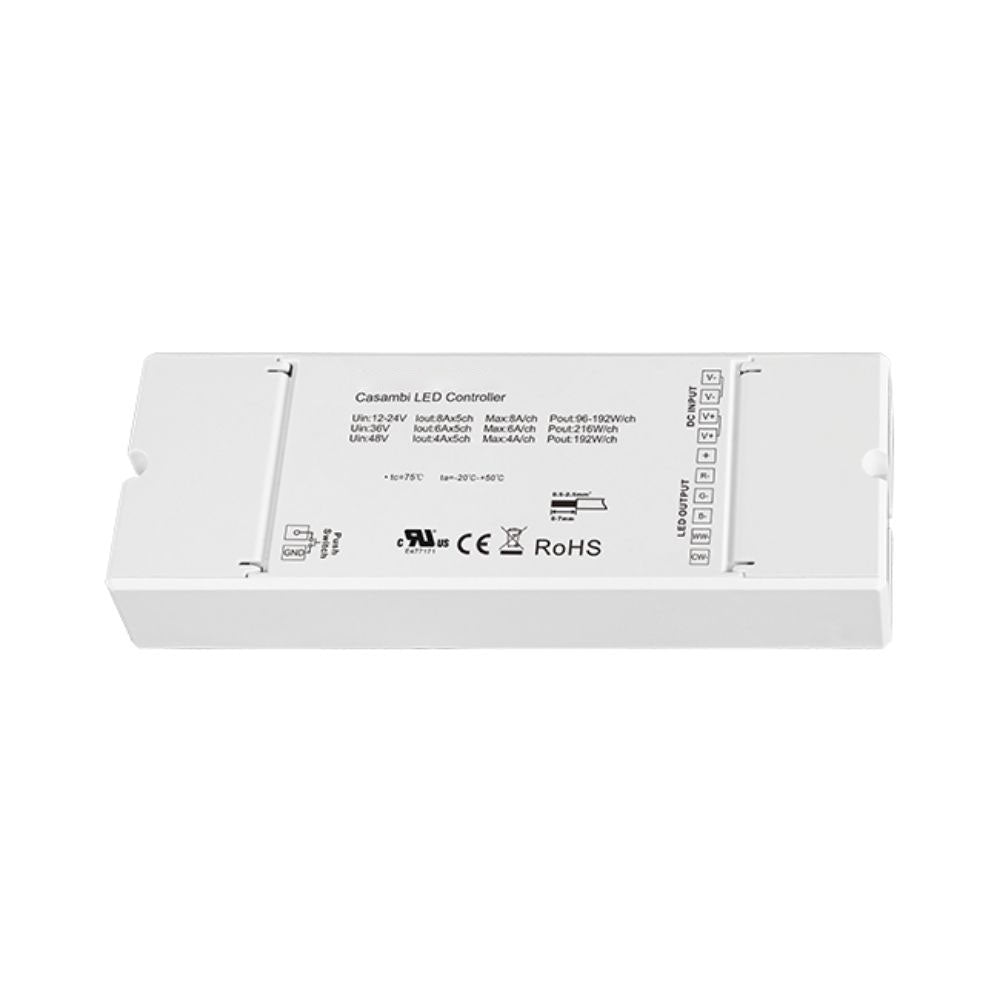

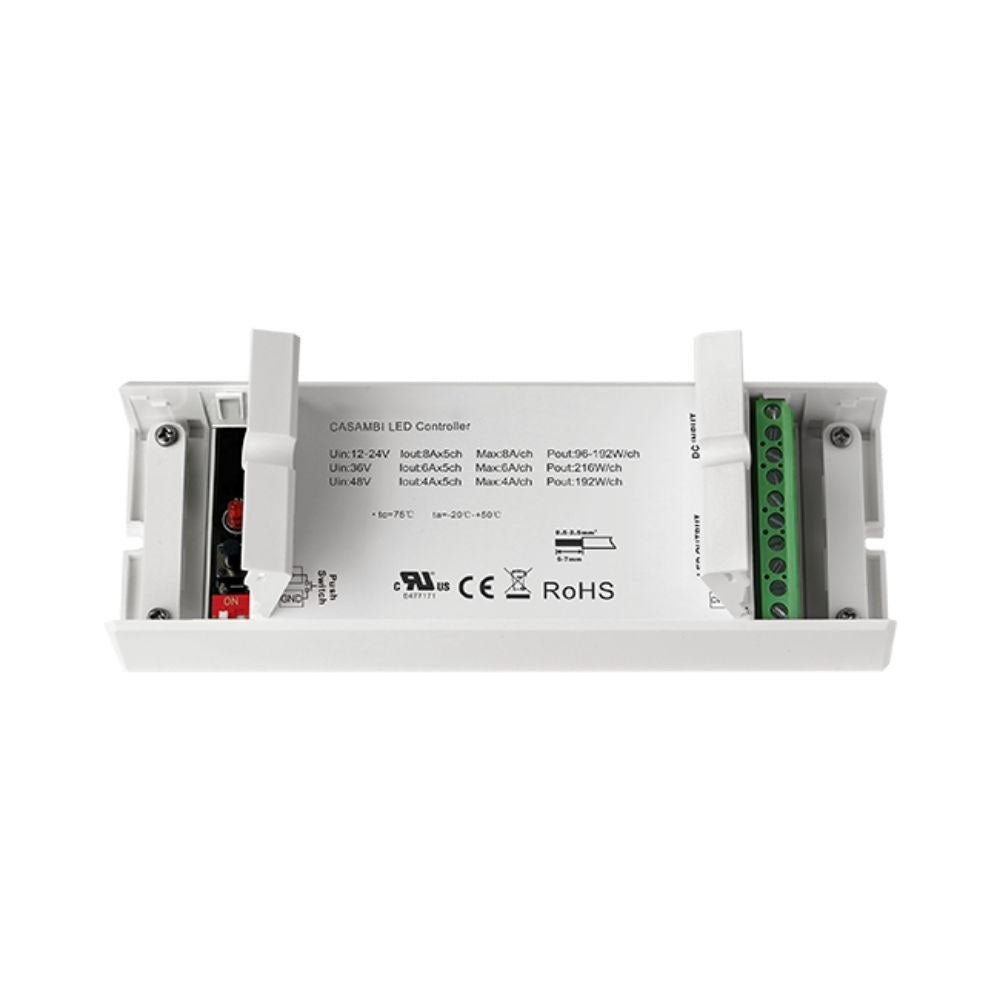

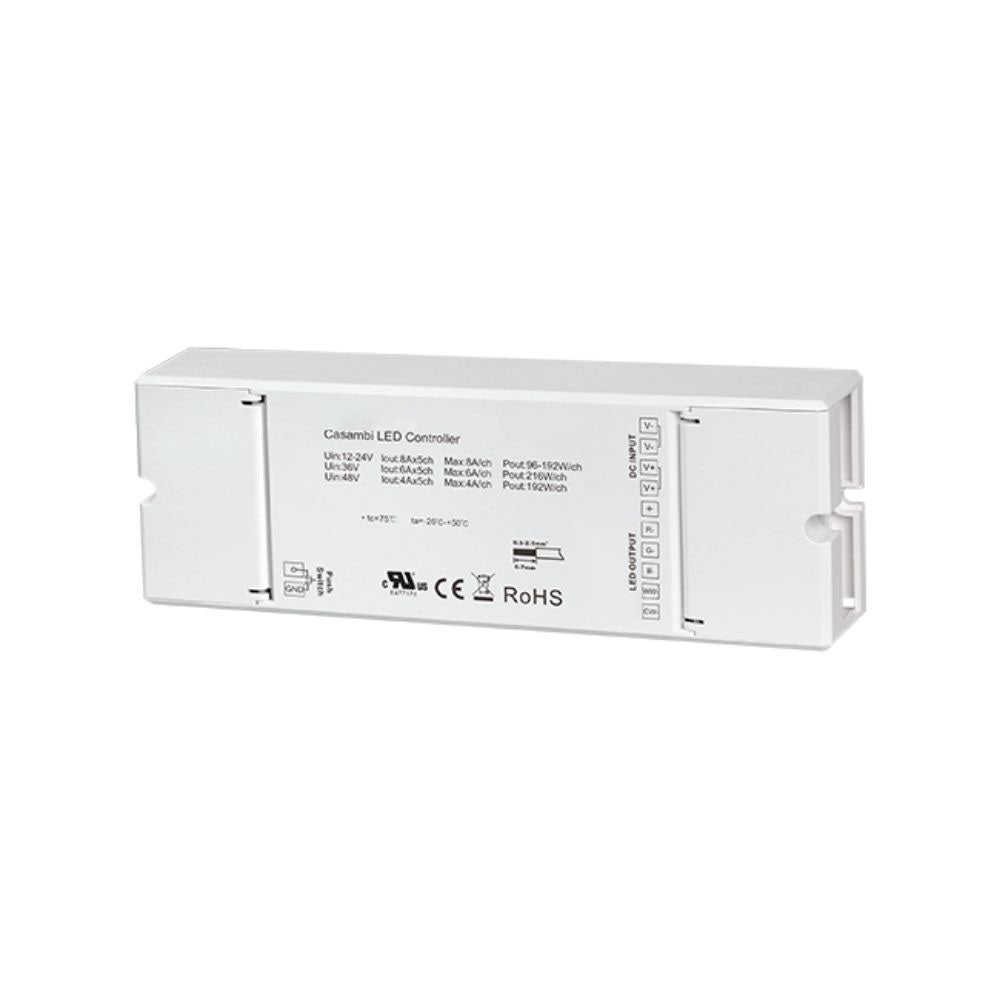

ENVO Casambi Low Voltage Controller, 12-48V 5 Channel
Log in to see priceThe SR-CS9101EA-5C is a 192W ENVO AC-DC constant voltage LED driver (input: 12~48VDC, operating temperature: -20~+50°C).
Key Features
- ✓ Input voltage: 12~48VDC
- ✓ Rated output current: 20A
- ✓ Operating temperature: -20~+50°C
- ✓ Safety certifications: CE, RoHS
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesENVO Casambi Series
-
Power Rating192 Watt
-
Rated Current20 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-

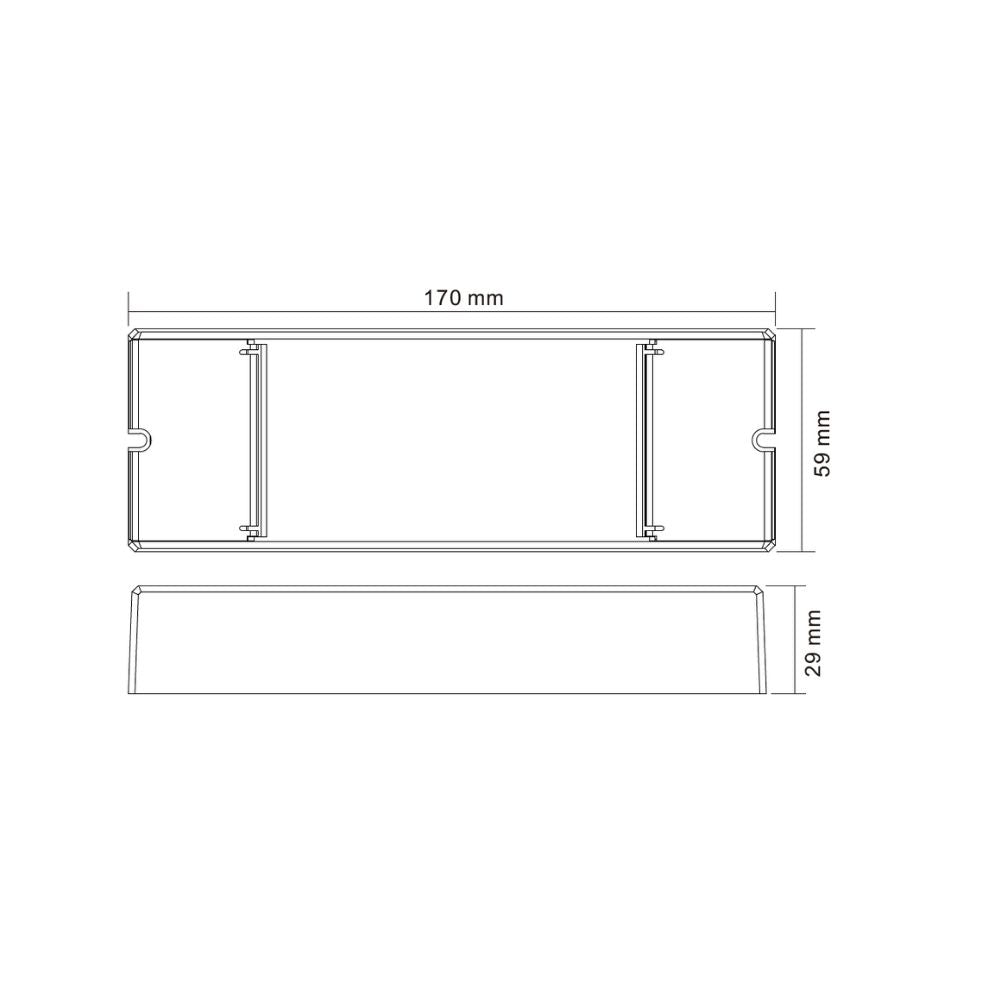

Length17 cm
-
Width5.9 cm
-
Height2.9 cm
-
Weight0.2 kg
::specification::
Frequently Asked Questions
What is the ENVO SR-CS9101EA-5C used for?
The ENVO SR-CS9101EA-5C is a low voltage LED controller for projects that need dimming and colour control. It is designed for RGB, RGBW, and RGB+CCT lighting applications, making it suitable for decorative, commercial, and architectural environments.
What lighting control types does this Casambi controller support?

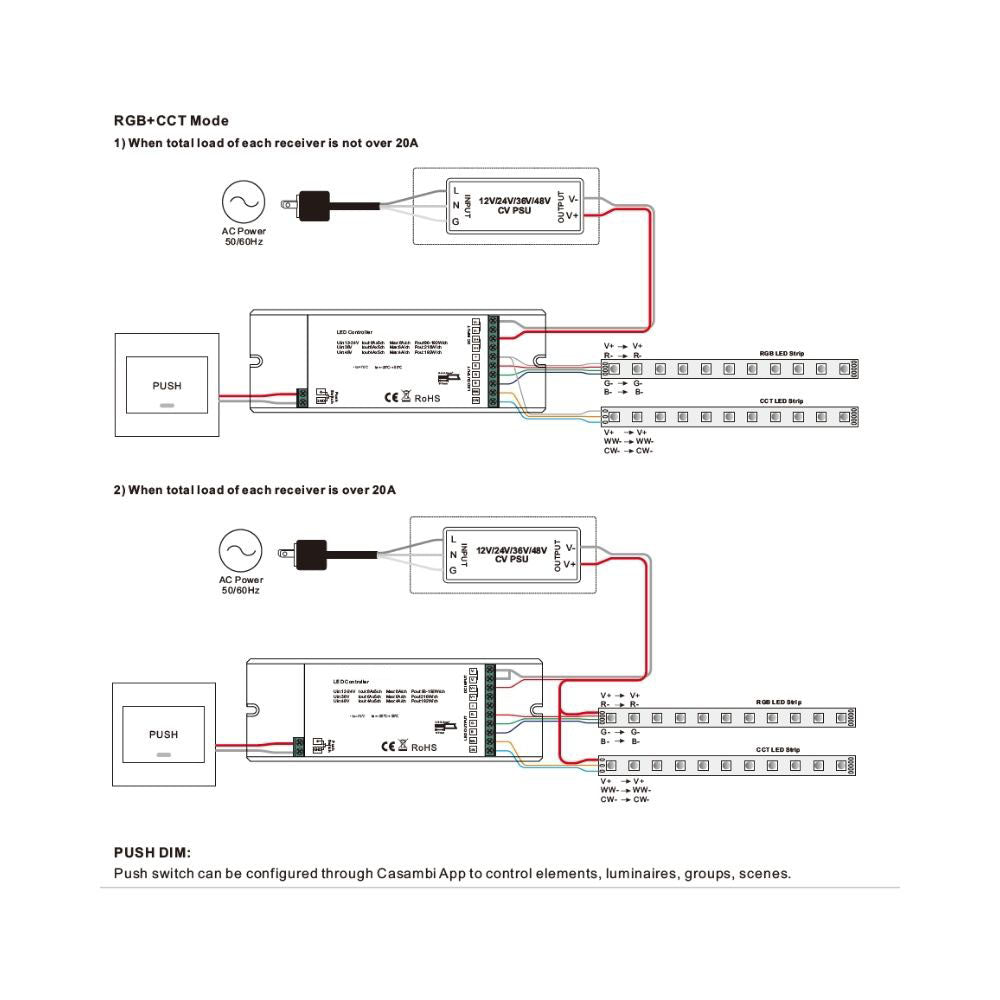

This model supports RGB, RGBW, and RGB+CCT control modes. That makes it a flexible choice for installations that need colour mixing, tunable white control, or both within one controller platform.
Is the SR-CS9101EA-5C compatible with Casambi-based lighting control systems?
Yes, this controller uses Casambi dimming control. It is intended for projects that standardize on the Casambi ecosystem for wireless lighting control and advanced dimming functionality.
What voltage range does the ENVO SR-CS9101EA-5C support?
The SR-CS9101EA-5C is rated for low voltage operation from 12V to 48V. This range gives specifiers flexibility when selecting it for different low voltage LED lighting applications.
What is the maximum power and current rating of this controller?
This model is rated for up to 192 W with a rated current of 20 A. These ratings make it appropriate for higher-capacity low voltage lighting applications that need multi-channel control.
Where is this 5-channel LED controller typically used?
The SR-CS9101EA-5C fits residential, commercial, and architectural lighting projects where dynamic colour control or tunable white performance is required. It is especially relevant for professional applications that need more advanced scene and lighting effect capability than a basic single-colour dimmer.
What operating environment is this controller rated for?
The ENVO SR-CS9101EA-5C has an operating temperature range of -20°C to 50°C. That supports use across a wide range of indoor project environments where reliable performance is required.
How does this model compare with a standard single-channel LED dimmer?
A standard single-channel dimmer is typically limited to brightness control for one lighting output type. The SR-CS9101EA-5C is more advanced because it offers 5-channel control and supports RGB, RGBW, and RGB+CCT lighting for more flexible colour and tunable white applications.
