Mean Well SKM30W8-03 30W DC-DC Converter 3.3VDC 9.09A

30W single output DC-DC converter3.3VDC9–75VDC input

SKU SKM30W8-03

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SKM30W8-03 is the 3.3V output model of this series: rated power 30W, typical efficiency 87%.

SKM30W8 and DKM30W8 series are 30W isolated and regulated module type DC-DC converter with DIP 2"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+90℃, 3KVdc I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V/24V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 2"x1" package with industry standard pinout
8:1(9~75Vdc) ultra-wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
3KVdc I/O isolation
Remote ON/OFF control
Trimming output (±10%)
3 years warranty

Specifications

SKM30W8-03Specifications from the official datasheet (2026-04-13 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 12V, 24V,36V,48V,72V (9 ~ 75V)
INPUT CURRENT NO LOAD: 15mA
INPUT CURRENT FULL LOAD: 1119mA
OUTPUT VOLTAGE: 3.3V
OUTPUT CURRENT: 0~7000mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.)^{* For each output}: 680μF

INPUT

VOLTAGE RANGE: 9~75Vdc
SURGE VOLTAGE (100ms max.): 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended 8A Slow-Blow

OUTPUT

VOLTAGE ACCURACY: ±2% max.
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 3.3 ~ 15Vo: 150mVp-p, 24Vo: 240mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±1% for 3.3Vo model, ±0.5% for other models
CROSS REGULATION: ±5% @ 25% ~ 100% load only dual output
SWITCHING FREQUENCY (Typ.): 200KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Continuous, automatic recovery
OVERLOAD: 110 ~ 190% Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Clamp by TVS diodes
UNDER VOLTAGE LOCKOUT (Typ.) Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT (Typ.) Shutdown voltage: 7.5Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >2.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1Vdc or short

ENVIRONMENT

COOLING: Free-air convection

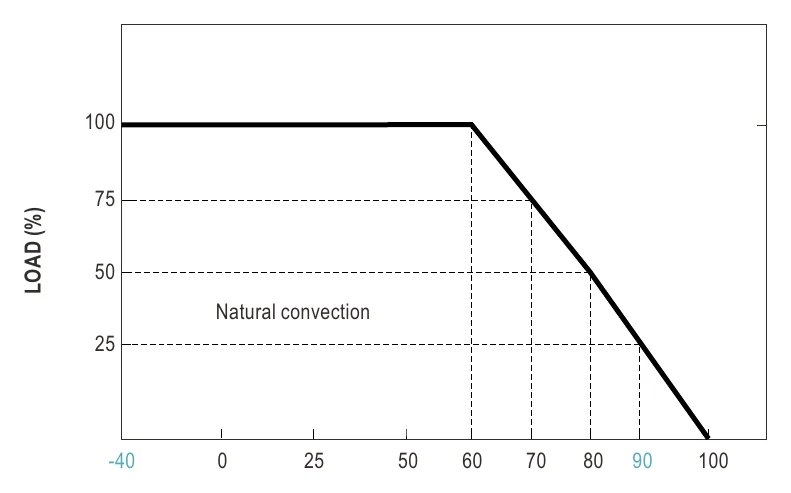

WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 60℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVdc
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A

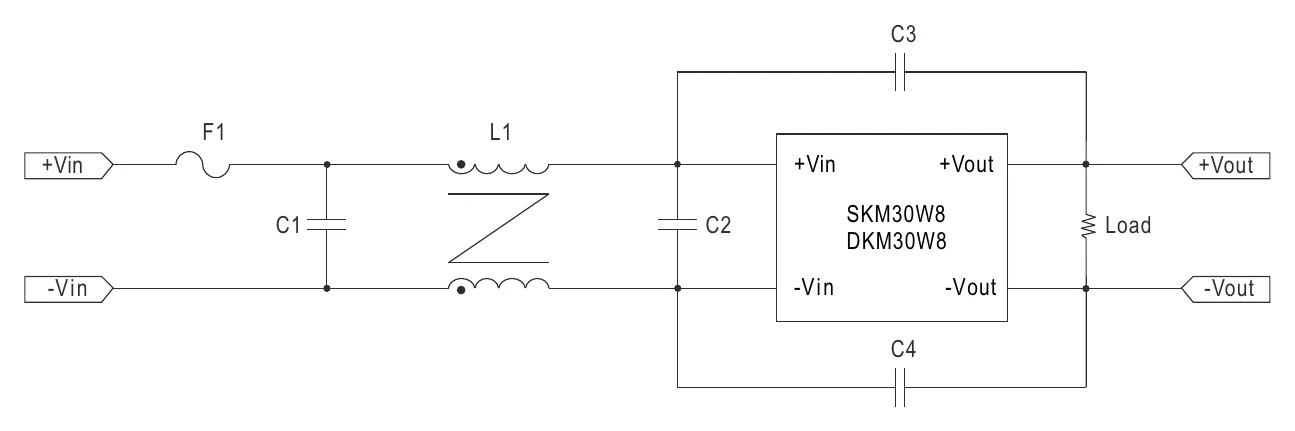

Radiated BS EN/EN55032(CISPR32) Class A without additional components Class B with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, ±0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field Immunity BS EN/EN61000-4-8 Level 1, 1A/m

OTHERS

MTBF: >500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 50.8*25.4*11.2mm (2*1*0.44 inch)
CASE MATERIAL: Six-side shielded case

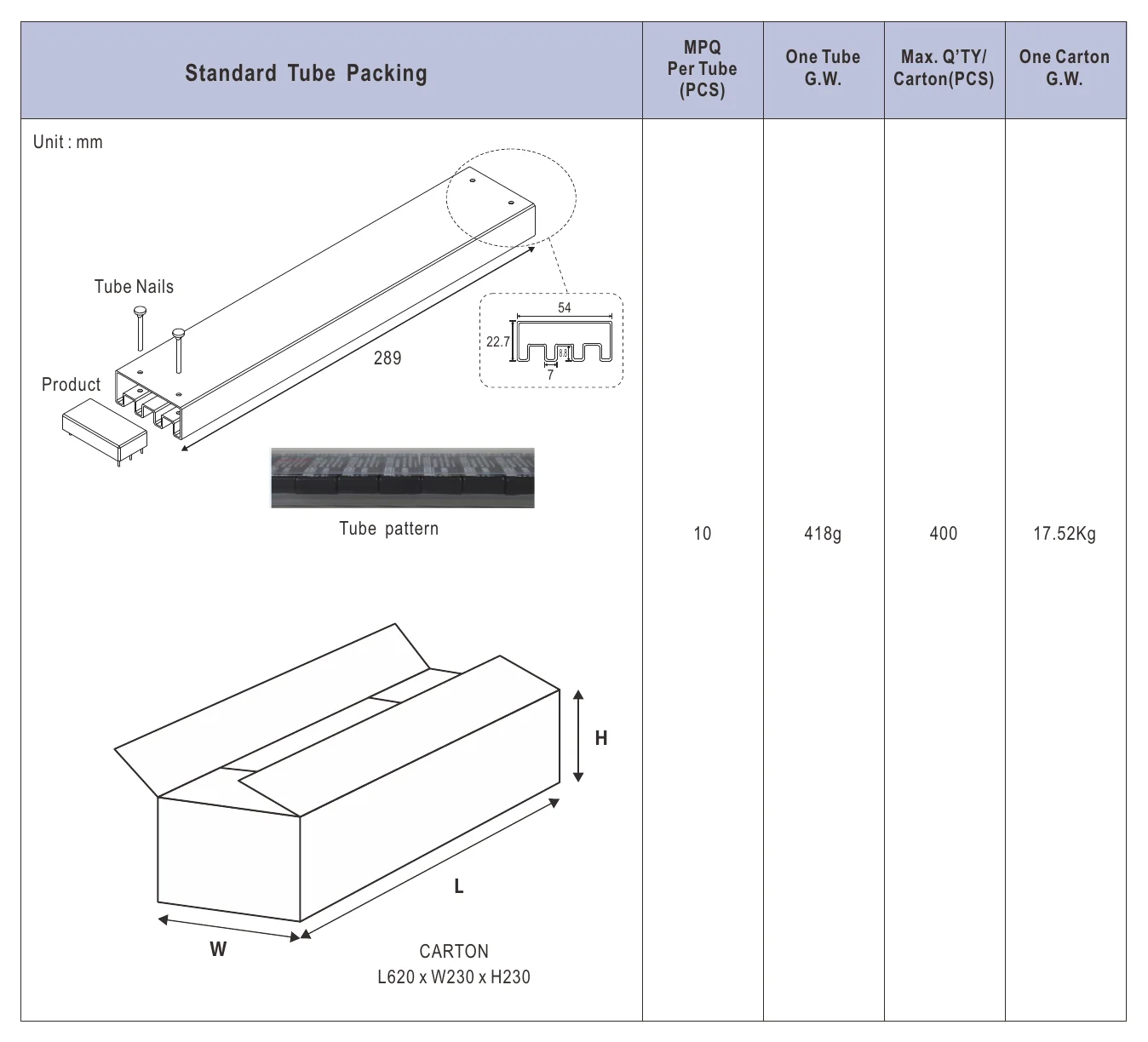

PACKING: 33g ; 10pcs/per tube, 400pcs/40 tube/per carton

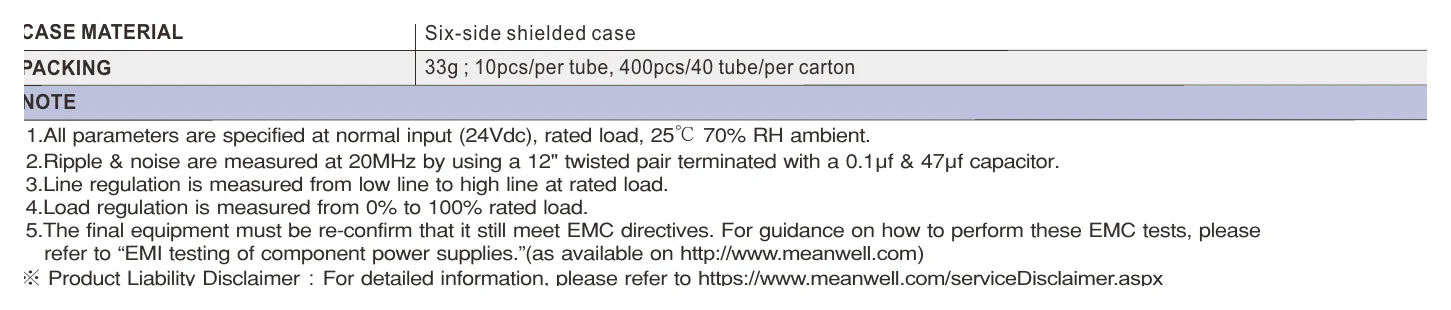

Test conditions and notes5

1.All parameters are specified at normal input (24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SKM30W8-03 DIMENSION (L*W*H) 50.8*25.4*11.2mm — DIMENSION (L*W*H) 50.8*25.4*11.2mm

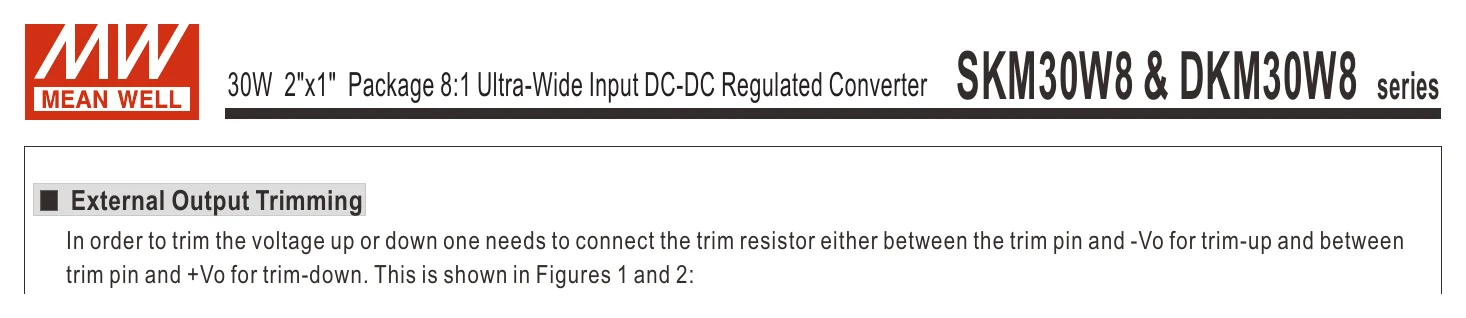

SKM30W8-03 SKM30W8 & DKM30W8 series — SKM30W8 & DKM30W8 series

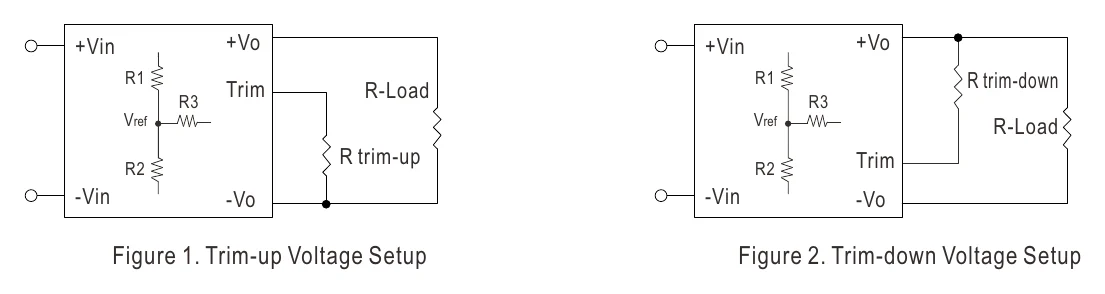

SKM30W8-03 SKM30W8 & DKM30W8 series (2) — SKM30W8 & DKM30W8 series (2)

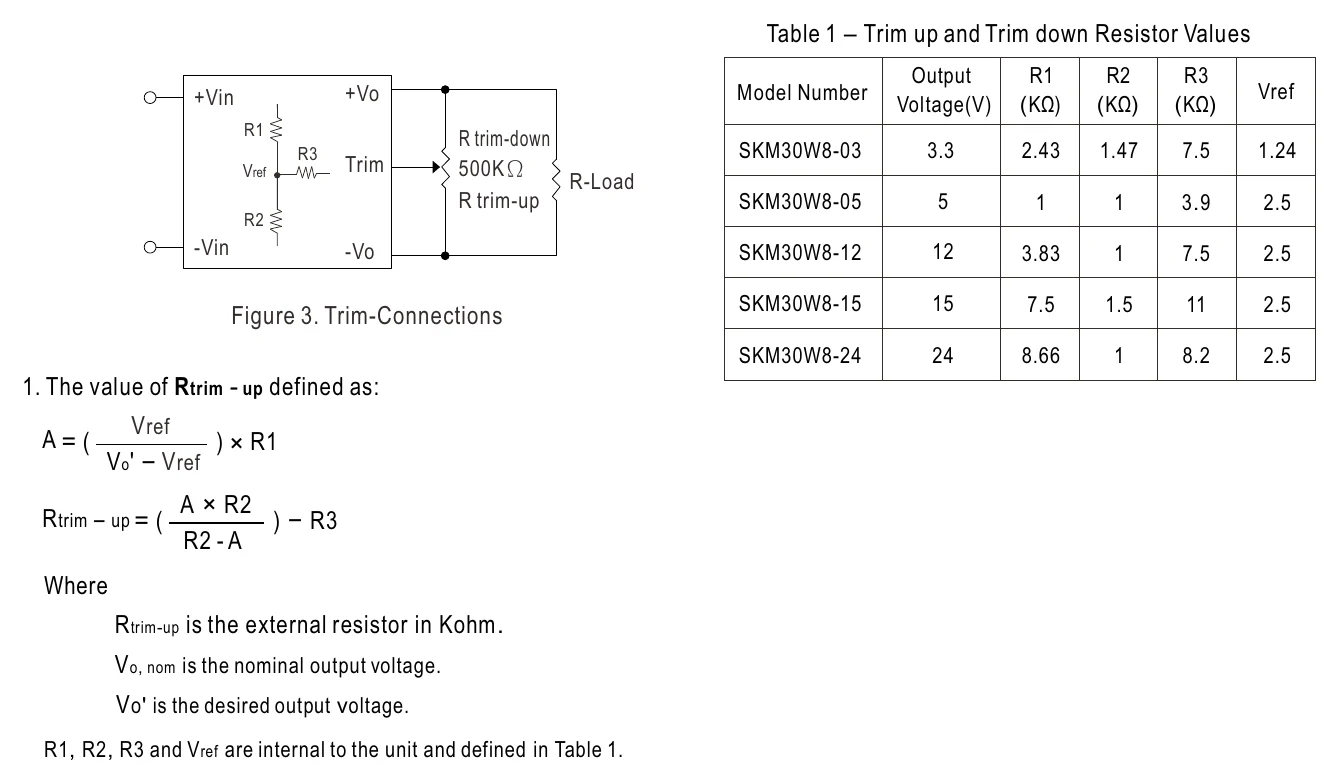

SKM30W8-03 SKM30W8 & DKM30W8 series (3) — SKM30W8 & DKM30W8 series (3)

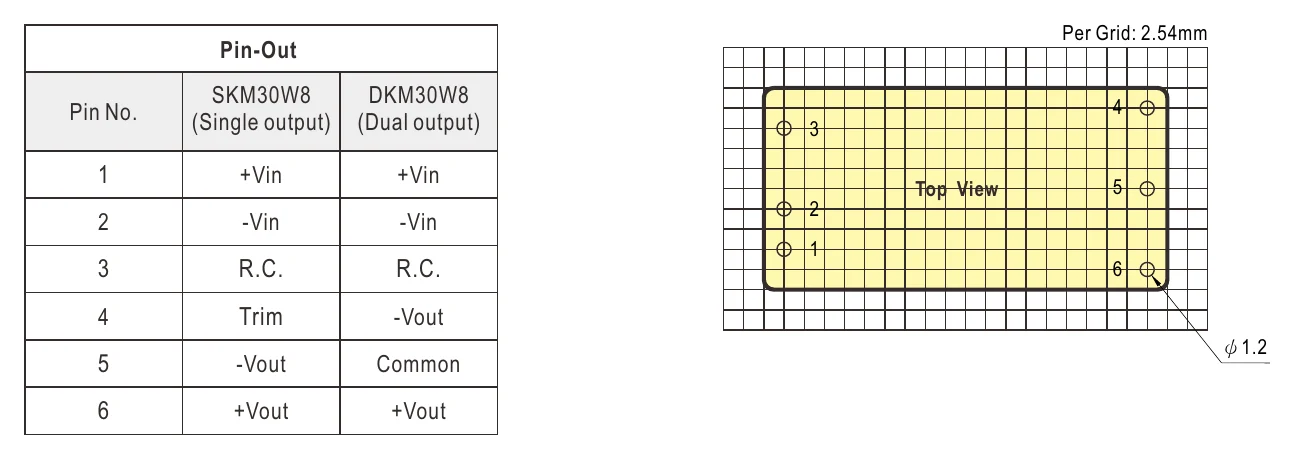

SKM30W8-03 Pin Assignment — Pin Assignment
