Mean Well SPBW03G-15 DC-DC Converter - 3W - 18~75V in 15V out

SKU SPBW03G-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SPBW03G-15 is the 15V output model of this series: rated power 3W, typical efficiency 84%.

SP BW03 and DP BW03 series are 3 W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A/B with additional components
High efficiency up to 85%
Protections: Short circuit (Continuous) / Overload / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

SPBW03G-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 48V (18 ~ 75V)
INPUT CURRENT NO LOAD: 7mA
INPUT CURRENT FULL LOAD: 75mA
VOLTAGE RANGE: 18~75Vdc
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 0 ~ 200mA
EFFICIENCY (TYP.): 84%
CAPACITOR LOAD (MAX.)^{* For each output}: 120μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: 0.5%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin : 7.5Vdc ; 48Vin : 15.5Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin : 6Vdc ; 48Vin : 12Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A/B with external components
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A/B with external components
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

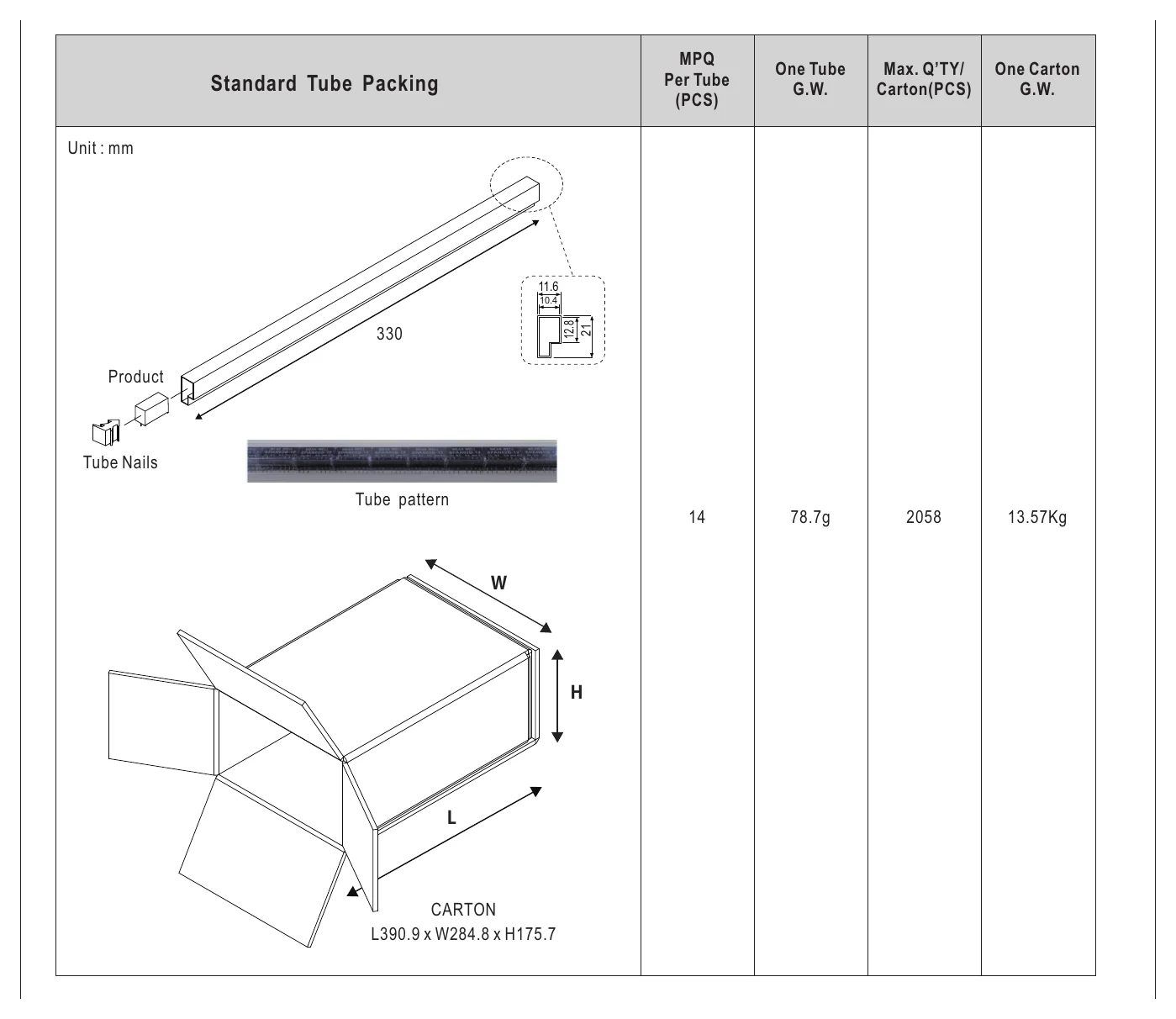

PACKING: 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

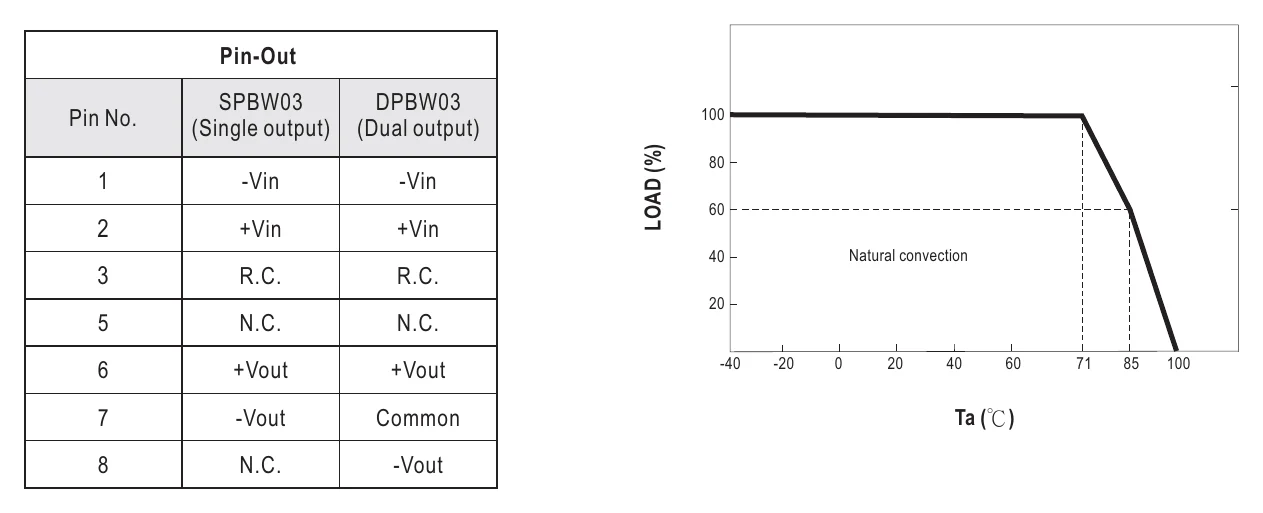

SPBW03G-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SPBW03-DPBW03-CE-dec)(EN) PDF Download

Certificate (SPBW-DPBW03-UK-dec)(EN) PDF Download

Test reports1

Test Report (SPBW03G-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SPBW03G-15 for low-power 15V instrumentation or control electronics?

Yes, this model provides 15V constant voltage output with 3W total power, which suits low-power instrumentation and control circuits. Its 18-75VDC input range is also useful where the source voltage can vary across a broad range.

Is the SPBW03G-15 a good fit for compact embedded systems that need 15V output?

It can fit space-constrained embedded hardware because the package is only 21.8 × 11.1 × 9.2 mm. The 15V output and 3W rating make it appropriate for small support rails rather than larger 15V loads.

Can this converter power 15V interface or auxiliary sections in automation equipment?

It is designed for constant voltage operation at 15V and 3W, so it is suited to low-power auxiliary sections inside automation equipment. The wide 18-75VDC input range also helps when system input conditions differ across platforms.

Can the SPBW03G-15 be used in outdoor enclosures or very cold locations?

The specified operating temperature range is -40°C to +85°C, so the temperature spec is broad. However, no IP rating is listed, so the product specs do not define it as an outdoor-rated converter.

What is the difference between the SPBW03G-15 and the other 3W SPBW03G versions?

The listed SPBW03G family members all have 3W power. The SPBW03G-03 is 3.3V and 700mA, the SPBW03G-05 is 5V and 600mA, the SPBW03G-12 is 12V and 250mA, and the SPBW03G-15 is 15V and 200mA.
