Mean Well

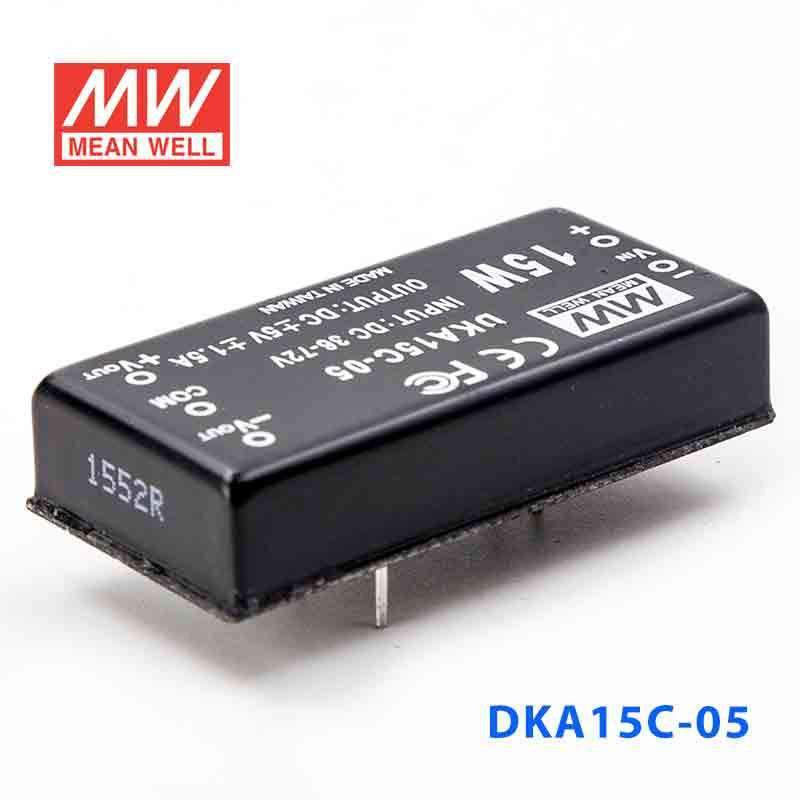

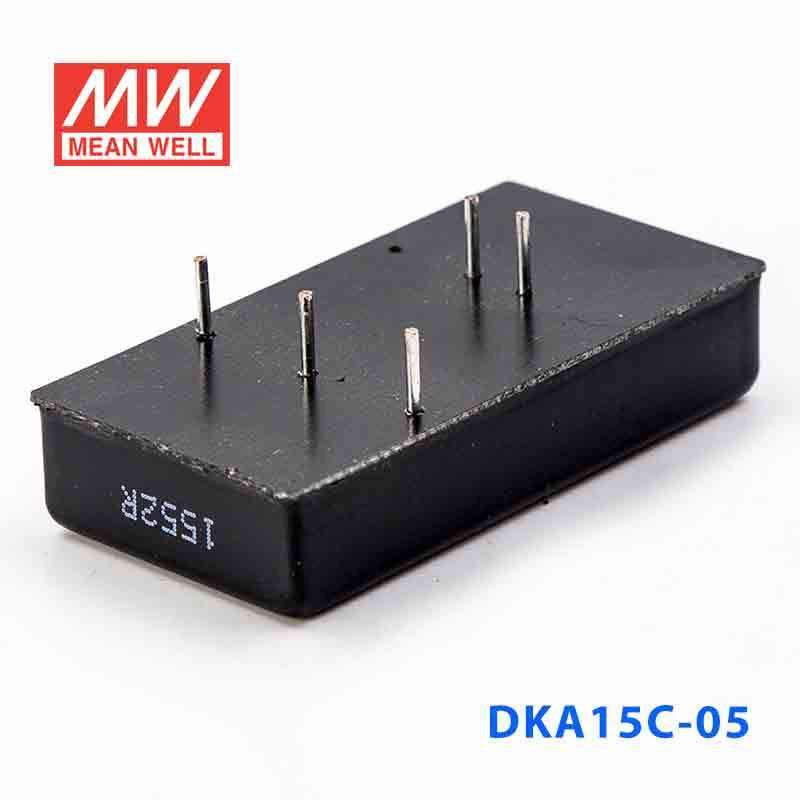

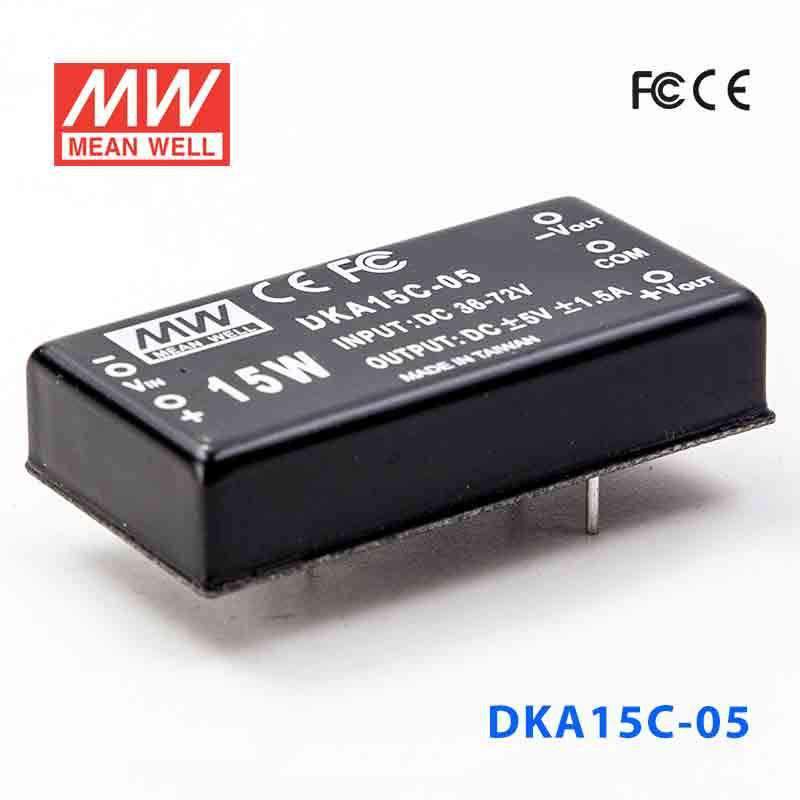

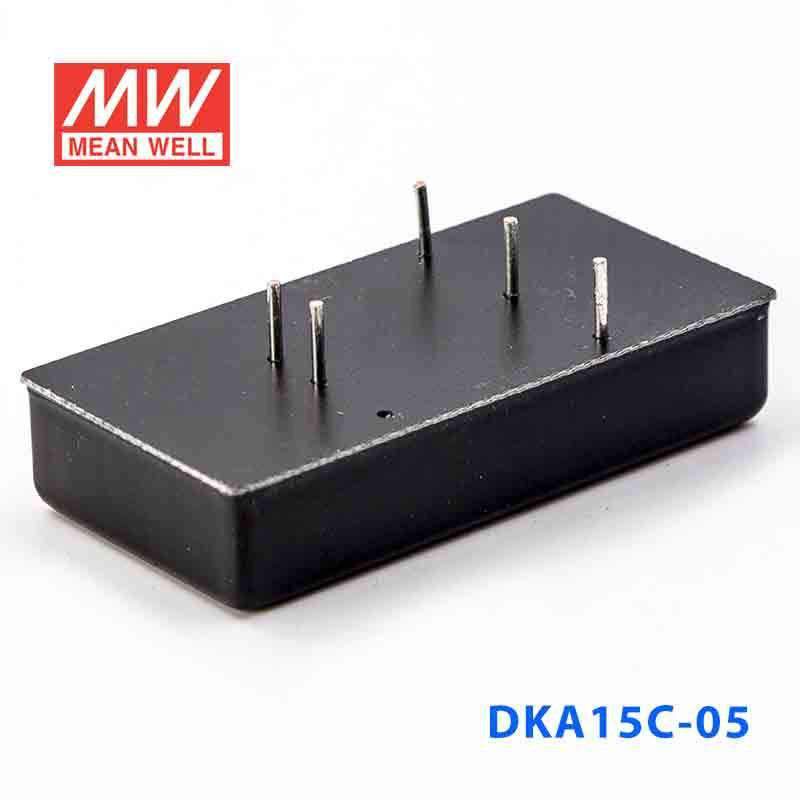

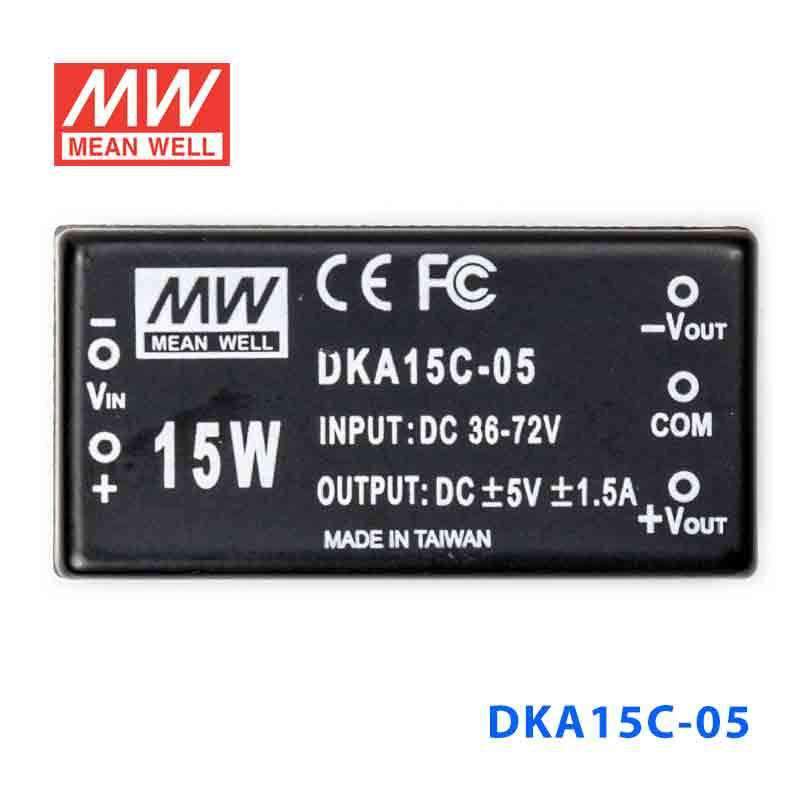

Mean Well DKA15C-05 DC-DC Converter - 15W - 36~72V in ±5V out 1.5A

SKU DKA15C-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DKA15C-05 is the ±5V output model of this series: rated power 15W, typical efficiency 82%.

Features

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1500VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / EAC / CE / UKCA
  • 2 years warranty

Specifications

DKA15C-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
±5V
CURRENT RANGE
±150 ~ ±1500mA
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.2%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
150KHz min.
EXTERNAL CAPACITANCE LOAD (max.)
330uF

INPUT

VOLTAGE RANGE
36 ~ 72VDC
EFFICIENCY (Typ.)
82%
DC CURRENT Full load
400mA
DC CURRENT No load
15mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVER CURRENT
110% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ ( 0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
300Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*11.27mm or 2"*1"*0.44" inch (L*W*H)
PACKING
31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

DKA15C-05 Mechanical Specification
Mechanical Specification
DKA15C-05 Packing
Packing

Downloads

FAQ

Can I use the DKA15C-05 to power 5V logic or controller boards from a 36-72VDC system?

Yes. This model provides a regulated ±5V dual output from a 36-72VDC input and is rated at 15W with up to 1500mA per output. That makes it a fit for low-power 5V control electronics where the source falls within the listed input range.

Is the DKA15C-05 suitable for embedded 5V electronics inside industrial equipment?

It is designed for a regulated ±5V output and has a compact 50.8 × 25.4 × 11.27 mm package, which suits space-constrained embedded designs. Its 15W rating and 1500mA maximum current per output make it appropriate for lower-power 5V electronics rather than higher-load systems.

Can this converter be used for 5V auxiliary power in automation panels with a wide source range?

Yes, if the available source is within 36-72VDC and the load needs a regulated ±5V output. The unit is rated for 15W and up to 1500mA per output, so it is best matched to auxiliary 5V panel electronics within that power envelope.

What is the difference between DKA15C-05, DKA15C-12, and DKA15C-15?

All 3 models share the same 15W rating, 36-72VDC input range, 50.8 × 25.4 × 11.27 mm dimensions, -40°C to +71°C operating range (with derating), and 2-year warranty. The difference is output: DKA15C-05 is ±5V at up to 1500mA, DKA15C-12 is ±12V at up to 625mA, and DKA15C-15 is ±15V at up to 500mA.

Is the DKA15C-05 suitable for outdoor or harsh-temperature use?

The operating temperature range is -40°C to +71°C, with output derating at higher temperatures per the derating curve, so it is specified for a wide temperature span. No IP rating is listed in the provided specs, so the product data does not identify it as an outdoor-rated converter.
