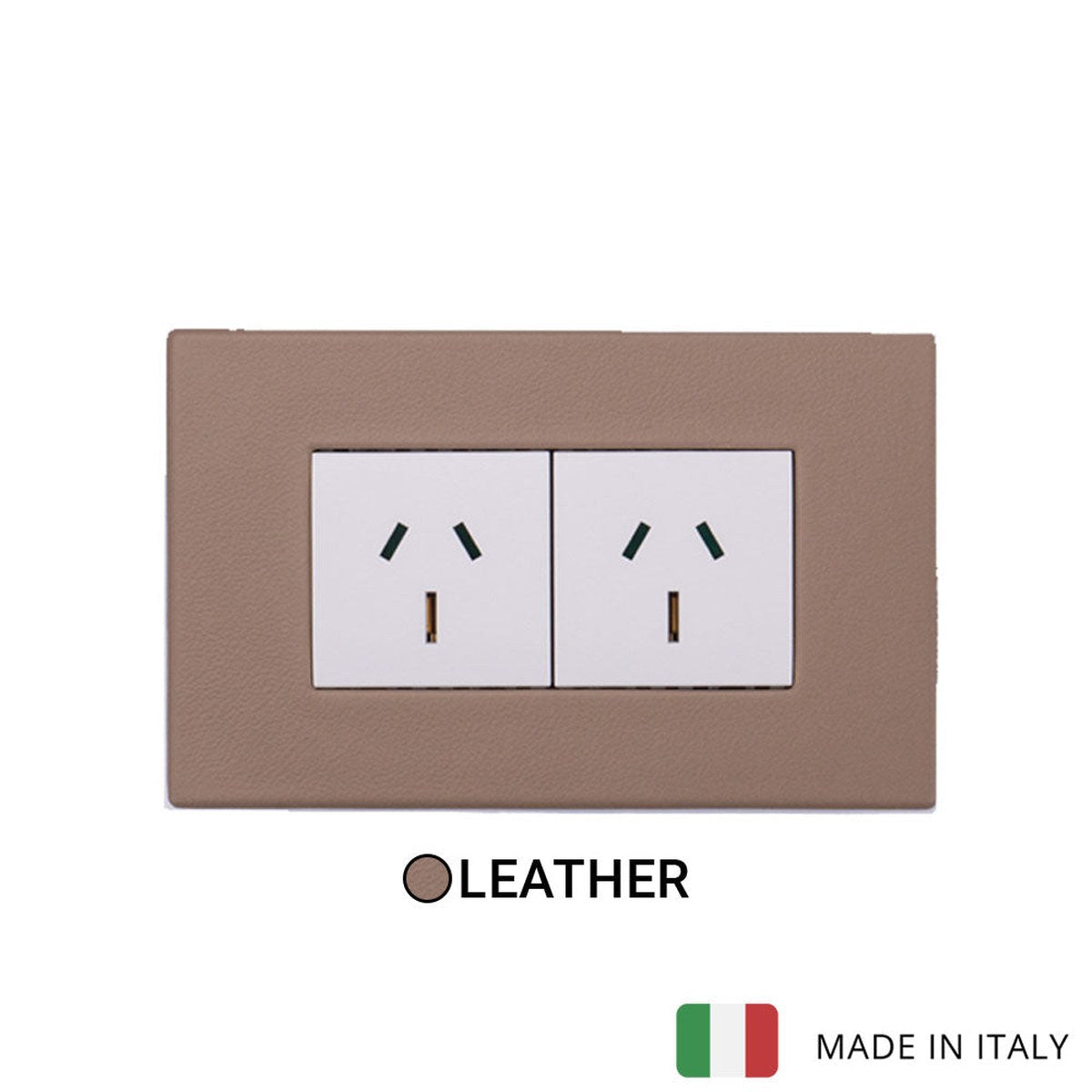

Vimar Eikon Leather 2 Socket - Leather Savannah - 15A
Log in to see priceOverview
This kit is assembled from Vimar parts: 1 × plate 4M leather Savannah (VM-22654.21); 1 × frame 4M +screws (VM-21614); 2 × 2P+E 15A Australian SICURY outlet (VM-20262.B). Each part's specifications follow, with a link to its own page.
Specifications
Vimar Eikon Leather 2 Socket - Leather Savannah - 15ASpecifications from the official datasheet
Variants
| SKU | Module Colour |
|---|---|

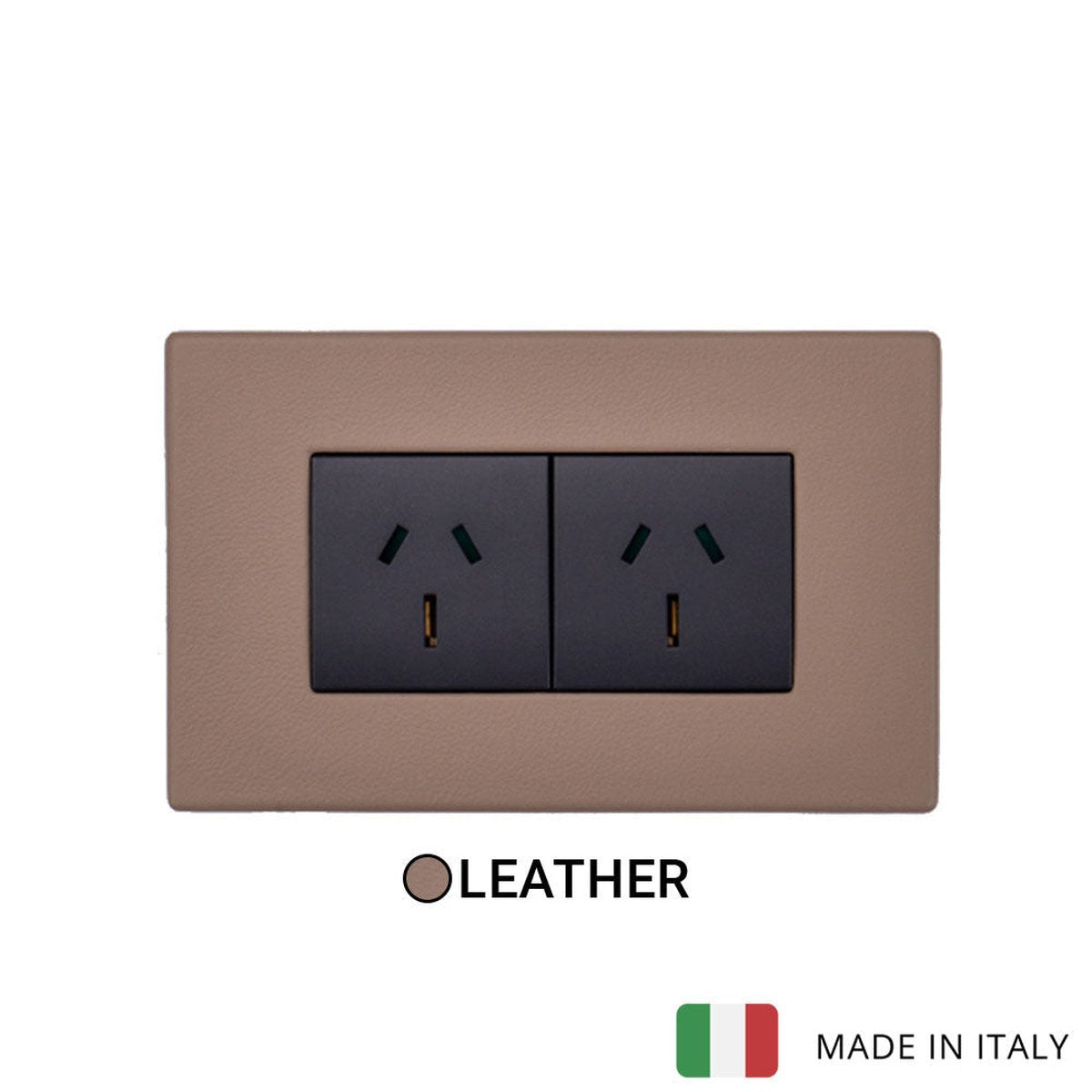

| Z-VM32SOCG-LS | Grey |
| Z-VM32SOCW-LS | White |
Kit contents
- Cover plate × 1
- VM-22654.21 · plate 4M leather Savannah
- Frame × 1
- VM-21614 · frame 4M +screws
- Socket outlet × 2
- VM-20262.B · 2P+E 15A Australian SICURY outlet white
Cover plate (VM-22654.21)
- Product type
- Cover frame for domestic switching devices
- Number of units
- 4
- Mounting direction
- Horizontal and vertical
- Number of device inserts horizontal
- 4
- Number of device inserts vertical
- 1
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With mounting grid
- Yes
- Suitable for subfloor installation duct box
- Yes
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- Yes
- Label space/information surface
- Yes
- Material
- Leather
- Surface finishing
- Matt
- Colour
- Beige
- RAL-number (similar)
- 9001
- Degree of protection (IP)
- IP00
- Type of fastening
- Clamp mounting
- Width
- 144.5 mm
- Height
- 90 mm
- Depth
- 11.55 mm
- Built-in width
- 144.5 mm
- Built-in height
- 90 mm
- Certifications
- CE marking (EU), IMQ (Italy)
Frame (VM-21614)
- Product type
- Holder for modular domestic switching devices
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 1
- With screws
- Yes
- Flush-mounted installation
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Certifications
- CE marking (EU), IMQ (Italy)
Socket outlet (VM-20262.B)
- Product type
- Socket outlet
- Number of socket outlets
- 1
- Number of modules (module system)
- 2
- Connection type
- Screwed terminal
- With enhanced contact protection
- Yes
- Label space/information surface
- Yes
- Colour
- White
- RAL-number (similar)
- 9016
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- Nominal current
- 15 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 60 HZ
- Suitable for degree of protection (IP)
- IP20
- Device width
- 44.8 mm
- Device height
- 49 mm
- Device depth
- 38.9 mm
- Certifications
- CE marking (EU), RCM (Australia), WEEE Directive

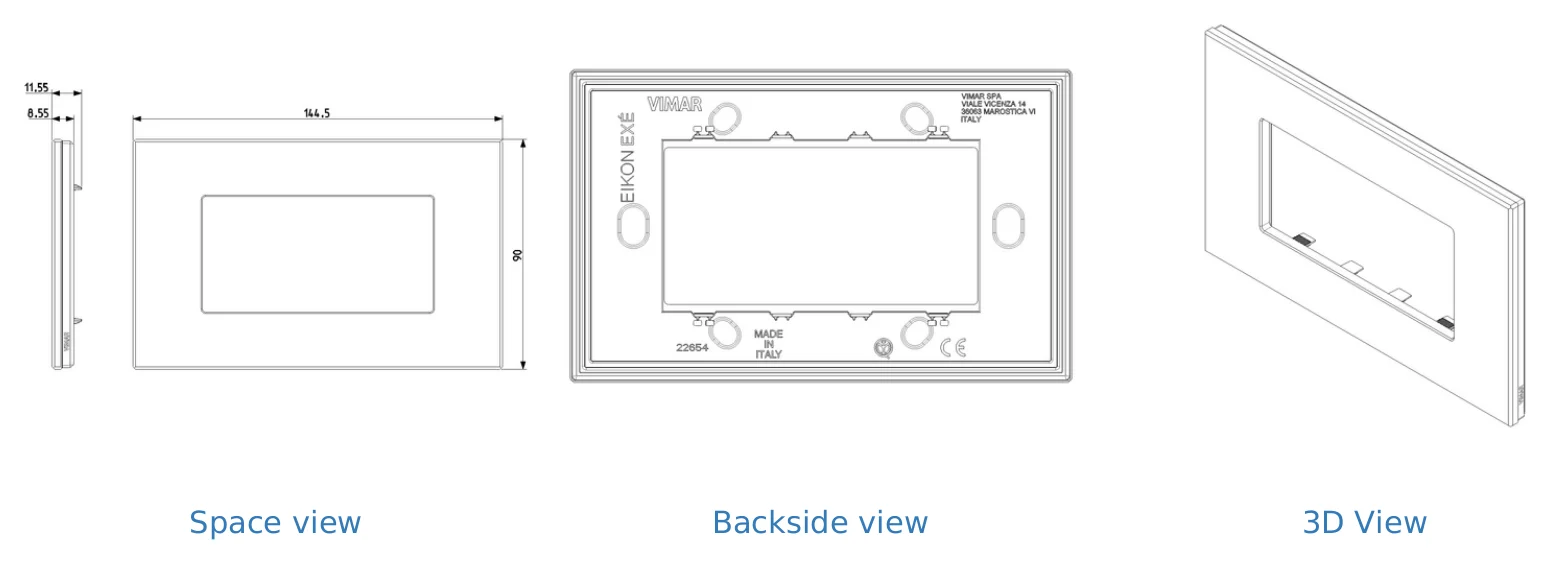

Technical drawings
