Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

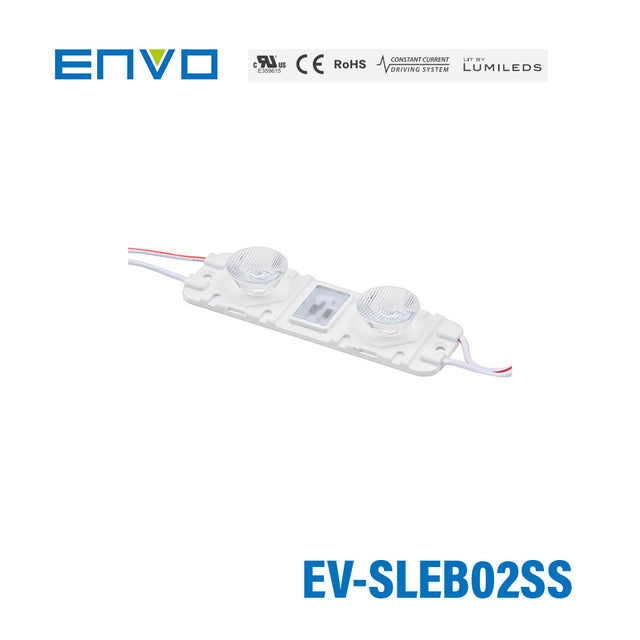

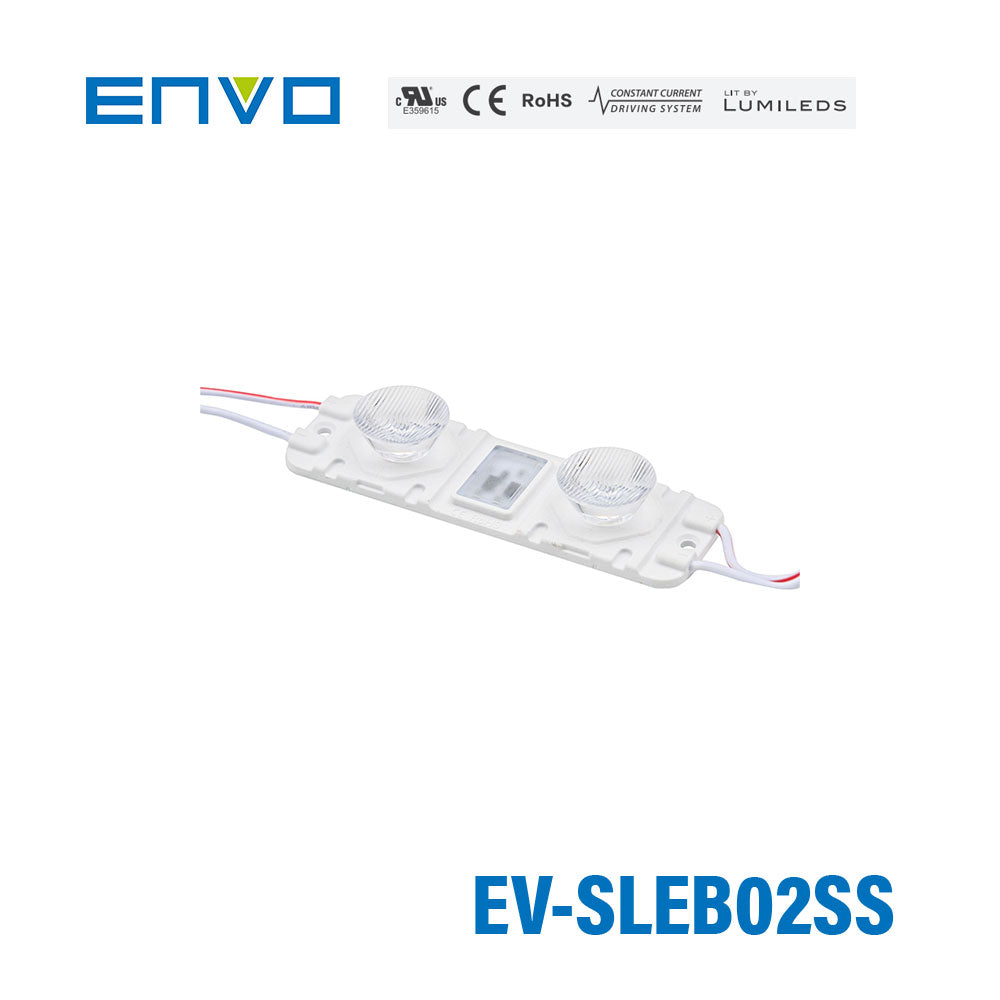

ENVO EdgeBlade2 LED Module Sidelit - Double LED

24V4.0W40 modules per seriesIP67

SKU EV-SLEB02SS-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-SLEB02SS-CW

EV-SLEB01LBY-CW Single LED In stock

EV-SLEB02SS-CW Double LED In stock

LED Colour

Warm White 3000K Cool White 6500K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO EdgeBlade Sidelit Double LED module is a 24V sidelit backlighting module designed for sidelit channel letters and slim sign faces where the LED is mounted on the letter return rather than the back face to achieve a smooth, even glow across the front panel. Its narrow 10°×40° beam from dual LEDs concentrates light precisely across the sign face, minimising spill onto the return walls and producing the crisp, even edge-lit illumination characteristic of slim-profile letter designs. Running on a 24V DC supply and fully dimmable, it carries IP67 ingress protection for indoor and outdoor sign installations, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 24V DC
✓ Power: 4W per module
✓ Beam angle: 10°×40°
✓ Module dimensions: 97.4 × 30 × 14 mm
✓ Max modules per series: 40
✓ Rated current: 0.167A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −40°C to +70°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
✓ 7 year warranty

Frequently Asked Questions

What types of signage is the ENVO EdgeBlade2 LED Module Sidelit designed for?

The EdgeBlade2 is built for professional edge-lit signage applications, including channel letters, sign cabinets, lightboxes, and commercial lighting projects. It is suitable for both indoor and outdoor illuminated signage where crisp, focused side lighting is important.

What light output and beam pattern does the EdgeBlade2 family provide?

Each module in the EdgeBlade2 family delivers 400 lumens while using 4.0 W of power. The 10° x 40° beam angle is designed for focused edge lighting, helping direct light where it is needed with minimal spill.

What depth range is this LED module suitable for?

The EdgeBlade2 is optimized for lightspaces from 60 mm to 150 mm deep. That makes it a practical option for a range of edge-lit sign and lightbox designs that need controlled illumination in relatively slim spaces.

What is the difference between the available EdgeBlade2 variants?

The main difference shown across the family is color temperature. One variant is 3000K for a warmer appearance, and another is 6500K for a cooler, crisper look; both share the same 4.0 W power draw, 400 lm output, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty.

Is the ENVO EdgeBlade2 suitable for outdoor or harsh environments?

Yes. The module is rated IP67 for protection against dust and water ingress and is specified to operate from -40 °C to +70 °C, making it suitable for demanding indoor and outdoor signage environments.

What are the physical dimensions of the EdgeBlade2 module?

The module measures 97.4 mm in length, 30.0 mm in width, and 14.0 mm in height. Its compact profile supports applications that need a slim edge-lighting solution without giving up output.
