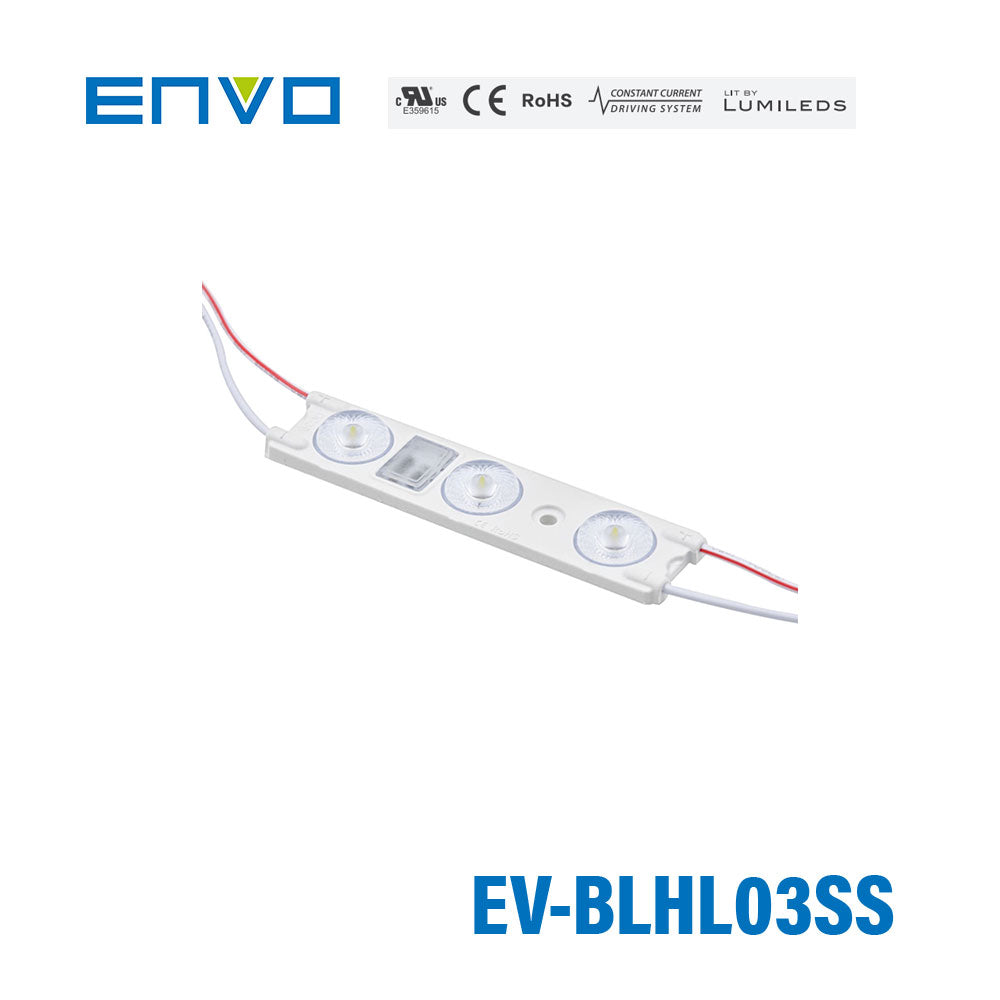

ENVO HydroLume LED Module Backlit - Triple LED

24V1.44WIP67Philips LED40 modules per series

SKU EV-BLHL03SS-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-BLHL03SS-CW

EV-BLHL02SS-CW Double LED In stock

EV-BLHL03SS-CW Triple LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The ENVO HydroLume Backlit Triple LED module is a high-output 24V backlighting module engineered for large-format channel letters and deep backlit sign cabinets demanding elevated lumen output per module. Powered by Philips LED chips, it delivers a wide 180° beam for bright, uniform illumination across deep sign cavities from three LEDs, making it effective in installations where lower-wattage modules would require denser string layouts to achieve the same face brightness. Running on a 24V DC constant voltage supply and fully dimmable, it carries IP67 ingress protection for exposed outdoor sign installations, backed by CB, CE, cUL, RoHS, TÜV, and UL certifications.

Key Features

✓ Input voltage: 24V DC
✓ Power: 1.4W per module
✓ Beam angle: 180°
✓ Module dimensions: 84 × 20 × 7 mm
✓ Max modules per series: 40
✓ Rated current: 0.06A
✓ CRI: 80
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −40°C to +70°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
✓ 7 year warranty

Frequently Asked Questions

What types of signage is the ENVO HydroLume Triple LED module designed for?

The ENVO HydroLume Triple LED module is designed for large channel letters, backlit sign cabinets, and expansive lightboxes. Its wide 180 degree beam angle and extended module size make it suited to applications where even backlighting is needed across larger sign faces. The product description identifies it as a strong fit for commercial signage projects with lightspace depths from 120 mm to 200 mm.

What lightspace depth is this LED module intended for?

This module is intended for deeper signage applications, with a recommended lightspace depth range of 120 mm to 200 mm. That makes it more appropriate for larger backlit signs and channel letters rather than very shallow applications. Its 84 mm profile is part of that wide-coverage design.

What are the main performance specifications of the HydroLume Triple LED family?

Each module is rated at 1.44 W and produces 252 lumens, with a 180 degree beam angle for broad light distribution. The family has a CRI of 80, a rated lifetime of 50,000 hours, and is dimmable. Across the family, these core performance specifications remain consistent.

What is the difference between the available variants in this HydroLume family?

The child variants differ by color temperature, with options at 3000K, 4000K, and 6500K. The listed performance values stay the same across those variants, including 1.44 W power rating, 252 lumen output, 180 degree beam angle, CRI 80, dimmable control, 50,000 hour life, and 7 year warranty. For buyers comparing options, the main selection factor is the preferred light color.

Is the HydroLume Triple LED module suitable for outdoor or demanding environments?

Yes, this family is rated IP67 for resistance to water and dust, which supports use in demanding signage environments. It also has a stated operating temperature range of -40°C to +70°C. Those specifications make it suitable for projects exposed to challenging weather and temperature conditions.

What input type is this LED module compatible with?

The HydroLume Triple LED family is specified for 24 V input and uses constant current technology with a 24 V constant voltage input. It is also listed as dimmable. Buyers should match it with systems designed around 24 V LED signage products.

What size is the ENVO HydroLume Triple LED module?

The module dimensions are 84 mm long, 20 mm wide, and 7 mm high. This extended format supports wider coverage for backlit signage compared with smaller modules. Those dimensions are consistent with its intended use in larger and deeper sign applications.

What warranty and expected service life does this product family offer?

The HydroLume Triple LED family is backed by a 7 year warranty. It also has a rated lifetime of 50,000 hours. Together, those figures position it as a long-service option for commercial backlighting projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO HydroLume LED Module Backlit - Double LED	0.96W	—	—	Dimmable	View
ENVO HydroLume LED Module Backlit - Single LED	0.48W	—	—	Dimmable	View
