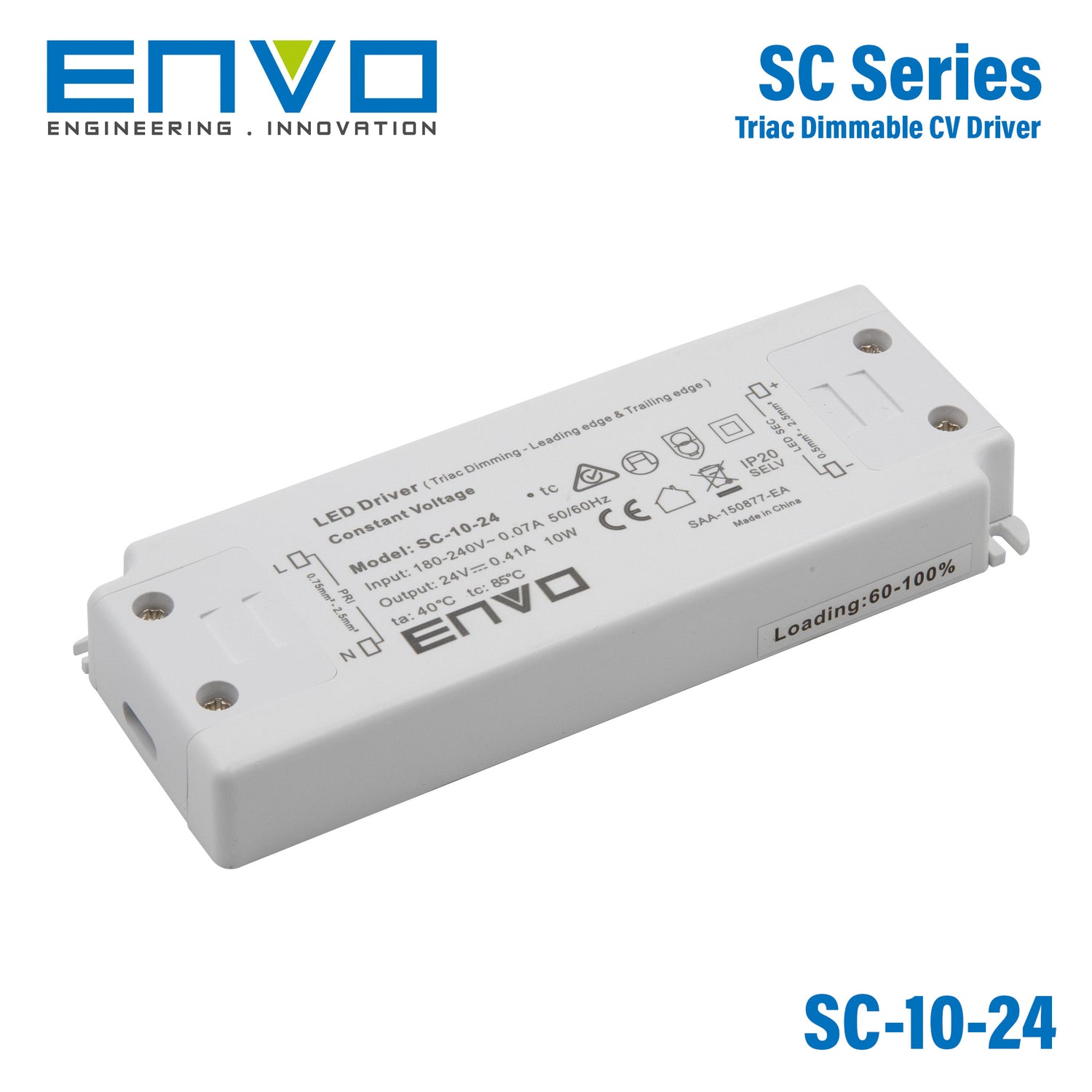

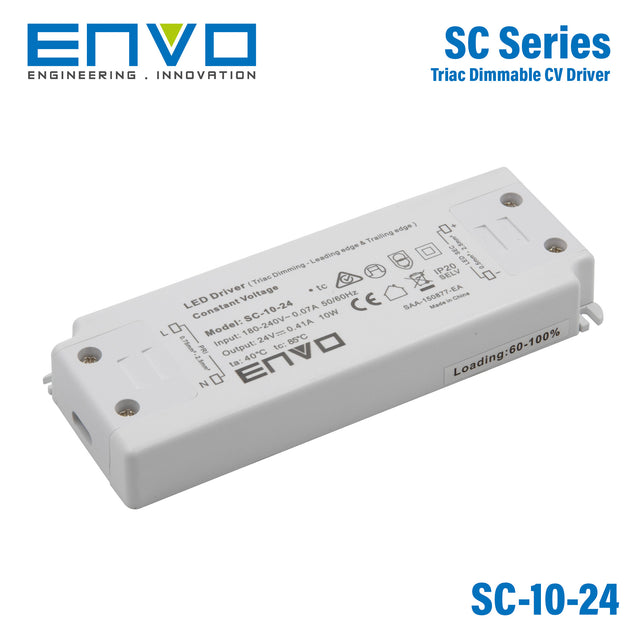

Envo SC-10-24 Power Supply 10W 24V - Triac Dimmable Driver

Output constant voltage
Universal AC input: 100-130VAC
High efficiency :up to 80%
Protection:short circuit/over loading/over current/ Over temperature
Full protection plastic housing
Easy installation
Cooling by free air convection
Compatible with Forward & Reverse phase
Triac
ELV Dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications and others
Suitable for dry or damp location use
IP20

Frequently Asked Questions

What is the output of the Envo SC-10-24 power supply?

The Envo SC-10-24 is a constant voltage power supply with a 24V DC output. It is rated at 10W with a rated output current of 0.42A.

Is the Envo SC-10-24 dimmable?

Yes. This model is Triac dimmable and is designed to work with AC phase-cut dimming. The product description also notes compatibility with forward phase, reverse phase, Triac, and ELV dimmers for flicker-free dimming performance.

What kinds of applications is the SC-10-24 suitable for?

This model is intended for LED lighting and moving sign applications, along with similar constant-voltage uses that match its 24V output and 10W rating. It is positioned as a compact driver for lower-power applications where phase-cut dimming compatibility is needed.

Can the Envo SC-10-24 be used in damp locations?

Yes. The product description states that it is suitable for dry or damp location use. It is also rated IP20, so it is intended for protected environments rather than direct exposure to water.

What input range does the Envo SC-10-24 support?

This power supply supports a universal AC input range of 100-130VAC. That makes it suitable for applications requiring a 24V constant voltage output within that input range.

What protection features does the SC-10-24 include?

The Envo SC-10-24 includes protection for short circuit, over loading, over current, and over temperature conditions. It also uses a full plastic housing and cooling by free air convection.

What operating temperature range is this model rated for?

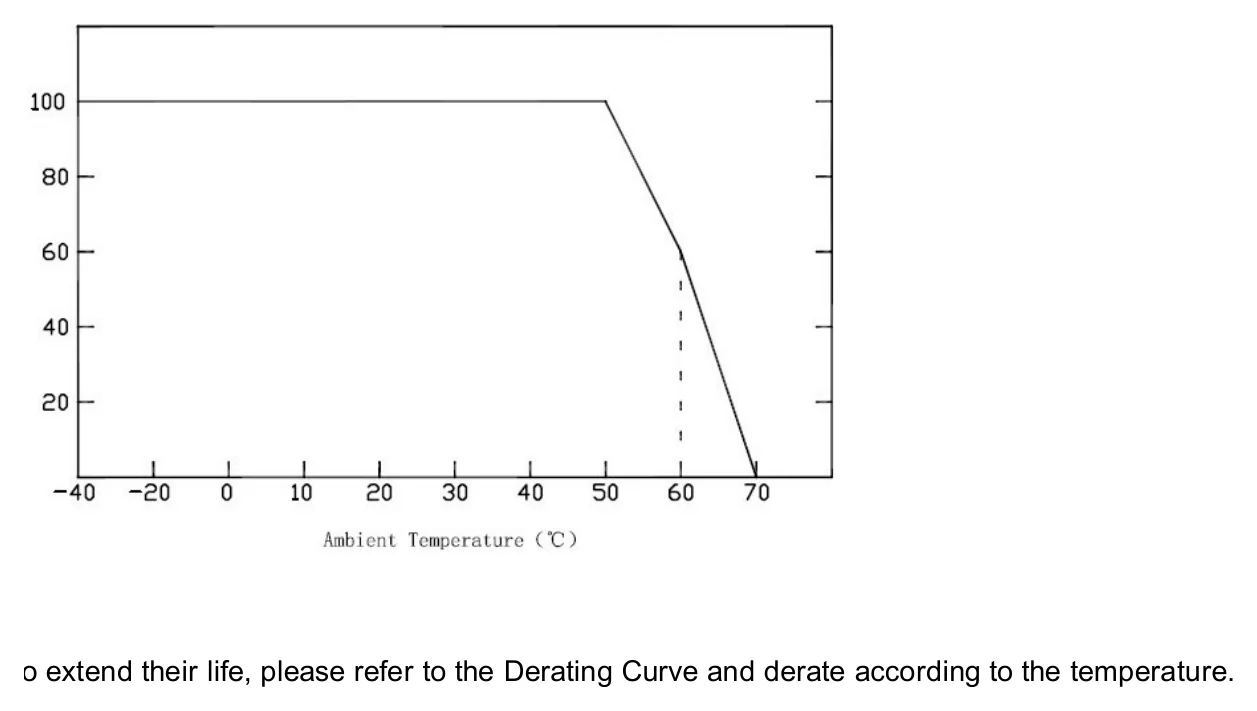

The specified operating temperature range is -40°C to 60°C. This gives the SC-10-24 a broad environmental range for suitable indoor dry or damp location applications.

What warranty comes with the Envo SC-10-24?

This model includes a 5-year warranty period. That can be useful for buyers comparing long-term value and support across similar 24V dimmable power supplies.
