Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

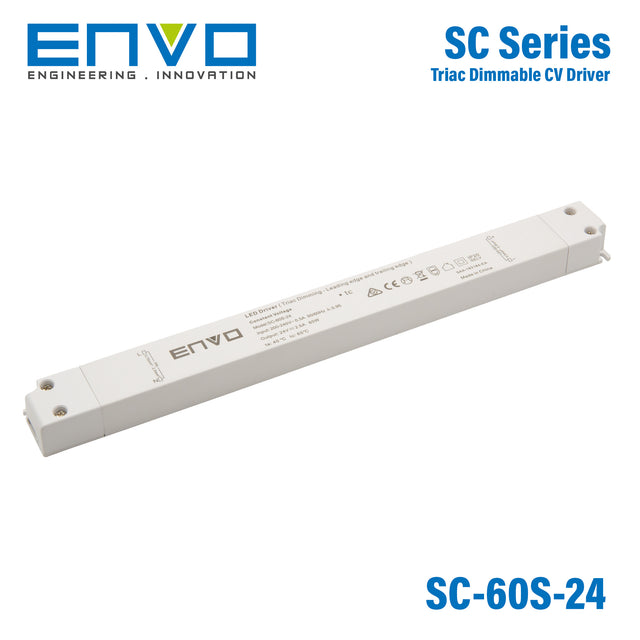

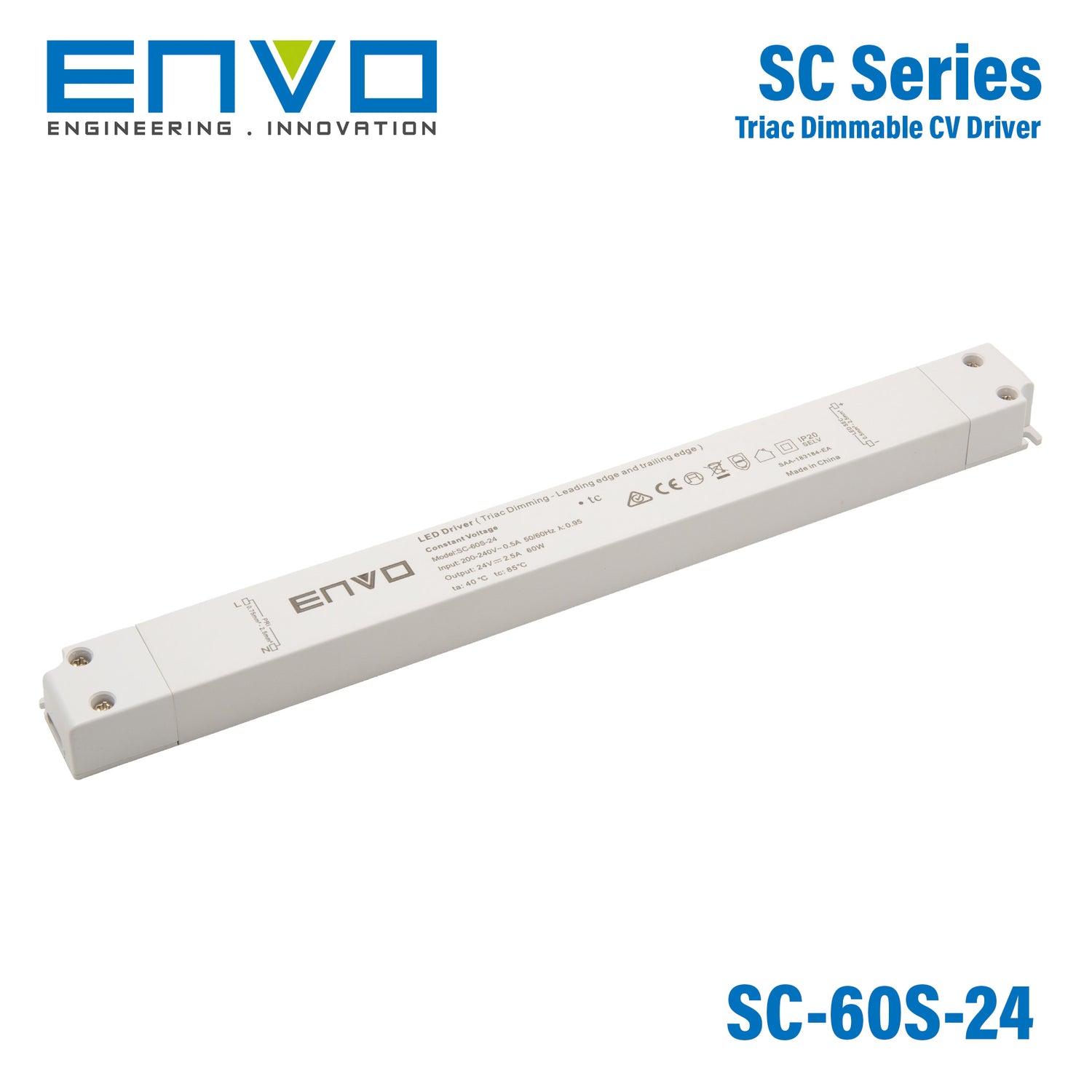

Envo Slim SC-60S-24 Power Supply 60W 24V - Triac dimmable 2.5A

triac dimmableslim shape30mm width

SKU SC-60S-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SC-60S-24 is a 60W ENVO AC-DC constant voltage LED driver (input: 200~240VAC, output: 24V, operating temperature: -40~+60°C).

Key Features

✓ Input voltage: 200~240VAC
✓ Output voltage: 24V
✓ Rated output current: 2.5A
✓ TRIAC (phase-cut) dimmable
✓ Operating temperature: -40~+60°C
✓ Safety certifications: CE, RCM, SAA, TÜV
✓ 5 year warranty

Frequently Asked Questions

What type of LED load is the Envo Slim SC-60S-24 designed for?

The SC-60S-24 is a constant voltage power supply with a 24V DC output. It is intended for 24V LED lighting applications and moving sign applications that need up to 60W total load. Its rated output current is 2.5A.

Is the SC-60S-24 TRIAC dimmable?

Yes. This model is compatible with both leading-edge and trailing-edge TRIAC dimmers. It supports 0-100% dimming with a stated load range of 10-100%.

What are the main electrical specifications of the Envo Slim SC-60S-24?

This model is rated at 60W and outputs 24V DC at up to 2.5A. Its input range is 200-240VAC. The unit also includes active PFC and reaches up to 88% efficiency.

Can this power supply be used indoors?

Yes, this model is intended for indoor installation. It has an IP20-rated plastic case, which suits dry indoor environments rather than exposed outdoor locations. The specified operating temperature range is -40°C to 60°C.

Does the SC-60S-24 help maintain lighting quality when dimmed?

Yes. The product uses PWM output and is described as not changing the color index during dimming. It is also specified as flicker-free, which is useful where smooth visual performance matters.

How does the SC-60S-24 compare with a constant current LED driver?

The SC-60S-24 is a constant voltage unit, so it is suited to 24V DC LED products that are designed to run from a fixed voltage supply. A constant current driver is used for LED loads that require current regulation instead of a fixed 24V output. For this model, the key output format is 24V constant voltage.

What protections and warranty does the Envo Slim SC-60S-24 include?

This model includes protection for short circuit, over loading, and over temperature conditions. It is built in a full protection plastic case and cooled by free air convection. The listed warranty period is 5 years.
