Overview
Outdoor Lights
Specifications
General
- Order code
- TI-FS-0042
- Input
- 24V DC
- Power rating
- 9.5W
- Beam angle
- 30°
- Brightness
- 576 lm
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP66
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Not Tiltable
- Mounting
- Not Specified
- Driver
- Driver Not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Die-Cast Aluminum
- Finish
- Silver
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

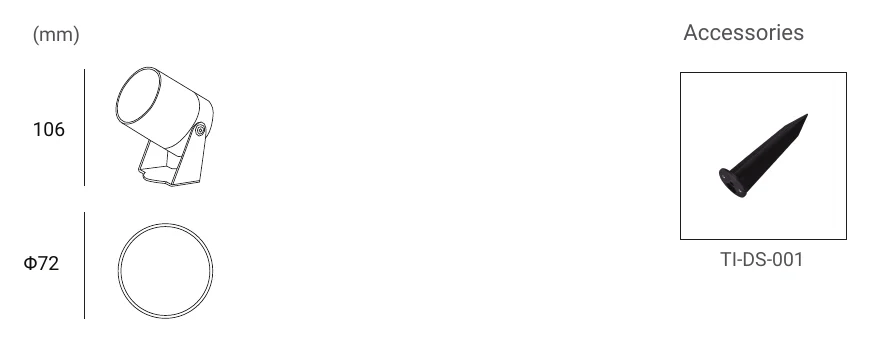

Technical drawings
Downloads
FAQ
What is the Archilight Theobald Thick Spot Light best suited for?
This model is designed for outdoor spotlighting where a focused beam is needed. Its 30 degree beam angle makes it a strong fit for highlighting landscape features, architectural details, and garden elements in commercial or high-end exterior projects.
What light color does this version produce?
This model is available in 2700K, 3000K, 4000K, and 5000K color temperatures. The 3000K option produces a warm white light, suitable for outdoor settings where a softer, more inviting appearance is preferred over cooler lighting.
How bright is this spot light?
The Archilight Theobald Thick Spot Light delivers 576 lumens of output. That level is appropriate for accent and feature lighting rather than broad-area flood illumination.
Does this fixture include a driver?
No, this model is listed with the driver not included. Buyers should account for that when evaluating compatibility with the rest of the lighting system.
Is this spot light dimmable?
Yes, this model is described as dimmable with an optional dimming control setup. That means dimming capability is available, but it depends on the supporting components selected for the project.
How does this model perform in outdoor environments?
It is rated for operating temperatures from -25C to 50C, which supports use across a wide range of outdoor conditions. Combined with its aluminum construction and long 50,000 hour lifetime, it is positioned for demanding exterior applications.
What distinguishes this model from lower-spec garden spot lights?
This version combines a high CRI of 90 with a warm 3000K output and a focused 30 degree beam. That makes it a better choice when accurate color rendering and controlled accent lighting are more important than general illumination.
What is the expected service life and warranty for this fixture?
The stated lifetime is 50,000 hours, which supports long-term use in commercial and professional outdoor lighting projects. It also carries a 5 year warranty period.
