Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO EdgeBlade2 LED Module Sidelit - Double LED

24V4.0W40 modules per seriesIP67

SKU EV-SLEB02SS-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-SLEB02SS-CW

EV-SLEB01LBY-CW Single LED In stock

EV-SLEB02SS-CW Double LED In stock

LED Colour

Warm White 3000K Cool White 6500K

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

High-powered side light module designed for slim lightboxes and sign cabinets
Uses elliptical lenses to project a narrow beam of light evenly across sign surfaces
Provides efficient illumination for lightboxes of 50mm(1.97in) depthand greater
Runs up to 40 modules per series with constant current technology
Long service life with 7-years warranty
Supplied in packs of 40 modules

Specifications

ENVO EdgeBlade2 LED Module Sidelit - Double LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU
EV-SLEB02SS-WW

Parameters

CCT (K): 3000K / 6500K
Beaming Angle (°): Narrow elliptical optic
CRI (Ra): ≥80
Luminous Flux (lm): 400lm
Voltage (V): 24V
Power (W): 4W
Driving Method: Constant Current
Dimension (mm/inch): 30 × 97.4 × 14mm (1.18 × 3.83 × 0.55in)
Working Tem. (°C/°F): -25°C ~ +60°C (-13°F ~ 140°F)
Protection Grade: IP67
Range (mm/inch): ≥50mm (≥1.97in) lightbox depth
Includes: 40 Modules per Pack
Max Series: 40 Modules per Series

Certifications & ratings

Certification marks: cRUus, CE, RoHS

Technical drawings

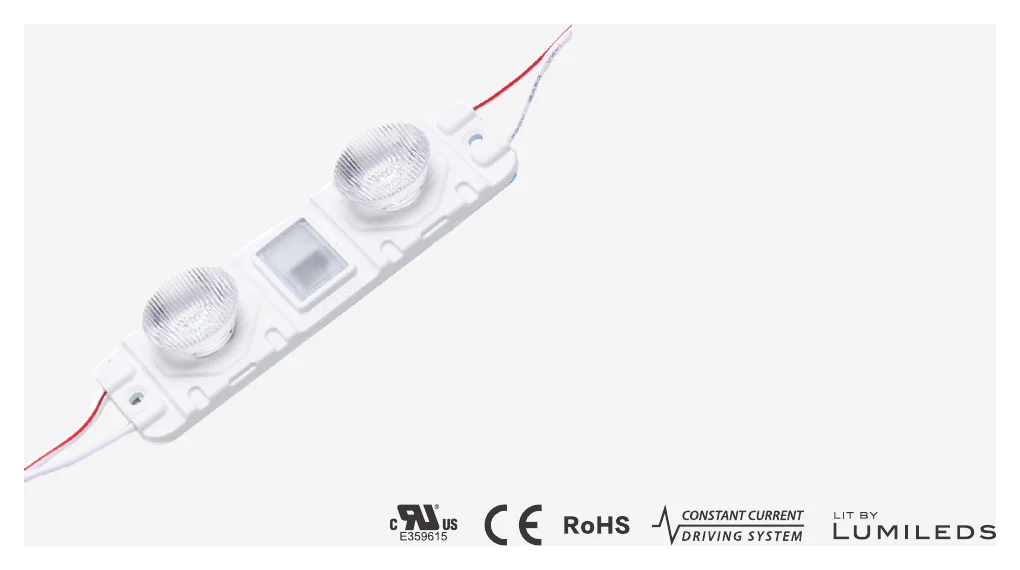

ENVO EdgeBlade2 LED Module Sidelit - Double LED Illustration (page 1) — Illustration (page 1)

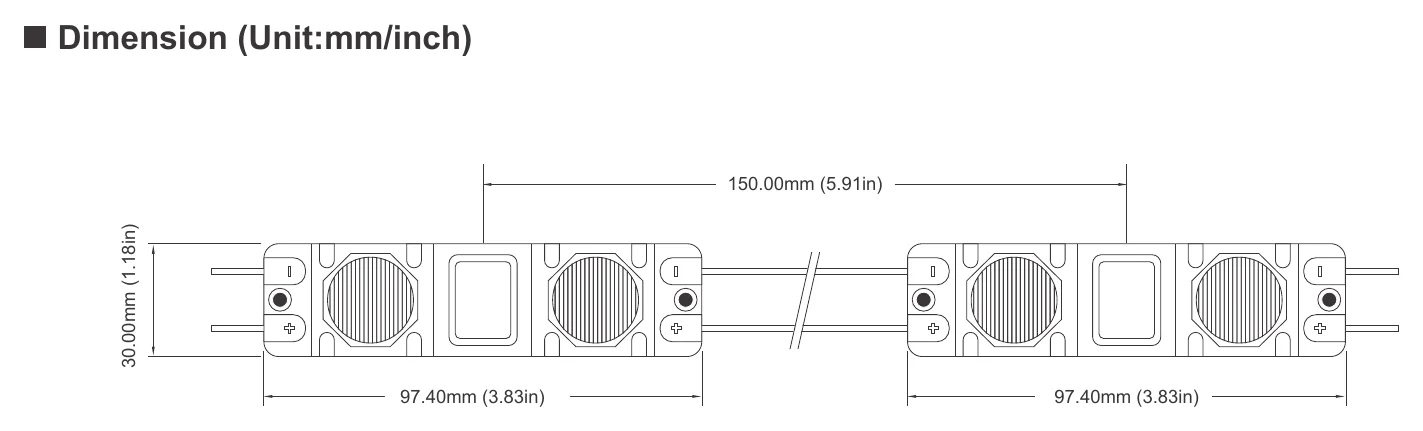

ENVO EdgeBlade2 LED Module Sidelit - Double LED Dimension (Unit:mm/inch) — Dimension (Unit:mm/inch)

Typical applications

Slim lightboxes with shallow depth
Sign cabinets requiring narrow beam side lighting
Indoor and outdoor signage lighting
Retail and commercial display illumination
Specialized narrow lighting situations where wide optics are not suitable

Downloads

Datasheet1

ENVO EdgeBlade2 LED Module Sidelit - Double LED datasheetEV_SLEB02SS_Spec_Sheet.pdf PDF Download

FAQ

What types of signage is the ENVO EdgeBlade2 LED Module Sidelit designed for?

The EdgeBlade2 is built for professional edge-lit signage applications, including channel letters, sign cabinets, lightboxes, and commercial lighting projects. It is suitable for both indoor and outdoor illuminated signage where crisp, focused side lighting is important.

What light output and beam pattern does the EdgeBlade2 family provide?

Each module in the EdgeBlade2 family delivers 400 lumens while using 4.0 W of power. The 10° x 40° beam angle is designed for focused edge lighting, helping direct light where it is needed with minimal spill.

What depth range is this LED module suitable for?

The EdgeBlade2 is optimized for lightspaces from 60 mm to 150 mm deep. That makes it a practical option for a range of edge-lit sign and lightbox designs that need controlled illumination in relatively slim spaces.

What is the difference between the available EdgeBlade2 variants?

The main difference shown across the family is color temperature. One variant is 3000K for a warmer appearance, and another is 6500K for a cooler, crisper look; both share the same 4.0 W power draw, 400 lm output, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty.

Is the ENVO EdgeBlade2 suitable for outdoor or harsh environments?

Yes. The module is rated IP67 for protection against dust and water ingress and is specified to operate from -40 °C to +70 °C, making it suitable for demanding indoor and outdoor signage environments.

What are the physical dimensions of the EdgeBlade2 module?

The module measures 97.4 mm in length, 30.0 mm in width, and 14.0 mm in height. Its compact profile supports applications that need a slim edge-lighting solution without giving up output.
