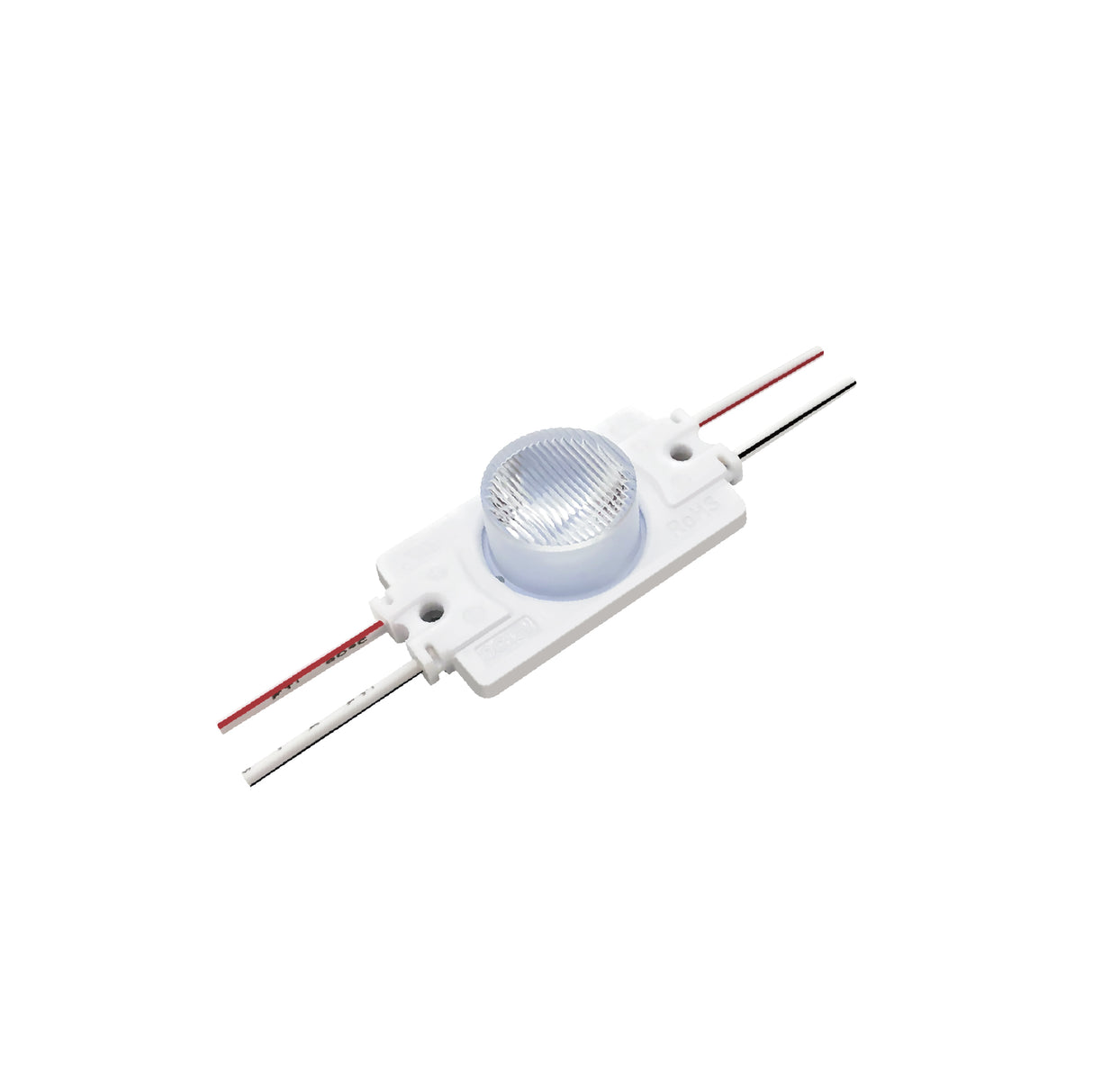

ENVO EdgeLume LED Module Sidelit - Single LED

12V1.32WIP67

SKU EV-SLEL01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

EV-SLEL01LBY-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Powered by high output 3030 LED.
Constant current.
Elliptical 10x65° optic lens.
20 pcs per string.
CE, RoHS, UL, TUV, BIS, CB and LM-80 certified.

Specifications

ENVO EdgeLume LED Module Sidelit - Single LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Certification marks
EV-SLEL01LBY-CW	Cool White 7000K	cRUus, CE, RoHS, TÜV, CB, LM-80, BIS
EV-SLEL01LBY-NW	Natural White 4000K	CE, RoHS, UL, TÜV, BIS, CB, LM-80
EV-SLEL01LBY-WW	Warm White 3000K	CE, RoHS, UL, TÜV, BIS, CB, LM-80

Parameters

Beaming Angle (°): 10*65°
CRI (Ra): ≥75
Luminous Flux (lm): 125
Voltage (V): DC12
Power (W): 1.32
Driving Method: Constant Current
Dimension (mm): 43*23*11.6
Working Tem. (°C): -25 ~ +60
Storage Tem. (°C): −25 ~ +70
Protection Grade: IP67

Technical drawings

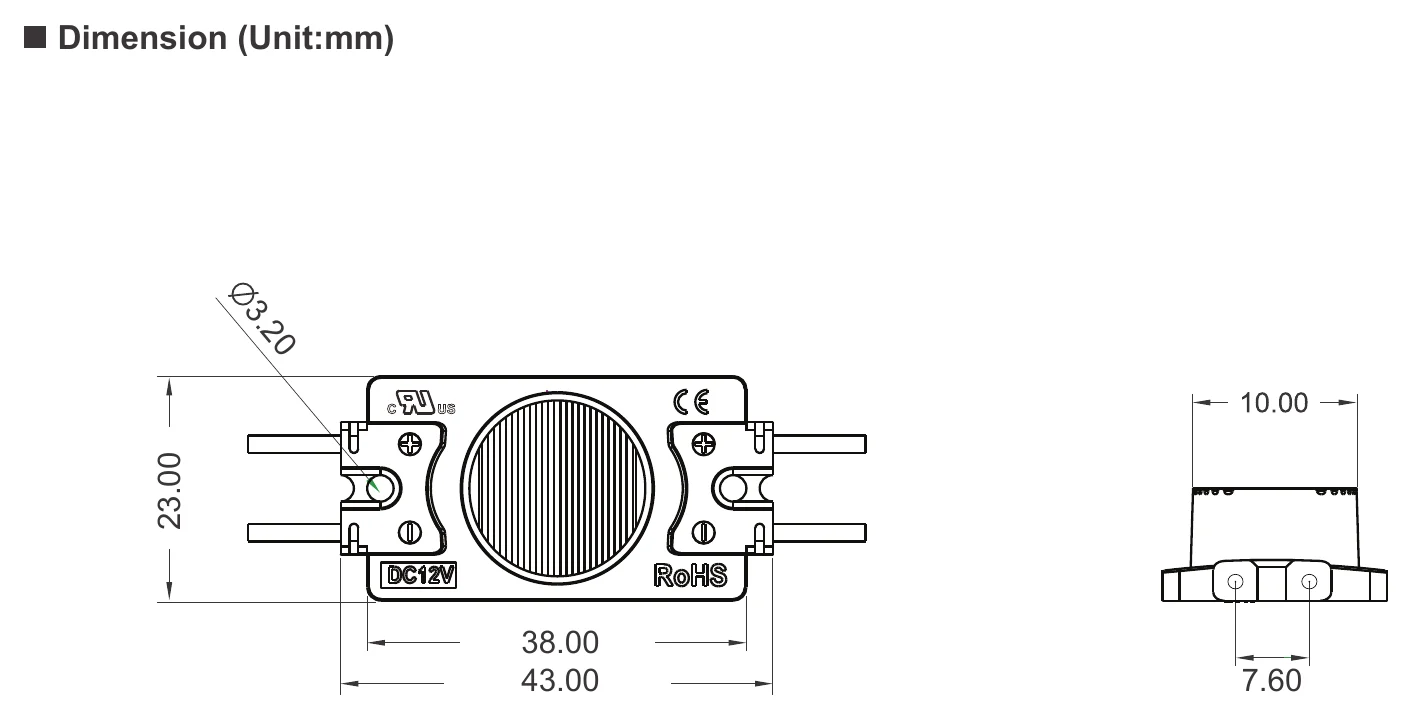

ENVO EdgeLume LED Module Sidelit - Single LED Dimension (Unit:mm) — Dimension (Unit:mm)

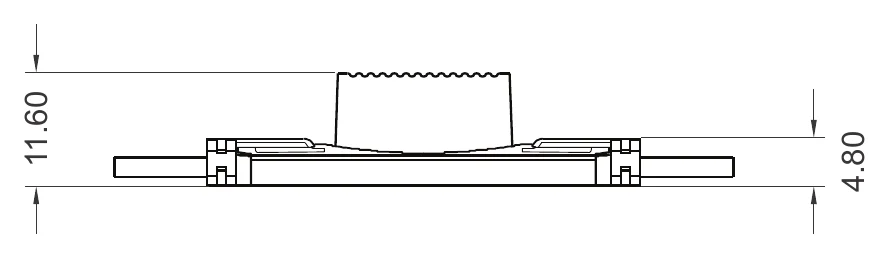

ENVO EdgeLume LED Module Sidelit - Single LED Dimensions (mm) — Dimensions (mm)

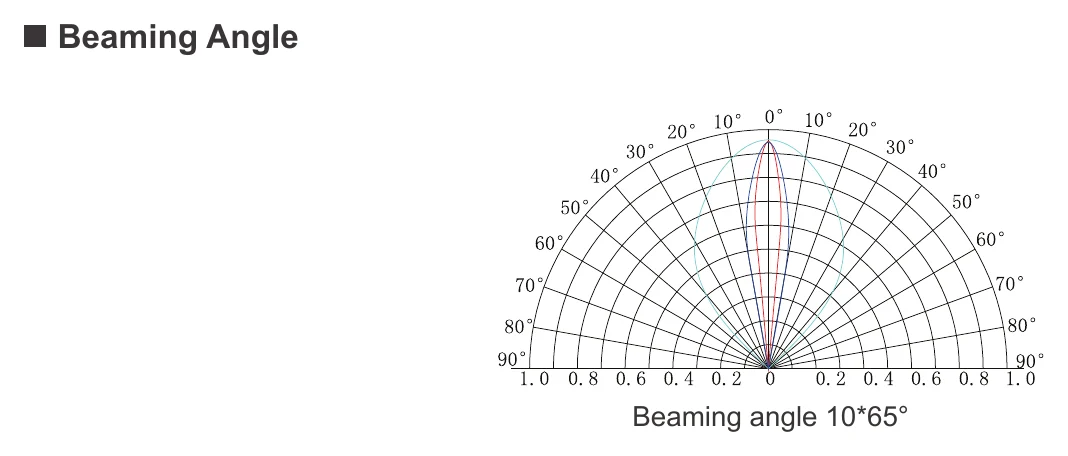

ENVO EdgeLume LED Module Sidelit - Single LED Beaming Angle — Beaming Angle

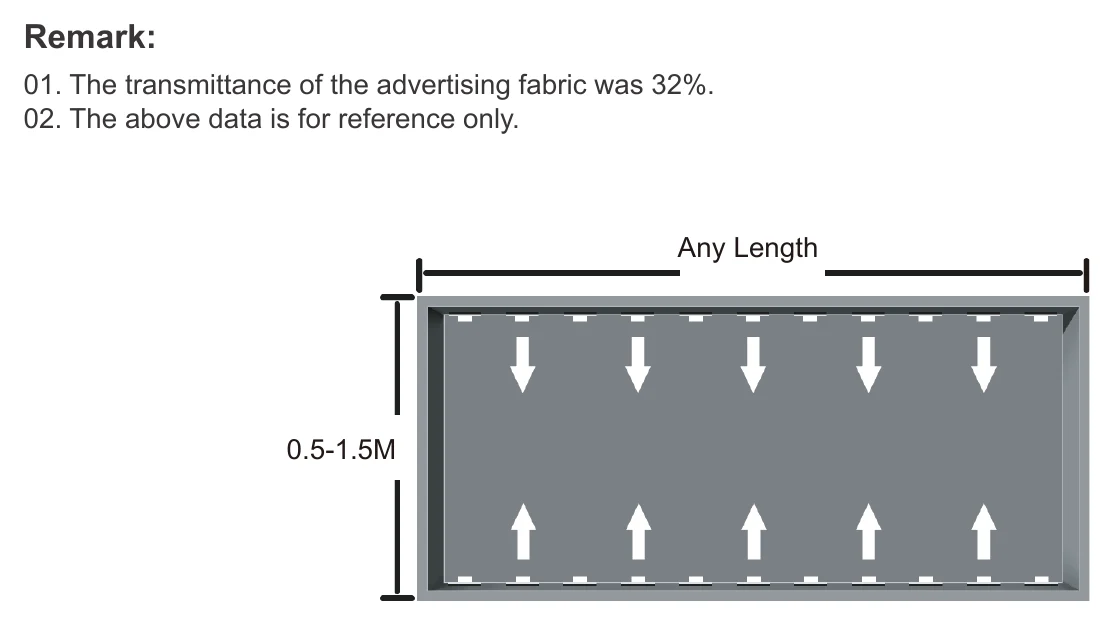

ENVO EdgeLume LED Module Sidelit - Single LED Remark — Remark

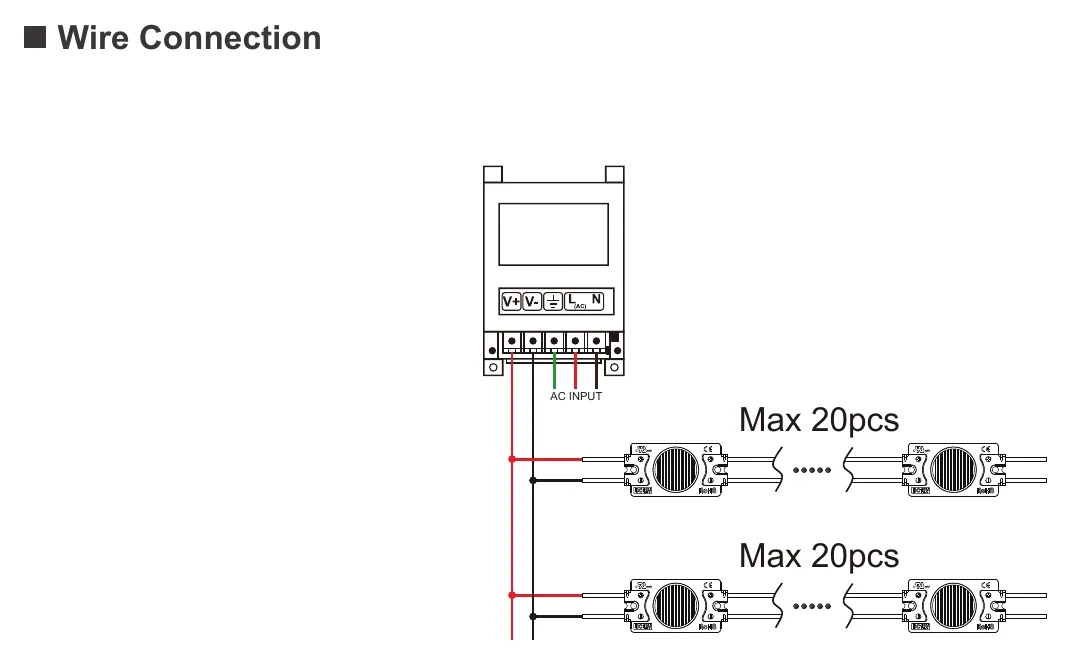

ENVO EdgeLume LED Module Sidelit - Single LED Wire Connection — Wire Connection

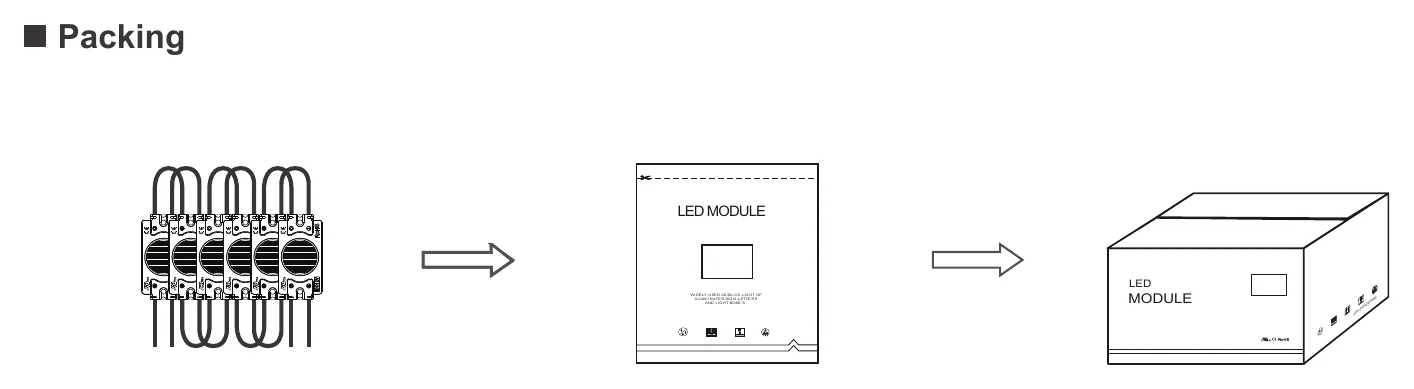

ENVO EdgeLume LED Module Sidelit - Single LED Packing — Packing

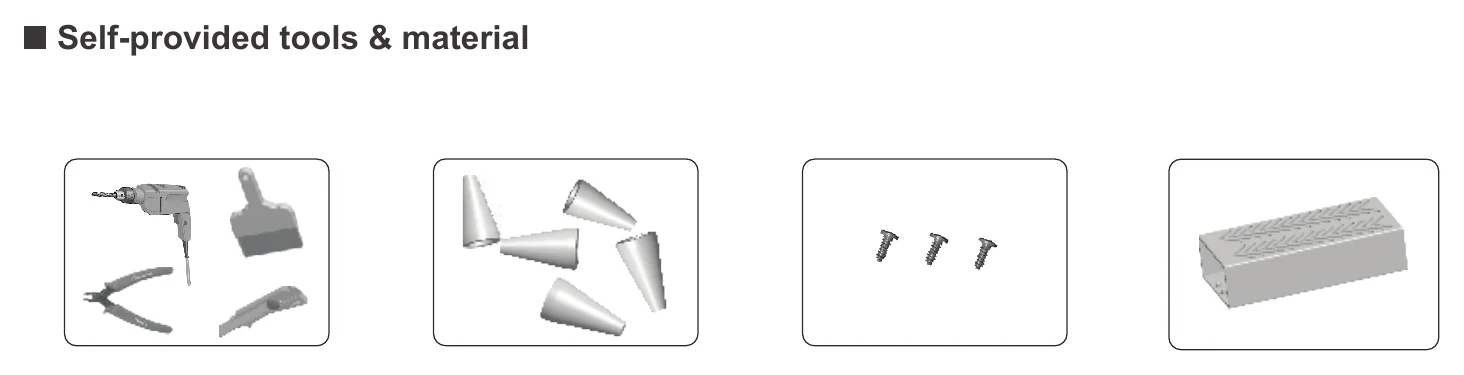

ENVO EdgeLume LED Module Sidelit - Single LED Self-provided tools & material — Self-provided tools & material

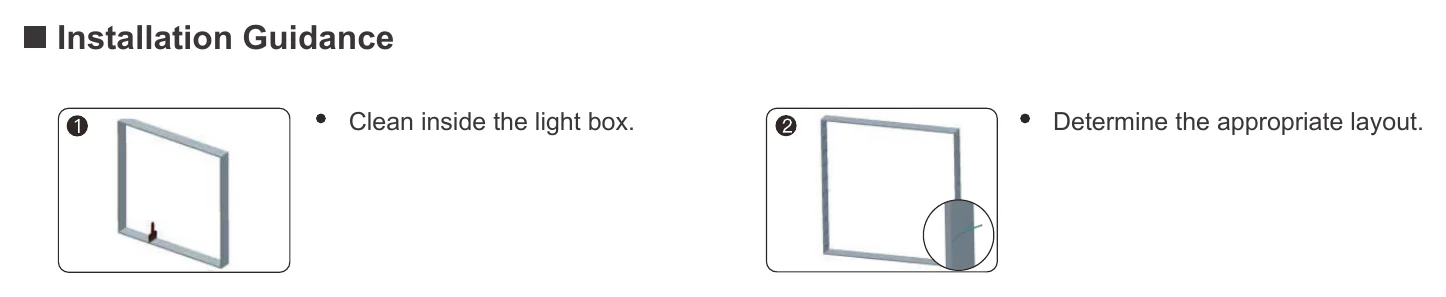

ENVO EdgeLume LED Module Sidelit - Single LED Installation Guidance — Installation Guidance

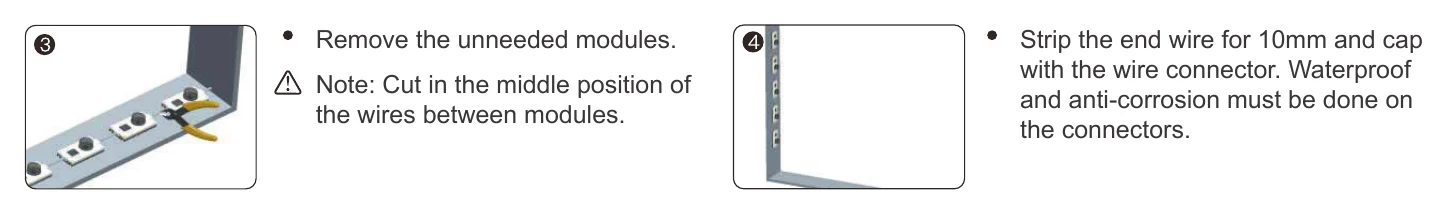

ENVO EdgeLume LED Module Sidelit - Single LED Installation Guidance (2) — Installation Guidance (2)

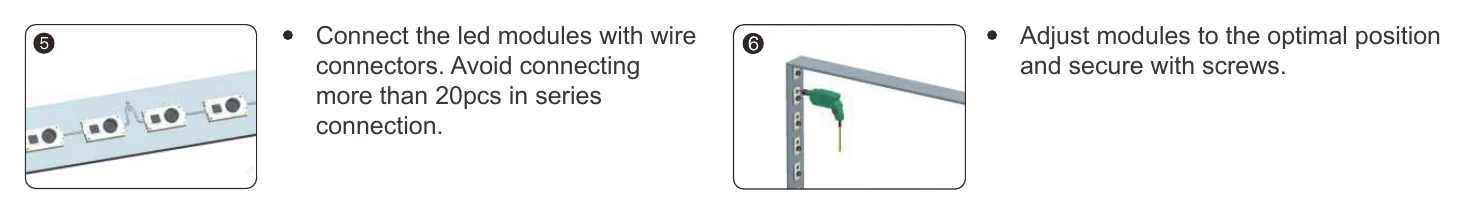

ENVO EdgeLume LED Module Sidelit - Single LED Installation Guidance (3) — Installation Guidance (3)

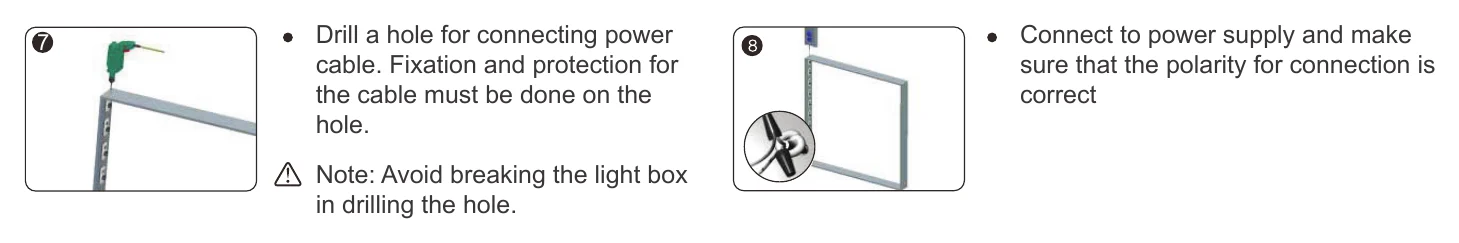

ENVO EdgeLume LED Module Sidelit - Single LED Installation Guidance (4) — Installation Guidance (4)

Typical applications

Light coverage: up to 1.5M
Apply to 8-20 cm depth double-sided light box at airports, metros, banks, buildings and shopping malls, etc.

Downloads

Datasheet1

ENVO EdgeLume LED Module Sidelit - Single LED datasheetEV_SLEL01LBY.pdf PDF Download

FAQ

What is the ENVO EdgeLume LED Module Sidelit - Single LED designed for?

This LED module is designed for double-sided light boxes and sidelit signage applications. It is suited to commercial and public environments such as airports, metros, banks, buildings, and shopping malls where even, high-impact illumination is needed.

What light box depth is this LED module suitable for?

The EdgeLume sidelit module is intended for double-sided light boxes with depths of 8-20 cm. According to the product description, it can provide effective light coverage up to 1.5 meters when used in the right application.

What are the key performance specifications of this LED module family?

Across the family, each module is rated at 1.32 W and produces 125 lumens. The modules use a 10x65° elliptical optic lens, have a CRI of 75, are dimmable, and are rated for 50,000 hours with a 5-year warranty.

What color temperature options are available in this parent product family?

This parent family includes three color temperature options: 3000K, 4000K, and 7000K. These correspond to warm white, neutral white, and cool white style output choices for different signage and display goals.

How do the variants differ from each other?

The main difference between the child variants is color temperature. Power rating, beam angle, CRI, brightness, dimming capability, rated life, and warranty are the same across the listed variants.

Is this LED module dimmable?

Yes, this product family is listed as dimmable. That makes it suitable for projects where light output needs to be adjusted for display effect or ambient conditions, subject to the overall system design.

What certifications does the ENVO EdgeLume LED Module have?

The product description states that these LED modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate compliance with recognized quality, safety, and environmental standards.

What materials and build quality details are highlighted for this product?

The description highlights 99.99% pure gold thread and a pure copper bracket coated in silver for performance and durability. It also states that each unit undergoes 100% testing during production to support reliability and consistency.
