ENVO HydroLume LED Module Backlit - Double LED

24V0.96WIP67Philips LED50 modules per series

SKU EV-BLHL02SS-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EV-BLHL02SS-CW

EV-BLHL02SS-CW Double LED In stock

EV-BLHL03SS-CW Triple LED In stock

LED Colour

Cool White 6500K Natural White 4000K Warm White 3000K

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

High-output LED module delivering superior brightness for signage
Wide 180° Batwing optic design for uniform illumination
Dimmable and compatible with constant current technology
Supports up to 50 modules per series
Long service life with 7-years warranty
Supplied in packs of 50 modules
Suitable for both indoor and outdoor installations (IP67)

Specifications

ENVO HydroLume LED Module Backlit - Double LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
EV-BLHL02SS-CW	Cool White 6500K
EV-BLHL02SS-NW	Natural White 4000K
EV-BLHL02SS-WW	Warm White 3000K

Parameters

Beaming Angle (°): 180° (“Batwing” optic)
CRI (Ra): ≥80
Luminous Flux (lm): 164lm
Voltage (V): 24V
Power (W): 0.96W
Driving Method: Constant Current
Dimension (mm/inch): 56×20×7mm/ 2.20x0.79x0.28in
Working Tem. (°C/ °F): -25°C ~ +60°C/ -13°F ~ +140°F
Protection Grade: IP67
Range (mm/inch): 70-150mm/ 2.76-5.91in
Includes: 50 Modules per Pack
Max Series: 50 Modules per Series

Certifications & ratings

Certification marks: cRUus, CE, RoHS

Technical drawings

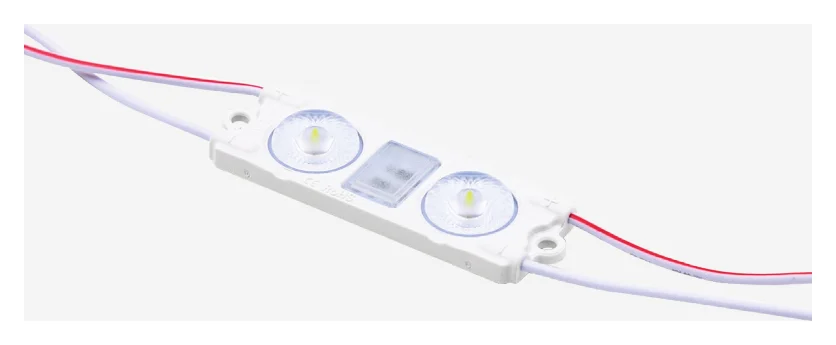

ENVO HydroLume LED Module Backlit - Double LED Illustration (page 1) — Illustration (page 1)

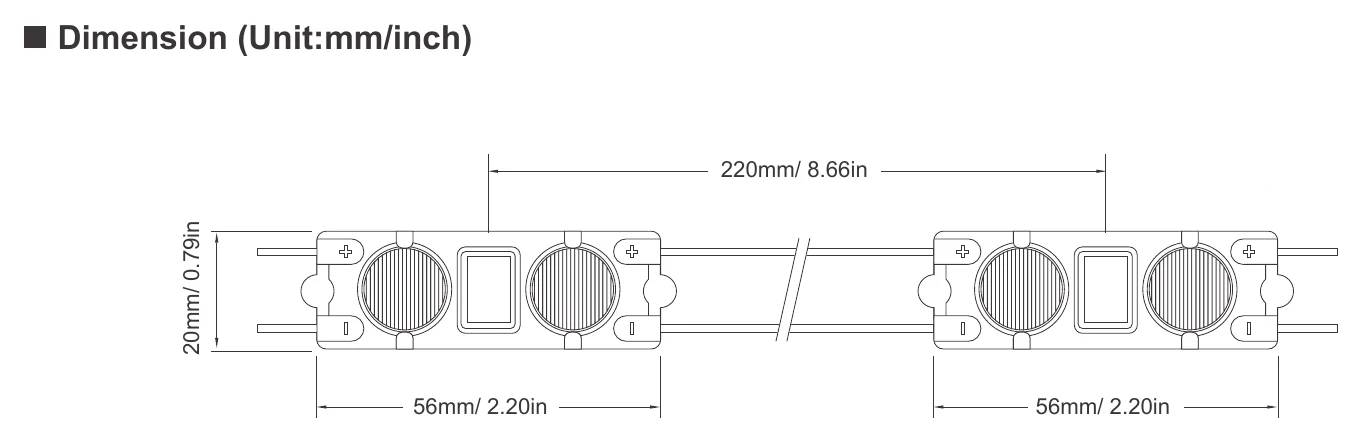

ENVO HydroLume LED Module Backlit - Double LED Dimension (Unit:mm/inch) — Dimension (Unit:mm/inch)

Typical applications

Medium-sized channel letters requiring higher brightness
Sign cabinets and lightboxes
Indoor and outdoor signage lighting
Retail and commercial displays needing strong illumination
Architectural accent lighting with compact form factor

Downloads

Datasheet1

ENVO HydroLume LED Module Backlit - Double LED datasheetEV_BLHL02SS_Spec_Sheet.pdf PDF Download

FAQ

What types of signage is the ENVO HydroLume Double LED module designed for?

The HydroLume is intended for backlit signage applications such as channel letters, backlit sign cabinets, and lightboxes. Its 180 degree beam angle and 164 lumen output per module are designed to help deliver bright, even illumination across signage faces. It is described for signage depths from 70 mm to 150 mm.

What sign depth range is this LED module best suited for?

This product family is specified for signage depths between 70 mm and 150 mm. That range makes it suitable for many commercial backlit letters and cabinet signs where consistent spread is important. The slim 56 mm x 20 mm x 7 mm module size supports use in tighter sign builds within that depth window.

What is the difference between the available HydroLume variants in this parent product family?

The main documented difference across the child variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 6500K cool white options. Power rating, beam angle, CRI, brightness, dimming capability, lifetime, and warranty are otherwise the same in the data provided.

What are the key performance specifications of this LED module?

Each module is rated at 0.96 W and delivers 164 lumens of light output. The product has a 180 degree beam angle, CRI 80, and a rated lifetime of 50,000 hours. It also uses a 24 V power input and is listed as dimmable.

Is the HydroLume LED module suitable for outdoor or demanding environments?

Yes, the HydroLume is built for demanding signage environments and carries an IP67 rating for dust and water protection. It is also specified to operate in temperatures from -40 C to +70 C. Those specifications make it appropriate for both indoor and outdoor signage use where environmental durability matters.

How durable is this module for long-term commercial signage use?

The HydroLume is positioned as a long-life signage module with a rated lifetime of 50,000 hours. It is also backed by a 7 year warranty, which supports its use in commercial applications where maintenance intervals and reliability matter. Combined with its constant current design, it is intended for stable long-term performance.
