Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO HydroLume LED Module Backlit - Single LED

24V0.48WIP67Philips LED80 modules per series

SKU EV-BLHL01SS-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

EV-BLHL01SS-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Plan your sign — free Auto-place this module & size the driver. Open →

Overview

Features

Compact, versatile design ideal for tight spaces and narrow channel letters
Wide 180° Batwing optic for uniform light distribution
Dimmable and compatible with constant current technology
Can connect up to 80 modules per series
Long service life with 7-years warranty
Supplied in convenient packs of 80 modules

Specifications

ENVO HydroLume LED Module Backlit - Single LEDSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
EV-BLHL01SS-CW	Cool White 6500K
EV-BLHL01SS-NW	Natural White 4000K
EV-BLHL01SS-WW	Warm White 3000K

Parameters

Beaming Angle (°): 180° (“Batwing” optic)
CRI (Ra): ≥80
Luminous Flux (lm): 82lm
Voltage (V): 24V
Power (W): 0.48W
Driving Method: Constant Current
Dimension (mm): 42 × 20 × 7
Working Tem. (°C): -25°C ~ +60°C
Protection Grade: IP67
Range (mm): 40-100mm
Includes: 80 Modules per Pack
Max Series: 80 Modules per Series

Certifications & ratings

Certification marks: CE, RoHS

Technical drawings

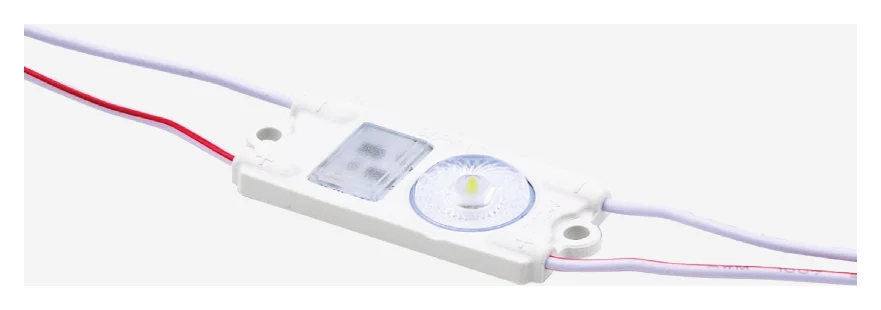

ENVO HydroLume LED Module Backlit - Single LED Illustration (page 1) — Illustration (page 1)

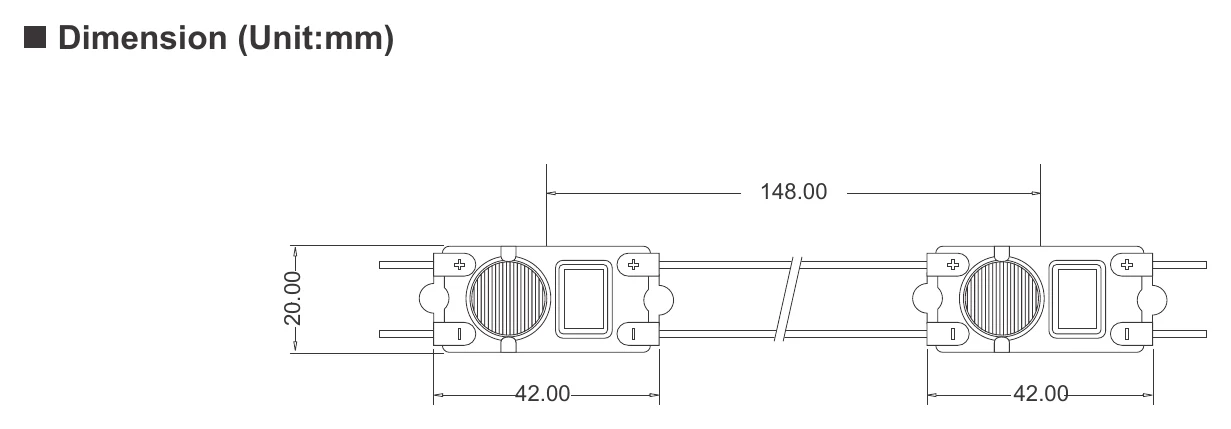

ENVO HydroLume LED Module Backlit - Single LED Dimension (Unit:mm) — Dimension (Unit:mm)

Typical applications

Tight-cornered cabinets where space is limited
Narrow stroke channel letters for signage
Small lightboxes and backlit displays
Indoor and outdoor signage lighting (IP67 protection)
Architectural and retail displays needing compact, reliable lighting

Downloads

Datasheet1

ENVO HydroLume LED Module Backlit - Single LED datasheetEV_BLHL01SS.pdf PDF Download

FAQ

What applications is the ENVO HydroLume LED Module Backlit designed for?

The HydroLume is designed for backlighting channel letters, lightboxes, and backlit sign cabinets. Its compact 42 x 20 x 7 mm form factor makes it well suited to smaller or more detailed signage where uniform illumination is important. It is positioned for commercial environments such as retail, hospitality, and other high-visibility signage projects.

What lightbox or channel letter depth is this LED module suitable for?

This product family is intended for signage with a lightspace depth of 40 mm to 100 mm. That makes it a practical option for compact backlit applications where space is limited but consistent coverage is still required. The 180 degree beam angle helps support even light distribution across that depth range.

What are the main performance specifications of the HydroLume family?

Each HydroLume module is rated at 0.48 W and delivers 82 lumens of output. The family has a 180 degree beam angle, CRI 80, and a rated lifetime of 50,000 hours. It is also listed as dimmable and backed by a 7-year warranty.

What variant options are available in this HydroLume family?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Based on the provided variant data, the power, brightness, beam angle, CRI, lifetime, dimming capability, and warranty remain the same across all three.

Is the ENVO HydroLume suitable for outdoor or demanding environments?

Yes, this family is rated IP67 for resistance to water and dust, which supports use in demanding signage environments. It is also specified to operate in temperatures from -40 C to +70 C. These ratings make it suitable for both indoor and outdoor commercial signage applications.

What input type is this LED module compatible with?

The HydroLume family is specified for 24 V constant voltage input. Its product description also notes Constant Current Technology for stable light output and long-term performance. For buyers comparing signage modules, that means it is intended for 24 V systems rather than other input types.
