vimar VM-20608 Frame 3M BS Grey
Log in to see priceOverview
VM-20608 is Vimar EIKON 20608, frame 3M BS.
3-module mounting frame, with screws, for British standard mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352536517
- Packed size (cm)
- 8.2 × 8.2 × 1.5
- Packed weight
- 40.2 g
- Pieces per box
- 40
Certifications
- Certifications
- CE marking (EU), ASTA (UK), IMQ (Italy)

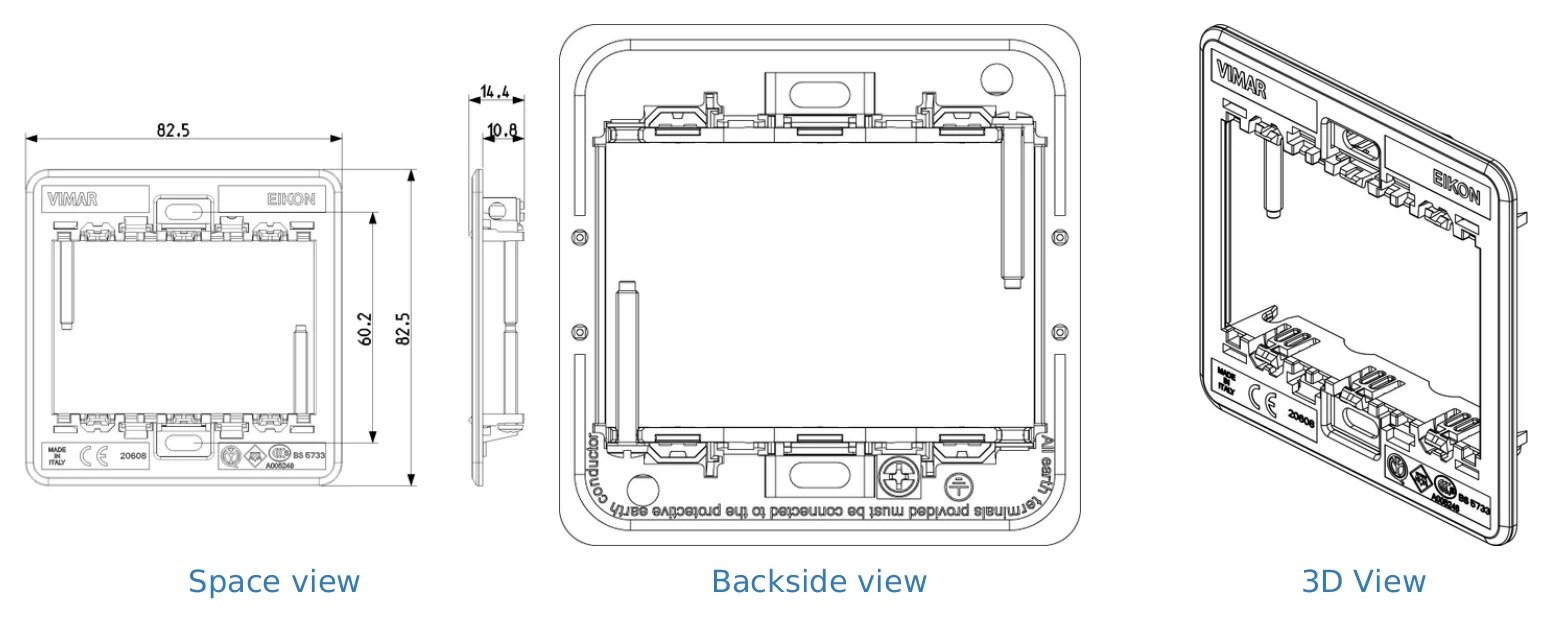

Technical drawings
Downloads
Certificates6
FAQ
What is the VM-20608 used for?
The Vimar VM-20608 is a 3-module mounting frame for switch applications. It is intended for use with British standard mounting boxes and is supplied with screws.
Is the VM-20608 compatible with British standard mounting boxes?
Yes. The product description specifies that the VM-20608 is for British standard mounting boxes.
How many modules does the VM-20608 support?
The VM-20608 is a 3-module frame. This makes it suitable where a 3-module Vimar switch frame format is required.
What colour is the VM-20608 frame?
The VM-20608 has a grey finish. The product name also identifies it as the Grey version of this 3-module BS frame.
Which Vimar switch ranges is this frame associated with?
This SKU is listed under Vimar Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, and Eikon Vintage switch categories. Buyers should match it against the required frame series and 3-module British standard format for their project.
What warranty period applies to the VM-20608?
The VM-20608 has a stated warranty period of 3 years. This warranty information applies specifically to this listed model.
What is the weight of the VM-20608?
The listed weight for the VM-20608 is 0.0402 kg. This can help with procurement records, shipping estimates, and product comparison.
