vimar VM-20609 Frame 5-module Mounting BS Grey
Log in to see priceOverview
VM-20609 is Vimar EIKON 20609, frame 5M BS.
5-module mounting frame, with screws, for British standard mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 5
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352383531
- Packed size (cm)
- 14.4 × 8.3 × 1.5
- Packed weight
- 65 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy), ASTA (UK)

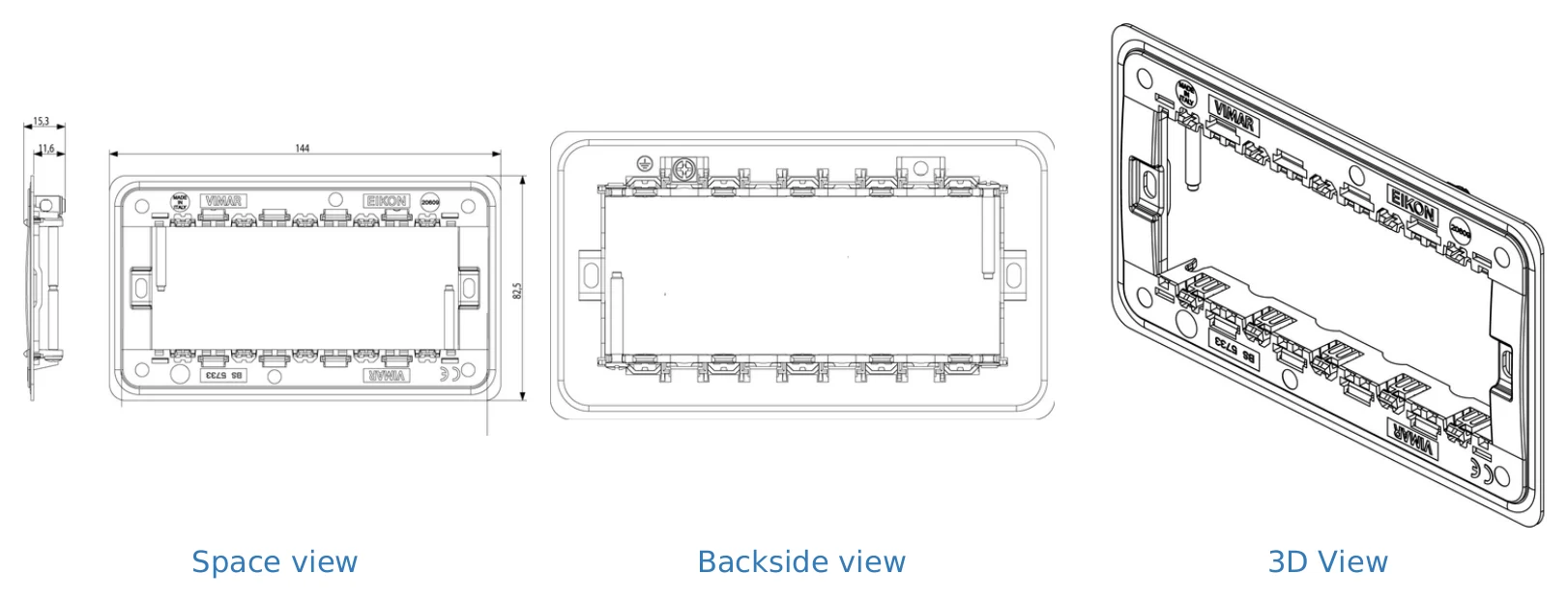

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-20609 used for?
The Vimar VM-20609 is a 5-module mounting frame for Vimar switch ranges. It is supplied with screws and is intended for use with British standard mounting boxes.
How many modules does the VM-20609 frame support?
This model supports 5 modules. It is suitable when a product page or switch configuration requires a 5-module frame format.
Is the VM-20609 compatible with British standard mounting boxes?
Yes. The product description specifies that the VM-20609 is for British standard mounting boxes.
What colour is the Vimar VM-20609 frame?
The VM-20609 has a grey finish colour. This can help match it with compatible Vimar switch designs and surrounding finishes.
Which Vimar switch series is this frame associated with?
This SKU is listed under multiple Vimar Eikon categories, including Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, and Eikon Vintage. Buyers should match the frame with the required 5-module configuration and compatible Vimar range.
What warranty period applies to the VM-20609?
The VM-20609 has a listed warranty period of 3 years. This warranty detail is specific to the product data provided for this SKU.
