vimar VM-20626 Frame 1M for Panel Mounting Black
Log in to see priceOverview
VM-20626 is Vimar EIKON 20626, frame 1M for panel mounting.
1-module mounting frame, with screws, for panel mounting
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 1
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
Packaging
- EAN
- 8007352251397
- Packed size (cm)
- 3.5 × 7.8 × 2.1
- Packed weight
- 9.8 g
- Pieces per box
- 10
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

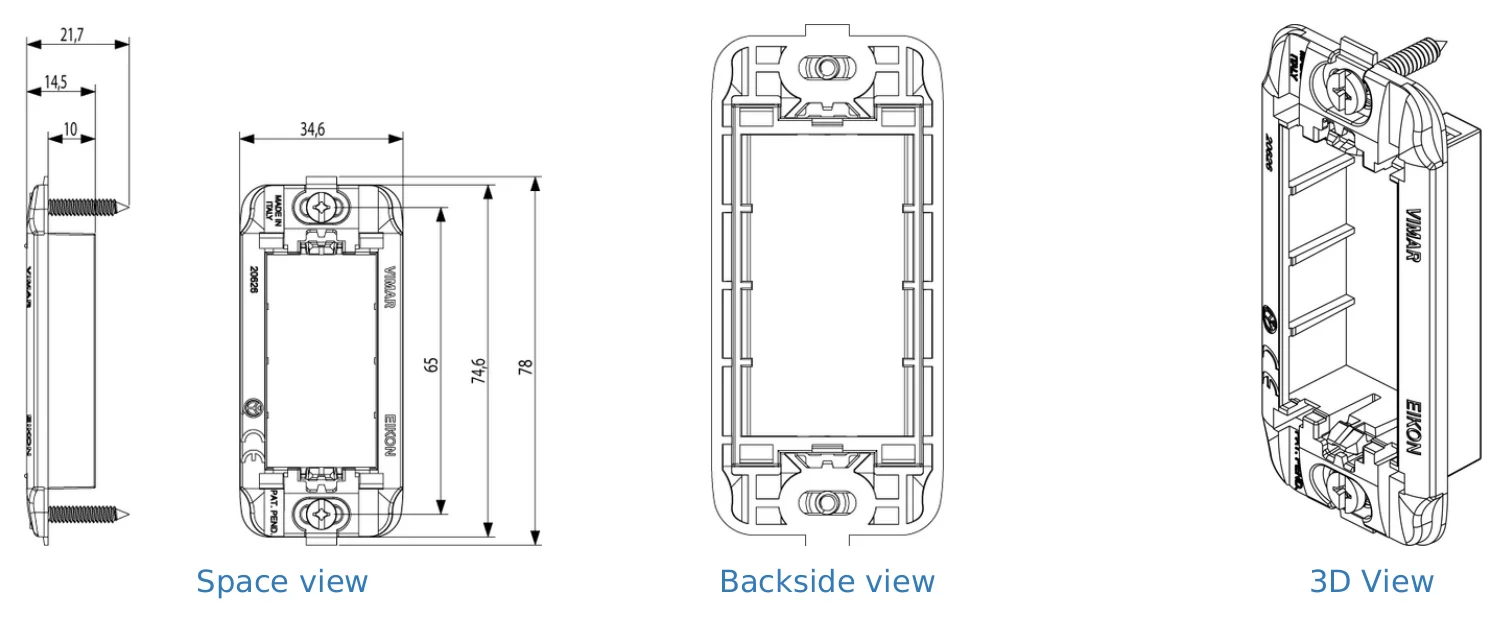

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-20626 used for?
The Vimar VM-20626 is a 1-module mounting frame for panel mounting. It is intended to provide a frame interface for compatible Vimar switch and control installations where a black panel-mounted finish is required.
What color is the Vimar VM-20626 frame?
The VM-20626 has a black finish. This makes it suitable for installations where the visible frame needs to match black panels, devices, or surrounding hardware.
Which Vimar series is this frame associated with?
This product is categorized with Vimar Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, and Eikon Vintage switch series groupings. Buyers should confirm that a 1-module panel mounting frame is the correct format for the specific device and plate arrangement they are using.
Does the VM-20626 include screws?
Yes, the product description states that this 1-module mounting frame is supplied with screws. The included hardware is part of the listed product package for model VM-20626.
What is the warranty period for the Vimar VM-20626?
The listed warranty period for the VM-20626 is 3 years. This warranty information applies to this specific product listing.
How much does the Vimar VM-20626 weigh?
The listed weight for the VM-20626 is 0.0098 kg. Its low weight reflects that it is a compact 1-module mounting frame rather than a complete switch assembly.
