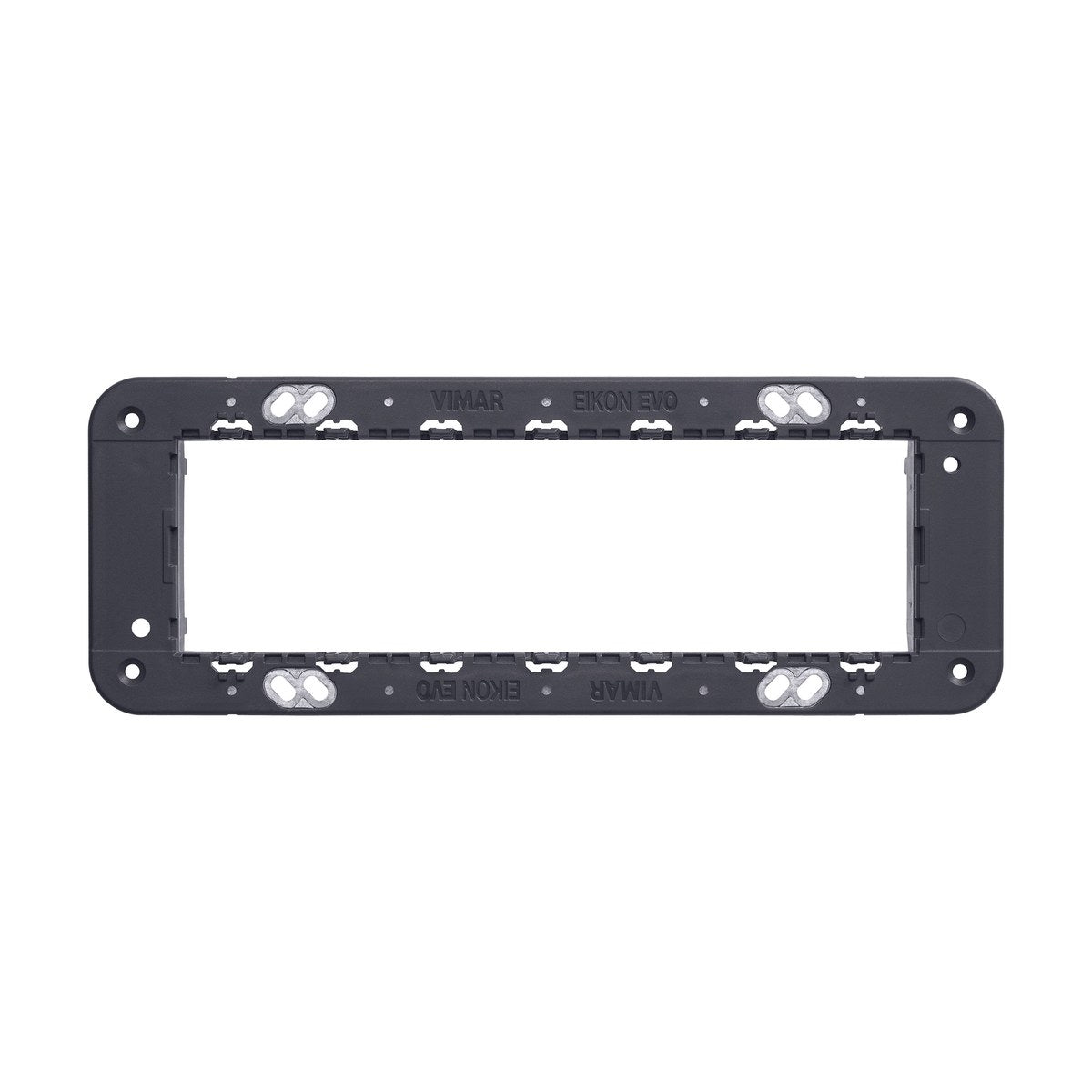

vimar VM-21617 Frame 7M with Screws Black
Log in to see priceOverview
VM-21617 is Vimar EIKON 21617, frame 7M +screws.
7-module mounting frame, with screws, for 6/7-module mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 7
- Number of modules vertical (module system)
- 1
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352421509
- Packed size (cm)
- 19.7 × 7.3 × 1.9
- Packed weight
- 55.86 g
- Pieces per box
- 30
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

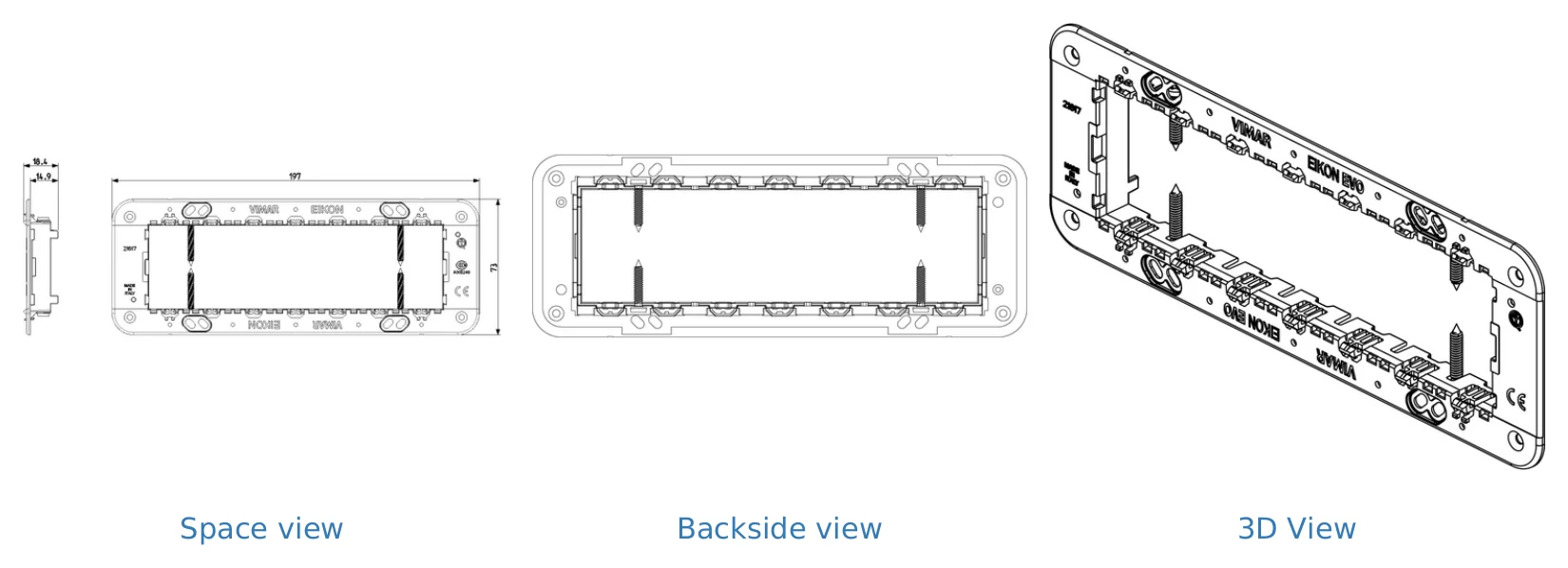

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-21617 used for?
The Vimar VM-21617 is a 7-module mounting frame supplied with screws. It is designed for use with 6/7-module mounting boxes.
Which mounting box size is this frame made for?
This frame is specified for 6/7-module mounting boxes. It is a 7-module frame, so buyers should match it to the module count and box format required for the product page application.
What colour is the VM-21617 frame?
The VM-21617 has a black finish. This makes it suitable when a black mounting frame is required for a compatible Vimar switch frame setup.
Is the VM-21617 associated with Vimar Eikon switch series categories?
Yes, this SKU appears in Vimar switch categories including Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, and Eikon Vintage groupings. Buyers should still confirm the required module count and mounting box format before selecting it.
What is the warranty period for this product?
The listed warranty period for the Vimar VM-21617 is 3 years. This applies to the product as specified in the product data.
How much does the Vimar VM-21617 weigh?
The listed weight for the VM-21617 is 0.0559 kg. This low weight can be useful for B2B purchasing, inventory, and shipping estimates.
