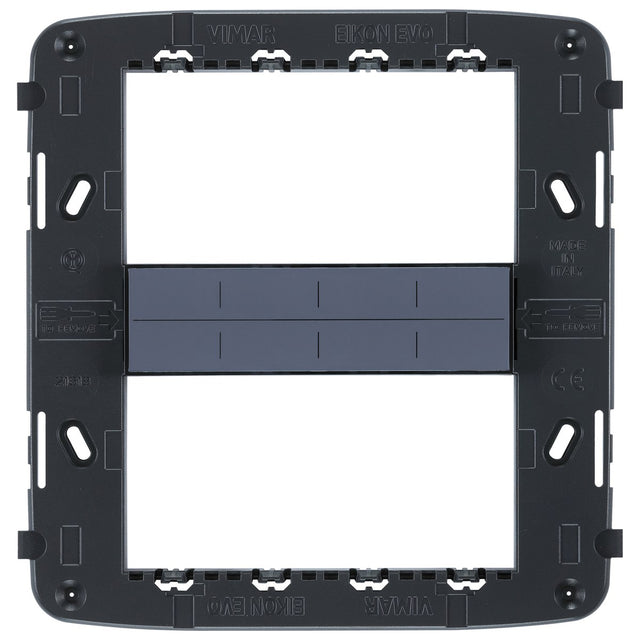

vimar VM-21618 Frame 8M with Screws Black
Log in to see priceOverview

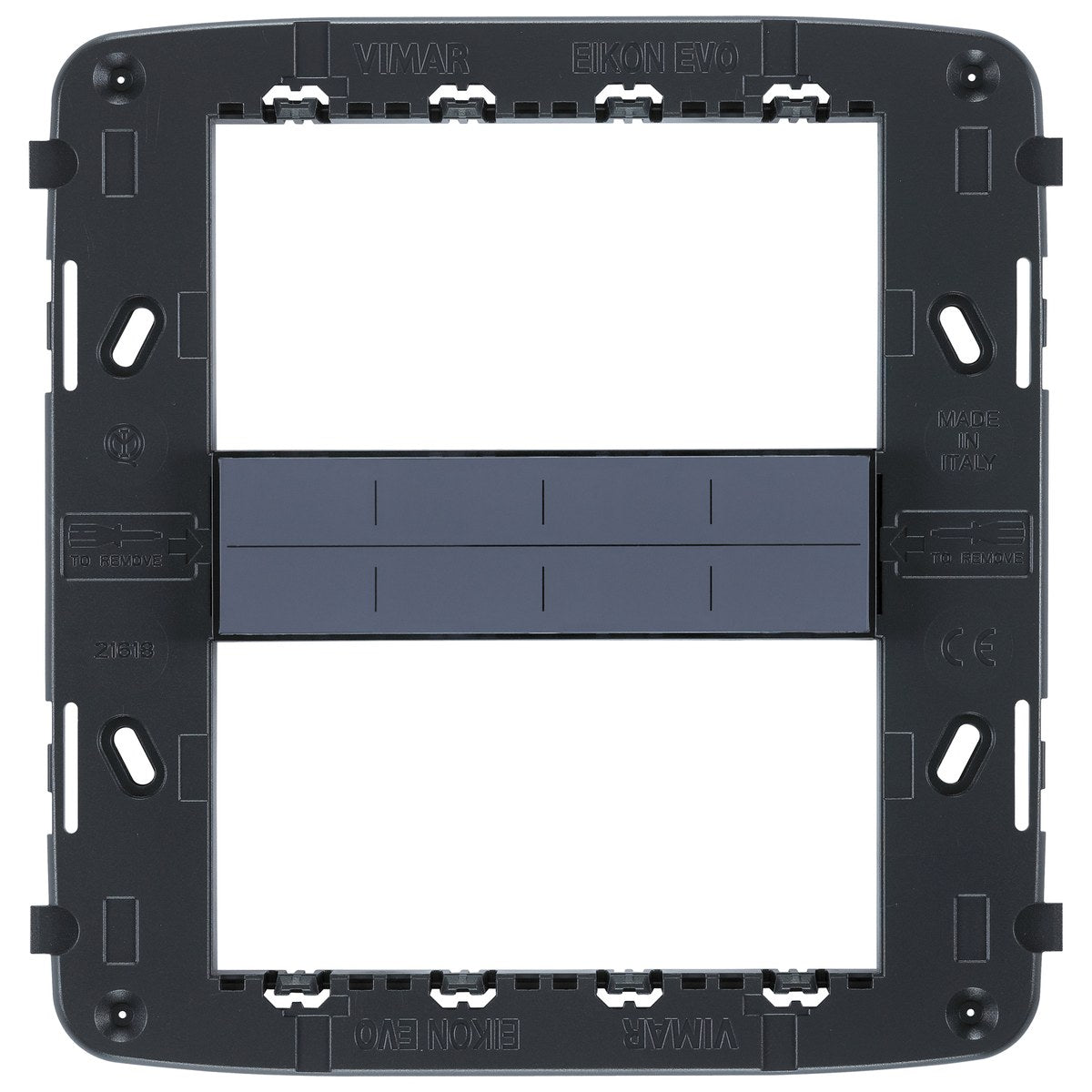

VM-21618 is Vimar EIKON 21618, frame 8M with screws.
8 (4+4)-module mounting frame, with screws, for V71318 and V71718 flush and 20788 table mounting boxes
Specifications
Technical data
- Product type
- Holder for modular domestic switching devices
- Model
- Flush-mounted
- Mounting method of the module inserts
- Front side
- Mounting direction
- Horizontal and vertical
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 2
- With built-in installation box
- No
- With screws
- Yes
- Suitable for mounting in round junction box 60 mm
- No
- Flush-mounted installation
- Yes
- Suitable for subfloor installation duct box
- No
- Suitable for wall duct
- No
- Suitable for mounting on DIN-rail 35 mm
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
Packaging
- EAN
- 8007352425545
- Packed size (cm)
- 14 × 14.4 × 1.7
- Packed weight
- 53.7 g
- Pieces per box
- 5
Certifications
- Certifications
- CE marking (EU), IMQ (Italy)

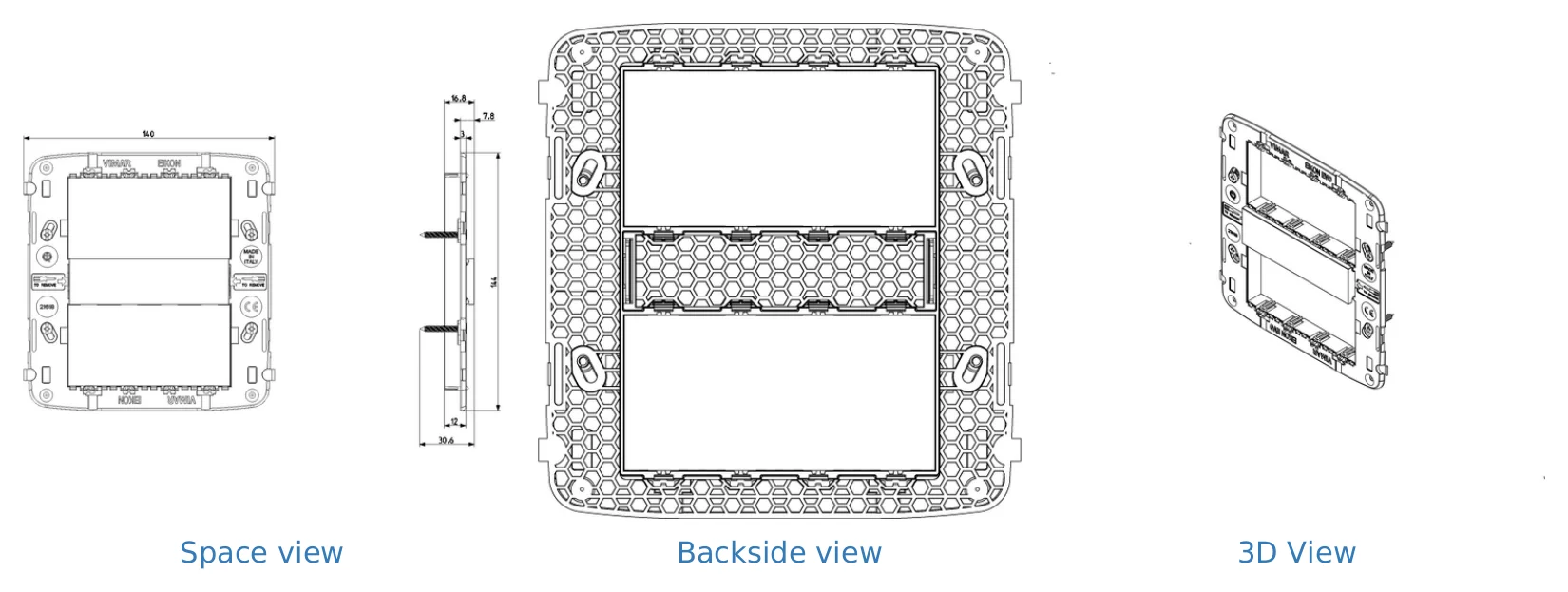

Technical drawings
Downloads
Certificates6
FAQ
What is the Vimar VM-21618?
The Vimar VM-21618 is an 8-module mounting frame in black. It is described as an 8 (4+4)-module frame supplied with screws for compatible Vimar mounting boxes.
Which mounting boxes is the VM-21618 compatible with?
The VM-21618 is specified for V71318 and V71718 flush mounting boxes. It is also specified for the 20788 table mounting box.
What type of product page application is this frame suited for?
This frame is suited for Vimar switch and LED switch frame applications where an 8-module black frame is required. It is listed under Vimar Eikon-related switch frame categories, including Eikon Chrome, Eikon Evo, Eikon Exe, Eikon Next, and Eikon Vintage groupings.
What colour is the Vimar VM-21618 frame?
The VM-21618 has a black finish colour. This makes it suitable for product selections where a black Vimar 8-module frame is required.
How many modules does the VM-21618 support?
The VM-21618 is an 8-module frame. The product description specifies the layout as 8 modules in a 4+4 configuration.
What are the warranty period and weight for the VM-21618?
The VM-21618 has a listed warranty period of 3 years. Its listed weight is 0.0573 kg.
