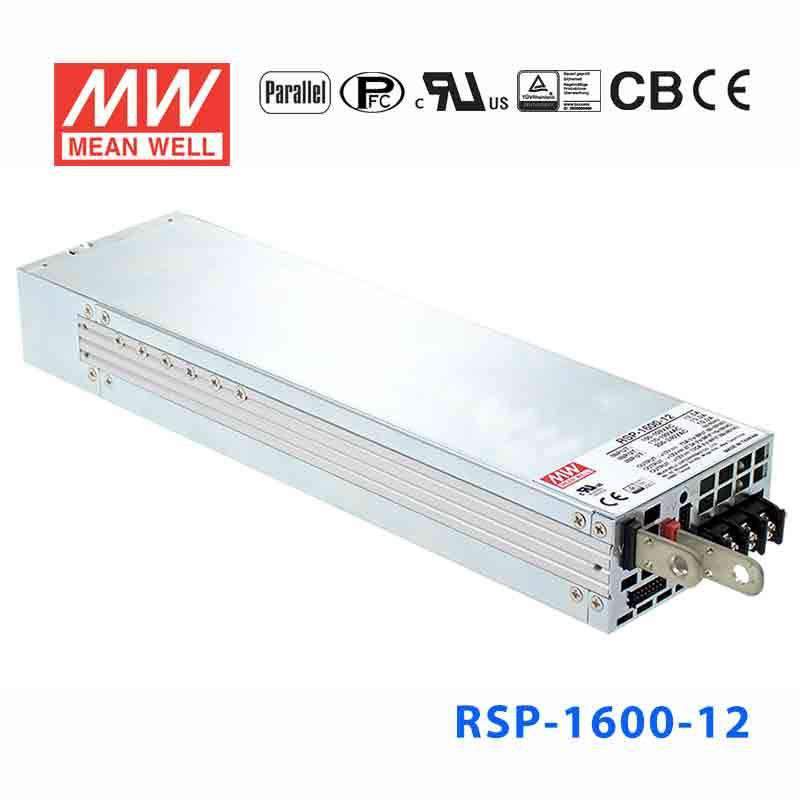

Mean Well RSP-1600-12 Power Supply 1500W 12V, New Zealand Distributor

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Key Features

✓Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
✓Built-in active PFC function
✓High efficiency up to 93%
✓Forced air cooling by built-in DC fan
✓Output voltage and constant current level programmable
✓Active current sharing up to 9600W (5+1)
✓Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
✓Protections:Short circuit/ Overload / Over voltage / Over temperature
✓Optional PMBus or CANBus protocol
✓5 years warranty

Frequently Asked Questions

How does the RSP-1600-12 differ from the RSP-1500-12 at the same voltage and current?

Both the RSP-1600-12 and RSP-1500-12 deliver 12V at 125A (1500W). The RSP-1600-12 achieves up to 93% efficiency versus 91% for the RSP-1500-12, dissipating less heat at full load. The RSP-1600-12 uses a slimmer 300.0 × 85.0 × 41.0 mm chassis compared to the RSP-1500-12's 278.0 × 127.0 × 83.5 mm form factor. The RSP-1600-12 also supports current sharing up to (5+1) versus (3+1) on the RSP-1500-12.

What does the active current sharing (5+1) capability mean for system design?

Active current sharing (5+1) allows up to five RSP-1600-12 units to operate in parallel with balanced loads, delivering up to 625A at 12V combined. A sixth unit provides N+1 hot standby. This enables larger redundant 12V bus designs than the (3+1) sharing found in other RSP series.

What industrial applications are appropriate for the RSP-1600-12?

The RSP-1600-12 delivers 12V at 125A (1500W) and is suited for large industrial control panels, electro-plating power systems, high-current 12V test equipment, automated manufacturing line power, and large-scale 12V DC motor drive systems. The 90–264VAC input supports worldwide single-phase supply.

What is the operating temperature range of the RSP-1600-12?

The RSP-1600-12 operates from -30°C to +70°C ambient — a broader cold-weather range than the RSP-1500 (-20°C) and RSP-1000 (-20°C) series. This lower cold limit is suitable for cold-start applications in unheated enclosures. No IP rating is specified.

What certifications does the RSP-1600-12 carry?

The RSP-1600-12 holds BSMI, CB, CE, EAC, TÜV, and UL certifications. CCC (China) certification is not listed for the RSP-1600 series.
