Mean Well

Mean Well HRP-100-12 Power Supply 102W 12V 8.5A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-100-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-100-12
In stock
|

Overview

HRP-100-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 87.5%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Protections: Over temperature (optional)
  • Cooling by free air convection
  • 1U low profile 38mm
  • Built-in remote ON-OFF control
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • 5 years warranty

Specifications

HRP-100-12Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
8.5A
CURRENT RANGE
0 ~ 8.5A
RATED POWER
102W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
11.4 ~ 13.8V
VOLTAGE TOLERANCENote.3
±1.5%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.8%
SETUP, RISE TIME
2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
87.5%
AC CURRENT (Typ.)
1.1A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 65A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE
14.4 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off

ENVIRONMENT

WORKING TEMP.
-40 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2344.3K hrs min. Telcordia SR-332 (Bellcore) ; 295.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
159*97*38mm (L*W*H)
PACKING
0.56Kg; 24pcs/15Kg/0.9CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

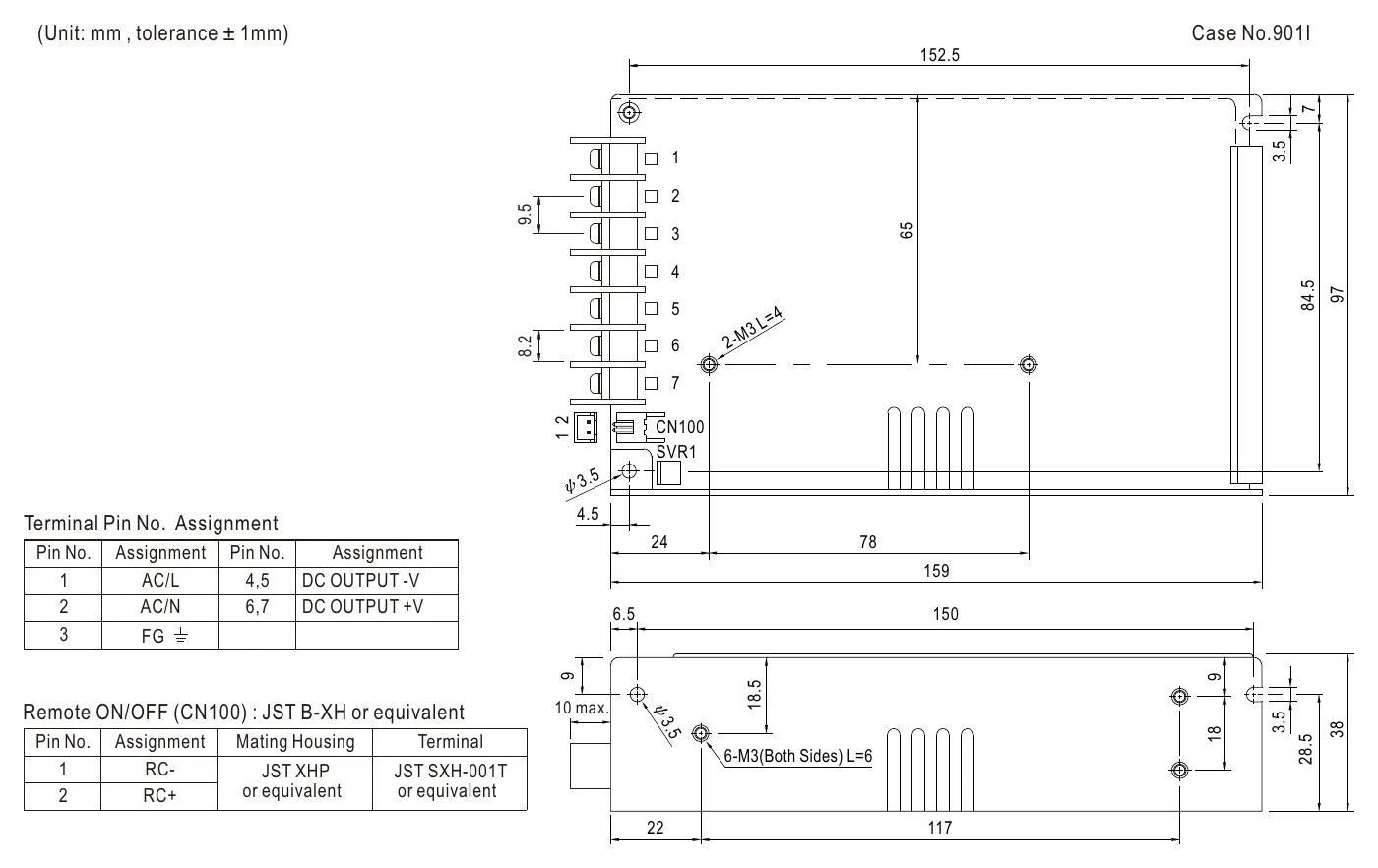

HRP-100-12 Mechanical Specification
Mechanical Specification

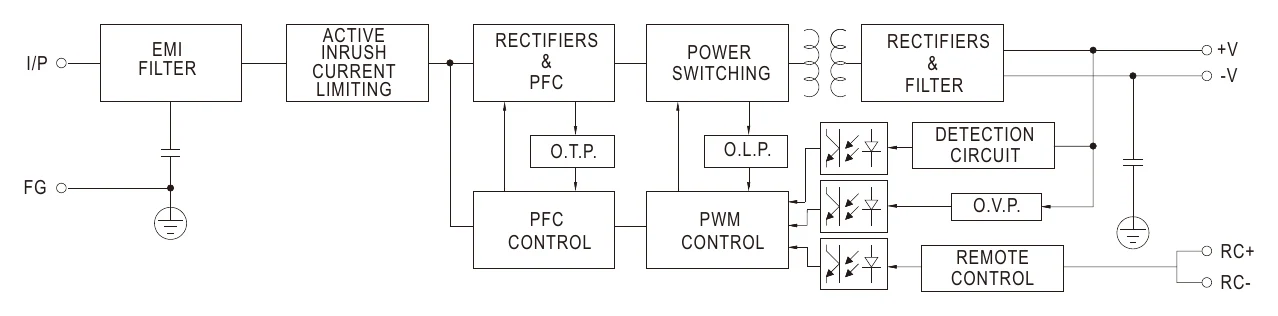

HRP-100-12 Block Diagram
Block Diagram

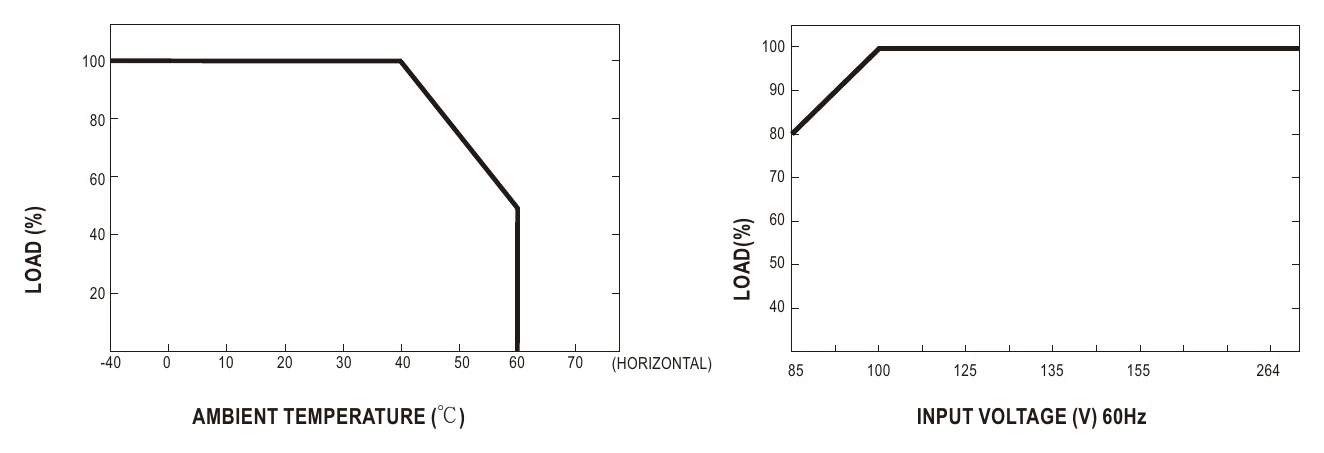

HRP-100-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-100-12 for a 12V industrial control panel?

Yes, if the panel uses a 12V constant-voltage bus and stays within 102W and 8.5A total demand. Its 85-264VAC input also fits facilities that need wide AC input tolerance.

Is the HRP-100-12 suitable for 12V access control or security hardware?

It can fit 12V access control or security hardware when the combined load remains within 12V, 8.5A, and 102W. This is a constant-voltage power supply, so it is intended for equipment designed for a fixed 12V supply.

Can this 12V power supply run embedded computers, displays, or network appliances that need 12V DC?

It is suitable for 12V embedded or IT hardware when the equipment requires constant 12V output and the total draw does not exceed 8.5A or 102W. The wide 85-264VAC input helps when the same design may be used across different AC input environments.

Is the HRP-100-12 okay for indoor equipment in hot or cold industrial areas?

The specified operating temperature range is -40°C to +60°C, which supports demanding indoor industrial environments. No IP rating is listed in the provided specs, so these specs alone do not establish suitability for exposed outdoor locations.

How does the HRP-100-12 compare with the other HRP-100 voltage options?

Within the listed HRP-100 models, the outputs are 3.3V 20A 66W, 5V 17A 85W, 7.5V 13.5A 101.3W, 12V 8.5A 102W, 15V 7A 105W, 24V 4.5A 108W, 36V 2.9A 104.4W, and 48V 2.2A 105.6W. The HRP-100-12 is the 12V option in that lineup.
