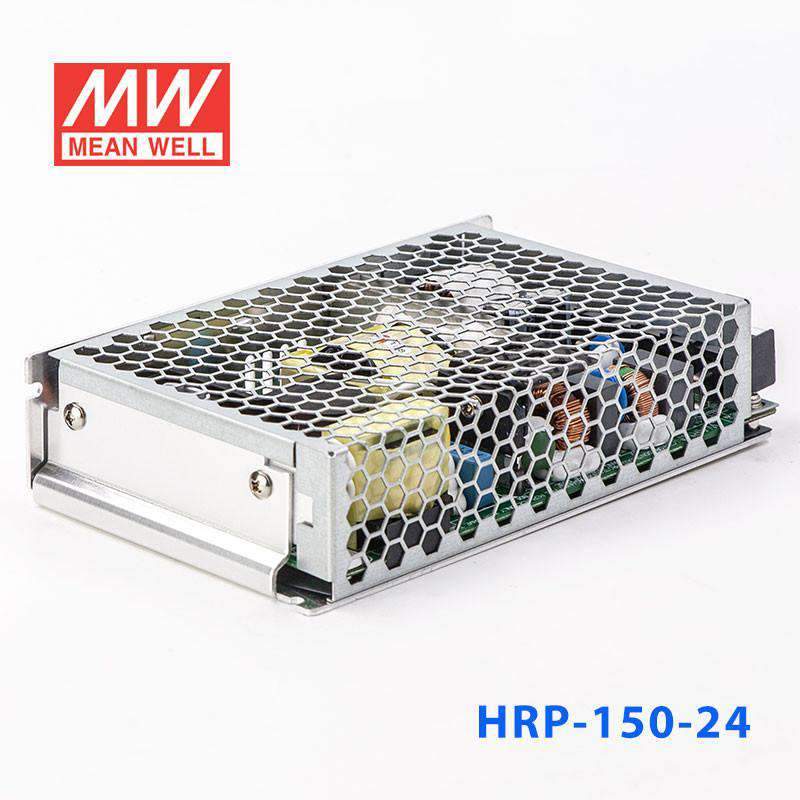

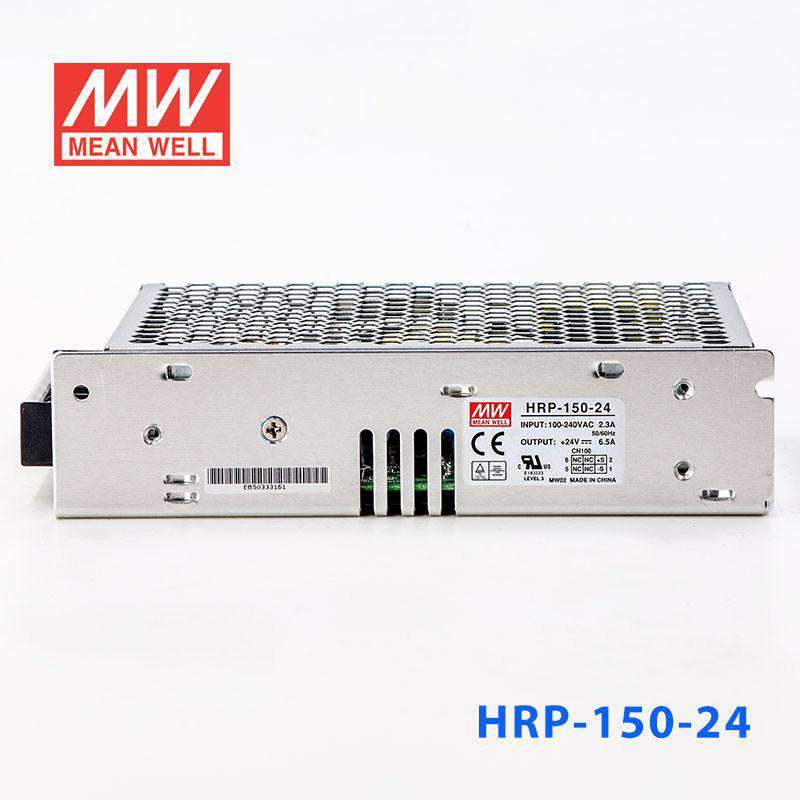

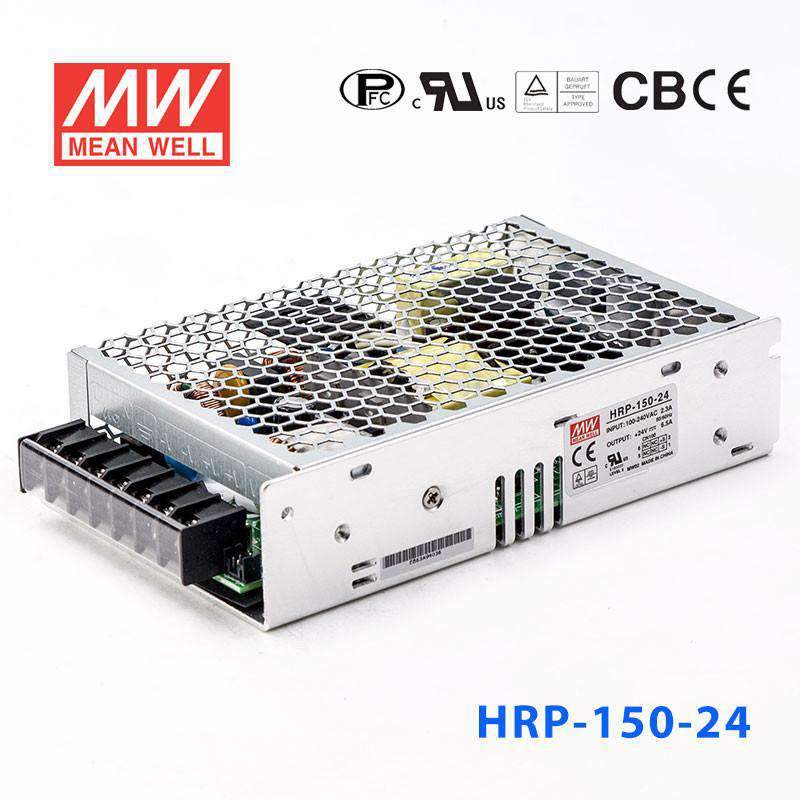

Mean Well HRP-150-24 Power Supply 156W 24V 6.5A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-150-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-150-24

HRP-75-24 75W 24V Backorder

HRP-100-24 100W 24V Low stock

HRP-150-24 150W 24V Backorder

HRP-200-24 200W 24V Backorder

HRP-300-24 300W 24V In stock

HRP-450-24 450W 24V Low stock

HRP-600-24 600W 24V Low stock

Product variants

Available to order

Overview

HRP-150-24 is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 88%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote sense function
5 years warranty

Specifications

HRP-150-24Specifications from the official datasheet (2026-07-13 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.5A
CURRENT RANGE: 0 ~ 6.5A
RATED POWER: 156W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 28.8V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -50 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035 , BS EN/ EN61000-6-2 ,heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1742.7K hrs min. Telcordia SR-332 (Bellcore) ; 238.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.61Kg; 24pcs/15.6Kg/0.9CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: HRP-150-3.3/-5/-7.5/-12/-15)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-150-24 Mechanical Specification — Mechanical Specification

HRP-150-24 Block Diagram — Block Diagram

HRP-150-24 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (HRP-150)(EN) PDF Download

TUV Certificate (HRP-150)(EN) PDF Download

EMC Certificate (HRP-150)(EN) PDF Download

Test reports1

Test Report (HRP-150-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-150-24 for a 24V PLC or automation control system?

Yes, this unit provides a constant 24V DC output rated for 156W and 6.5A. It is appropriate for industrial control and automation equipment that requires 24V and stays within that capacity.

Is this power supply suitable for 24V industrial sensors, relays, and control devices on one DC bus?

It can support multiple 24V control loads as long as the combined draw does not exceed 6.5A or 156W. That makes it suitable for centralized 24V distribution in control cabinets and machine panels.

Can the HRP-150-24 power 24V embedded or industrial networking hardware?

It is designed for constant voltage 24V applications and can deliver up to 6.5A. That makes it a fit for embedded or industrial electronics that are specified for a 24V DC input.

Is the HRP-150-24 appropriate for 24V HMI and control panel applications?

Yes, the 24V output matches common industrial panel power requirements, and the supply is rated for 156W total output. Its 159.0 x 97.0 x 38.0 mm housing also helps when space is limited inside an enclosure.

Can this 24V power supply be used in cold or hot industrial environments?

The specified operating temperature range is -40C to +70C, with output derating at higher temperatures per the derating curve. Since no IP rating is provided, it is best used in protected indoor enclosures rather than exposed outdoor locations.

What are the other HRP-150 models if I need a different DC output?

The HRP-150 range includes 3.3V at 99W and 30A, 5V at 130W and 26A, 7.5V at 150W and 20A, 12V at 156W and 13A, 15V at 150W and 10A, 24V at 156W and 6.5A, 36V at 154.8W and 4.3A, and 48V at 158.4W and 3.3A. The series keeps a similar form factor while changing output voltage and current.
