Mean Well HRP-150N-36 High Peak-Power Power Supply 150W 36V 4.3A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-150N-36

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by HRP-150N3-36

Available to order

Overview

HRP-150N-36 is the 36V output model of this series: rated current 4.3A, rated power 154.8W, typical efficiency 89%.

HRP-150N is a 150W single output type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃ without cover. Moreover, HRP-150N provides 250% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95

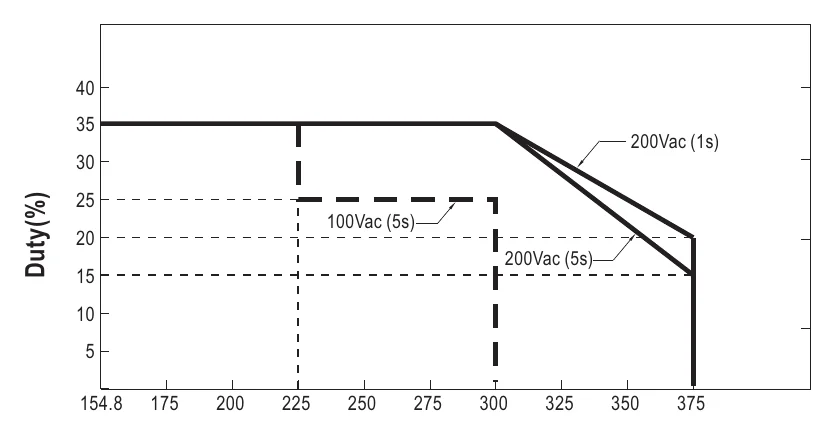

250% peak power capability
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 38mm
Built-in remote sense function
5 years warranty

Specifications

HRP-150N-36Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 4.3A
CURRENT RANGE: 0 ~ 4.3A
RATED POWER: 154.8W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 28.8 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: Normally works within 105 ~ 200% rated output power for more than 5 seconds and then shut down o/p voltage, re-power on to recover Constant current limiting for output power >280% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -50 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.04%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 , AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field BS EN/EN61000-4-3 Level 3, 10V/m
EFT/ Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field	BS EN/EN61000-4-3	Level 3, 10V/m
EFT/ Burst	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods

OTHERS

MTBF: 1740.3K hrs min. Telcordia SR-332 (Bellcore) ; 221.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.54Kg; 24pcs/12.96Kg/0.9CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

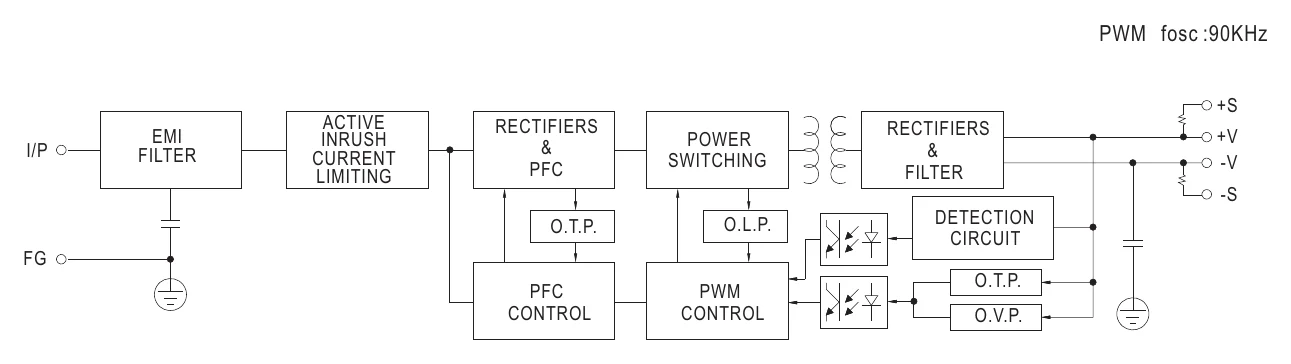

HRP-150N-36 Block Diagram — Block Diagram

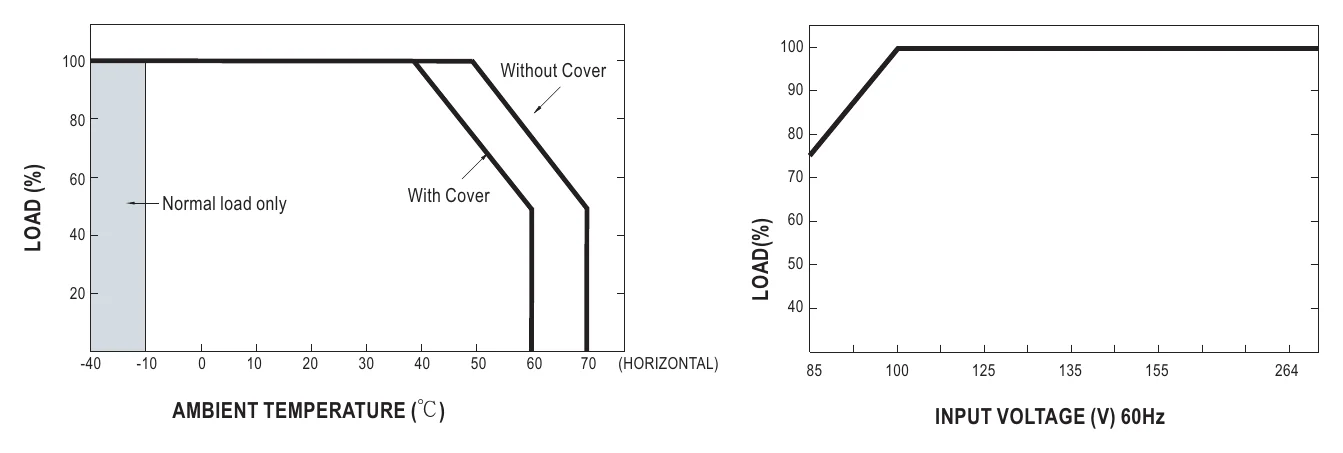

HRP-150N-36 Derating Curve — Derating Curve

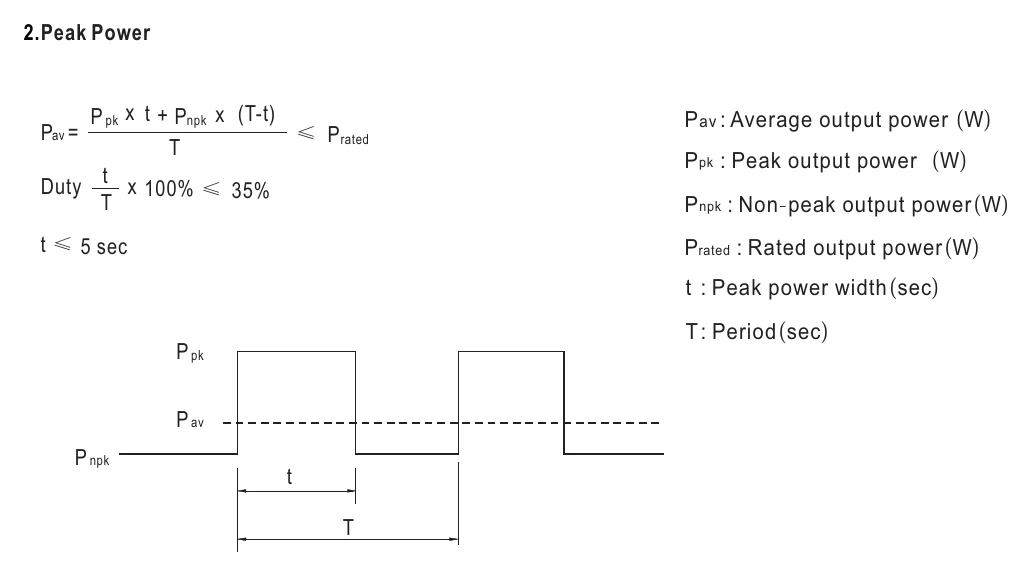

HRP-150N-36 P pk x t + Pnpk x (T-t) — P pk x t + Pnpk x (T-t)

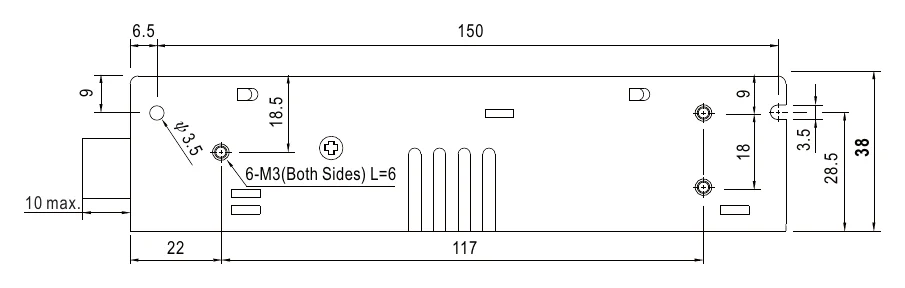

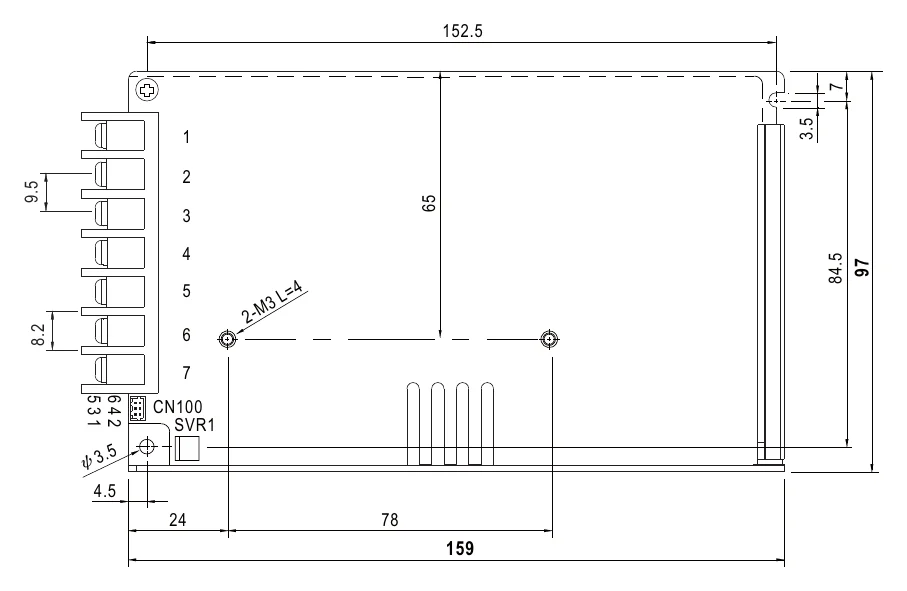

HRP-150N-36 Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Certificates8

Mean Well HRP-150N CB(TUV) Certificate PDF Download

Mean Well HRP-150 TUV-cer Certificate PDF Download

Mean Well HRP-150N CB(UL) Certificate PDF Download

Mean Well HRP-150N EMC Certificate PDF Download

Mean Well HRP-150N CE-dec Certificate PDF Download

Mean Well HRP-150N UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well HRP-150N-36 Test Report PDF Download

FAQ

Can I use the HRP-150N-36 for a 36V industrial control or embedded system?

Yes, this model provides a constant 36V output rated for 154.8W and 4.3A. It is suitable for 36V industrial, embedded, or automation equipment that stays within that current and power range.

Is the HRP-150N-36 a good fit for 36V motion-control or automation electronics?

It can be used where the equipment requires a regulated 36V supply and the load remains within 4.3A and 154.8W. The constant-voltage output is intended for systems designed around a 36V DC bus.

Can this power supply support 36V industrial communication or monitoring equipment?

It can be a fit for 36V DC hardware in monitoring, control, or embedded applications when the total demand does not exceed 4.3A. Its 85-264VAC input range also makes it usable across a wide AC input range.

Will the HRP-150N-36 handle harsh indoor temperatures, and is it outdoor-rated?

The listed operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve, which supports broad indoor environmental conditions. No IP rating appears in the provided specs, so the product data does not define outdoor or water-exposed use.

How does the HRP-150N-36 compare with the other HRP-150N output options?

The HRP-150N models listed here are HRP-150N-12 at 12V, 13A, 156W; HRP-150N-24 at 24V, 6.5A, 156W; HRP-150N-36 at 36V, 4.3A, 154.8W; and HRP-150N-48 at 48V, 3.3A, 158.4W. They belong to the same 150W series, while output voltage rises and rated current falls across the range.
