Mean Well

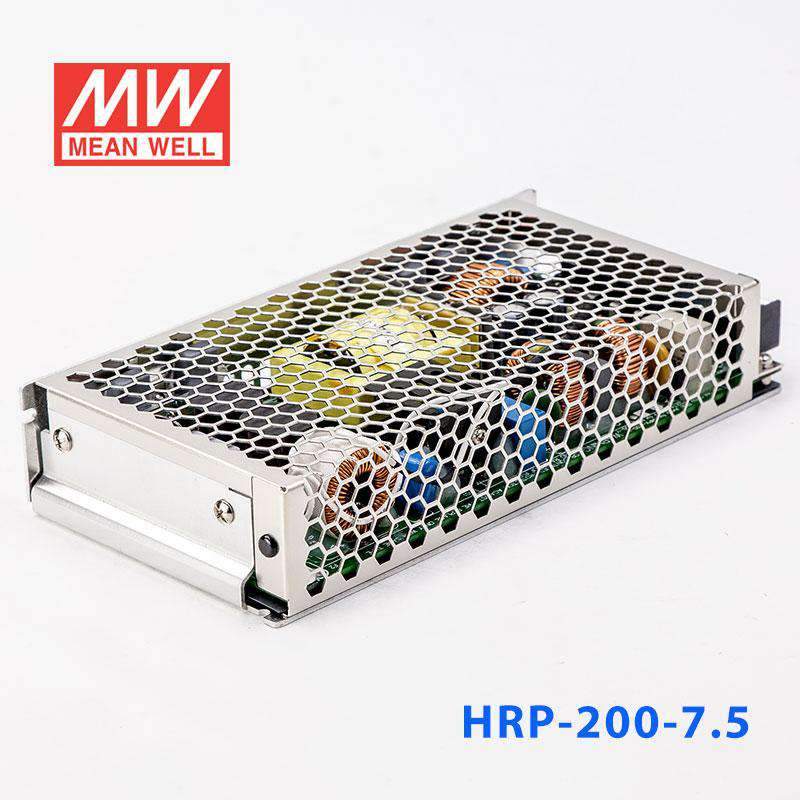

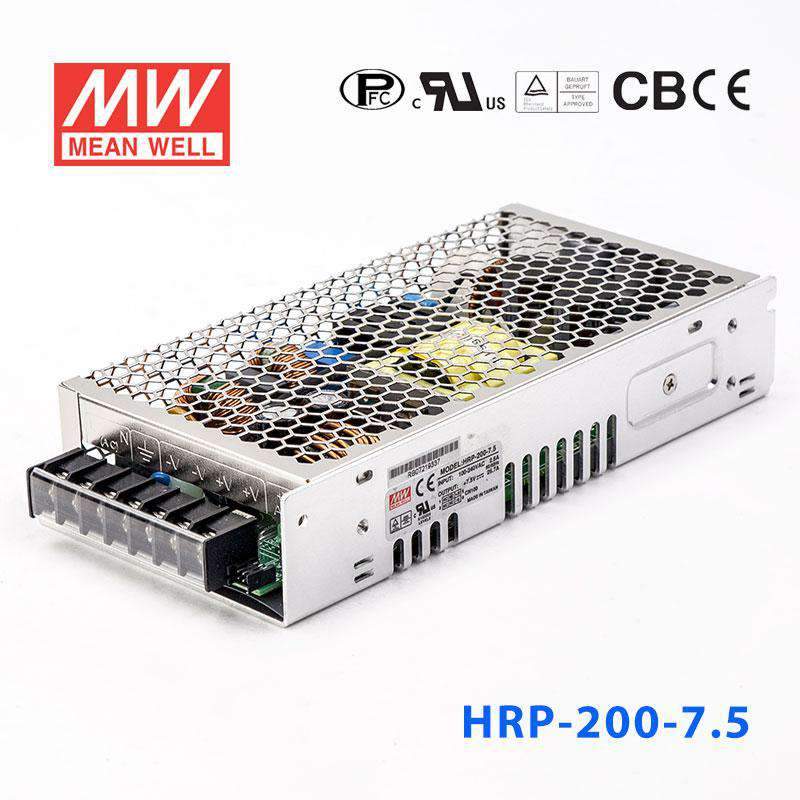

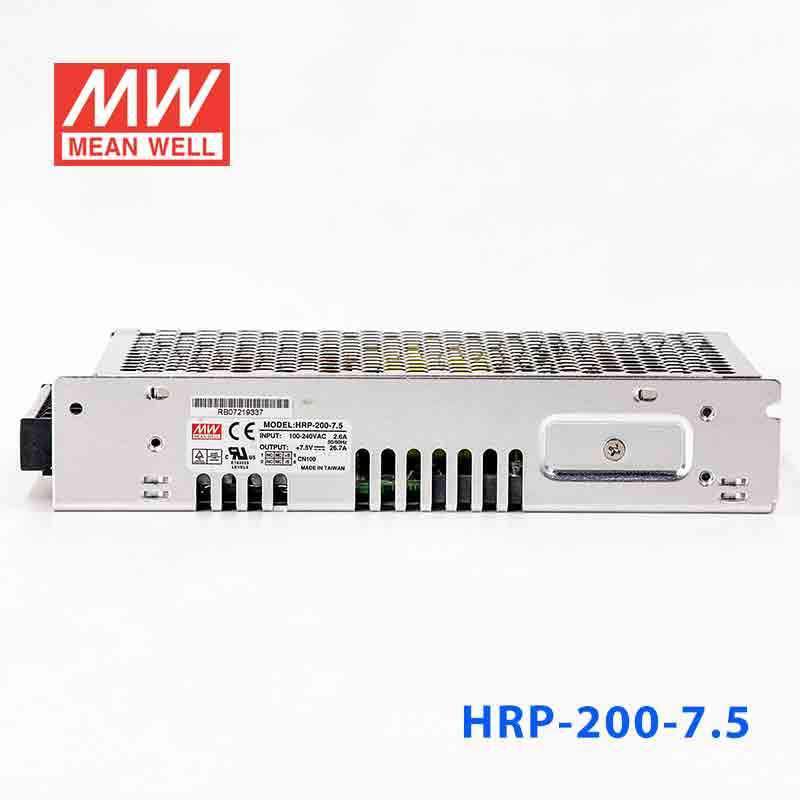

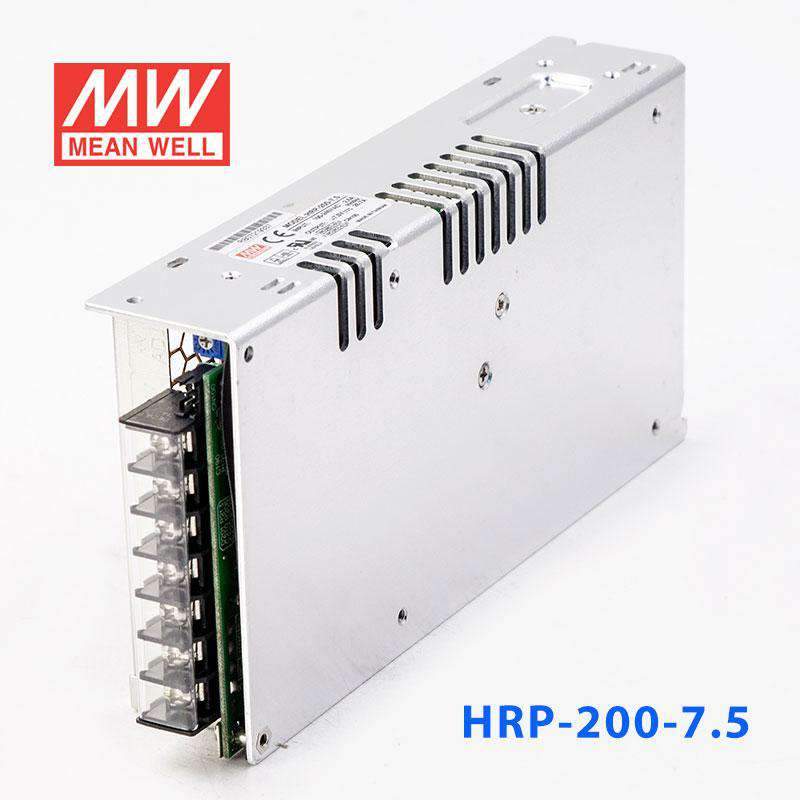

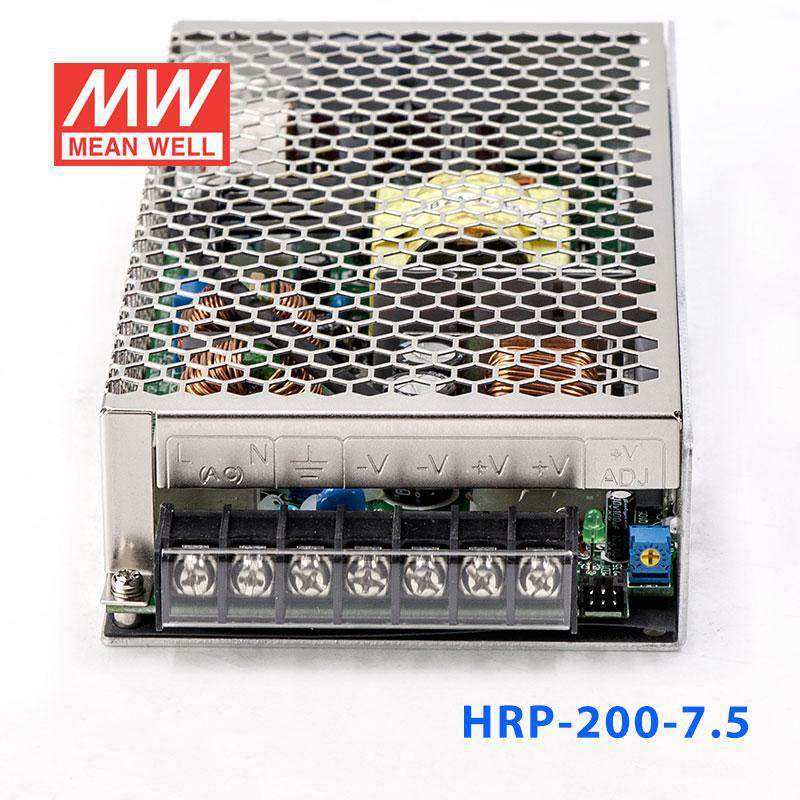

Mean Well HRP-200-7.5 Power Supply 200.3W 7.5V 26.7A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-200-7.5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-200-7.5
Available to order
|

Overview

HRP-200-7.5 is the 7.5V output model of this series: rated current 26.7A, rated power 200.3W, typical efficiency 86%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function
  • 5 years warranty

Specifications

HRP-200-7.5Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
7.5V
RATED CURRENT
26.7A
CURRENT RANGE
0 ~ 26.7A
RATED POWER
200.3W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
6.8 ~ 9V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
2.1A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035,heavy industry level, EAC TP TC 020

OTHERS

MTBF
1830.6K hrs min. Telcordia SR-332 (Bellcore) ; 209.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.77Kg; 18pcs/14.9Kg/0.87CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-200-7.5 Mechanical Specification
Mechanical Specification
HRP-200-7.5 Block Diagram
Block Diagram
HRP-200-7.5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-200-7.5 for 7.5V embedded or industrial electronics?

Yes, if the equipment requires 7.5V DC constant voltage and the load does not exceed 26.7A or 200.3W. That makes it suitable for higher-current 7.5V embedded or control electronics that match those ratings.

Is the HRP-200-7.5 a good fit for legacy 7.5V control systems or instruments?

It can be a fit for legacy or specialized equipment that specifically calls for 7.5V constant voltage input. The available output is 26.7A with total power up to 200.3W, which should be checked against the actual 7.5V load requirement.

Can this model power multiple 7.5V boards or modules in one enclosure?

It can support grouped 7.5V DC loads when the combined demand remains within 26.7A and 200.3W. Because it is a constant voltage supply, it is intended for equipment designed around a 7.5V input rail.

What is the difference between the HRP-200-7.5 and the other HRP-200 models?

The HRP-200 range shown here includes 3.3V at 40A and 132W, 5V at 35A and 175W, 7.5V at 26.7A and 200.3W, 12V at 16.7A and 200.4W, 15V at 13.4A and 201W, 24V at 8.4A and 201.6W, 36V at 5.7A and 205.2W, and 48V at 4.3A and 206.4W. The HRP-200-7.5 is the 7.5V constant voltage version for systems that need that specific DC bus level.

Is the HRP-200-7.5 rated for outdoor or wide-temperature use?

The operating temperature range is -40°C to +70°C, which supports use across a wide temperature span in protected equipment locations. The provided specs do not include an IP rating, so direct outdoor exposure cannot be confirmed from this listing.
