Mean Well

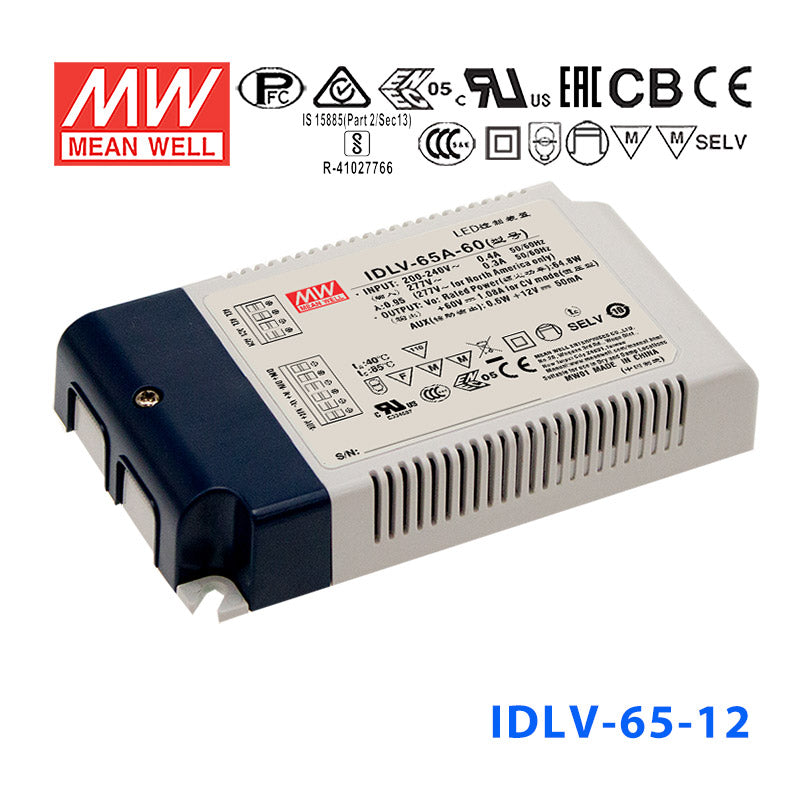

Mean Well IDLV-65-12 Power Supply 65W 12V, Dimmable 4.2A

SKU IDLV-65-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by PWM-60-12
Available to order
|

Overview

IDLV-65-12 is the 12V output model of this series: rated current 4.2A, rated power 50.4W, typical efficiency 85%.

IDLV-65 series is a 65W AC/DC LED driver featuring the constant voltage mode PWM style output design. IDLV-65 operates from 180～295VAC and offers models with different rated voltage ranging between 12V and 60V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLV-65 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for LED lighting system.

Features

  • Constant Voltage PWM style output with frequency 1KHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption<0.5W(Blank-Type)
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
  • 3 years warranty

Specifications

IDLV-65-12Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
4.2A
RATED POWER
50.4W
DIMMING RANGE
0~100%
VOLTAGE TOLERANCE
±10%
PWM FREQUENCY (Typ.)
1KHz(±20%)
SETUP TIMENote.3
500ms / 230VAC
AUXILIARY DC OUTPUTNote.4
Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only

INPUT

VOLTAGE RANGENote.2
180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 30A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD POWER CONSUMPTION
<0.5W for Blank-Type, <0.5W for A-Type

PROTECTION

SHORT CIRCUIT
Shut down O/P voltage, re-power on to recovery
OVER CURRENT
105 ~ 115% Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+85℃
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 NO.250.13-12; BS EN/EN 61347-1 & BS EN/EN 61347-2-13 independent, BS EN/EN62384, BIS IS15885(for IDLV-65-12,24,48 only), EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Line:1KV) , EAC TP TC 020

OTHERS

MTBF
4136.2K hrs min. Telcordia SR-332 (Bellcore) ; 398.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
130*75*25mm (L*W*H)
PACKING
0.23Kg;54pcs/13.5Kg/ 0.96CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  3. 3. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  4. 4. Aux. 12V will be damaged with short circuit; It will not be available with dimming off or output no load condition.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

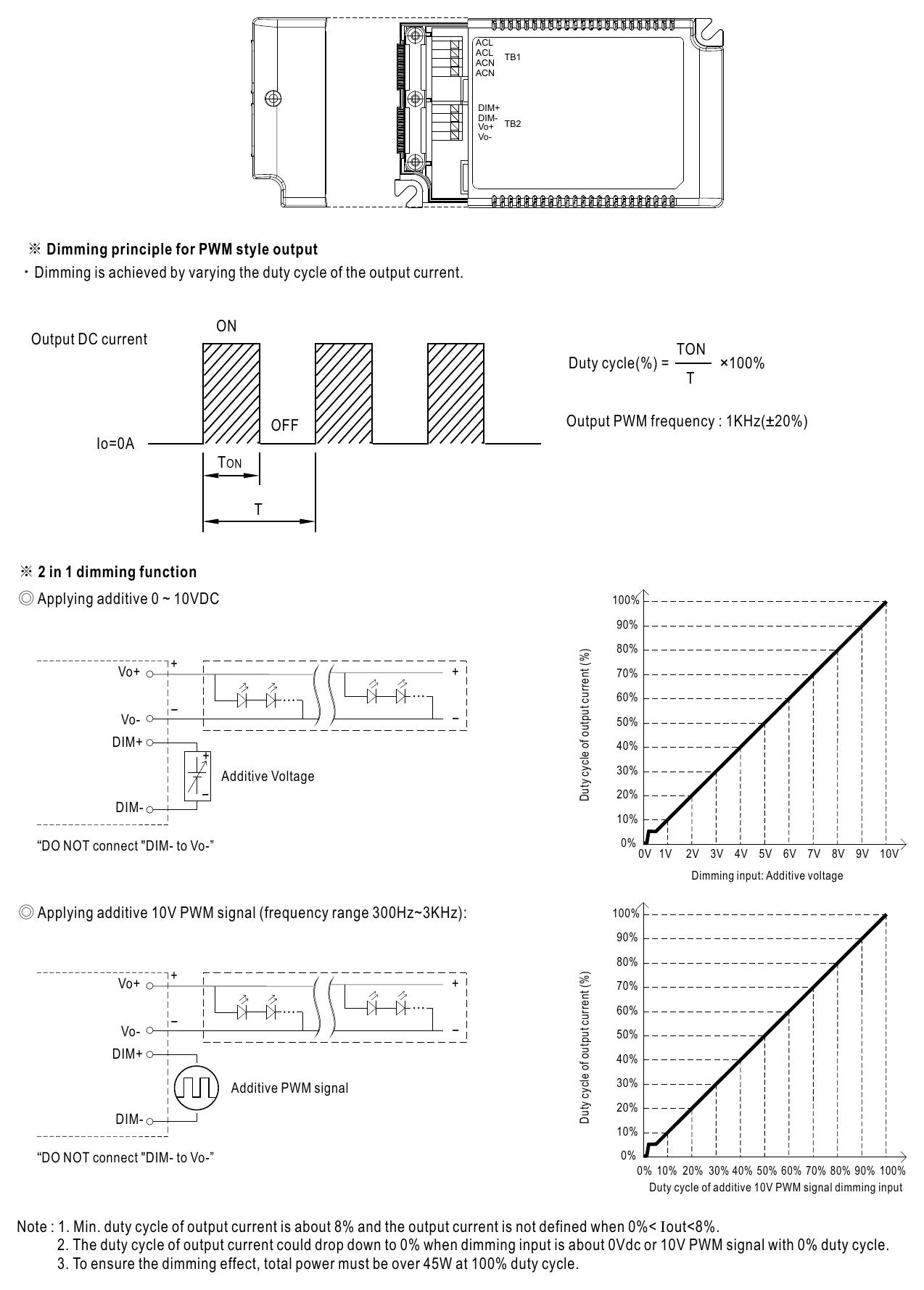

IDLV-65-12 DIMMING OPERATION
DIMMING OPERATION

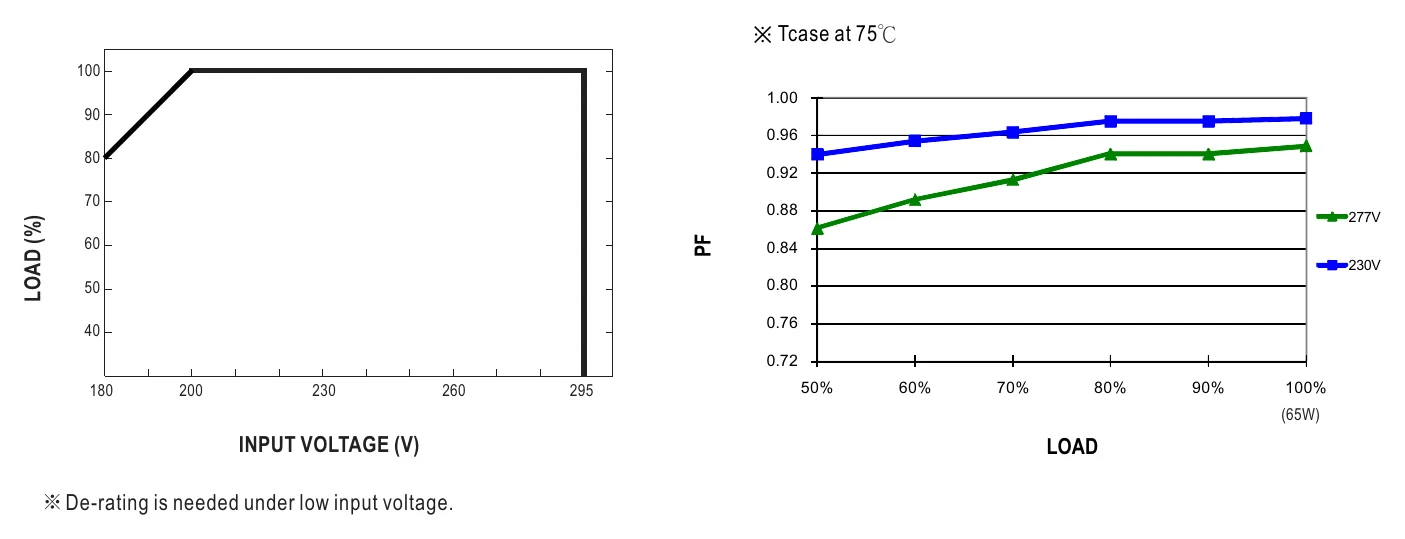

IDLV-65-12 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC

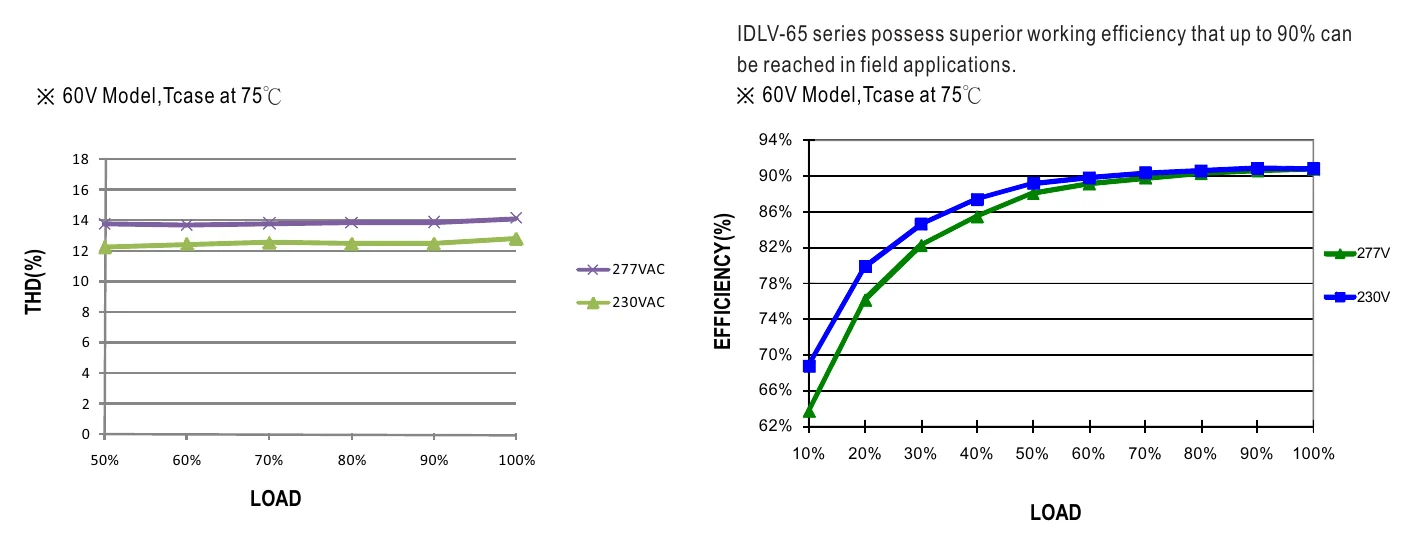

IDLV-65-12 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

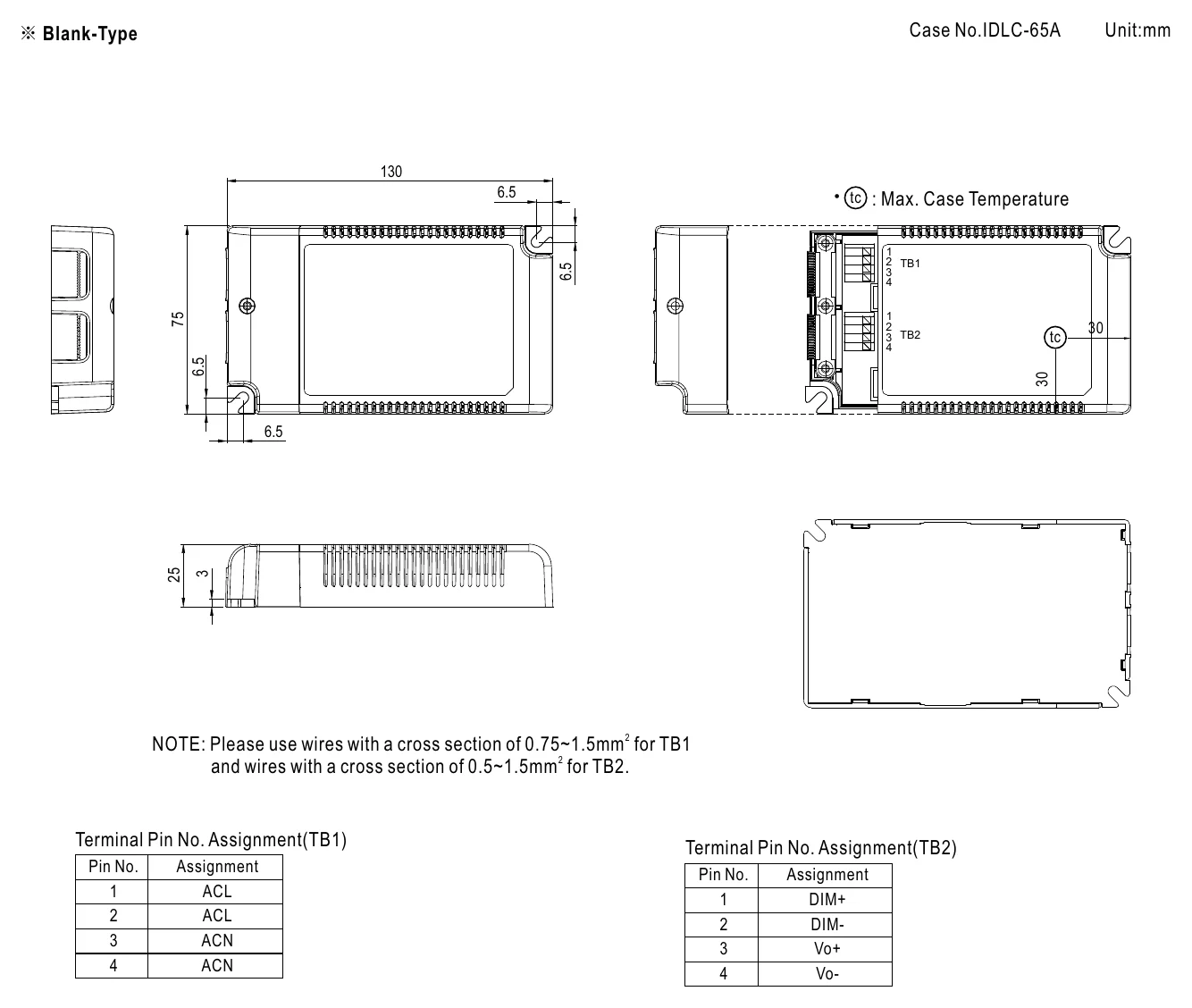

IDLV-65-12 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

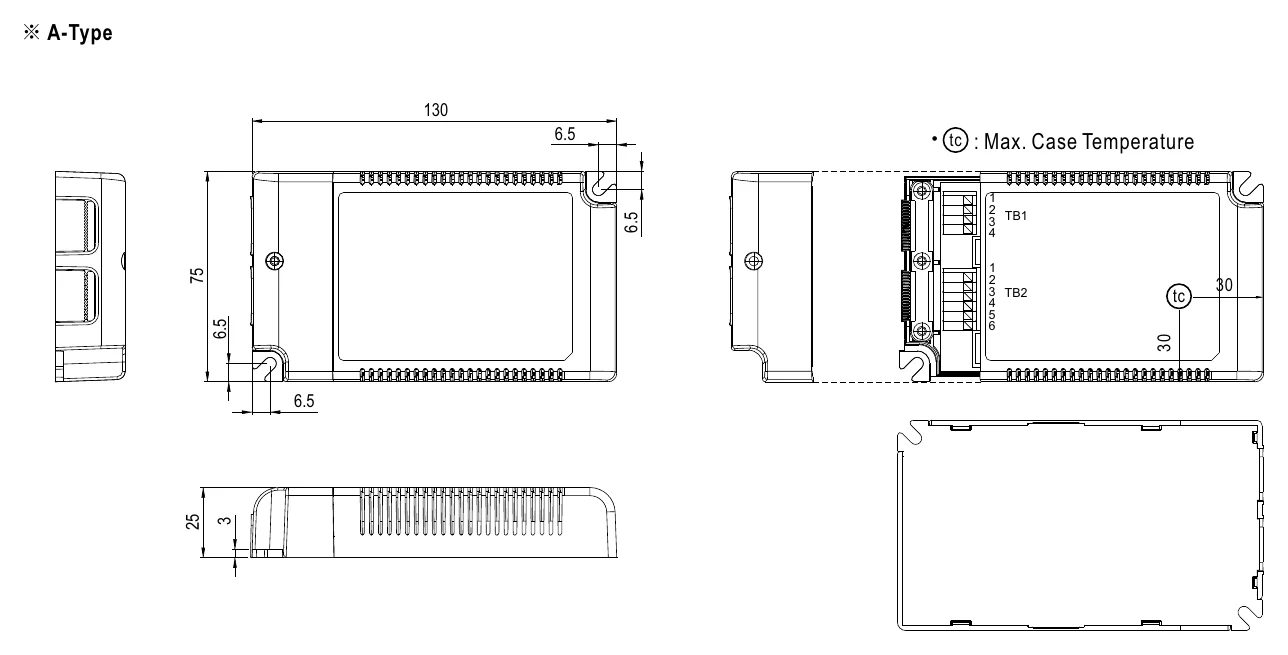

IDLV-65-12 ※ A-Type
※ A-Type

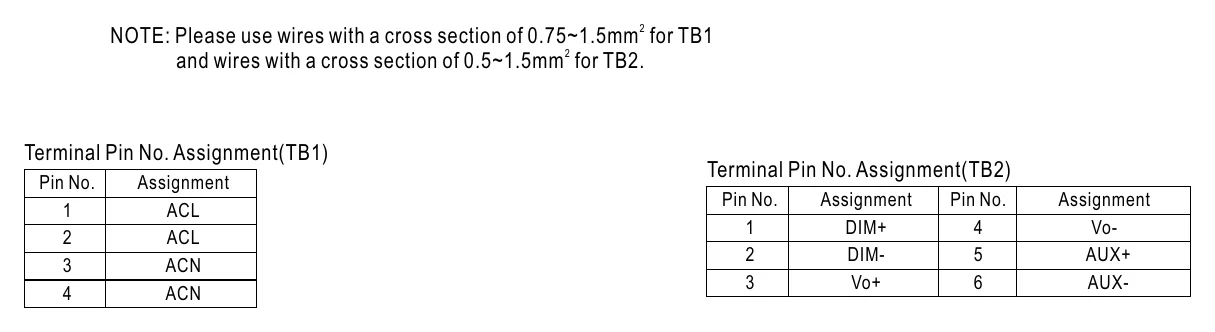

IDLV-65-12 ※ A-Type (2)
※ A-Type (2)

Typical applications

  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting
  • Industrial lighting

Downloads

FAQ

Can I use the IDLV-65-12 for longer 12V LED strip runs than a 36W driver?

Yes, this 12V constant voltage driver provides 50.4W and 4.2A, so it supports more 12V strip load than a 36W model. It is suitable for higher-capacity 12V strip lighting as long as the total load stays within 50.4W.

Is the IDLV-65-12 suitable for 12V LED signage applications?

Yes, it can be used for 12V LED signage where the sign lighting is designed for constant voltage operation and the total demand does not exceed 50.4W. The 4.2A rated output current is the limit for the total sign load.

Can this driver power brighter 12V accent or display lighting setups?

Yes, the IDLV-65-12 is intended for 12V constant voltage lighting and can support higher-load accent or display lighting up to 50.4W. Its 4.2A rated current makes it suited to larger 12V lighting loads within that limit.

Is the IDLV-65-12 appropriate for 12V cabinet or architectural strip lighting?

It can be a fit for 12V cabinet, cove, or architectural strip lighting when the system uses 12V constant voltage products and stays within 50.4W. Its 4.2A output supports moderate-to-higher 12V strip loads for these applications.

What LED strip length can I estimate from the IDLV-65-12?

The maximum available strip power is 50.4W, so estimated length is 50.4W divided by your strip's rated power per meter. Use the formula 50.4 ÷ watts per meter = maximum meters, and check your strip rated power per meter before choosing length.

Can the IDLV-65-12 be used in outdoor or wet environments?

The listed specifications do not provide an IP rating, so it should not be assumed suitable for outdoor or wet-location use based on this data alone. Its working temperature is specified as a case temperature (Tcase) of -20°C to +85°C, but that only addresses temperature, not moisture protection.

How does the IDLV-65-12 compare with other 12V models in the IDLV family?

In the IDLV-65 series the 12V model is rated 4.2A and 50.4W, the highest current but lowest power of the series (24V 57.6W, 36V/48V/60V 64.8W), with 85% typical efficiency. It comes as a Blank-Type or an A-Type, which adds a 12V/50mA auxiliary output.
