Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

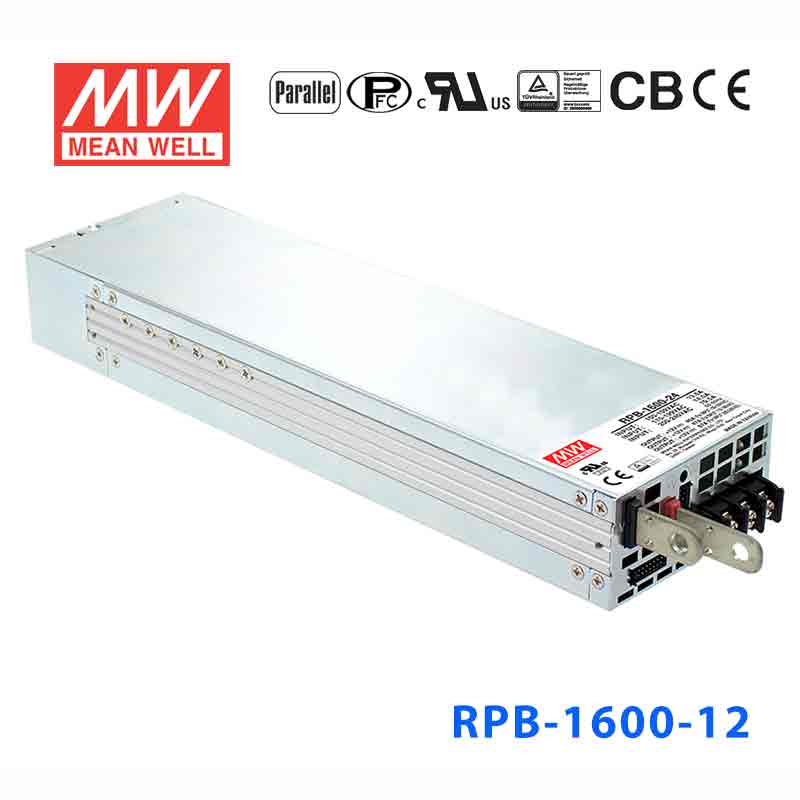

Mean Well RPB-1600-12 Battery Chargers 1600W 14.4V 100A - 3 Stage W/PFC

suitable for lead-acid and Li-ion batteriesbuilt-in default 3 stage charging curvebuilt-in I²C interfacePMBus protocolactive current sharing up to 4800W

SKU:

RPB-1600-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The RPB-1600 is a 1600W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ 3 years warranty

Frequently Asked Questions

What battery types is the Mean Well RPB-1600-12 designed to charge?

The RPB-1600-12 is designed for lead-acid batteries including gel, flooded, and AGM types, as well as Li-ion batteries including lithium iron and lithium manganese chemistries. It includes built-in default 3-stage charging curves and also supports a programmable charging curve for applications that need more customization.

What are the main output specifications of the RPB-1600-12?

This model is rated at 1600W with a 14.4V output and 100A rated current. Those specifications make it a high-power charger for demanding battery charging applications where substantial current capacity is needed.

Is the RPB-1600-12 suitable for industrial or heavy-duty battery charging applications?

Yes, the RPB-1600-12 is aimed at higher-demand charging environments thanks to its 1600W power rating, active PFC, and programmable output voltage and current. Features such as built-in OR-ing FET and active current sharing also make it relevant for larger or more advanced power systems.

Can the charging behavior of the RPB-1600-12 be adjusted for different battery requirements?

Yes, this model includes built-in default 3-stage charging curves and also supports a programmable charging curve. In addition, the output voltage and current are programmable, which gives more flexibility for battery charging applications that need controlled charging parameters.

Does the RPB-1600-12 support monitoring or system communication features?

Yes, the RPB-1600-12 includes a built-in I2C interface and supports PMBus protocol. An optional CANBus protocol is also available, which can be useful in systems that require charger communication and control integration.

What operating temperatures can the Mean Well RPB-1600-12 handle?

The specified operating temperature range for this model is -30°C to 70°C. That wide range makes it better suited than many standard chargers for use in challenging ambient conditions, provided the overall system is designed for the same environment.

Can multiple RPB-1600-12 units be used in higher-power systems?

Yes, the RPB-1600-12 supports active current sharing up to 4800W in a 2+1 configuration. This makes it a stronger fit for applications that may need scalable charging capacity beyond a single 1600W unit.

What warranty is offered for the RPB-1600-12?

The RPB-1600-12 includes a 5-year warranty. That warranty period is consistent with its positioning as an industrial-grade battery charger for long-term use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well RPB-1600-48 Battery Chargers 1600W 57.6V 27.5A - 3 Stage W/PFC	1600W	Lead Acid Battery	48V	—	View
Mean Well RPB-1600-24 Battery Chargers 1600W 28.8V 55A - 3 Stage W/PFC	1600W	Lead Acid Battery	24V	—	View
