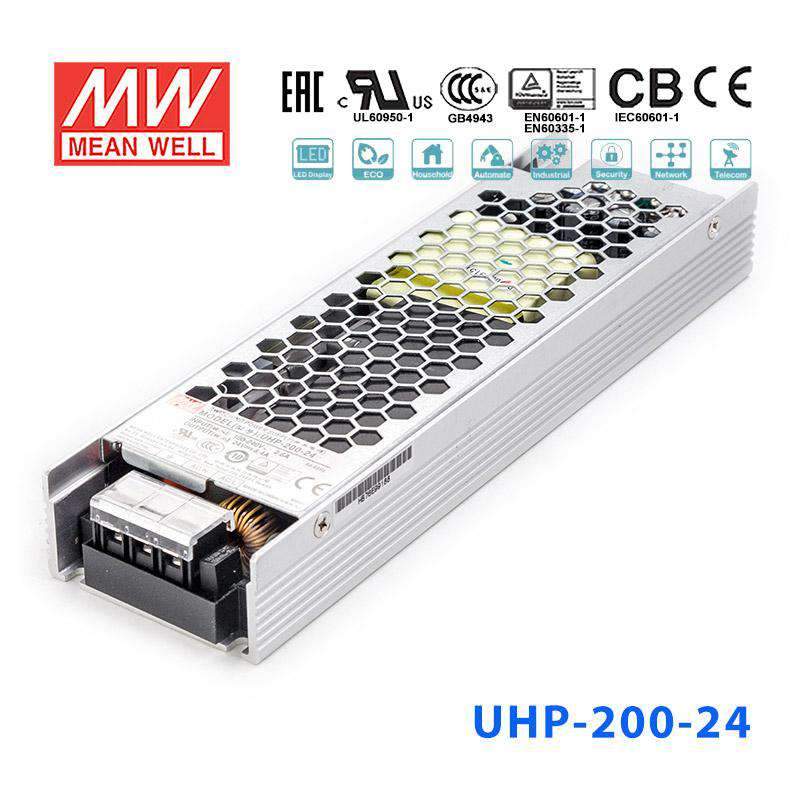

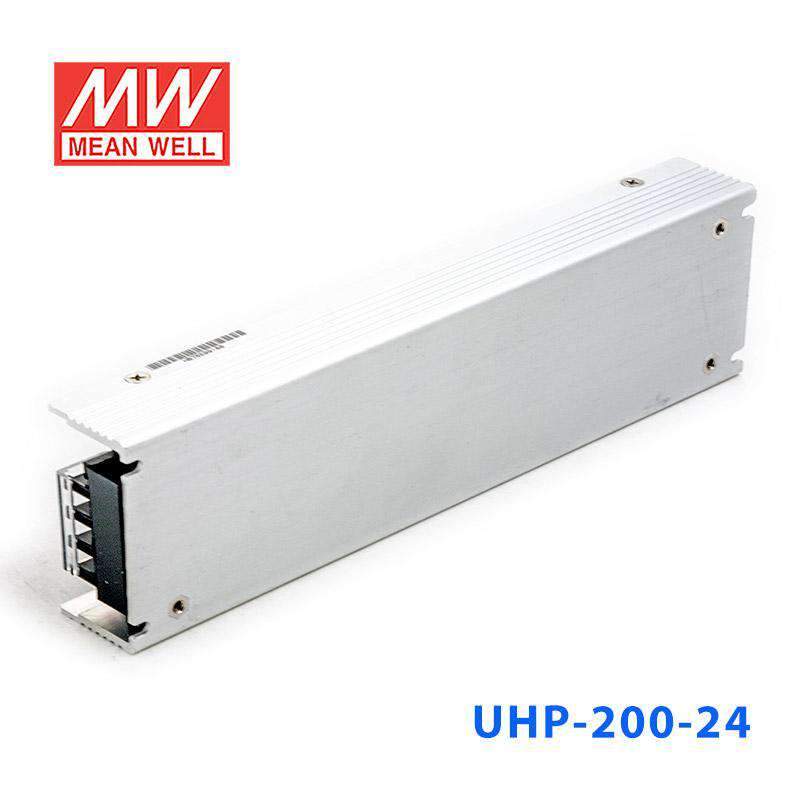

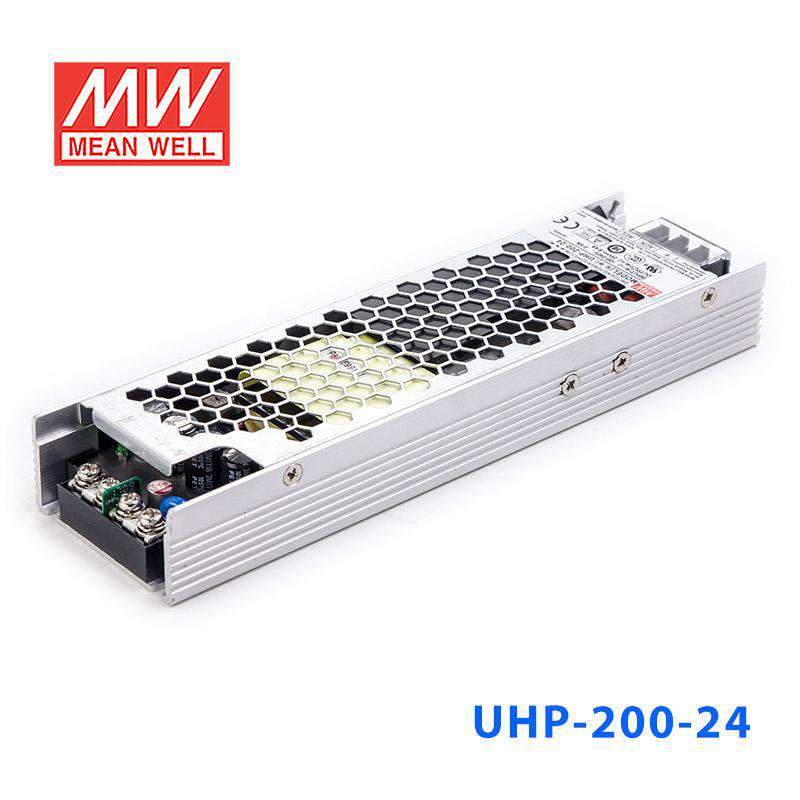

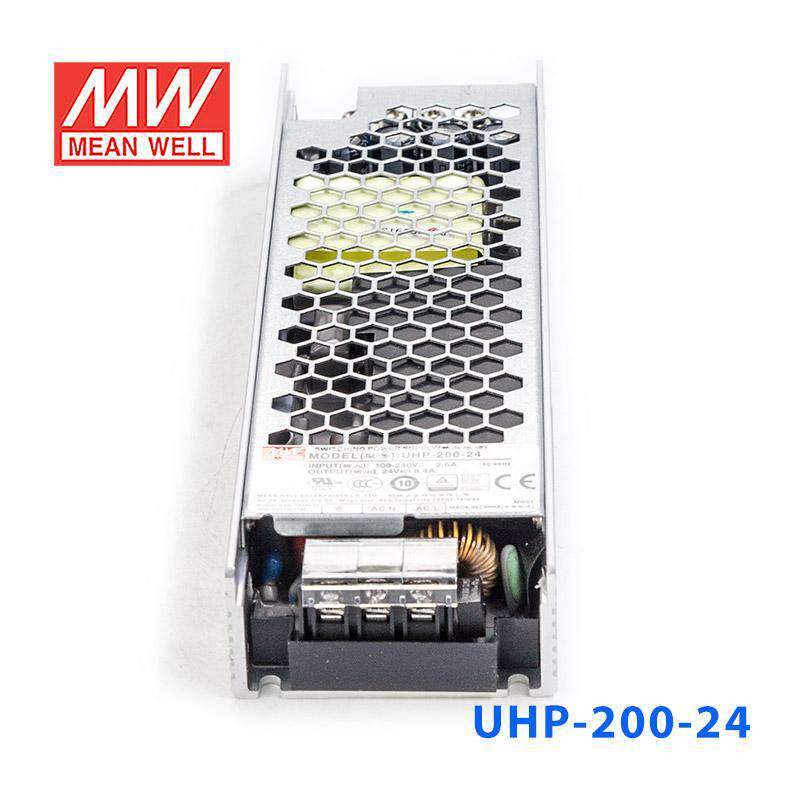

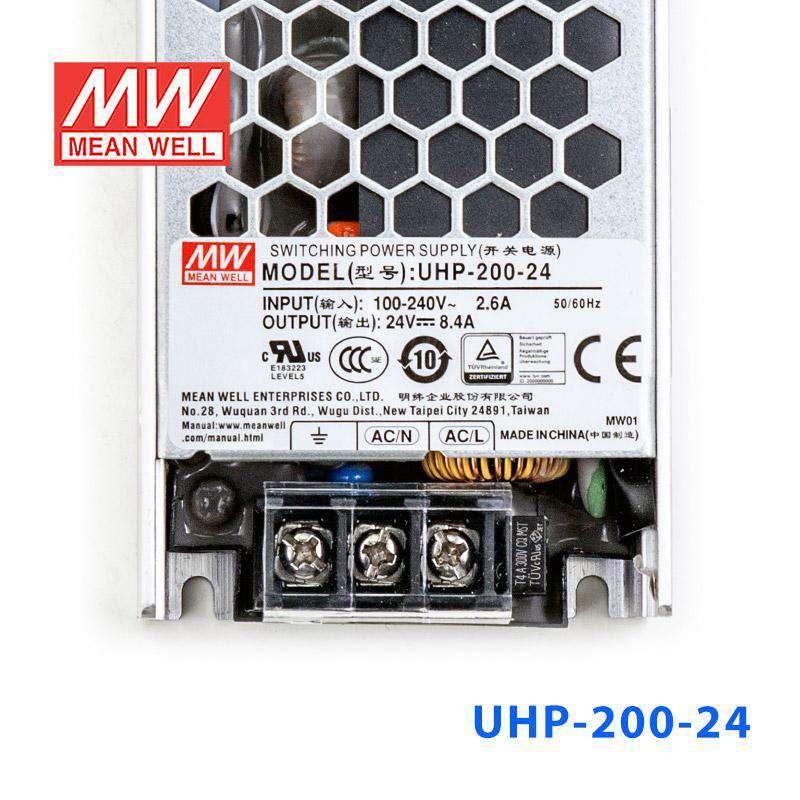

Mean Well UHP-200-24 Power Supply 201.6W 24V 8.4A

slim and low profilefanless design

SKU UHP-200-24

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

UHP-200-24

UHP-200-24 200W 24V Low stock

UHP-350-24 350W 24V Low stock

UHP-500-24 500W 24V Backorder

UHP-750-24 750W 24V Backorder

UHP-1000-24 1000W 24V Low stock

UHP-1500-24 1500W 24V Backorder

UHP-2500-24 2500W 24V Backorder

Product variants

In stock

Overview

UHP-200-24 is the 24V output model of this series: rated current 8.4A, rated power 201.6W, typical efficiency 94%.

UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V . In addition to the high efficiency up to 94%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-200 has the complete protection functions and 5G anti-vibration capability;It is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,UL 62368-1 and GB 4943.1. UHP-200 series serves as a high performance power supply solution for various industrial applications.

Features

Slim and Low profile (26mm)
Fanless design,200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty

Specifications

UHP-200-24Specifications from the official datasheet (2025-08-01 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 8.4A
RATED POWER: 201.6W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 22.8~25.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2000ms, 80ms/230VAC; 3000ms, 80ms/115VAC at full load;550ms/230VAC for 55V setup time
HOLD UP TIME (Typ.): 10ms/230VAC 10ms/115VAC

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.94/230VAC PF≥0.98/115VAC at full load
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2.2A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)^Note.8: Cold start 40A/115VAC 80A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVERLOAD: 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 26.4 ~ 31.2V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL(Optional): Contact rating(max.):15Vdc/10mA resistive load
REDUNDANT(Optional): For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), GB 4943.1, EAC TP TC 004, KC62368-1(only for UHP-200-24), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 10), BS EN/EN61558-1,BS EN/EN61558-2-16,BSMI CNS15598-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3, EAC TP TC 020,BSMI CNS15936
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020

OTHERS

MTBF: 2472.1 K hrs min. Telcordia SR-332 (Bellcore) ; 257.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 194*55*26mm (L*W*H)
PACKING: 0.468kg;24pcs/12.2kg/0.49CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. R type efficiency slightly less than the Blank type, according to the actual measurement.
8. Inrush current parameter has 10% tolerance .
9. RCM is on voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
10. Some models or factory may not have the BIS marking , please contact MEAN WELL’s sales for more details.

Technical drawings

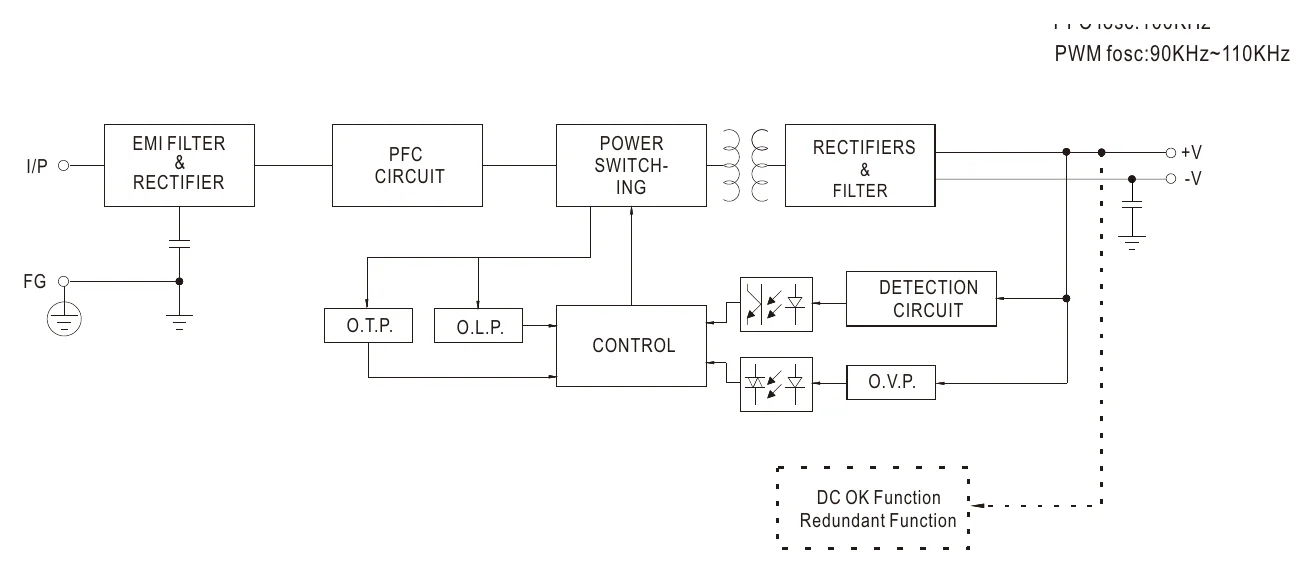

UHP-200-24 Block Diagram — Block Diagram

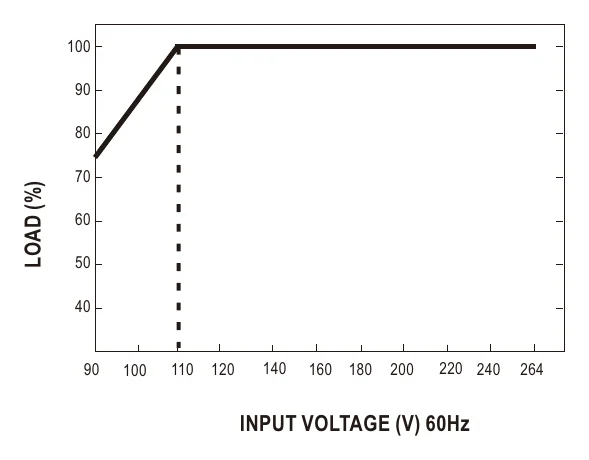

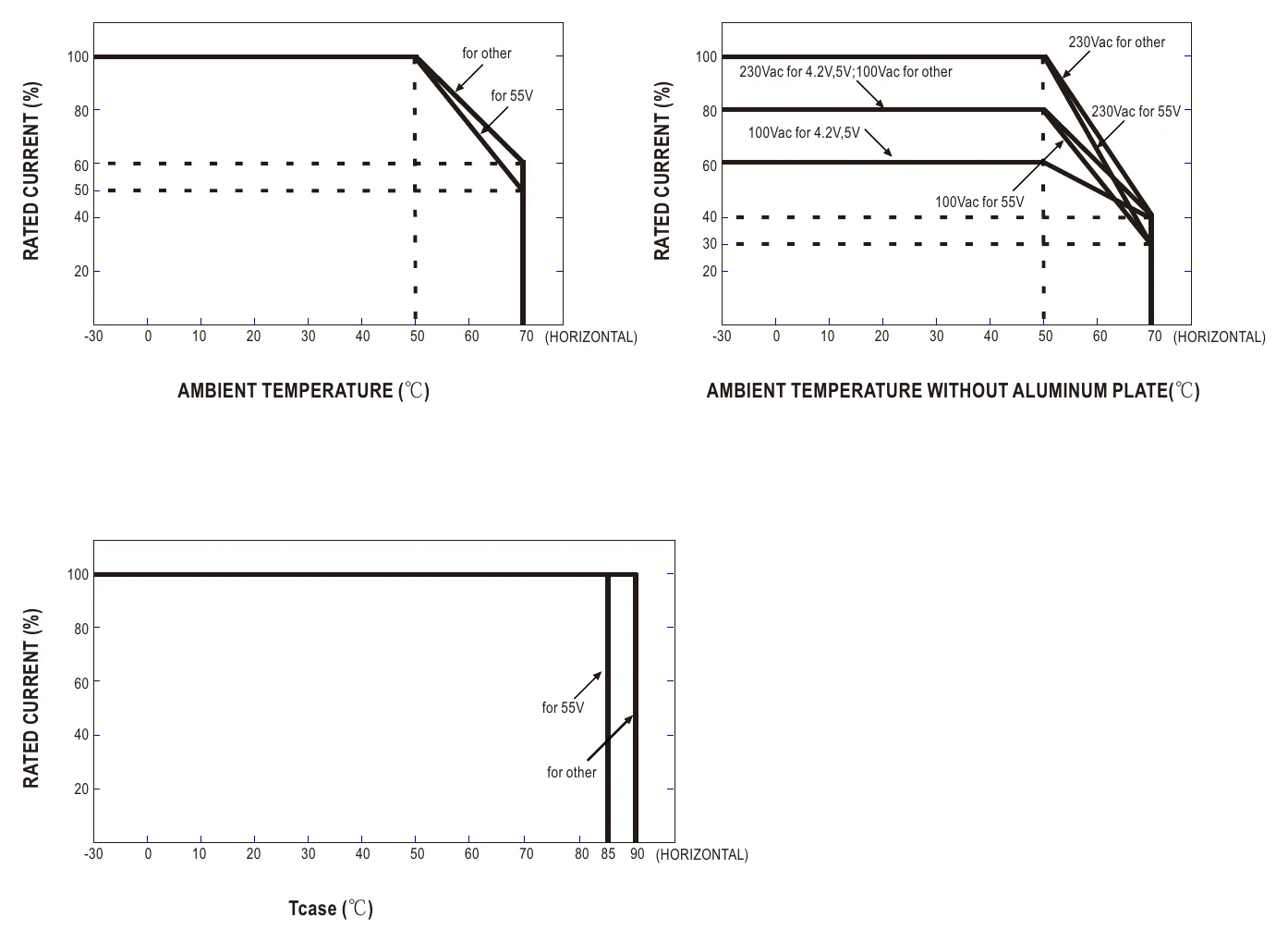

UHP-200-24 Derating Curve — Derating Curve

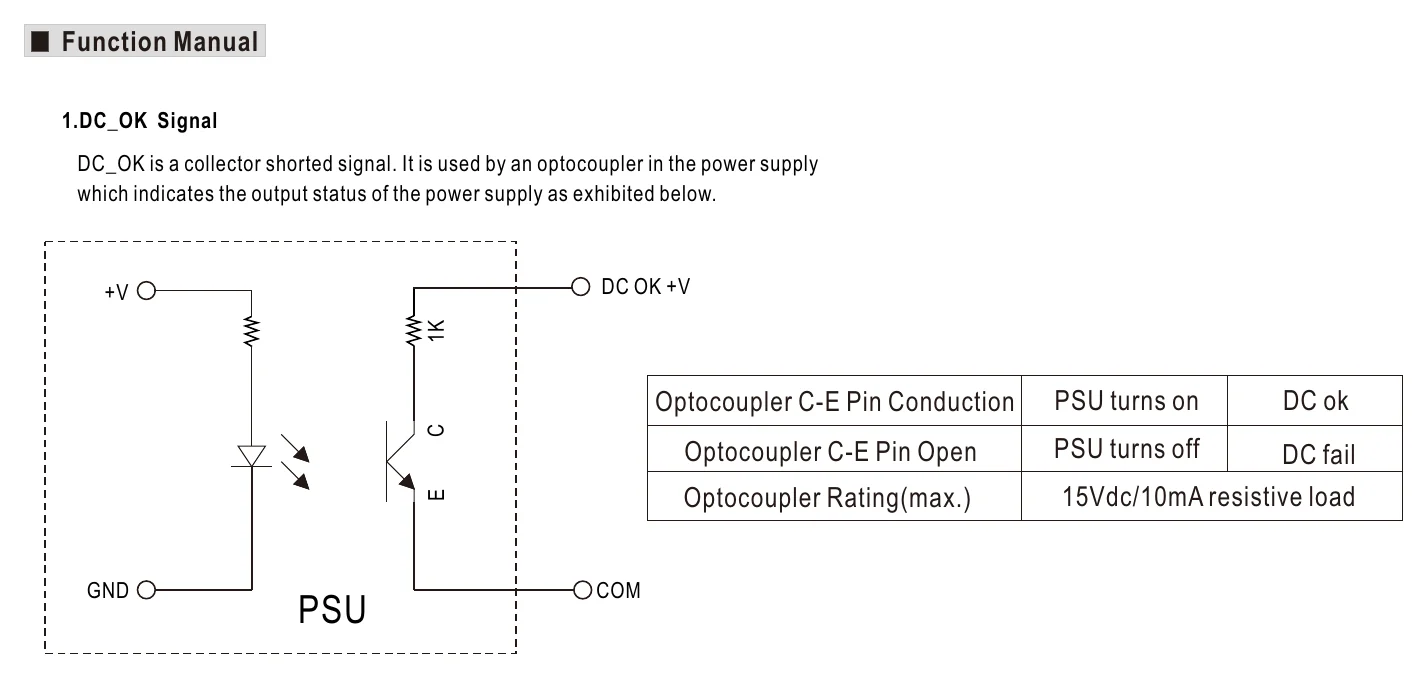

UHP-200-24 Function Manual — Function Manual

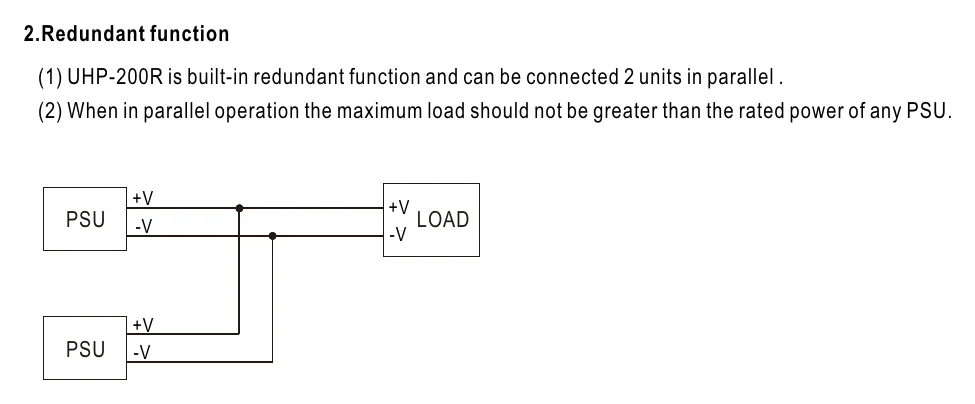

UHP-200-24 2.Redundant function — 2.Redundant function

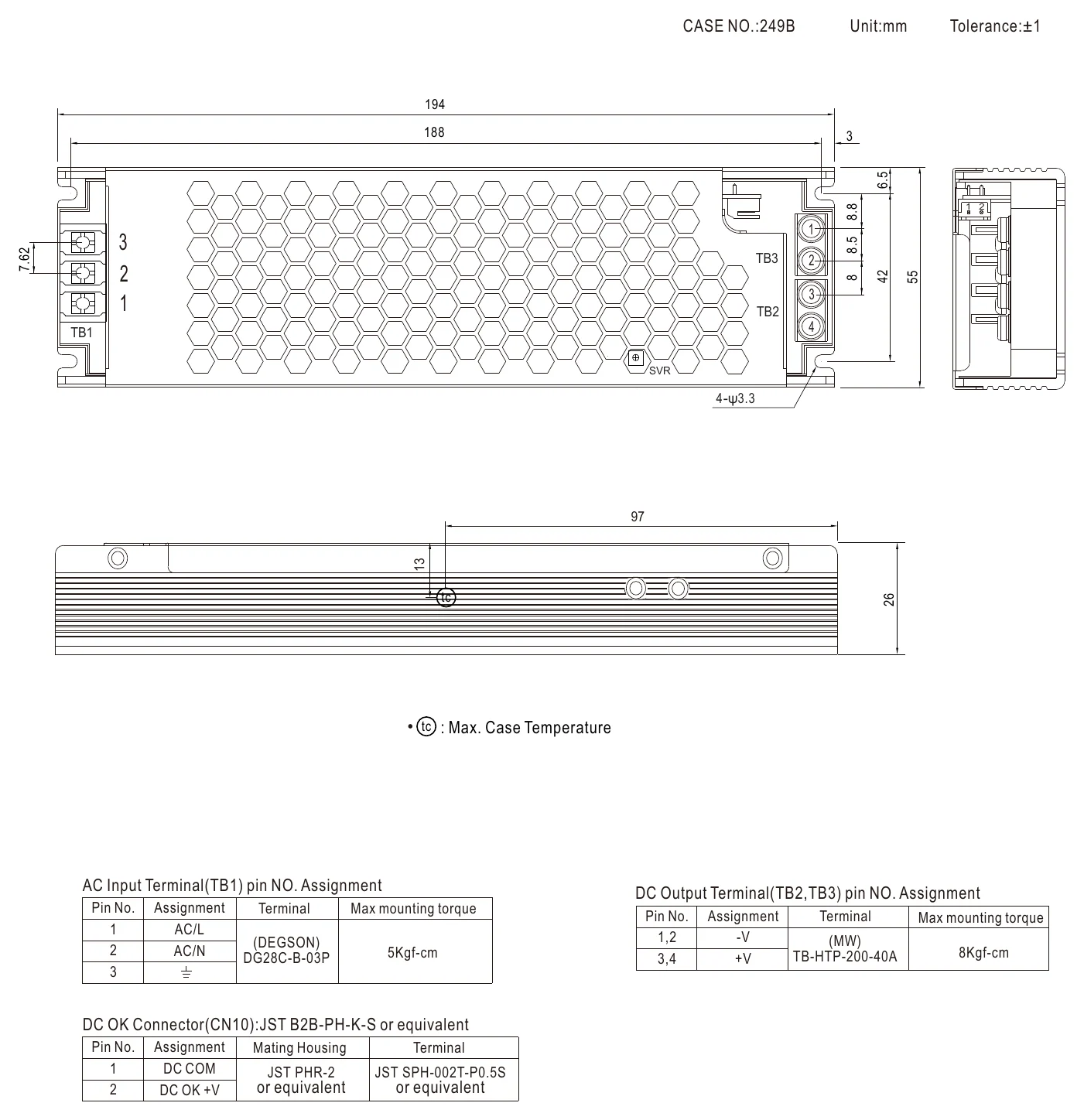

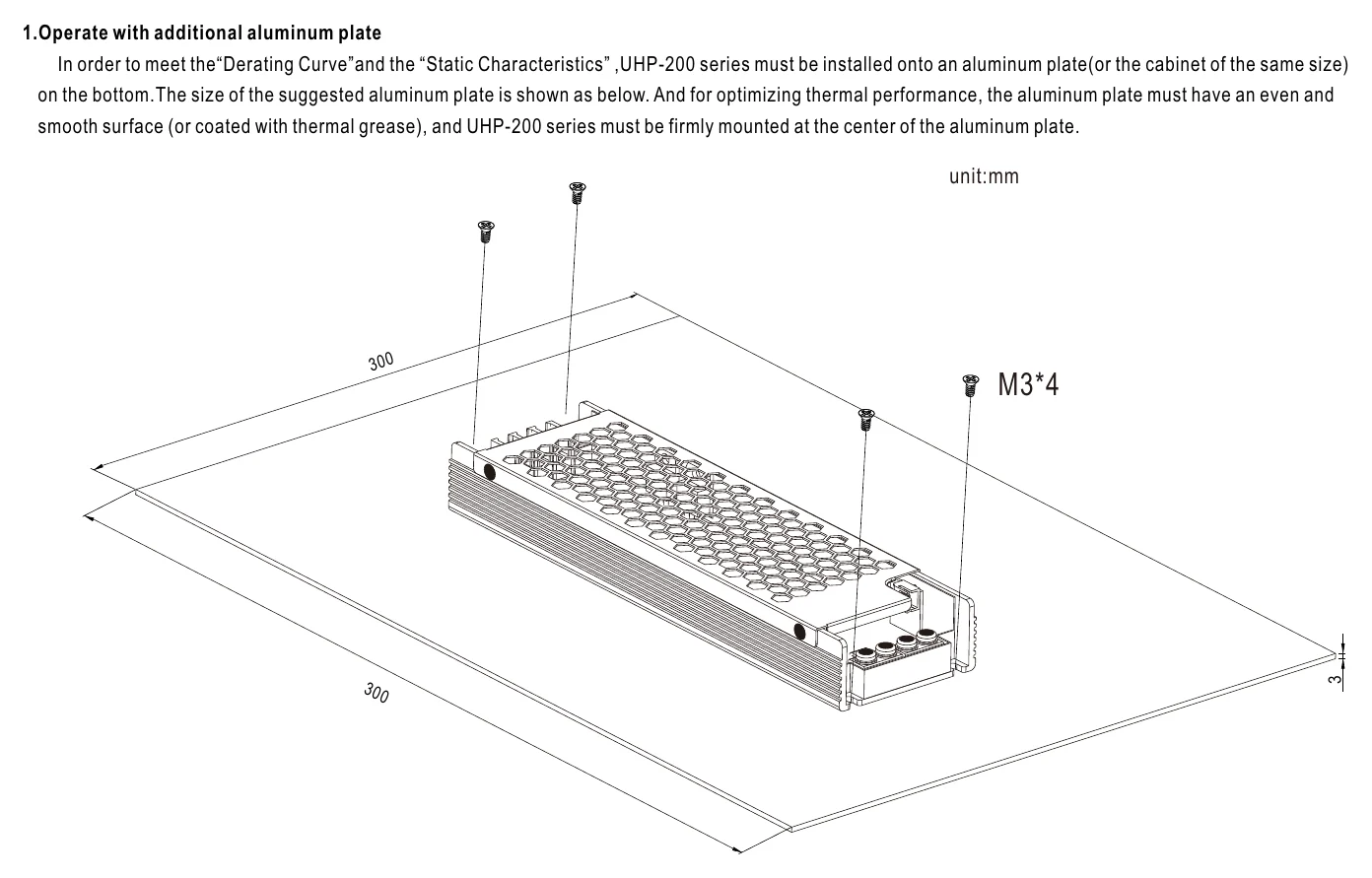

UHP-200-24 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Downloads

Certificates10

Mean Well UHP-200(R)-BSMI Certificate PDF Download

Mean Well UHP-200(R)-CCC Certificate PDF Download

Mean Well UHP-200(R)-TUV Certificate PDF Download

Mean Well UHP-200(R)-TUV(EN60335) Certificate PDF Download

Mean Well UHP-200(R)-CB(TUV) Certificate PDF Download

Mean Well UHP-200(R)-CB(UL) Certificate PDF Download

Mean Well UHP-200(R)-CB_60335 Certificate PDF Download

Mean Well UHP-200(R)-EMC Certificate PDF Download

Mean Well UHP-200(R)-CE-dec Certificate PDF Download

Mean Well UHP-200(R)-UK-dec Certificate PDF Download

Test reports1

Mean Well UHP-200-24 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the UHP-200-24 for a 24V PLC or industrial control panel?

Yes, this model is a constant voltage 24V power supply rated for 201.6W and 8.4A. That makes it a fit for 24V industrial control loads that stay within those output limits. Its slim 194.0 × 55.0 × 26.0 mm housing and fanless design also suit compact panel layouts.

Is the UHP-200-24 suitable for 24V automation sensors, relays, and I/O devices?

It can be used for 24V automation hardware when the combined load stays within 201.6W and 8.4A. The unit provides constant voltage output, which is appropriate for equipment designed for a regulated 24V DC source. Buyers should match the total device demand to the supply's 8.4A output current.

Can this 24V power supply run embedded or industrial 24V electronics in a space-limited enclosure?

Yes, the low-profile 194.0 × 55.0 × 26.0 mm form factor is aimed at installations where enclosure space is limited. The fanless design helps in applications that prefer a passive cooling approach. For embedded or industrial 24V electronics, the key limits are the 24V output, 201.6W power, and 8.4A current rating.

Can I use the UHP-200-24 for a 24V machine interface or automation accessory load?

This model is intended for 24V constant voltage loads up to 201.6W. It is suitable for machine interface, panel accessory, or automation support loads that require 24V DC and draw no more than 8.4A. The wide 90-264VAC input also helps when the AC source varies across common mains ranges.

What is the difference between the UHP-200 voltage options?

Within the standard UHP-200 range, the listed models are 132W at 3.3V and 40A, 168W at 4.2V and 40A, 200W at 5V and 40A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 201.6W at 36V and 5.6A, and 201.6W at 48V and 4.2A. The main difference is the output voltage and corresponding current rating, while all are in the same UHP-200 family.

Is the UHP-200-24 appropriate for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -30°C to +70°C, so temperature capability is broad. However, no IP rating is provided in the supplied data, so outdoor exposure or washdown suitability is not established from these specs alone. It is better treated as a unit that needs an environment consistent with its documented ratings.
